HackRF One R9 1MHz-6GHz Software Defined Radio | GPS Simulator Kit V1.7.0

Product Description

Features:

Versatility in Frequency: Capable of transmitting or receiving signals ranging from 1 MHz up to 6 GHz. From low frequency applications to ultra-high frequency uses, HackRF One is equipped to handle it all.



Open-Source Excellence: Designed to foster innovations, HackRF One supports testing and development for both modern and next-gen radio technologies. As an open-source hardware platform, you're not just buying a tool; you're investing in a community-driven technological development.



High-Speed Performance: Achieve up to 20 million samples per second with the 8-bit quadrature samples (8-bit I and 8-bit Q). Whether you're receiving or transmitting, enjoy seamless and high-quality signal processing.



User-Friendly Interface: Compatible with a range of platforms like GNU Radio, SDR#, and others, HackRF One allows for easy integration. Software configurable RX and TX gain, alongside baseband filters, make tweaking performance to suit specific needs straightforward.



Comprehensive Connectivity: With an SMA female antenna connector and SMA female clock input/output, synchronization and antenna hook-ups are hassle-free. Moreover, the built-in programming button, internal pin headers, and high-speed USB 2.0 further ensure a rich connection experience.



Specifications:

Operating Frequency: 1 MHz to 6 GHz

Half-duplex transceiver

Up to 20 million samples per second

8-bit quadrature samples (8-bit I and 8-bit Q)

Compatible with GNU Radio, SDR#, etc.

Software configurable RX and TX gain and baseband filter

Software-controlled antenna port power (3.3 V at 50 mA)

SMA female antenna connector

SMA female clock input/output for synchronization

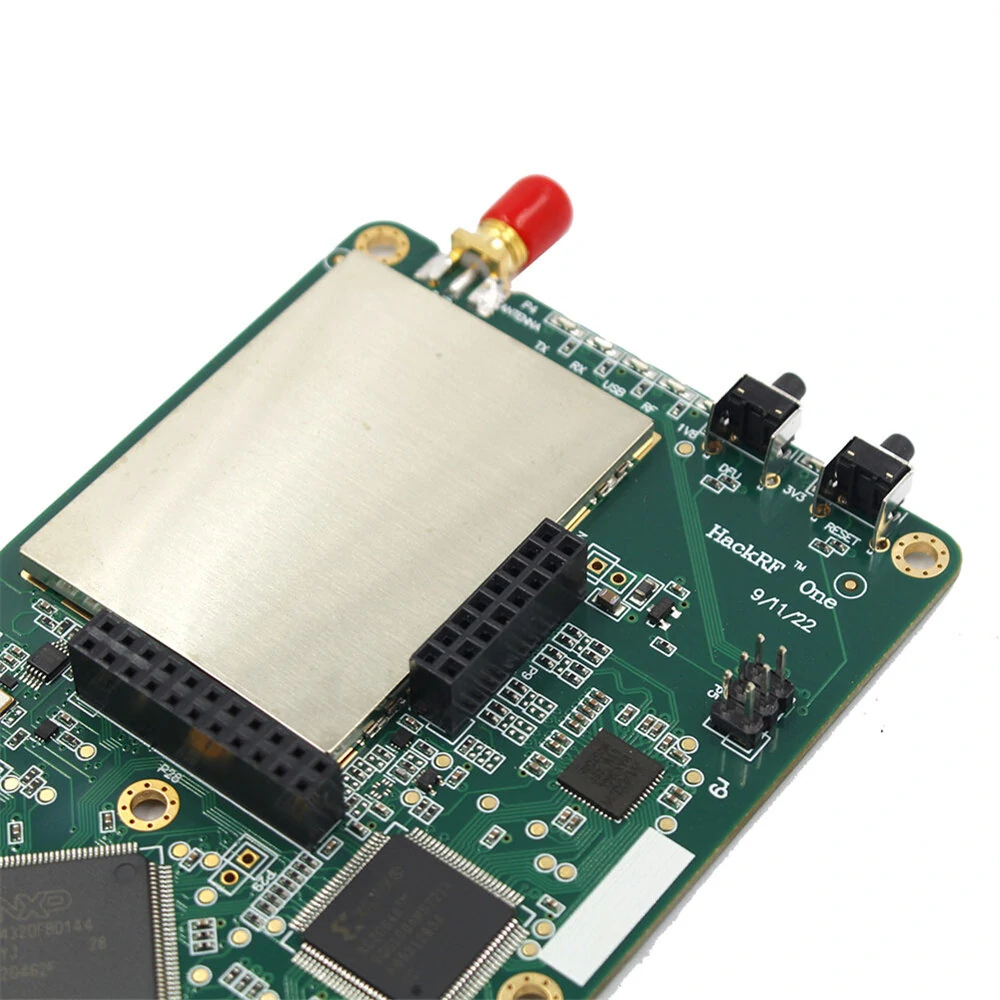

Programming button

Internal pin header expansion

High-speed USB 2.0, USB-powered

Open-source hardware



Package Includes:

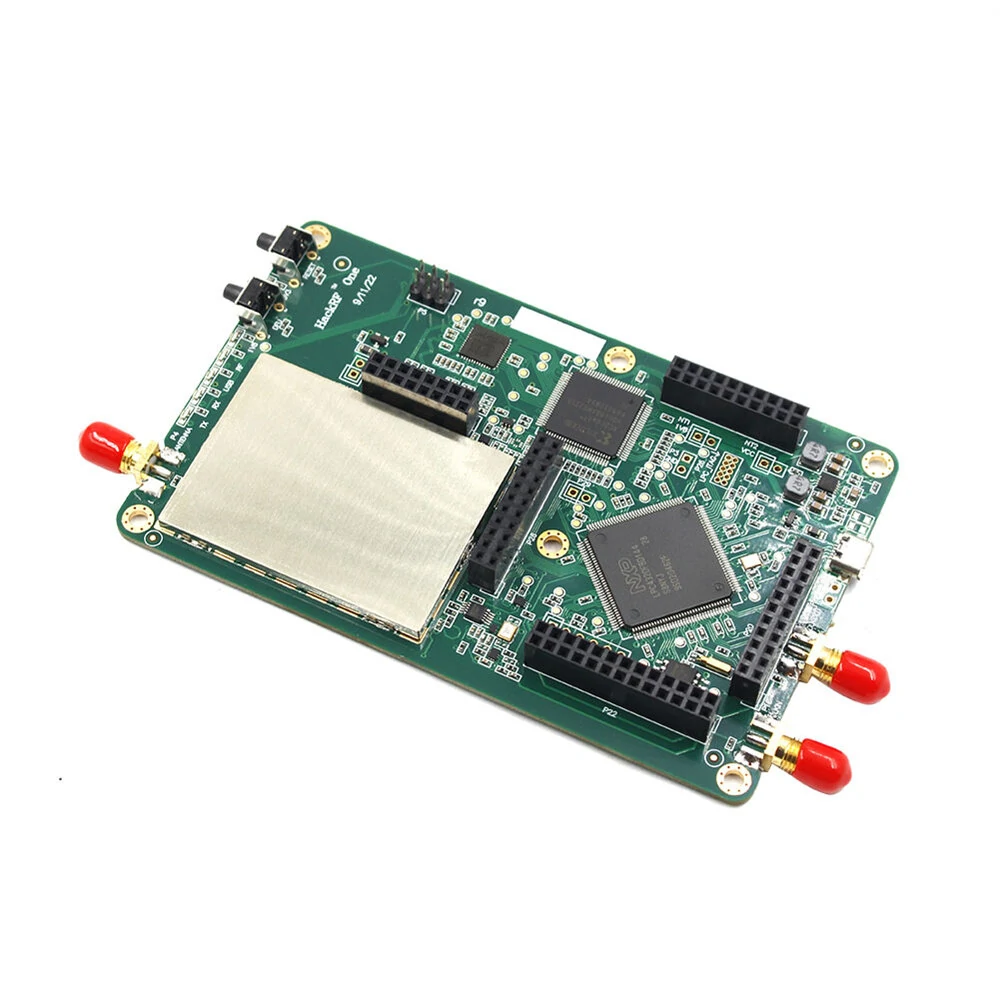

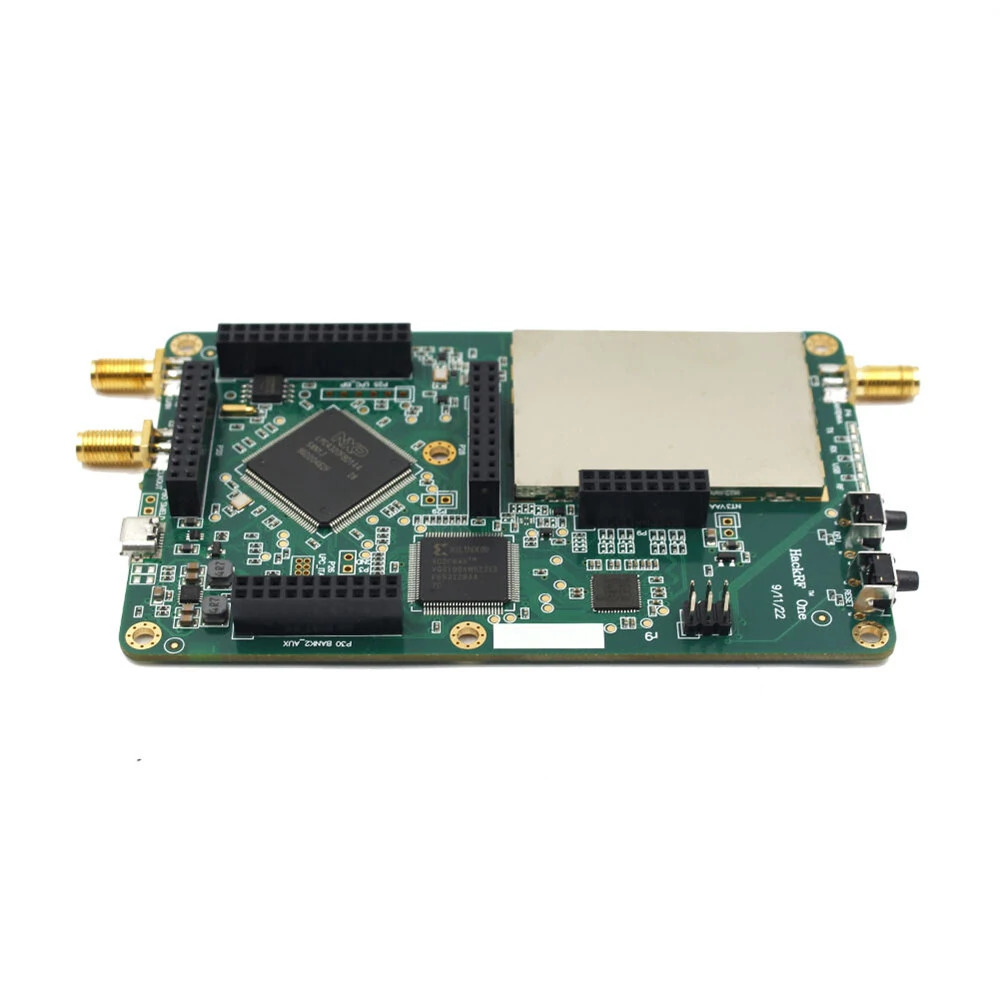

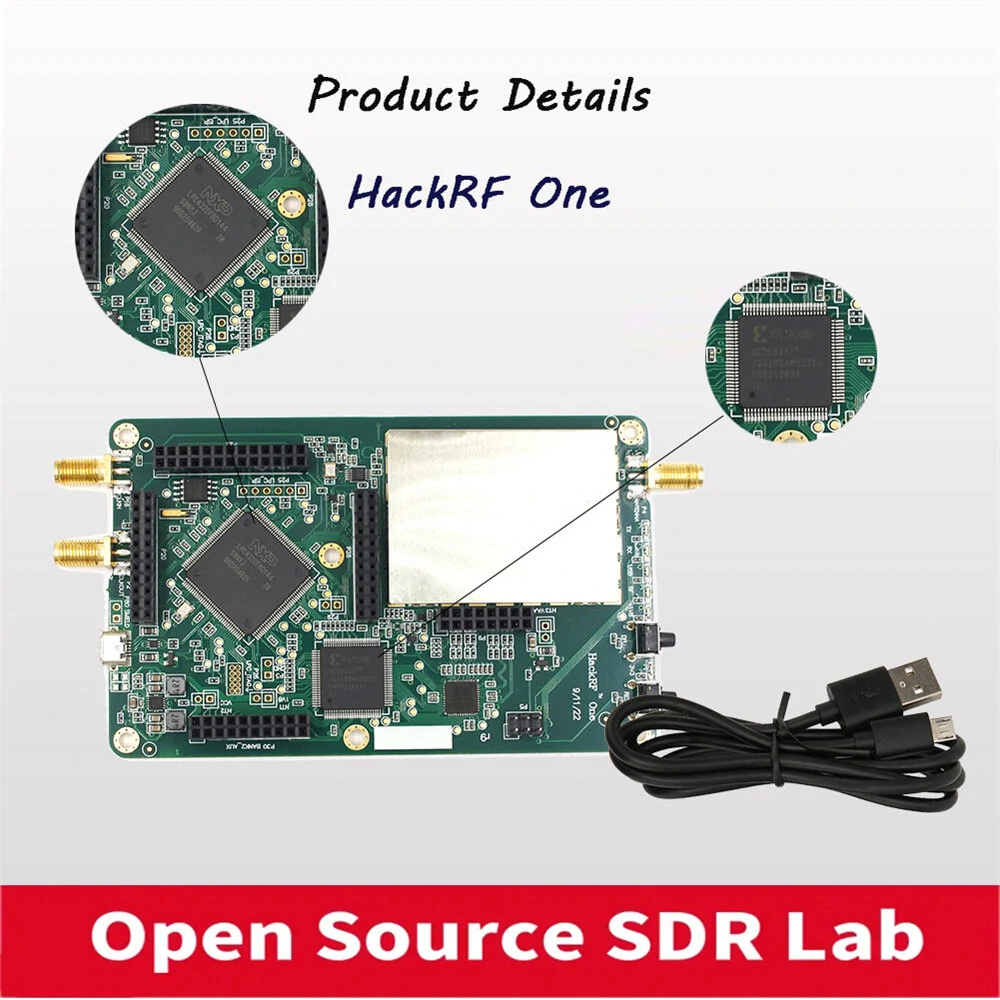

1 x HackRF One Board

1 x Accessory Kit

1 x Cable

1 x Antenna
