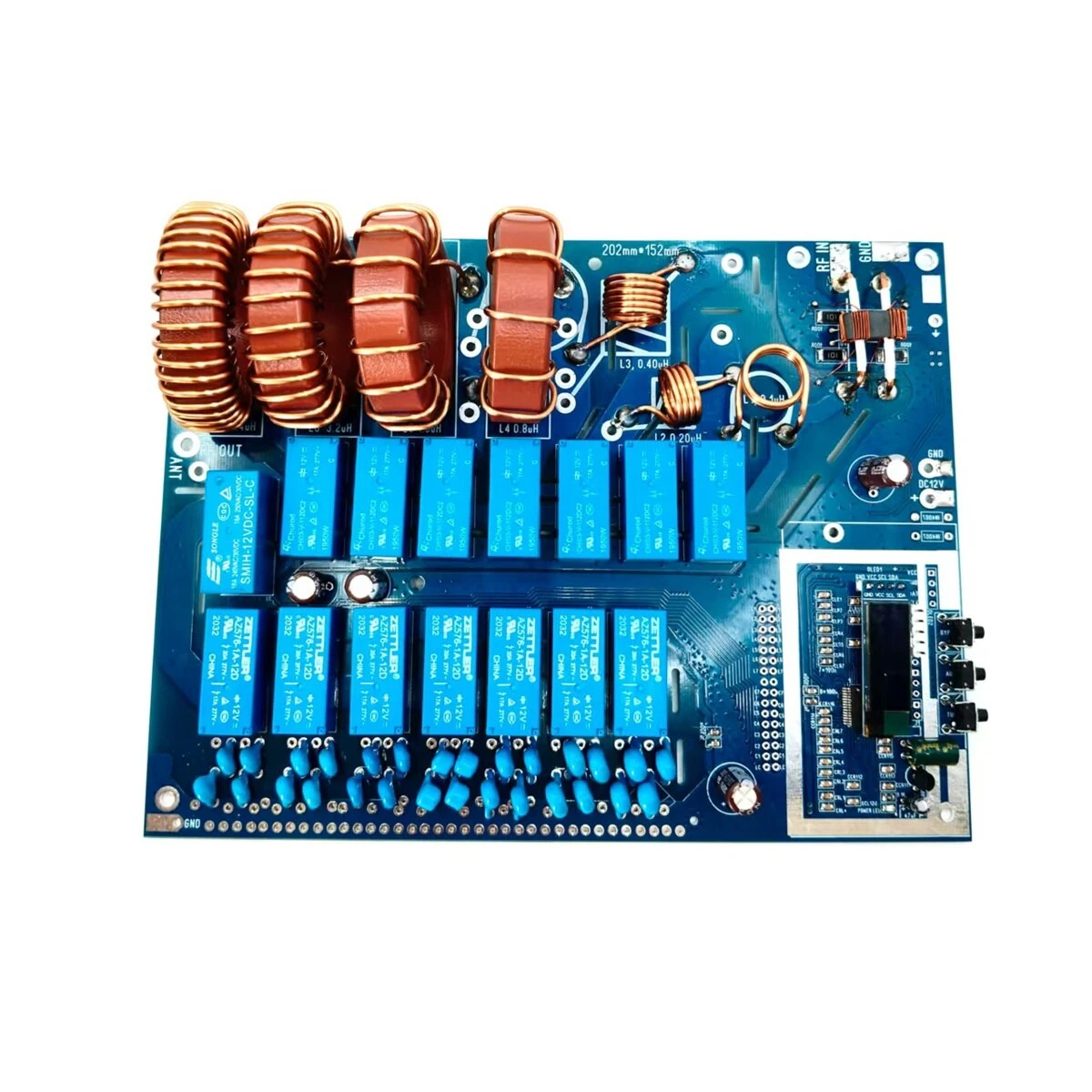

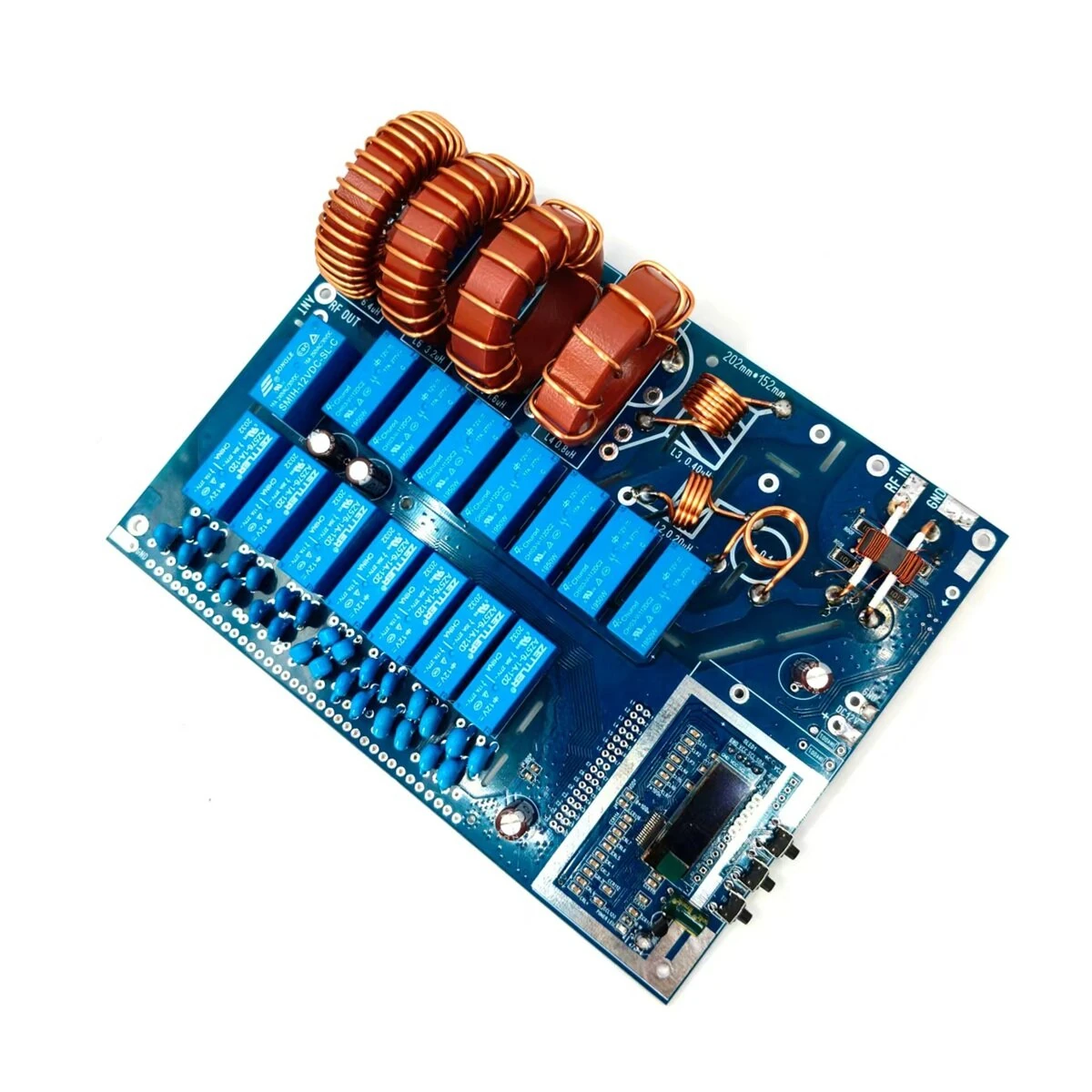

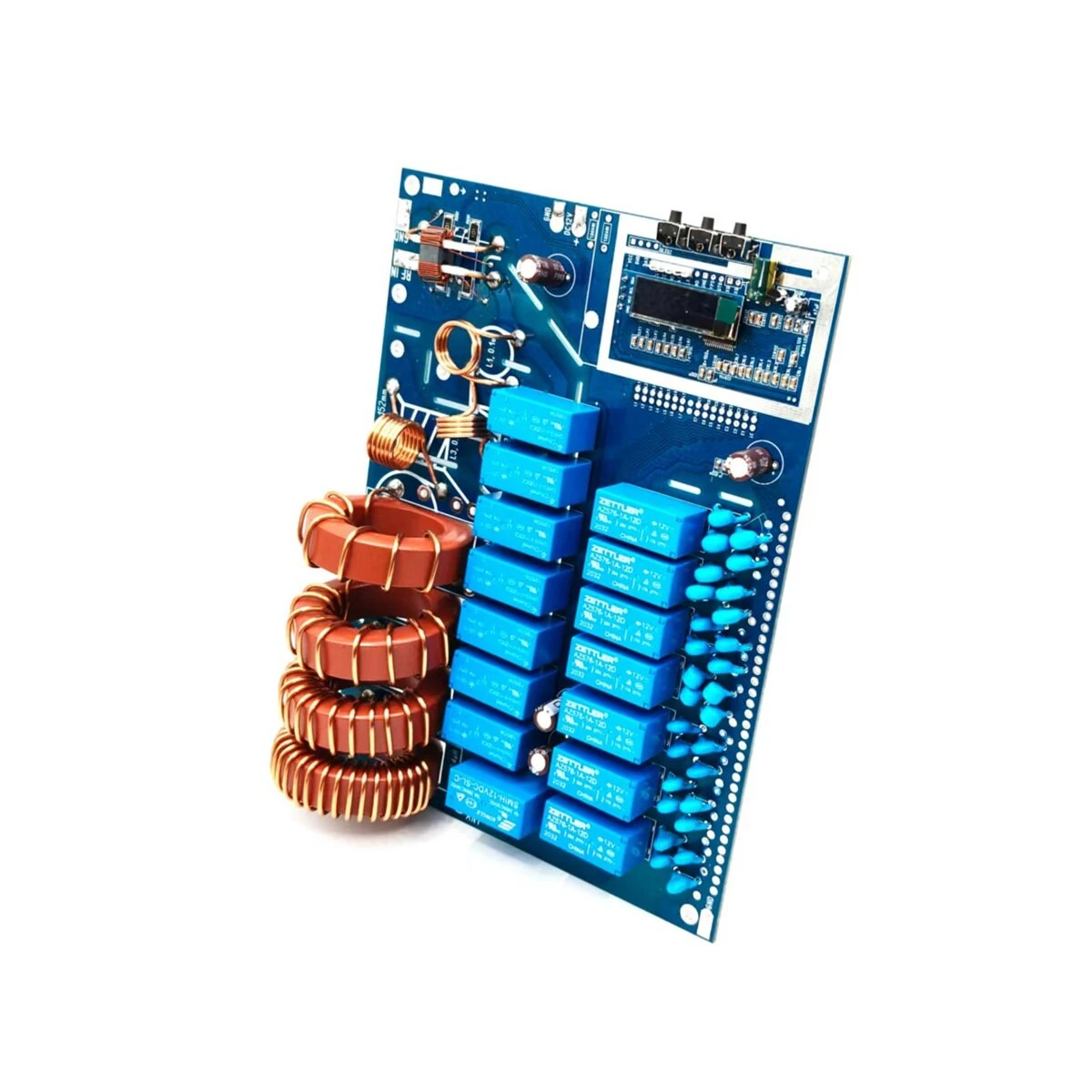

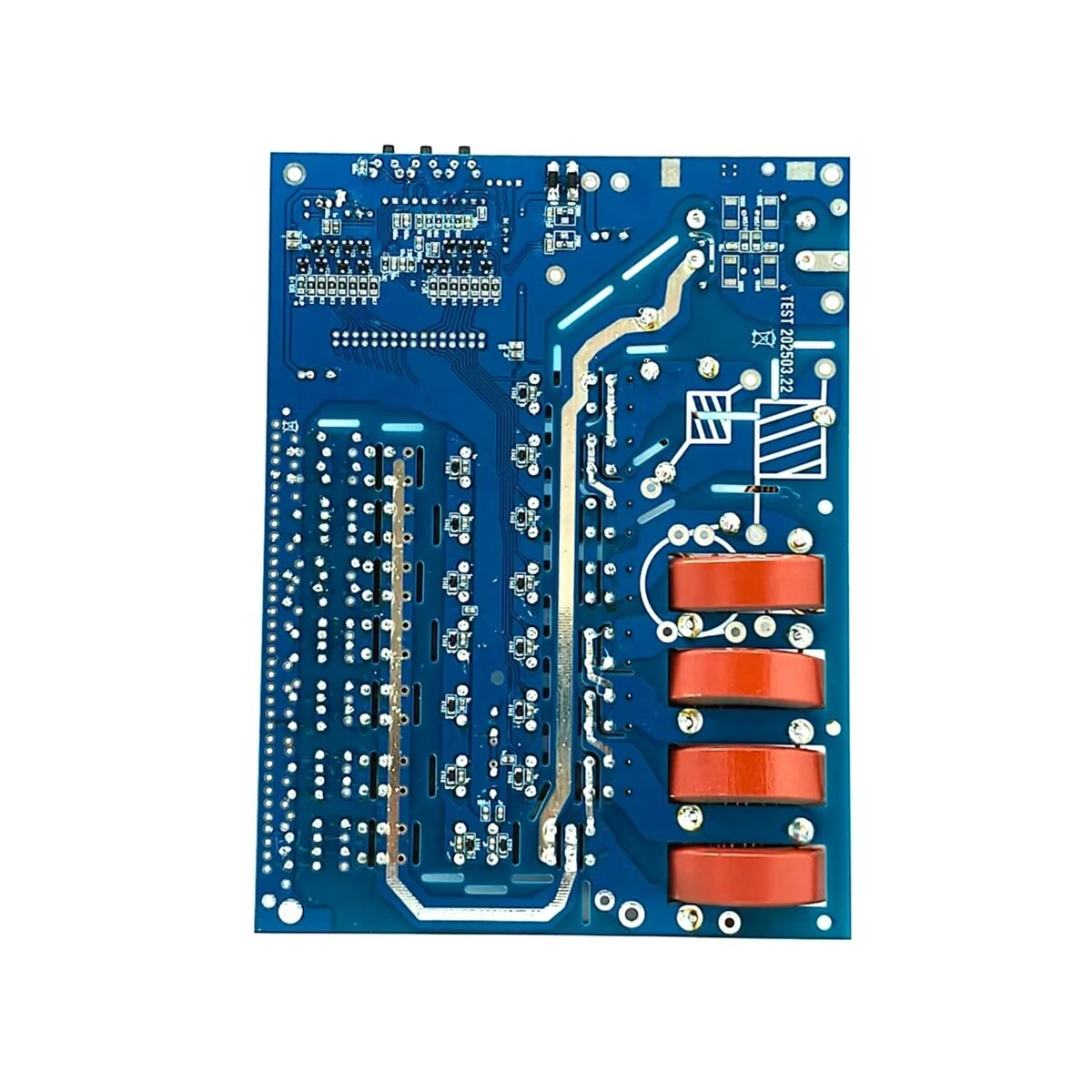

ATU350 3.5-54MHz 350W HF Automatic Antenna Tuner Kit | N7DDC ATU-100 Upgraded

Product Description

>>Please click here to download the manual<<

Specifications:

Tuning Impedance Range: 5??-1.2K??

Permissible Supply Voltage Range: 11-15 V DC

Maximum Current Consumption: 800mA*

Maximum Operating Power: 350 watts (Max 400W, SSB)

Power Required to Start Tuning: 8 watts

Minimum Possible Measured Power: 1 watt

Power Measurement Accuracy: 10%

Working Range: 3.5-54MHz

Typical Consumption: 300-800mA

Features:

Versatile Antenna Compatibility: Supports a variety of antennas including long-line, GP, inverted V, positive V, and dipole antennas for flexible connectivity.

Wide Application Range: Compatible with any short-wave machine within 350W that can output 8-25W continuous radio frequency during tuning, such as am, cw, and fm.

Extensive Frequency Coverage: Operates effectively across a wide frequency range of 3.5-54MHz, ensuring broad usability for various amateur radio applications.

Screen Driver Support: Provides the latest 3.2 driver supporting 12863 small screens or 1602 screens, enhancing the display options for users.

Customizable Assembly: Includes a motherboard ready for use, with other accessories needing assembly, allowing for personalized setup and customization.

Package Included:

1 x Set of Antenna Tuner

1 x The plastic shell
