ATU-100 Automatic Antenna Tuner 100W | 1.8-30MHz for Shortwave Radio Stations
$121.00
$148.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
>>ManualSpecifications:
Allowable supply voltage range: 10-15VDC Maximum current consumption: 400 mAMaximum working power: 100WMaximum possible measurement power: 150WMinimum power required to start tuning: 5W Minimum possible measurement power: 0.1WMeasurement resolution for power up to 10 Wh: 0.1WMeasurement resolution for power greater than 10 watts: 1W Power measurement accuracy error: ??10%Maximum installation inductance: 8.53??HMinimum installation step distance of inductance: 0.05??H Maximum installed capacity: 1869 pFMinimum capacitance installation steps: 10 pF, typical consumption 100-200 mADimensions: Length: 150??88??38mm (including front and rear protrusions 175??88??38)
Remarks:Frequency range 1.8-30Mhz (actually can reach 1.8-50Mhz)Hex cup head and power switch are available in 304 stainless steel natural color or black color, and shipped randomly
Recommendation !

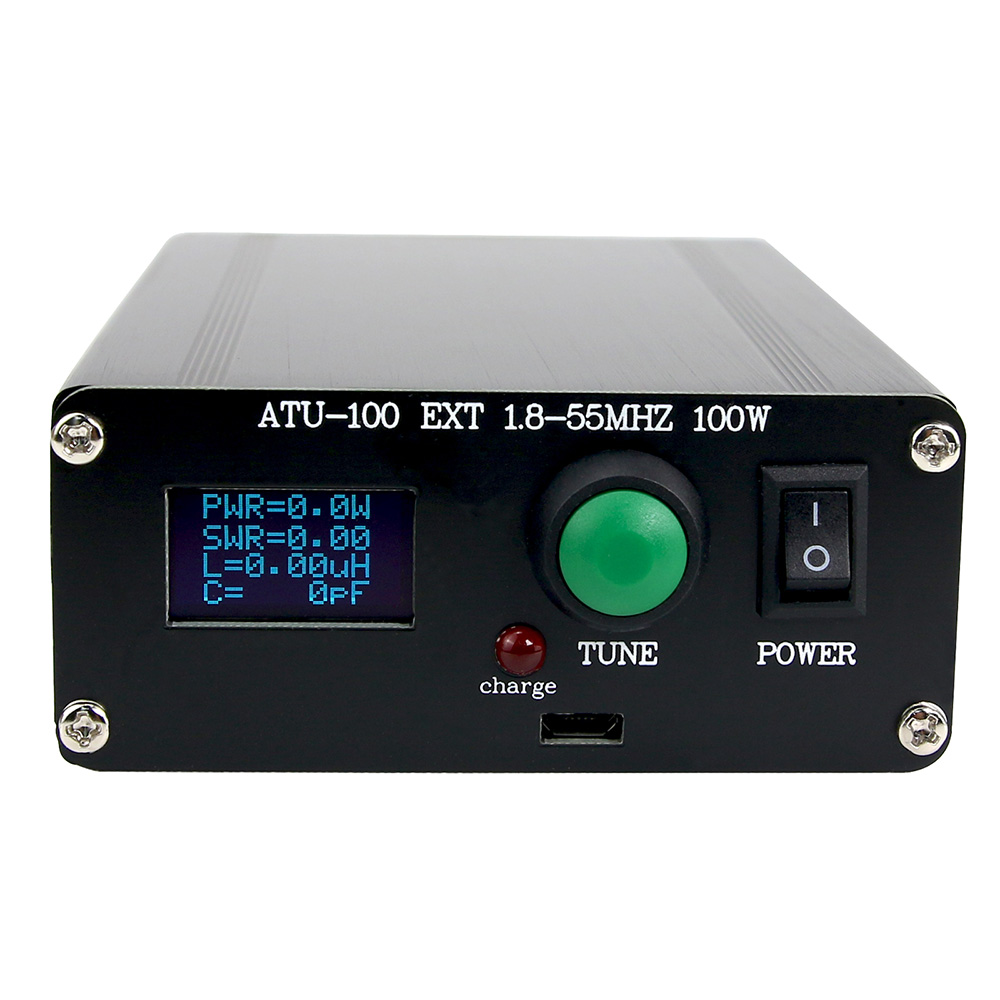

>>ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside
Package included:
1 x ATU100 Automatic Antenna Tuner
Details picture:
