ASA VI Curve Tester - Dual Channel Analog Signal Analyzer | 4V Adjustable, 20Hz-15kHz, TFT Screen, Type-C Charging

Product Description

Specifications:

Name: Dual Channel Analog Signal Analyzer (ASA)

Model: VI Curve Tester

Voltage: 4V

Adjustable Internal Resistance: 50R, 500R, 1K, 2K, 3K, 4K, 5K, 6K, 7K

Adjustable Frequency: 20Hz, 100Hz, 500Hz, 1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7kHz, 8kHz, 9kHz, 10kHz, 11kHz, 12kHz, 13kHz, 14kHz, 15kHz

Dimensions: 140x80x40 mm

Weight: Device 270g

Display: 2.0 Inch TFT Color Screen

Battery: 3000mAh Lithium Battery, Type-C Charging Interface

Features:

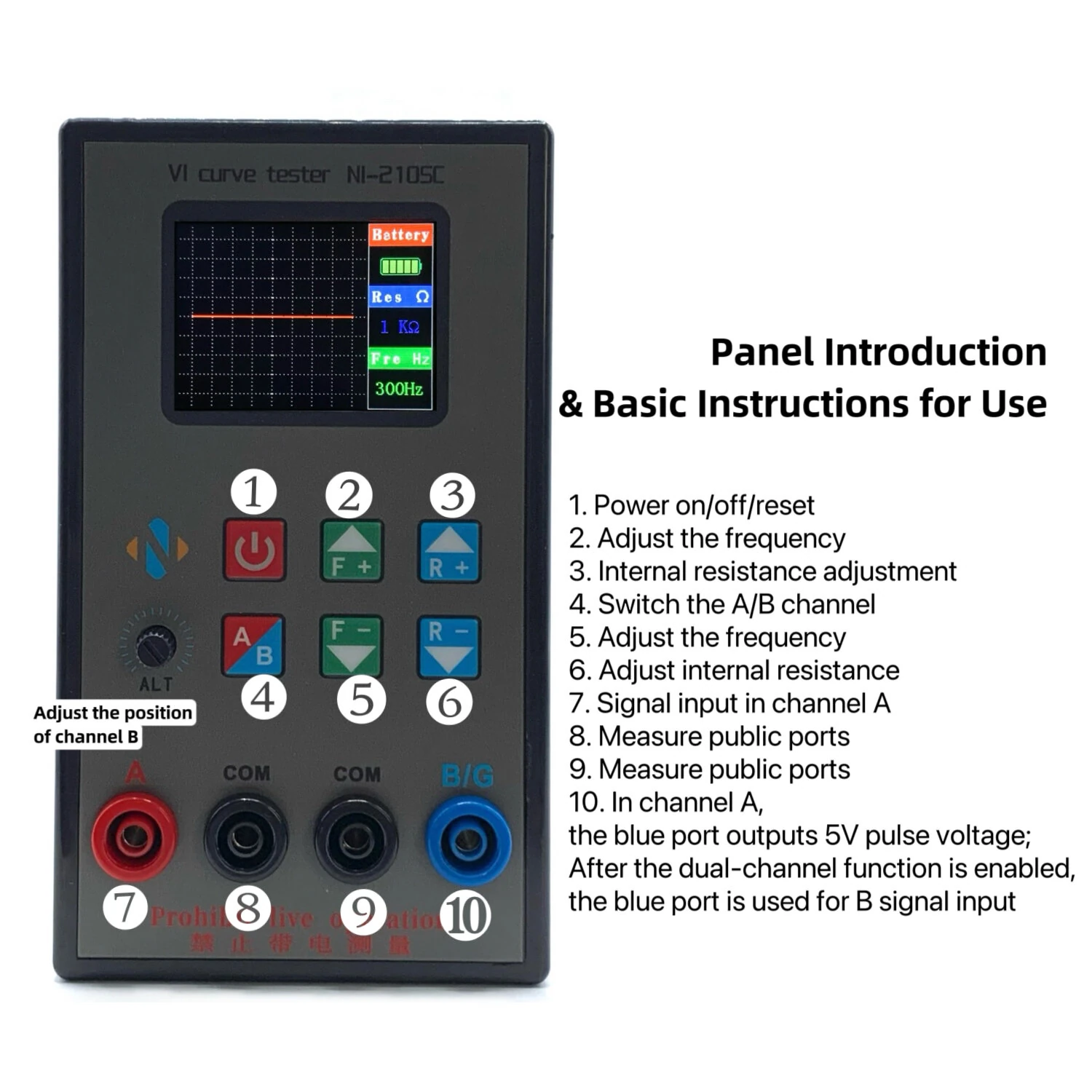

Dual Channel Support: Allows signal input from two channels with adjustable B channel positioning and A+B display mode.

Adjustable Frequencies and Resistance: Offers 18 frequency settings and 9 internal resistance settings for versatile testing.

Safety Oriented Testing: Conducts ASA tests without powering the circuit board, ensuring safe and effective fault detection.

Trigger Signal Output: Provides a 5V trigger signal output for additional testing functionalities.

User-Friendly Design: Features a 2.0 inch TFT color screen, built-in 3000mAh battery, Type-C charging, and auto shut-off after 15 minutes of inactivity.

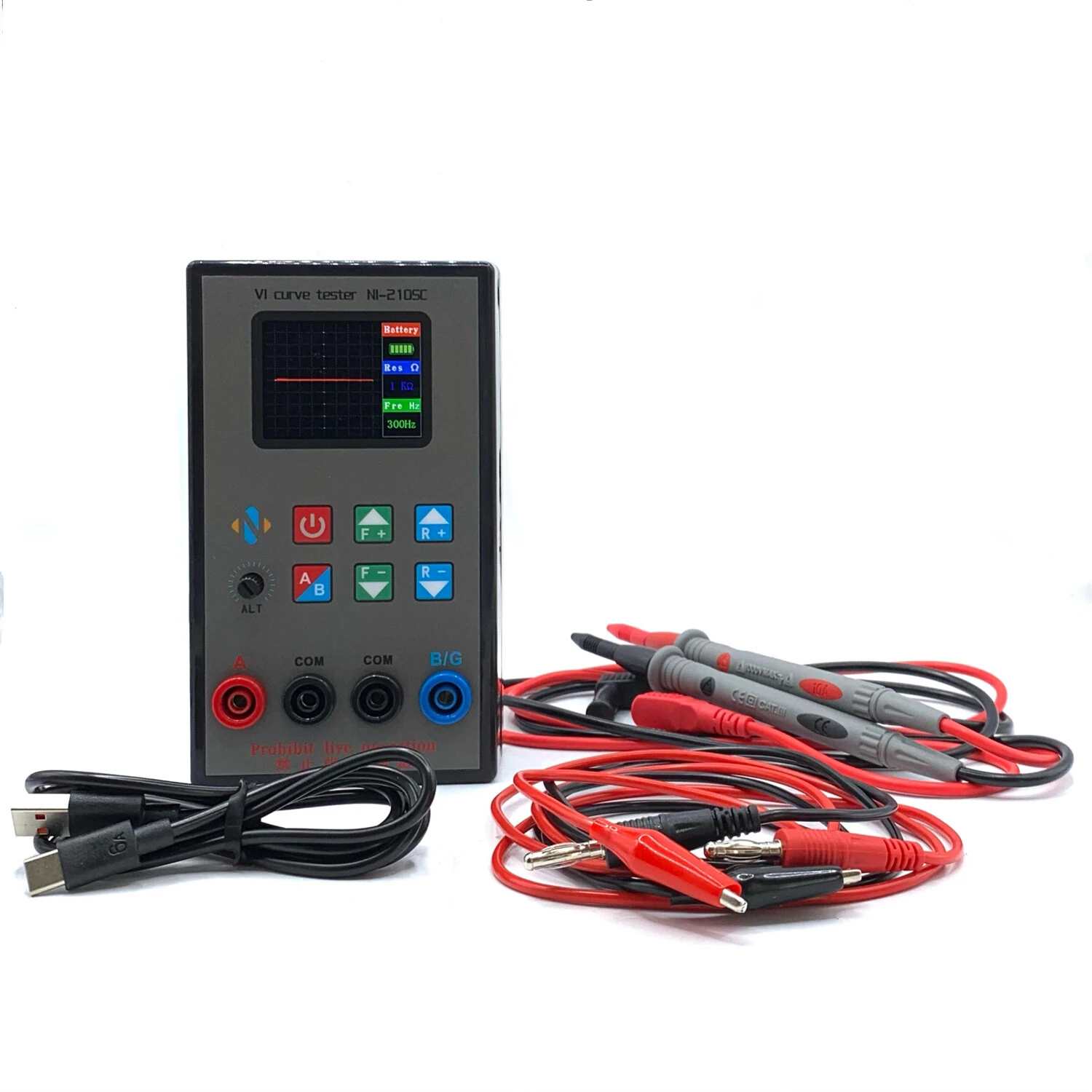

Package Included:

1 x ASA Analyzer

1 x Pair of Test Pens

1 x Pair of Test Clips

1 x TYPE-C Charging Cable
