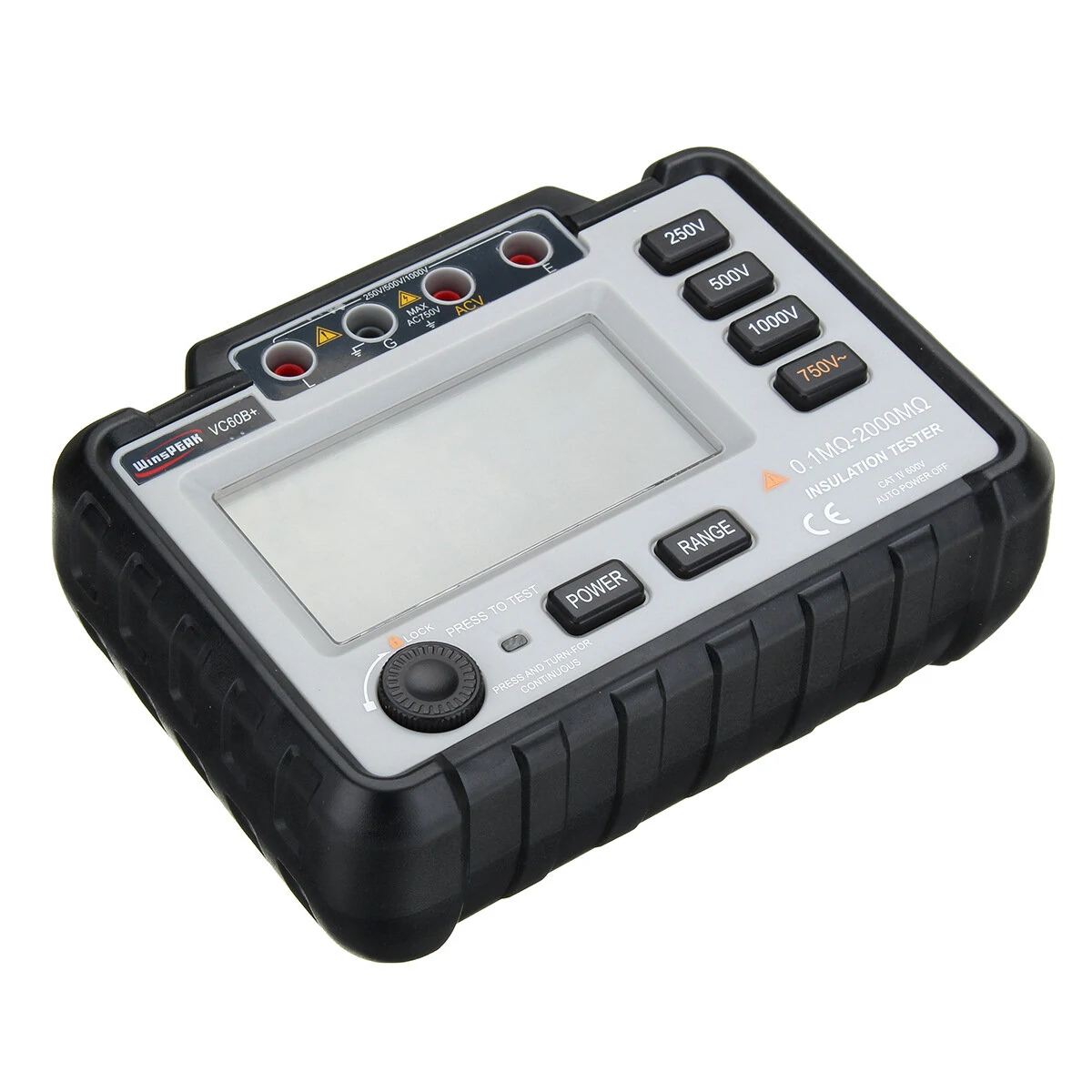

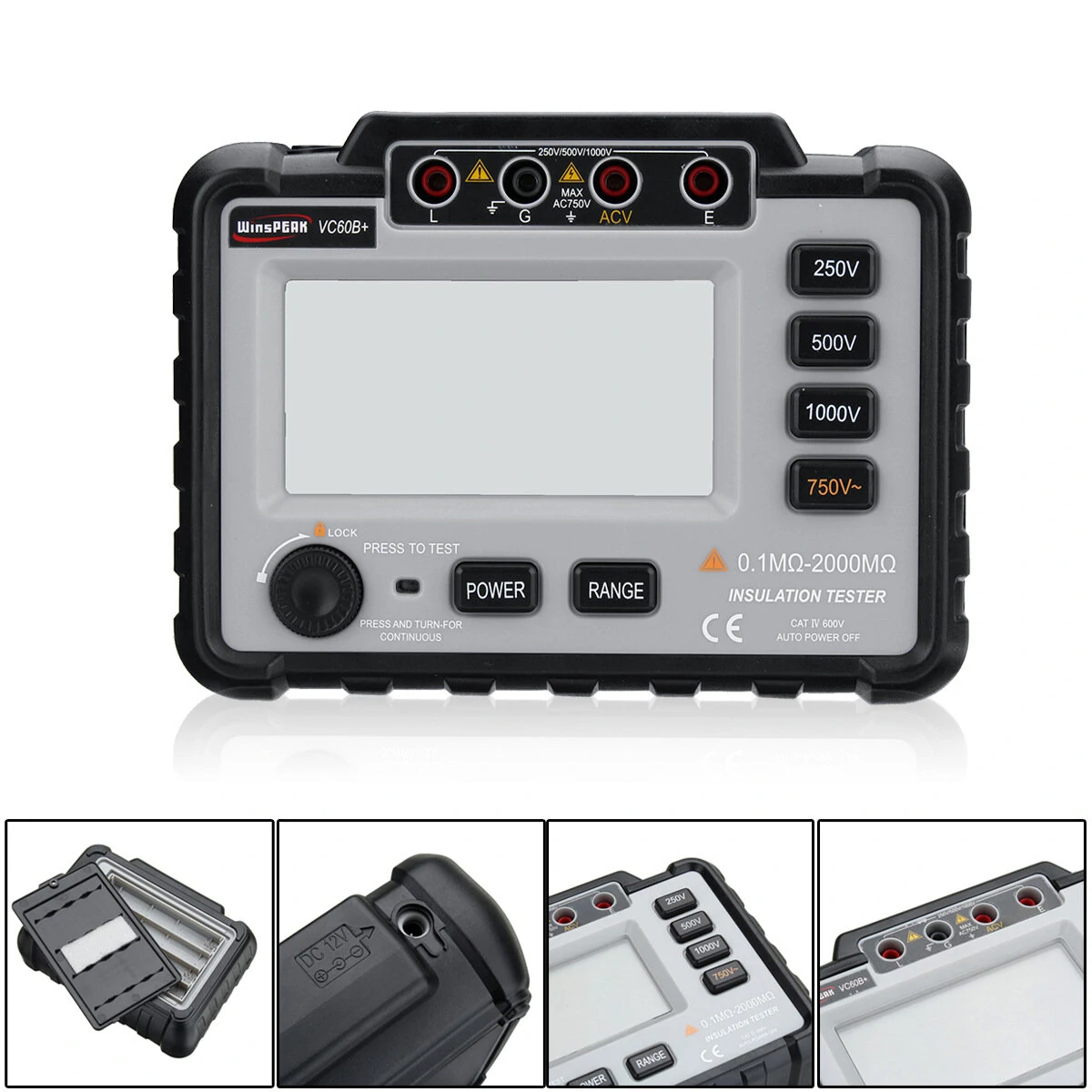

WinAPEX VC60B+ Digital Insulation Resistance Tester | 250/500/1000V DC, LCD Backlight
$64.00
$78.38
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Note:The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.This instrument is a digital tester which adopts low loss high ratio of inductance energy storage DC voltage converter can change 12V voltage into 250V / 500V / 1000V DC voltage. It uses digital LCR Bridge for resistance measurement and the insulation resistance test.
Features:
1.An accurate and reliable insulation tester,Large LCD display,Strong anti-magnetic and anti-jamming function2.Wide measuring range, backlight display, test lock, auto power off (only for MAX DC1000V OUT function) and other functions.3.It can also be used for electricity measurement with great advanced appearance, stable performance. Based on straps design, you can operate with both hands.4.Applied in motors, cables, mechanical and electrical equipment, telecommunications equipment, power facilities and other insulation resistance testing areas.5.High voltage and short circuit input alarm.
Specification:
Model: VC60B+Condition : 100% Brand newProduct name : digital insulation testerMaterial : plasticColor : gray and blackMax. Display : 1999Sampling rate : About 3 times /secondMeasurement method : Double integral type A / D conversionPower consumption : Power consumption of empty load test <300mwUsing environment : Temperature 0 -40 , humidity 30% RH-85% RHOver range indication : Only the highest digit shows "1" when the upper limit is exceededAlarm function : The meter will alarm automatically when the measured resistance is lower than the lower limit of measuring range, and the reading is invalidPower supply : 5 # battery LR6 (1.5V) ?? 8 (with external power adapter) .It contains lack of voltage indication when the voltage is not enough. With automatic shutdown function (only for MAX DC1000V OUT function, about 15 minutes after machine start)Dimensions: 175(L)x110(W)x70(D)mm
Note:
1.WARNING: To avoid electrical shock remove test leads before opening case.2.When changed function and range, the probe should leave the test point.3.Voltage below 36V voltage is the safety voltage. When test 25V AC voltage, please check whether the probe contact safely, whether it is connected properly, whether the insulation is good, etc., for electric shock avoidance.4.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)5.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.6.Professional Installation Is Highly Recommended!
Package includes:

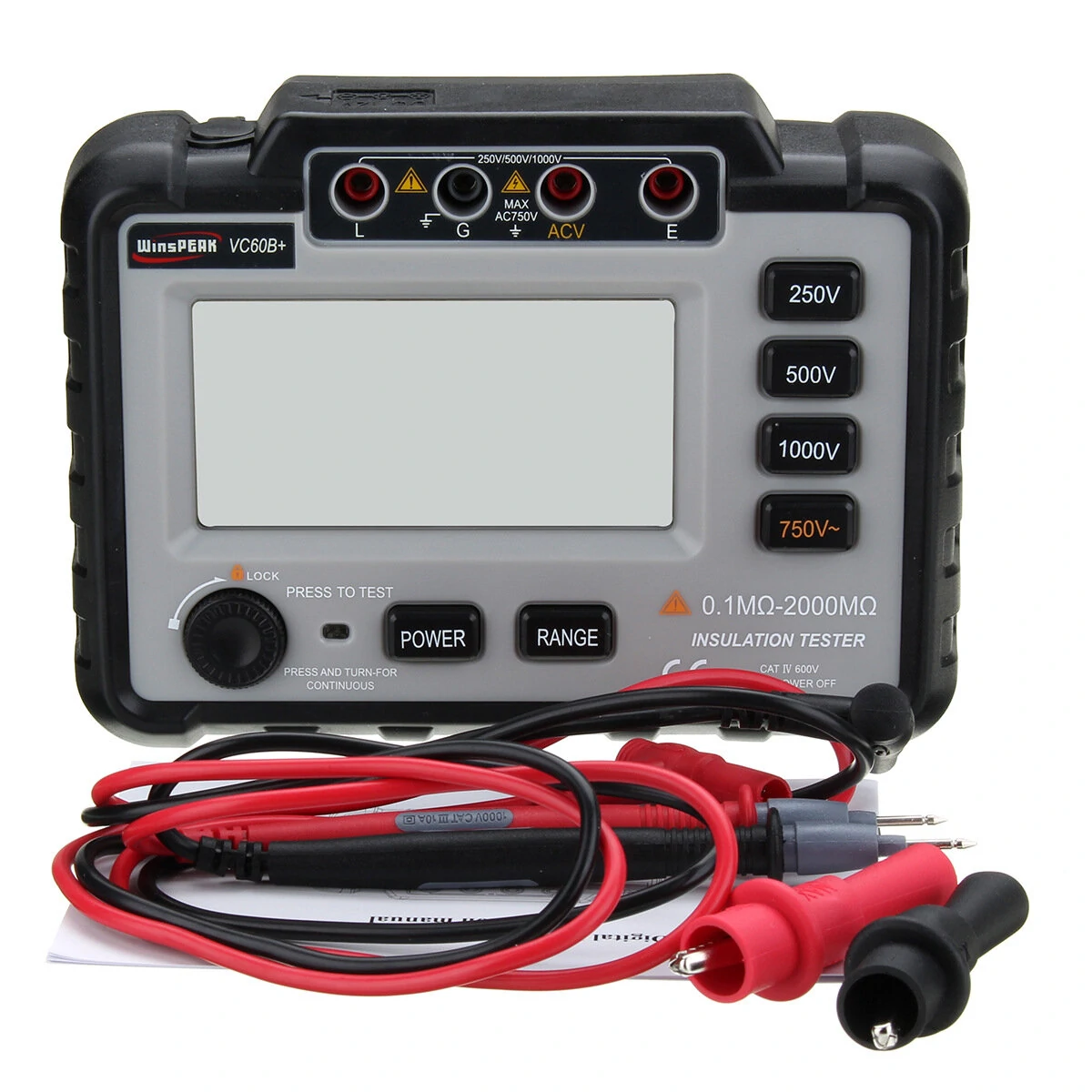

1 * Digital Insulation Tester2 * 10A Test Lead2 * Crocodile Clip
