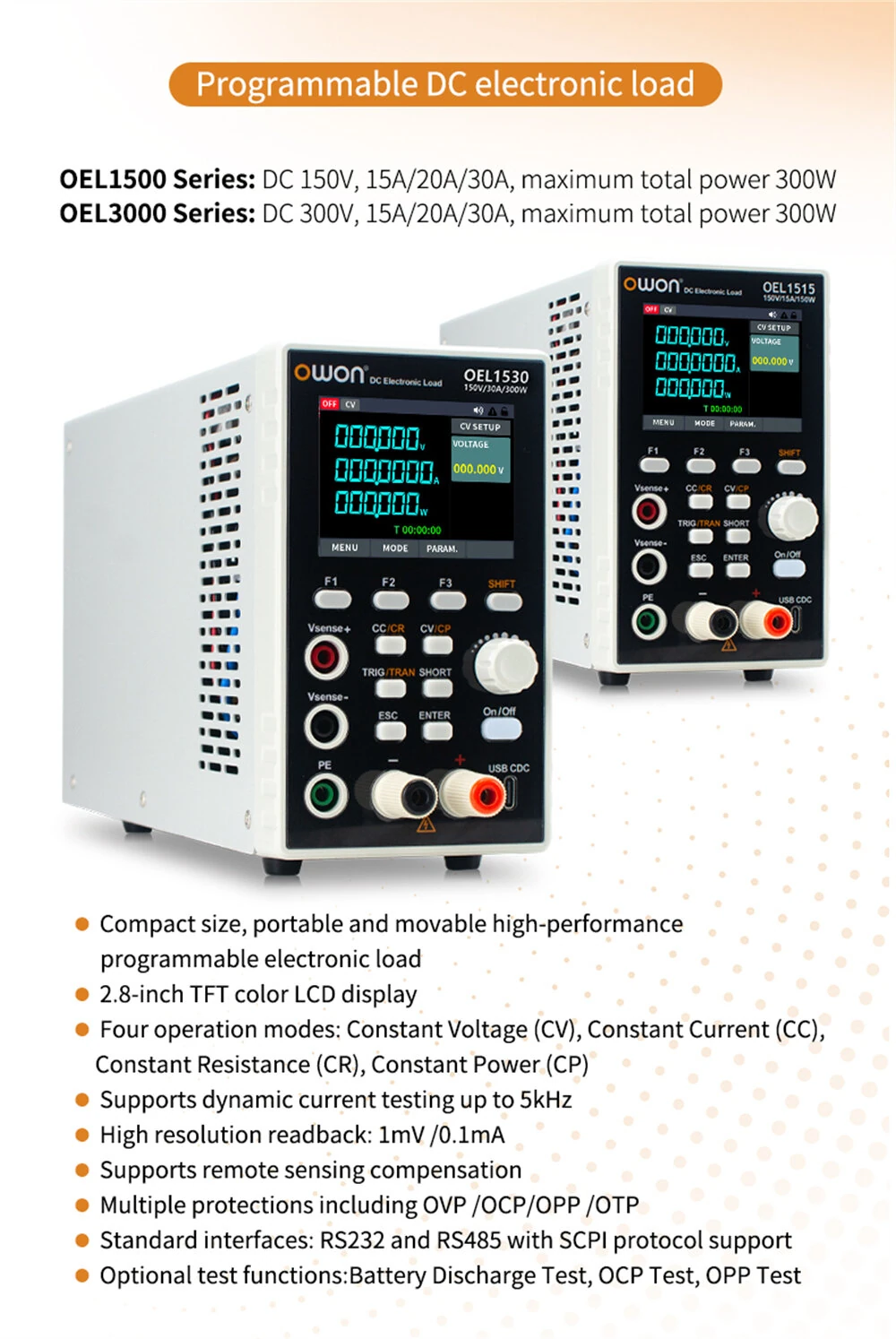

OWON Programmable DC Electronic Load 150W 300W | RS485 RS232 SCPI | 2.8-inch TFT LCD

Product Description

Please click to download the instruction manual

Specifications:
OEL1500 Series:
Models: OEL1515 / OEL1520 / OEL1530
Voltage Range: 0 - 150V
Current Range: 0 - 15A / 0 - 20A / 0 - 30A
Power Rating: 150W (OEL1515, OEL1520) / 300W (OEL1530)
Minimum Operating Voltage: 0.8V@15A / 0.9V@20A / 1.1V@30A
Communication Interface: RS232 / RS485 / USB; SCPI protocol support
?
OEL3000 Series:
Models: OEL3015 / OEL3020 / OEL3030
Voltage Range: 0 - 300V
Current Range: 0 - 15A / 0 - 20A / 0 - 30A
Power Rating: 150W (OEL3015, OEL3020) / 300W (OEL3030)
Minimum Operating Voltage: 0.8V@15A / 0.9V@20A / 1.1V@30A
Communication Interface: RS232 / RS485 / USB; SCPI protocol support
?
Features:
1.Precise Performance for Complex Tasks:
Supports four adjustable modes??Constant Voltage, Constant Current, Constant Resistance, and Constant Power??suitable for a variety of testing needs.
2.Clear and Intuitive Data Display:
Equipped with a sleek 2.8-inch TFT color LCD screen that provides real-time data visualization for better monitoring and operational accuracy.
3.High-Speed Dynamic Current Testing:
Designed with dynamic current testing up to 5kHz, ideal for capturing fast-changing electrical responses in applications like battery or power supply evaluation.

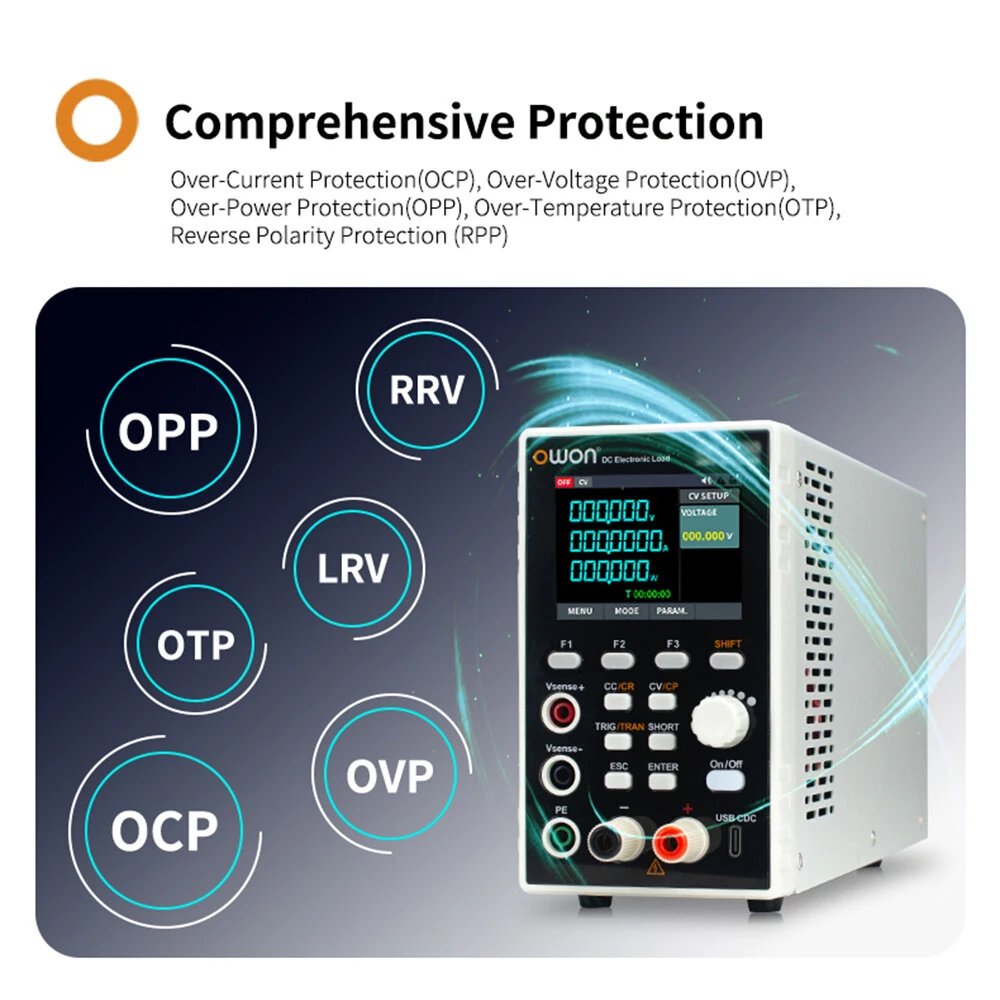

4.Comprehensive Protection Mechanisms:
Integrated protections including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and OTP (Over Temperature Protection) for secure operation.
5.Versatile Connectivity Options:
Features RS232, RS485, and USB interfaces with SCPI protocol support for seamless integration with external systems and remote operation.
?
Package Included:
1 x Main Unit
1 x Power Cord
1 x Fuse
1 x User Manual
?
