FR3060 Handheld DC Low Resistance Tester | 1uΩ Micro-ohm Meter with USB Data Upload
Product Description
?Description:
- FR3060 digital DC low resistance meter, also known as micro-ohmmeter, ohmmeter, equipotential tester, adopts microprocessor technology, four-wire method for testing, safe, precise and reliable. It is mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and equipment enclosures, avoid thunder protection belts, ground beams, structures, cabinets, steel bars, water pipes, windows, guardrails, and heat dissipation. Test the connection resistance between metal components of objects such as devices, assembly lines, etc. It is widely used in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, avoid thunder rods, etc.
- FR3060 digital DC low resistance meter is composed of host, monitoring software, test line, communication line, etc. The large-screen LCD display of the main unit is clear at a glance, and the port overload prevention function prevents the instrument from being burned out by misoperation. It can store 500 sets of data, and the resistance measurement range is 0.001m????300.0K??. The upper computer software has functions such as historical data reading, consulting, saving, and reporting.
Specification:
Model difference
Model | FR3060A | FR3060 |
Resistance range | 0.01m????30.00K?? | 0.001m????300.0K?? |
Resolution | 10u?? | 1u?? |
Accuracy | ??0.1%FS | ??0.1%FS |
Data storage | 500 groups | 500 groups |
USB data upload function | No | Have |
Charging function | Have | Have |
Technical specifications
Function | Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance, the connection resistance test between metal components, the low-value resistance test, and the ground grid and ground poles Resistance test of connecting conductor, contact resistance test, etc. |
Detection method | Four-wire method test |
Test current | ??1A |
??4.2V | |
Measuring power??8W | |
| Measure time | About 2 times/sec |
| USB interface | 1 micro USB communication line |
| Data storage | 500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is full |
| Data access | Data access function: "MR" symbol display |
| Overflow display | Over-range overflow function: "OL" symbol display |
| Battery voltage | Real-time display of battery power, prompting that the battery needs to be charged in time when the battery voltage is low |
Standby: about 100mA (backlight off) Measurement: 2A Max | |
| Meter: 480g (including battery), Test line: 250g | |
| Automatic shut-down | The meter shuts down after about 15 minutes of inactivity |
| Overload protection | C1-C2 P1-P2 AC 220V/0. 0001 second between each port. After overload protection, you need to restart the meter to test normally |
| Insulation resistance | 10M?? or more (500V between circuit and case) |
| Withstand voltage | AC 3700V/rms (between circuit and case) |
| Working temperature and humidity | -10??C~+50??C <70%RH |
| Storage temperature and humidity | -20??C~+60??C <70%RH |
| Electromagnetic properties | IEC61010-4-3, radio frequency electromagnetic field??1V/m |
| Suitable for safety regulations | IEC61010-1, CAT ll 600V, pollution level 2, JJG724-1991 "Verification Regulations for DC Digital Ohmmeters", JJG166-1993 "Verification Regulations for DC Resistors", "DL /T967-2005 Loop Resistance Tester and DC Resistance Fast Tester Verification Regulations" |

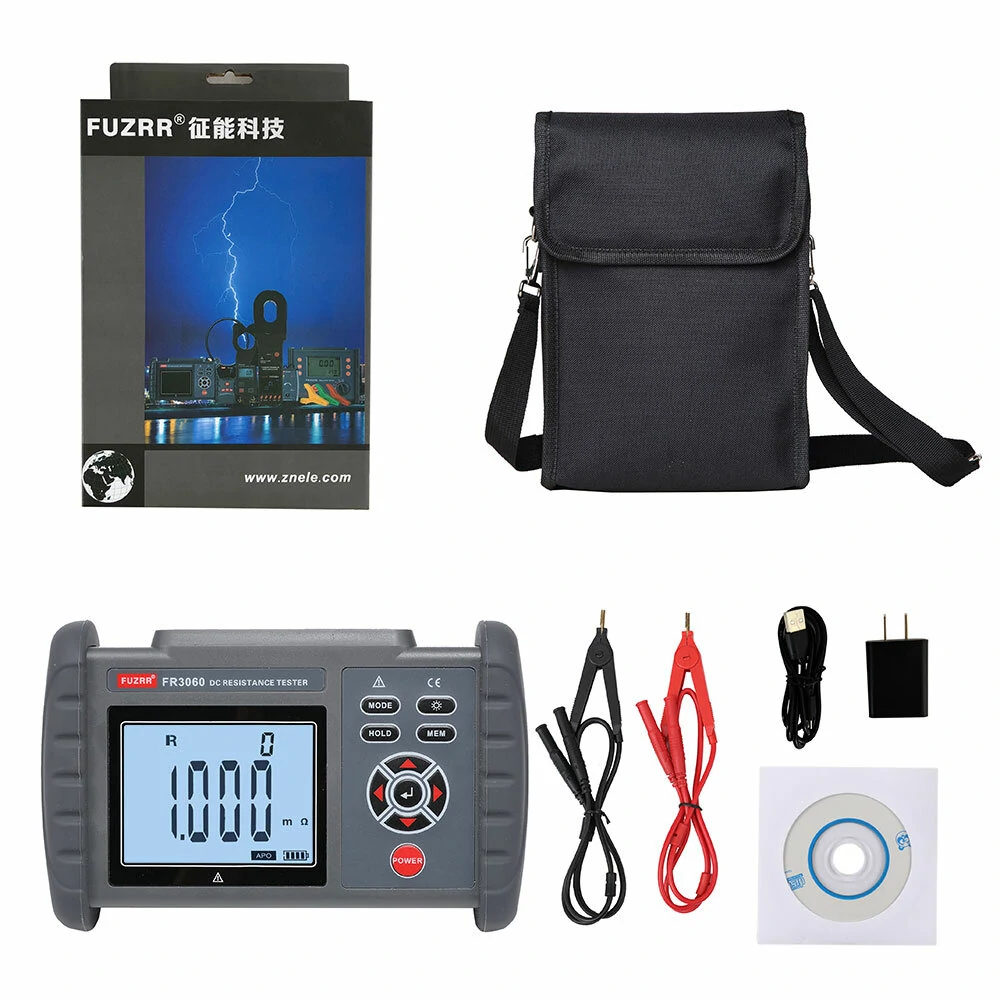

1 x Meter
2 x Test line (One each for red, black)
1 x Instrument package bag
1 x USB data cable
1 x Charger
1 x CD disk

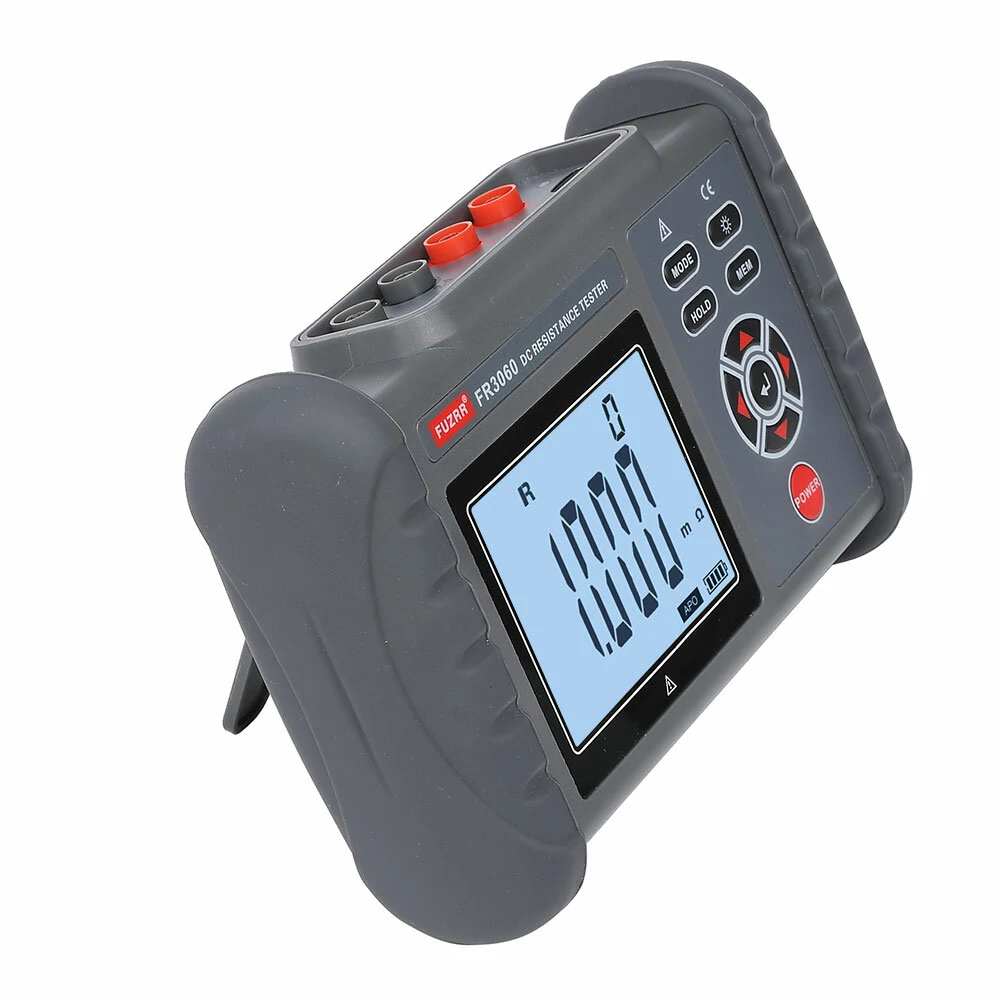

Details picture:
