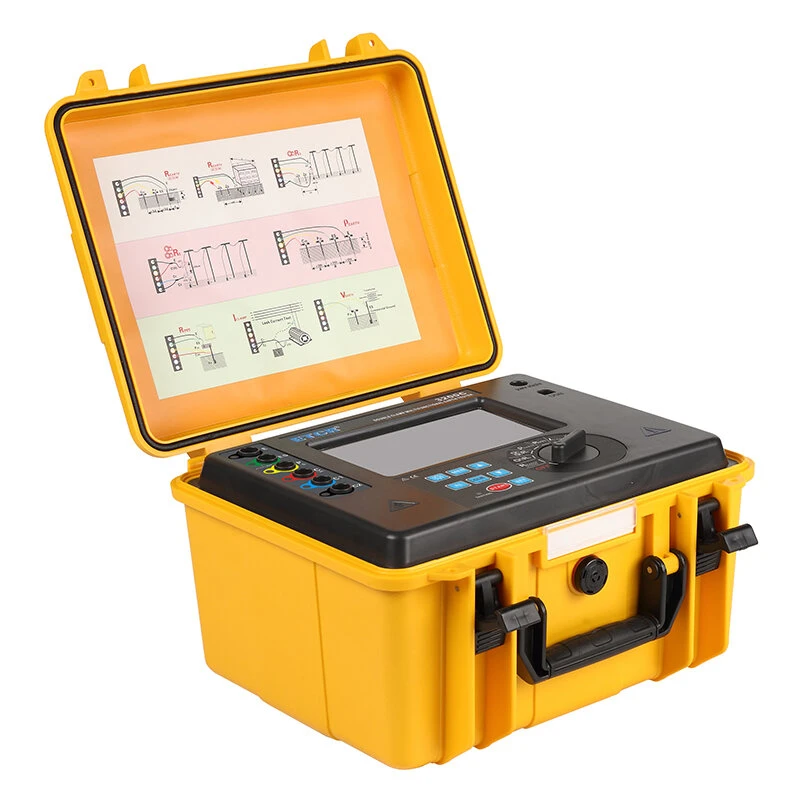

ETCR3200C Bluetooth Ground Resistance Tester - 600A Leakage Test AC 100V Waterproof
Product Description
???Specification:Main measurement
Ground resistanceGround voltageSoil resistivityCurrent and leakage current
Power Supply | DC 8.4V (Rechargeable battery, 300h continuously standby time) |
LCD | 4-digital super-large LCD display, LCD Display field: 128mmx75mm |
Range | 2/3/4Pole Method Ground Resistance: 0 00??~30.00k?? Selection Method Ground Resistance: 0.000~3000?? Double Clamp Method Ground Resistance: 0.01~ 100?? Soil Resistivity: 0.00??m-9000k??m |
Ground Voltage: AC 0-600V AC Current: 0.01 mA-600A | |
Resolution | Resistance: 0.001?? |
Voltage: 1V | |
Accuracy | ??1%rdg??3dgt |
Date Storage | 400 sets |
Data upload function | RS232 interface, software supervision, storage data can be uploaded to computer, preserved and printed. |
Auto Power-off | Automaticlly shut down 15minutes after booting |
Power Consumption | Backlight: 50mA Max Backlight: 25mA Max; Standby: 25mA Max(Backlight) |
No Backlight: 25mA Max( turn off Backlight); | |
testing: 70mA Max(turn off Backlight) | |
Working environment | -10??-40??; below 80%rh |
Store environment | -20??-60??; below 70%rh |
Test method | Precision three-wire measurement, simple two-wire measurement |
Measurement method | Ground Resistance: Rated current pole method, the measured current 3mA Max, 820Hz; |
Ground Voltage: Average rectification | |
Data Mode | Average value, maximum, minimum |
Cable resistance verification | Avoid error caused by testing wire such as failed to be fully inserted into tester interface or by poor contact or by users replacing or lengthening testing wires, making it more accurate for earth ground resistance measurement. |
Measurement Time | Ground Voltage: 3 S/time ; |
| Ground Resistance: 5 S/time; | |
Measuring Times | Over 5000 times (20?? range measuring 10?? for one time and repeat after 25 seconds) |
Circuit Voltage | Measuring ground voltage : measuring below AC 600V |
Data Hold display | "HOLD |
Data Read display | "READ |
Overflow Display | "OL" |
Alarm Function | When measuring value exceeds alarm setting value, there is "Toot-toot-toot" alarm hint |
Battery Voltage | When battery voltage decreases to about 7.8V, battery voltage low icon " "will display, reminding to replace battery. |
Overload Protection | ground resistance: between each interfaces of E-P, E-C, AC 280V/3 seconds |
Insulation Resistance | Over 10M??(between circuit and enclosure it is 500V) |
Withstanding Voltage | AC 3700V/rms (Between circuit and enclosure) |
Electromagnetic Features | IEC61010-4-3,Wireless frequency electromagnetic field<1V/m |
Protection Type | EC61010-1,IEC1010-2-31,IEC61557-1 ,5,IEC60529(IP54). Pollution 2, CAT III 300V |
Weight | 1443g (with battery) |
Dimension | 280mm x 260mm x 160mm |

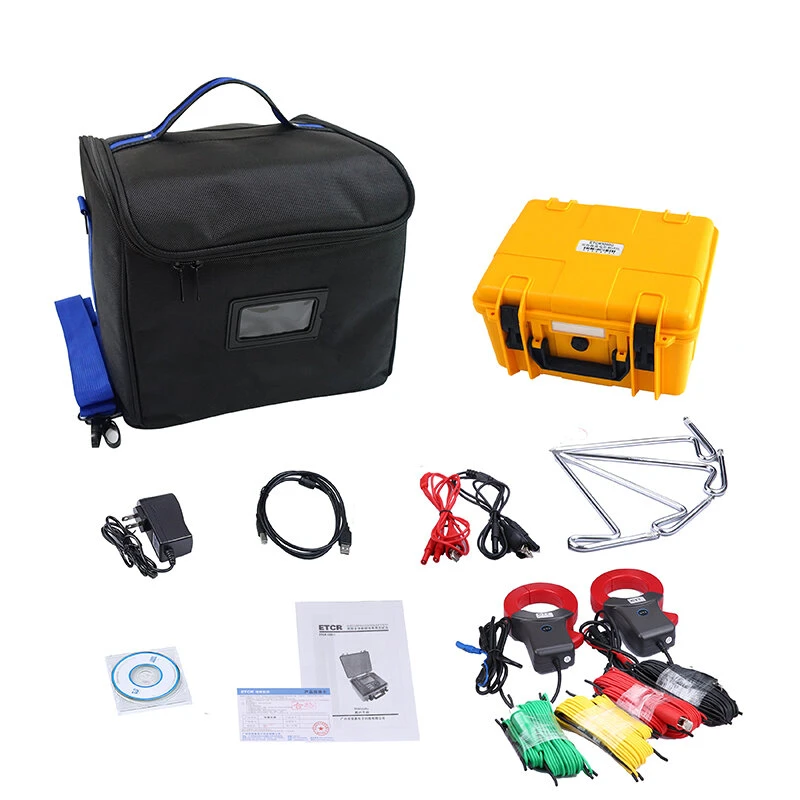

Package Included:
1 x Resistance Tester
2 x Current Clamp
4 x Earth Rod
4 x Testing Wire
2 x Simple Testing Wire
1 x USB Data Transmission Line
1 x Software Disk

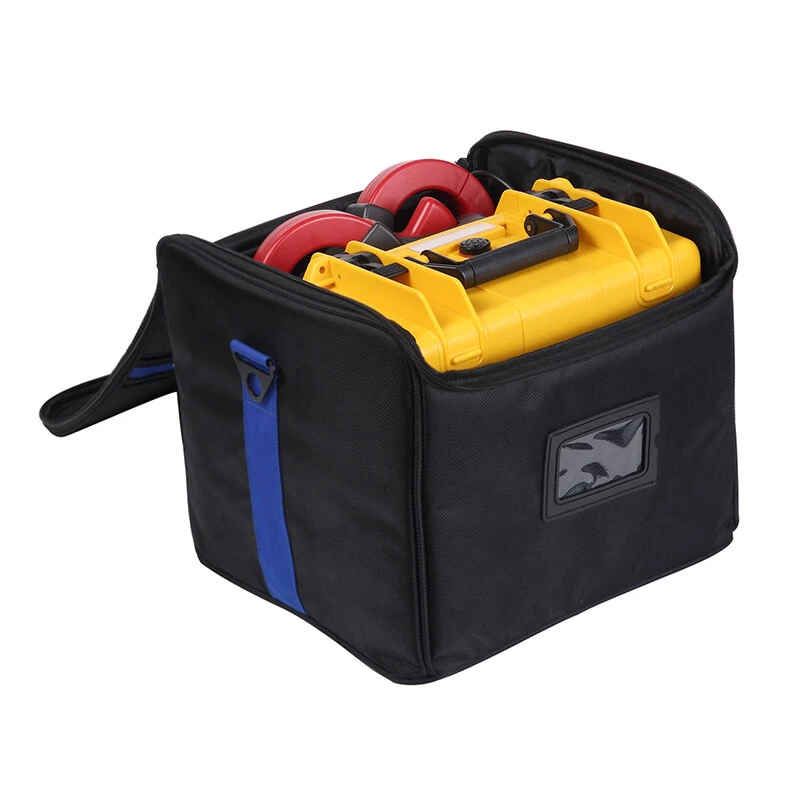

1 x Tester Bag
1 x Special charger
1 x Suitcase
1 x User Manual
Details Picture:
