ETCR2900 Ground Resistance Meter - Online Monitoring Tester 0.01-2000Ω AC 0-600V
$222.00
$273.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:ETCR2900 Online Earth Resistance Tester composed of the detector and the monitoring software. The large LCD display of the detector is very intuitive. Setting the alarm thresholds and audible and visible alarm indicator are available. The material of the shell has the characteristic of resistance to high low temperature, corrosion prevention, inflaming retarding etc, ensure high-accuracy, high stability and high reliability of long time on-line monitoring outdoors, underground mine and indoors. The monitor software can real-time display the values of measured ground resistance and voltage. The user also can set the automatic monitoring interval time by the detector or the monitor software, the range of interval time is 1-999 hours. The automatic recording data can be generated reports, it is convenient to preservation, historical data query, print, analysis.
ETCR2900 Online Earth Resistance Tester apply to transmission line tower grounding, underground mine equipment grounding, meteorological fulmination proof grounding, petrochemical grounding, communication grounding, distribution substation grounding, railway equipment grounding, building warehouse grounding, electrical equipment grounding etc.
Specifications:
| Function | On-line monitoring ground resistance, ground voltage, equipotential connection resistance, low resistance. | ||
| Power Supply | Standard: 12V??1VDC, 150mA Max.Optional: 24V??1VDC. | ||
| Range | Accuracy | Resolution | |
| Resistance | 0.01??~20?? | ??2%rdg??3dgt(auxiliary ground resistance 100????5%, voltage to ground<10V) | 0.01?? |
| 0.1??~200?? | 0.1?? | ||
| 1??~2000?? | 1?? | ||
| Voltage | 0~600V AC | ??2%rdg??3dgt | 1V |
| Measure Mode | Precise 3-wire measurement, simple 2-wire measurement. | ||
| Measure Method | Ground resistance: rated current change-pole method, measured current 3mA Max, 820Hz;Voltage to ground: average value rectification method. | ||
| Data Mode | Mean. | ||
| Display Mode | 4-digital super-large LCD. | ||
| Measuring Indicator | During measurement, LCD count down display. | ||
| LCD Size | 128mm??75mm;Display field: 124mm??67mm. | ||
| Dimension | L??W??H: 190mm??117mm??54mm. | ||
| Measure Rate | Voltage to ground: about 2 times/second; ground resistance: about 30 seconds/time. | ||
| Measure Times | Over 10000 times | ||
| Line Voltage | Measuring voltage to ground: measuring below AC 600V. | ||

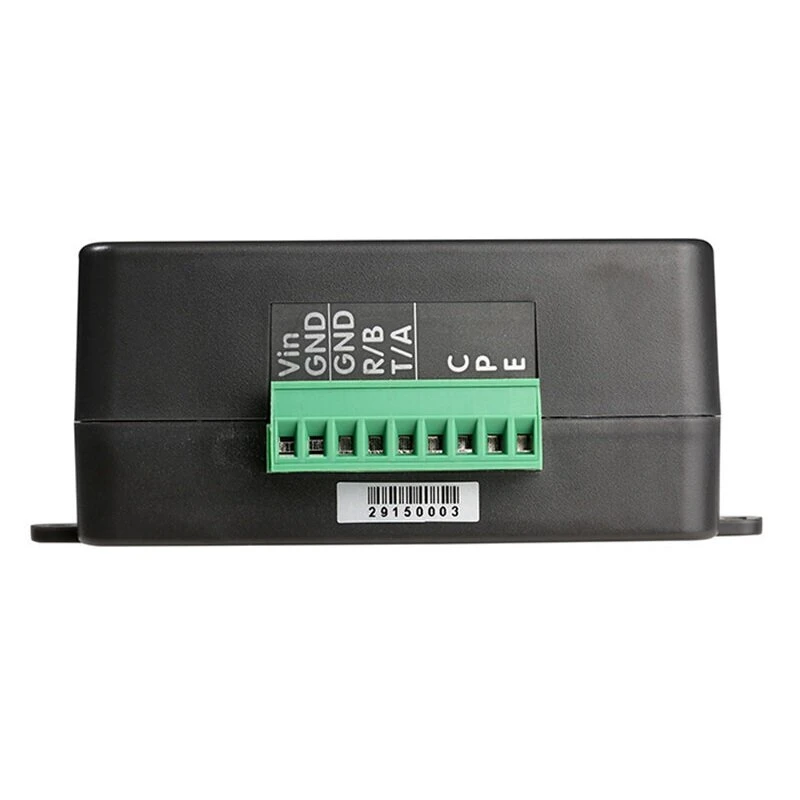

| Instrument Interface | Pluggable terminal blocks: 9 pin connector. | ||
| Communication Method | RS485 (or optional RS232). | ||
| Communication Line | USB to RS485 communication line( or optionalUSB to RS232 communication line). | ||
| Range Shift | Automatically. | ||
| Data Storage | 400 sets, flash display FULL icon to indicate storage is full. | ||
| Interval Time | Range of automatic monitoring interval time: 1-999 h. | ||
| Data Access | Data read function: READ icon display. | ||
| Overflow Display | Exceeding measuring range overflow function: OL icon display. | ||
| Power Consumption | Standby: 25mA Max. | ||
| Measurement: 400mA Max. | |||
| Alarm | Audible and visible alarm. | ||
| Power supply Voltage | When power supply voltage decreases to about 7.8V, will display, reminding to replace the power. | ||
| Weight | Detector: 450g. | ||
| Working Humiture | -10??C~40??C; below 80%rh. | ||
| Storage Humiture | - -20??C~60??C; below 70%rh. | ||
| Overload Protection | Measurement ground resistance: E-P, E-C between each interfaces AC 280V/3 sec. | ||
| Insulation Value | Over 10M??(between circuit and enclosure 500V). | ||
| Withstand Voltage | AC 3700V/rms. (Between circuit and enclosure). | ||
| Electromagnetism | IEC61010-4-3,Radio frequency electromagnetic field??1V/m. | ||
| Applicable Safety Rules | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), Pollution degree 2, CAT III 300V. | ||
Package Included:
1 x Resistance Tester

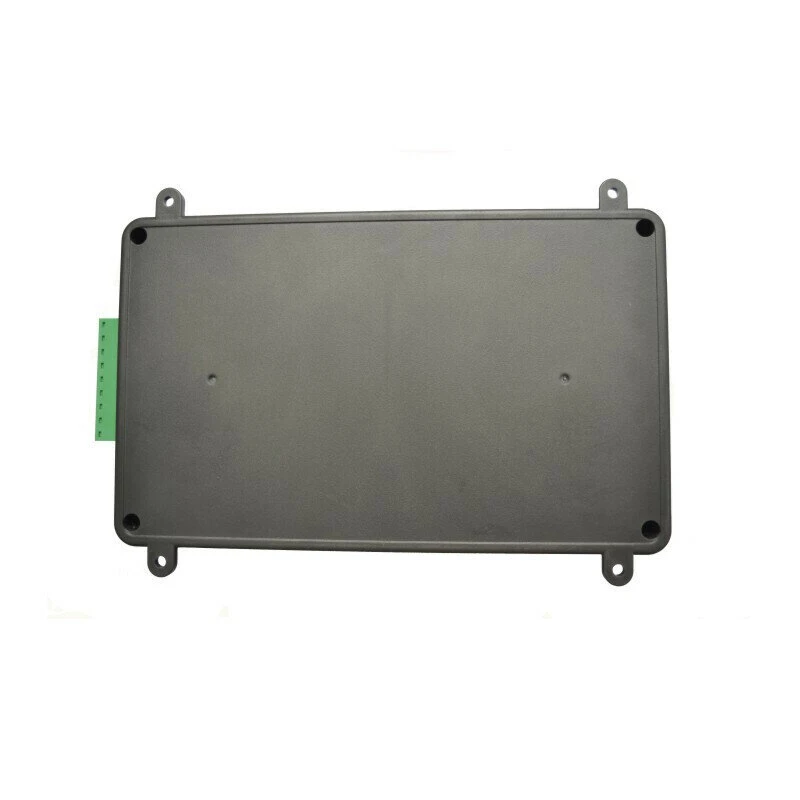

Details Picture:
