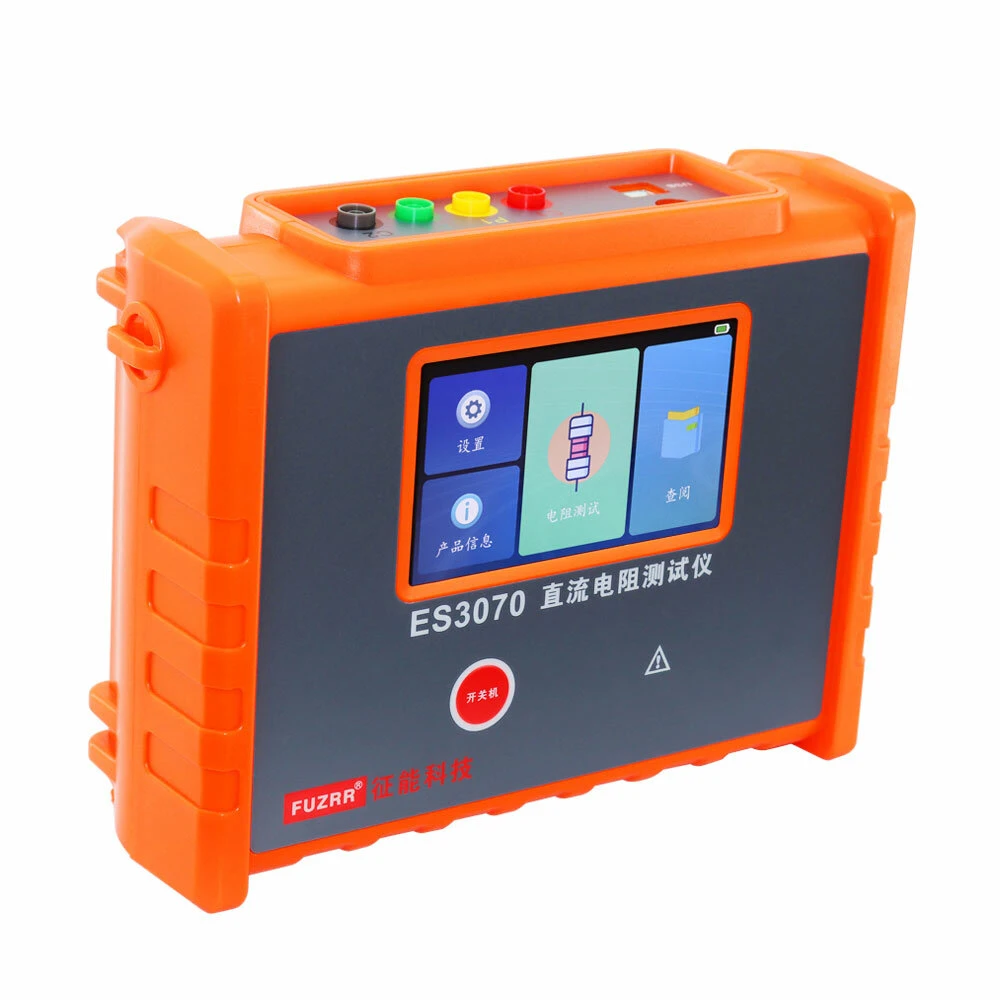

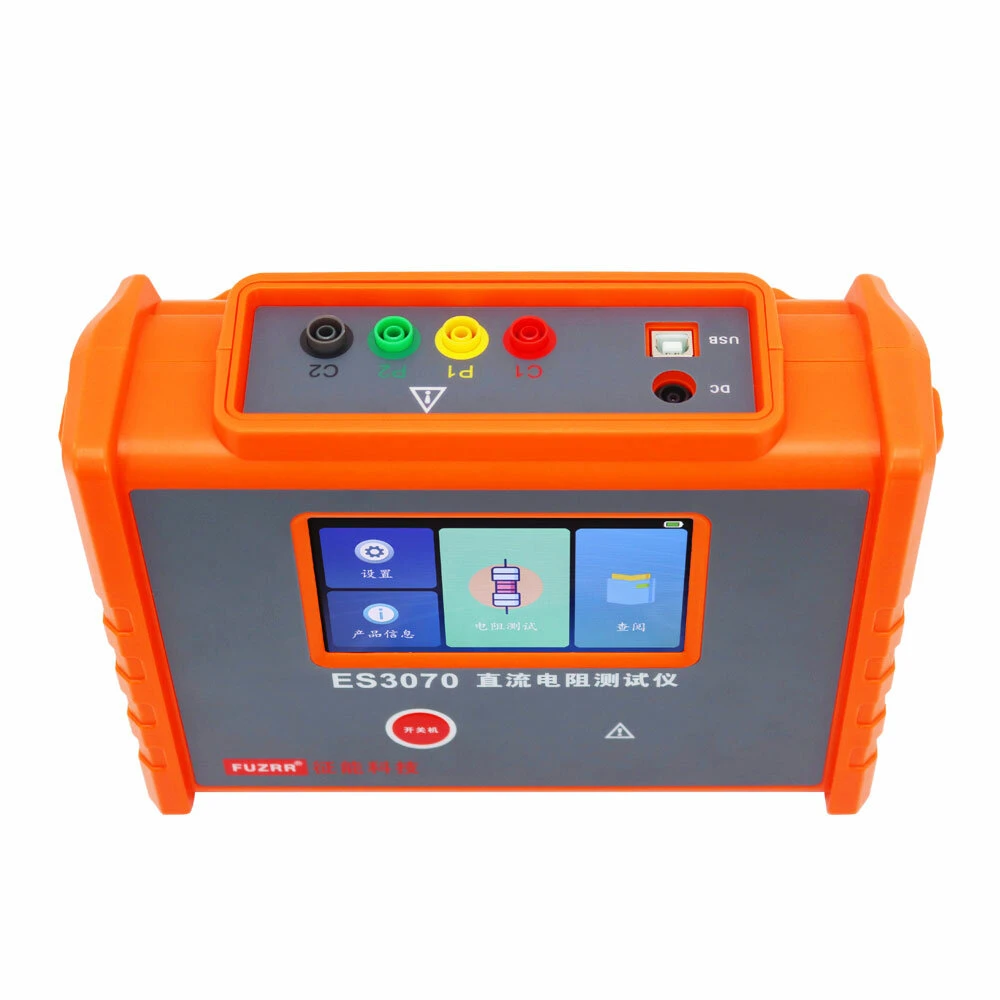

ES3070 Handheld DC Resistance Tester 10A | Transformer & Ground Continuity Tester
$584.00
$718.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
ES3070 handheld DC resistance tester, also known as transformer DC resistance tester, DC resistance fast tester, ground continuity tester, adopts microprocessor technology, four-wire method for testing, safe, precise and reliable. It is mainly used to measure the resistance of transformer windings, transformer winding resistance, grounding down conductor continuity test, cable wire resistance, switches, connectors, contact resistance of relays, coils, motors, and equipment casings, thunder protection belts, and ground Connection resistance test between metal components of beams, structures, cabinets, steel bars, water pipes, windows, guardrails, radiators, assembly lines, etc. It is widely used in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, avoid thunder rods, etc.
ES3070 handheld DC resistance tester consists of a host, monitoring software, test lines, communication lines, etc. The handheld and portable design of the host is convenient for on-site application, with charging function, no need to find electricity on site, full-color large-screen LCD display, easy to use, touch screen operation is convenient and easy to use, and the port is overloaded. Large-capacity storage of 500 sets of data, resistance measurement range: 10.0u??-50.00K??, measurement accuracy: 0.2%. The upper computer software has functions such as historical data reading, consulting, saving, and reporting.
Specification:
Function: Mainly used to measure transformer DC resistance, transformer winding resistance, ground grid connection continuity, cable wire resistance, contact resistance of switches, connectors, relays, coils, motors, transformer windings and metal riveting resistance, Connection resistance test between metal components, low value resistance test, contact resistance test, etc.Resistance range: 10. 0u?? -50. 00K??Resolution: 0.1u??Accuracy: 0.2%FSDetection method: four-wire methodTest current: 10A, 5A, 1A, 0.1A, 10mA, 1mAMaximum short-circuit current: 10AOverload protection: YesAutomatic discharge: yesPower supply: DC12. 6V 2500mAh large capacity lithium batteryCharging function: YesBacklight: Yes, suitable for dim placesDisplay mode: full color LCD displayTouch screen operation: yesLCD size: length and width: 108 mmX 65mmInstrument size: length, width and height: 240 mX 188 mX 85mmTest line length: 5 meters, one red and one blackUSB interface: with USB interfaceCommunication line: 1 USB communication lineData storage: 500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is fullData access: data access function: "MR" symbol displayOverflow display: over-range overflow function: "OL" symbol displayBattery voltage: real-time display of battery power, prompting that the battery needs to be charged in time when the battery voltage is lowAutomatic shutdown: the meter will shut down after about 15 minutes of inactivityPower consumption: standby: about 120mA (20% brightness) measurement: 27W MaxWeight: Meter: 1100g (including battery) Test line: 850gWorking temperature and humidity: -10??C~50??C; below 70%rhStorage temperature and humidity: -20??C~60??C; below 70%rhInsulation resistance: 10M?? or more (500V between the circuit and the case)Withstand voltage: AC 3700V/ rms (between circuit and case)Electromagnetic characteristics: IEC61010-4-3, radio frequency electromagnetic field ?? 1V/m.Support English Display

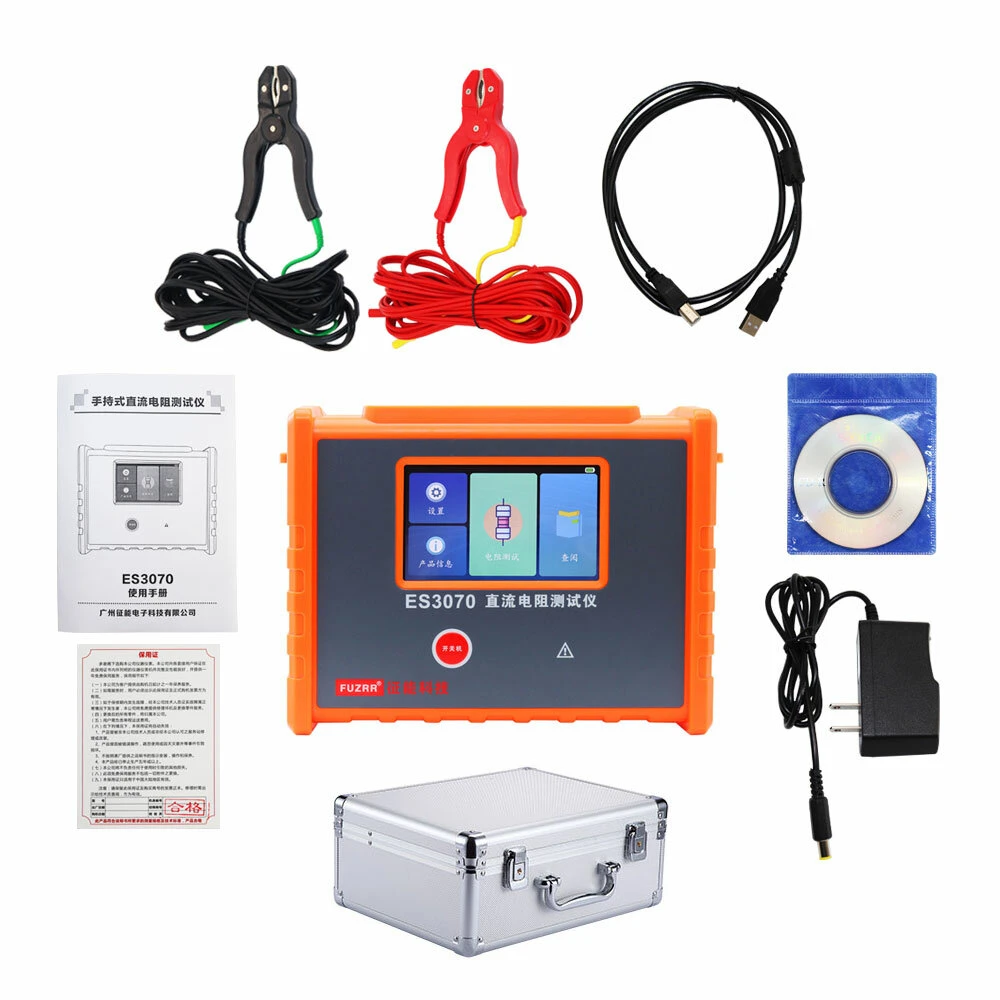

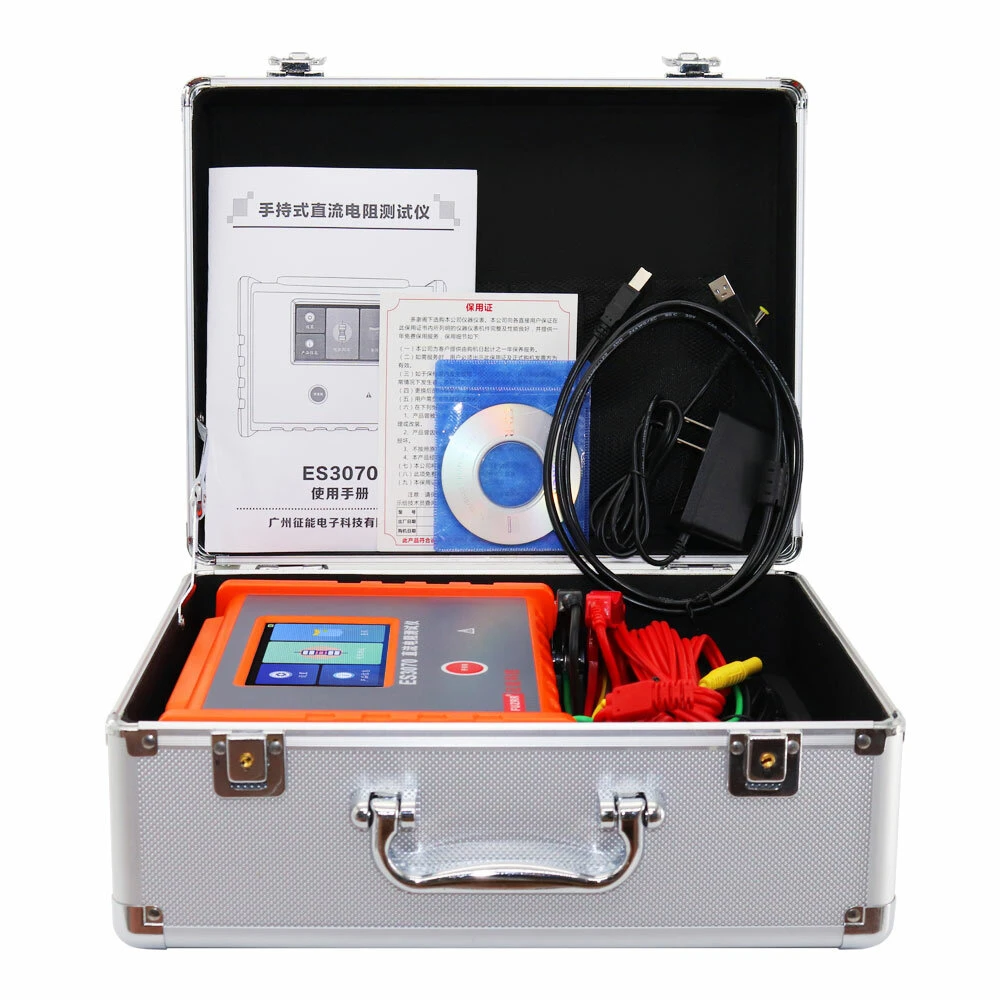

Package includes:
1 x Host
1 x Instrument case
1 x CD
1 x USB cable
2 x Test leads (red , black , each one)
1 x Charger
1 x User manual
Details picture:
