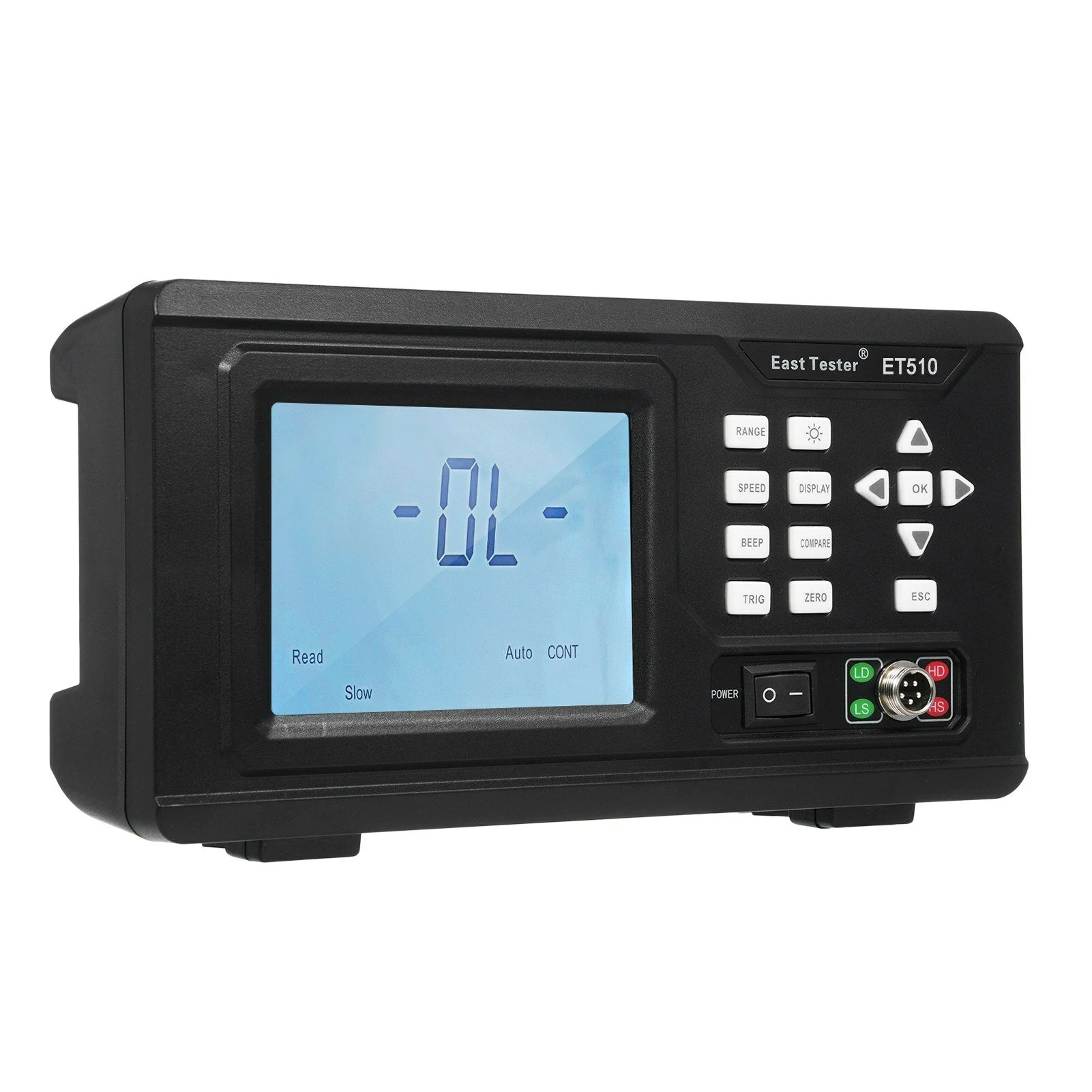

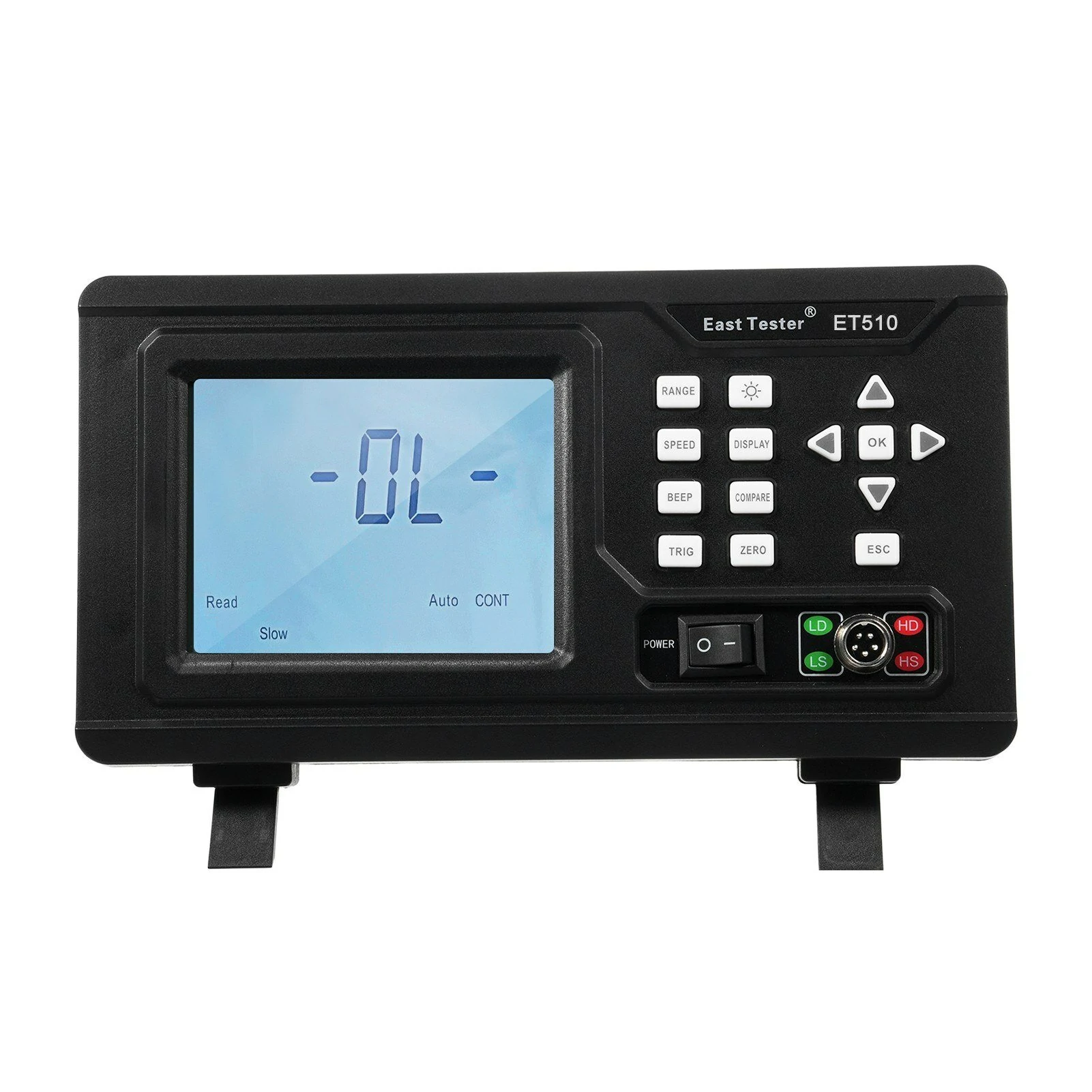

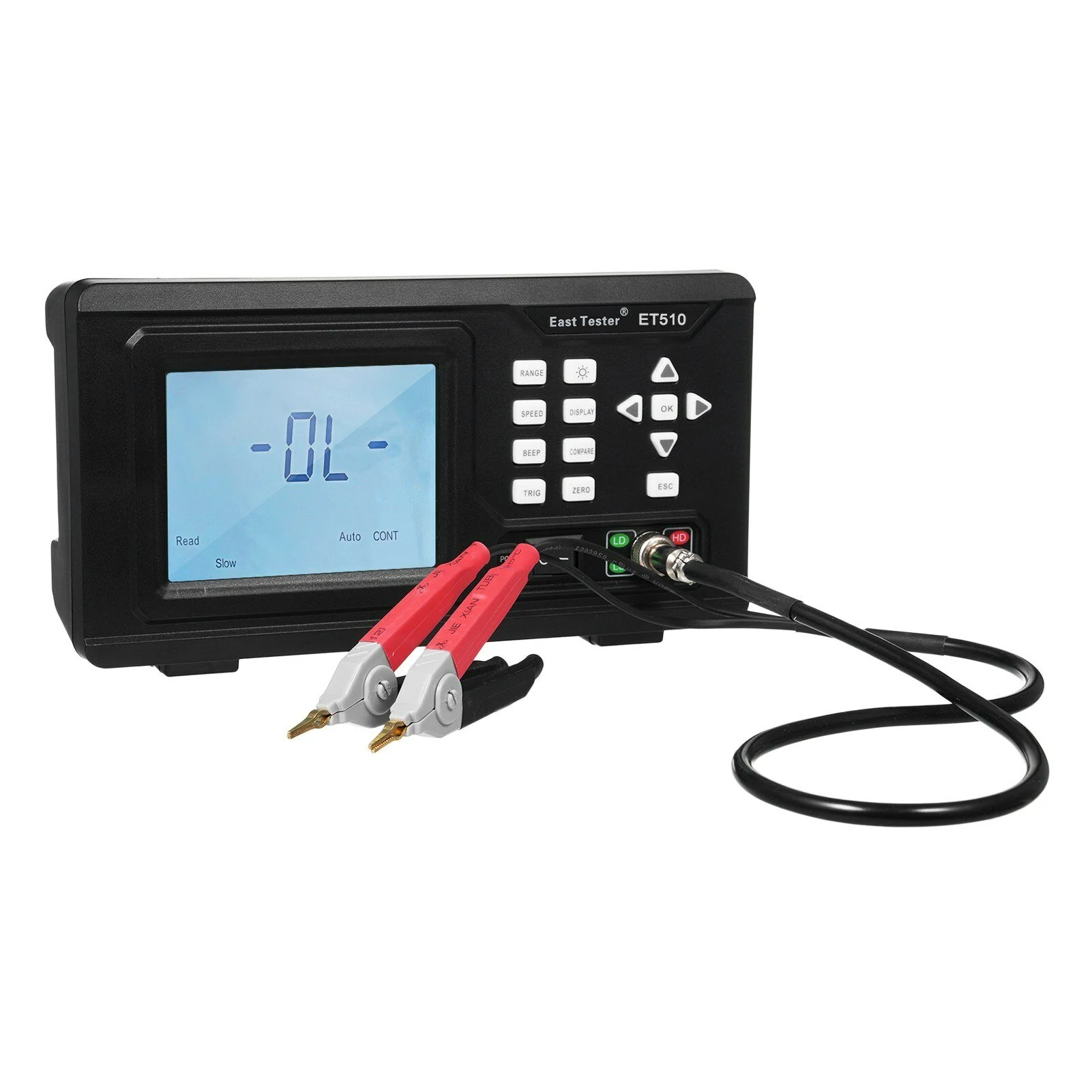

East Tester ET510 Portable DC Low Resistance Tester | Fast/Slow Speed | Multiple Trigger Modes

Product Description

Features:

1. Enhanced Measurement Accuracy: With a basic accuracy of 0.1%RD+3words and minimum resolution at 10?̦?, this ET510 DC low resistance tester offers highly precise readings across the measurement range of 10?̦? to 5k??.

2. Adjustable Testing Speed: This device has two test speed levels - slow (8 times per second) and fast (15 times per second) that allows users to adjust the speed according to their needs for ultimate convenience.

3. Versatile Display Methods: The inclusion of both direct reading and percentage display options ensures versatile data presentation to suit various user preferences.

4. Variety of Trigger Methods: The device can be set to either manual, external, or continuous triggers for flexible and convenient testing operation.

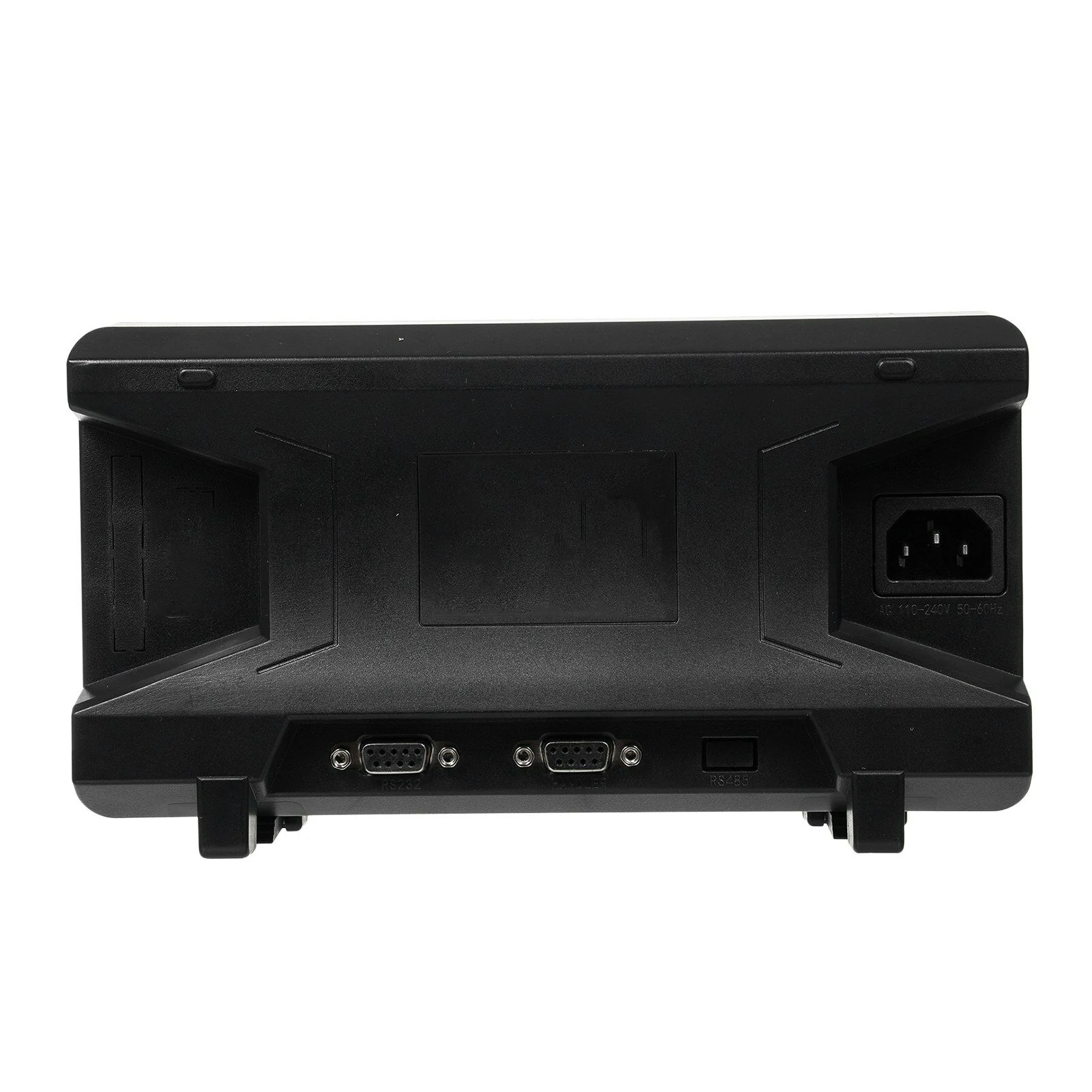

5. Handy External Ports: This tester is equipped with standard HANDLER and RS232 ports, with an optional RS485 port for efficient communication with PC or PLC, allowing convenient remote control.

Specifications:

- Plug Type: US / EU

- Model: ET510

- Measuring Range: 10?̦?~5k??

- Accuracy: 0.1%RD+3words (minimum resolution 10?̦?)

- Max Testing Current: 100mA

- Display Method: Direct-reading / Percentage

- Testing Speed: Slow: 8times/S; Fast: 15 times/S

- Trigger Method: Internal; Manual; External

- Open Circuit Voltage: <5V

- External Port: Standard: RS232, HANDLER; Optional: RS485

- Working Conditions: Temperature 5??~40??; Humidity: <80%RH

- Energy Consumption: <15VA

- Material: ABS

- Item Size: 23 * 12.2 * 8 cm

- Item Weight: 500g

Package Included:

1 x DC Low Resistance Tester

1 x Power Cable (Plug Type as your choice)

1 x Test Cable

1 x English User Manual
