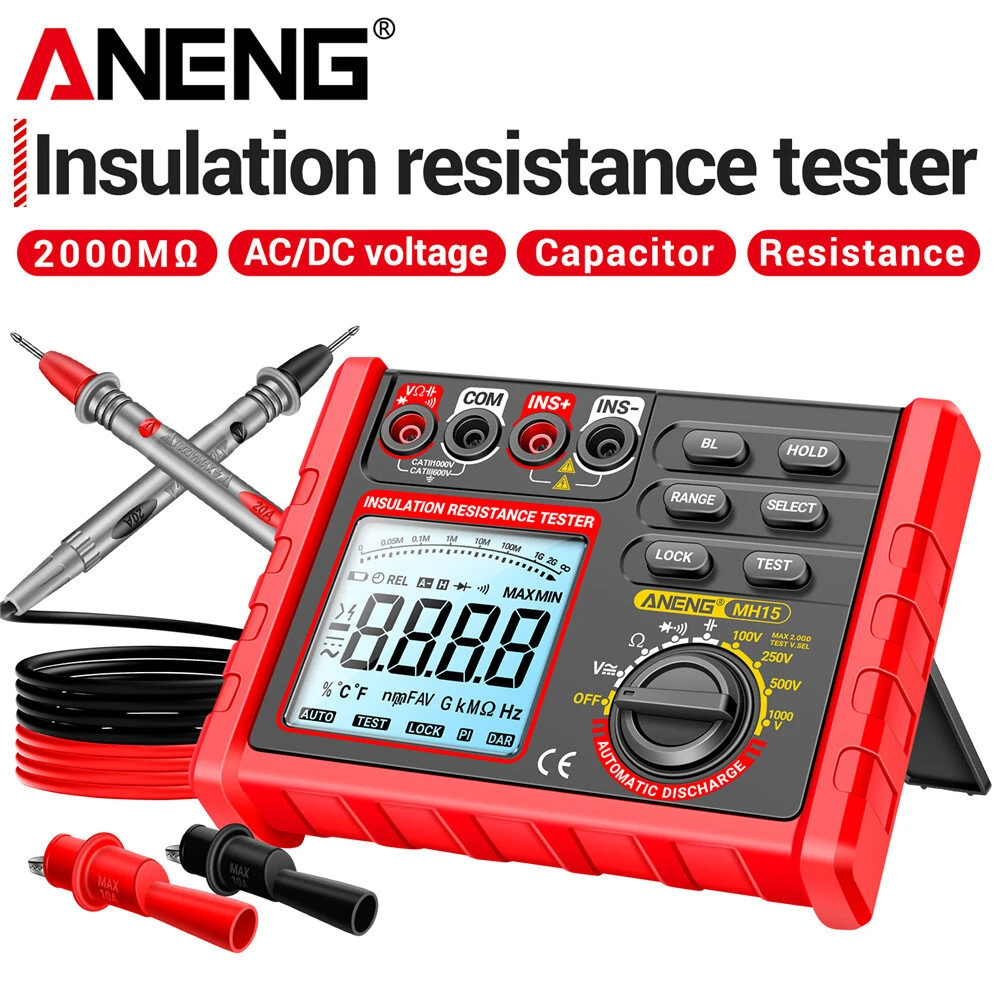

ANENG MH15 Digital Megohmmeter - Insulation Resistance Tester | 0-1000V AC/DC, 0-60mF Capacitance, 6000 Counts

Product Description

Specifications:

- Model: ANENG MH15

- AC Voltage Range: 0V-750V

- DC Voltage Range: 0mV-1000V

- Capacitance Range: 0nF-60mF

- Resistance Range: 0??-60M??

- Resolution: 1mV-1V for AC, 0.1mV-1V for DC, 1pF-10uF for Capacitance, 0.1??-10k?? for Resistance

- Precision: ??(2.5%+5d) for AC, ??(1.5%+5d) for DC, ??(6.0%+20d) for Capacitance, ??(1.5%+10d) for Resistance

- Maximum Count: 6000 Counts

- Additional Features: Diode Test, Buzzer

- Automatic Shut Down: Yes, after 15 minutes of inactivity

- Automatic Discharge: Yes

- Data Retention: Yes

- Low Power Prompt: Yes

- Material: ABS/Silicone

- Power Supply: 1.5V AA Battery x 6

- Weight: 419g

- Dimensions: 16.8cm x 13.2cm x 6cm (6.61 inch x 5.2 inch x 2.36 inch)

Features:

1. High Accuracy Measurements

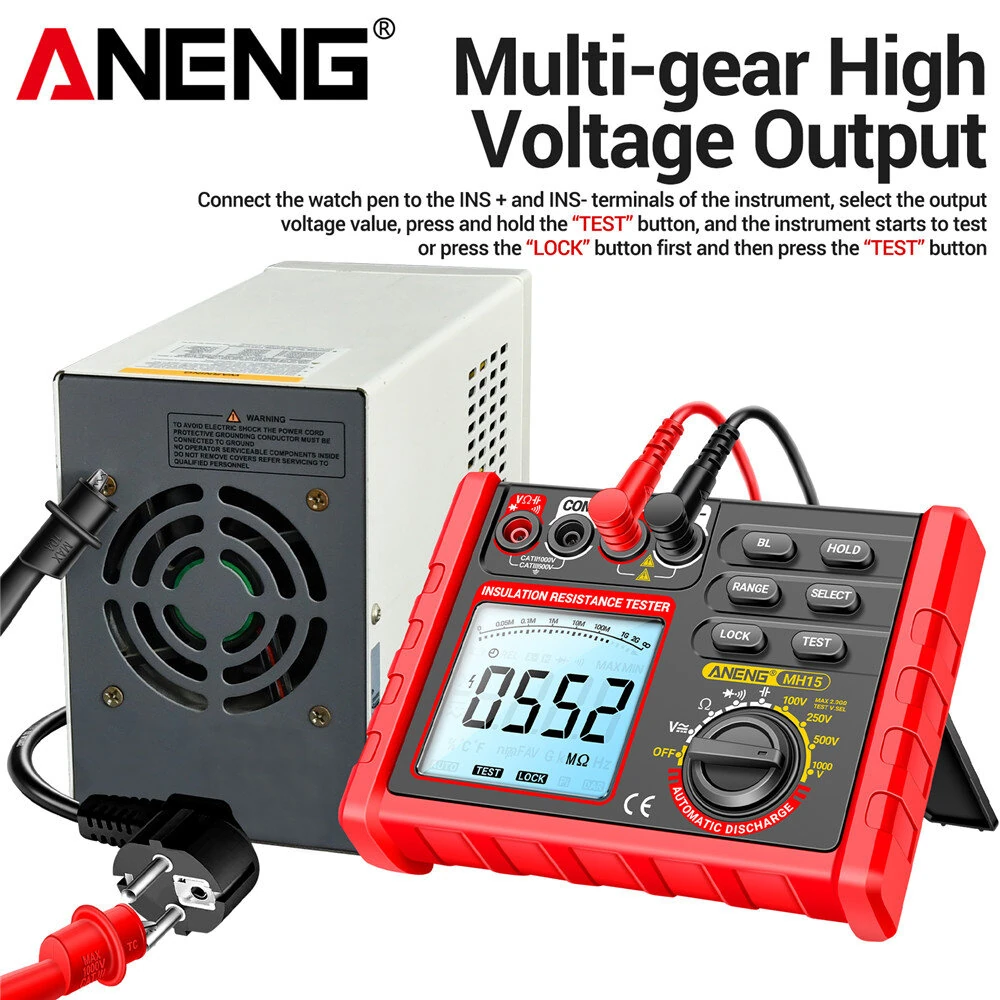

- The ANENG MH15 allows for precision AC voltage measurements up to 750V and DC voltage measurements up to 1000V. It provides highly accurate capacitance and resistance readings, making it perfect for various applications.

2. Automatic Functions

- Equipped with automatic shutdown and automatic discharge functionalities, this tester ensures user safety and extends battery life. If inactive for 15 minutes, it automatically turns off, safeguarding against power wastage.

3. Large Display for Ease of Use

- Featuring a high-resolution LCD screen with a 6000-count display, the ANENG MH15 ensures easy readability and analysis of measurement data. The backlight function allows for usage in low-light conditions.

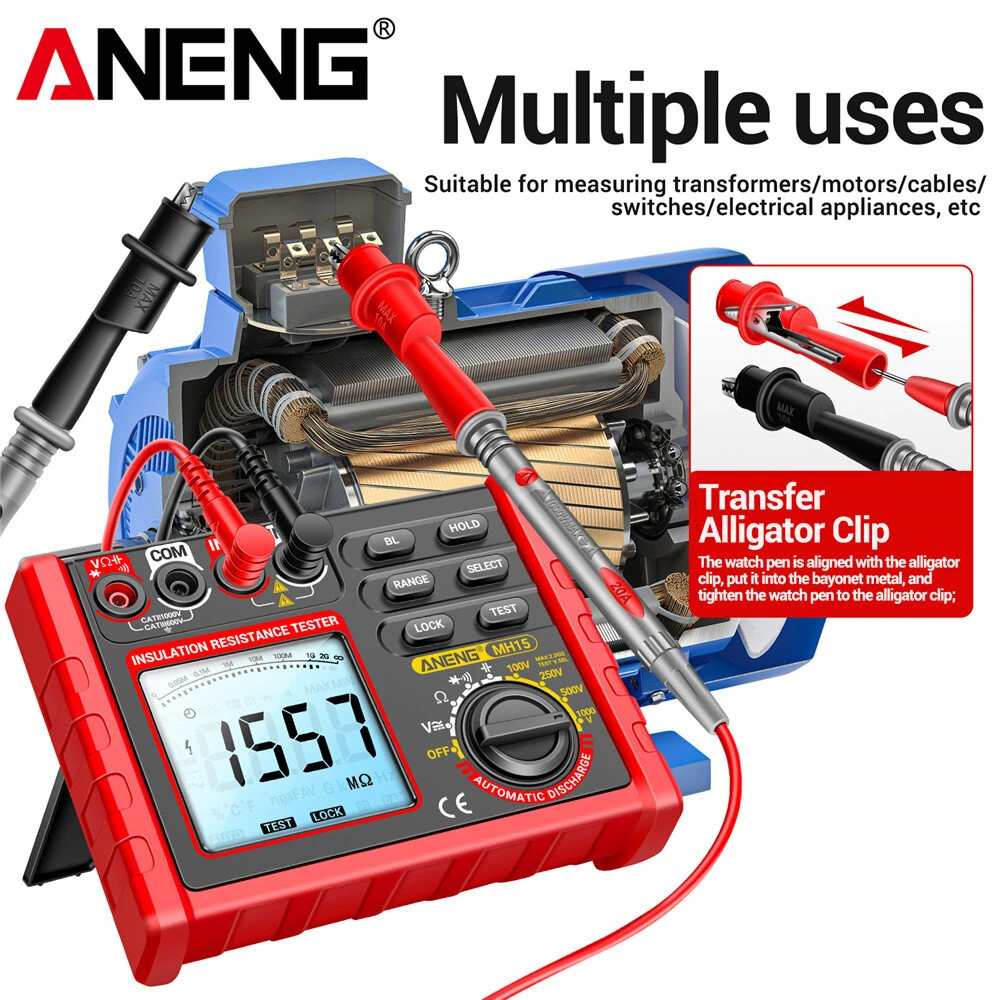

4. Comprehensive Testing Capabilities

- Designed to handle a wide range of tasks, this tester offers additional features like diode testing, buzzer alerts for continuity, and a data retention function for easy loggin
