HAYEAR 3.5X-90X Trinocular Stereo Microscope | 4K HDMI Camera | Articulating Arm & Pillar Clamp

Product Description

Feature:

An excellent stereo inspection microscope with i'ntensity-adjustable 144-LED ring light

3.5x-90x super wide zoom magnification power

Bright cool light 144-LED illumination system

High resolution with great flatness and contrast, giving sharp and clear images

Binocular head with 45 degree inclined 360 degree swiveling eye tubes

Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters

Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

Image sensor: 4K SONiY IMX sensor 1/2.33 inch

Effective Pixels:SONiY 12MP CMOS 1/2.33 IMX 4K SENSOR

Resolution:4K/2K/1080P 1080P??USB??

Sensor Size:1/2.33inch

Pixel Size:1.55 ?? 1.55??m

Image Resolution:4032 ?? 3024 (12MP) (16:9)

Frame rate:60@FPS (4K)

Image Format:JPEG

WaveLength[nm]:400nm~700nm

Frame Rate:3840??2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS

Lens Fype:C / CS

Timing Photo/Record:Support Timing Photo/Record

Storage:TF Card, Max 256G

PC Support:Windows / Miac / Linux System PC Software with Measuring Function

Image Measurement??Support HAYEAR Measurement

Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP

Output Interface:HDMI/USB Standard usb2.0 interface (Type B)

Image Scaling :7-Fold zoom

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line,any positions

Encode:H.264 /H.265 (High Profile)

Video format:MP4

Expand the scope of operations,any orientation and angle observed the objectives.

Vertical Height : 400mm

Horizontal Distance:770mm

Base size: 98x80x116mm

Max Clamp:50mm

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable i'ntensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-160mm

Package includes:

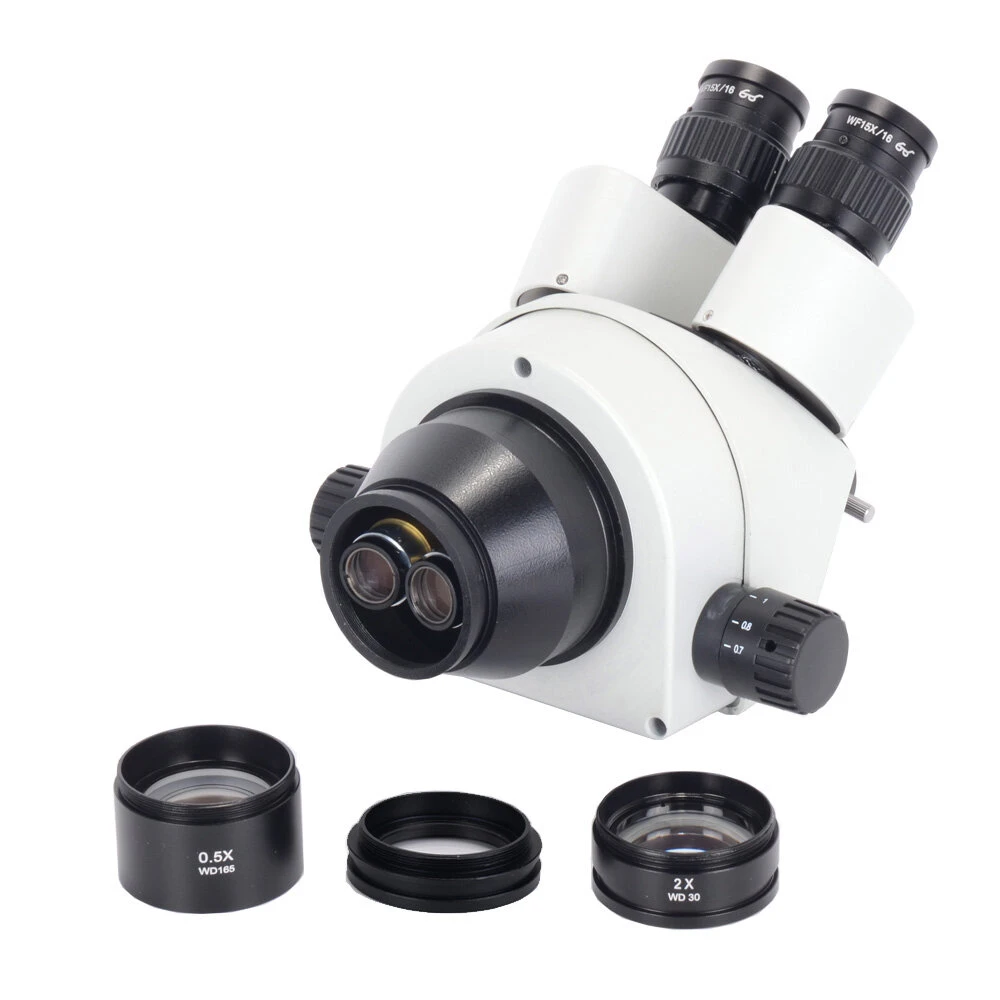

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x 144-LED Ring Light

1 x Focusing Rack

1 x C-mount Adapter

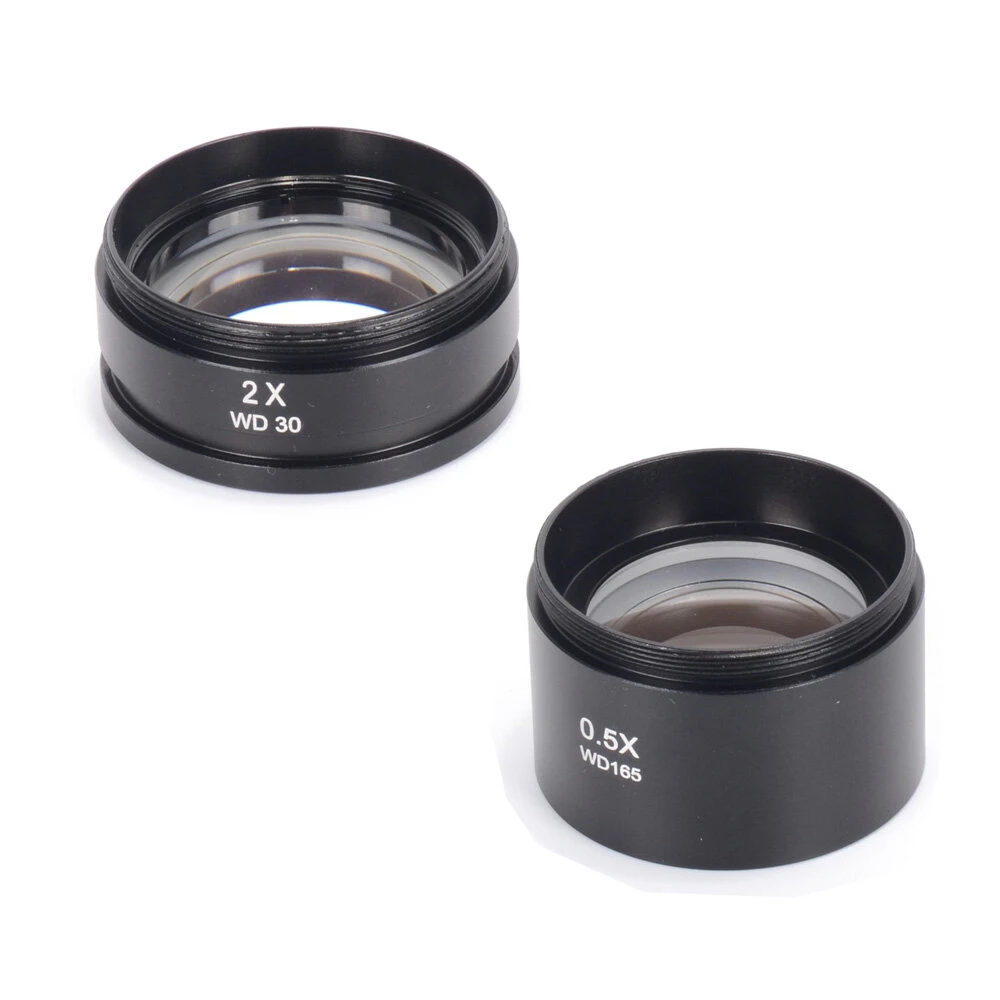

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

1 x High Temperature Resistant Working Pad

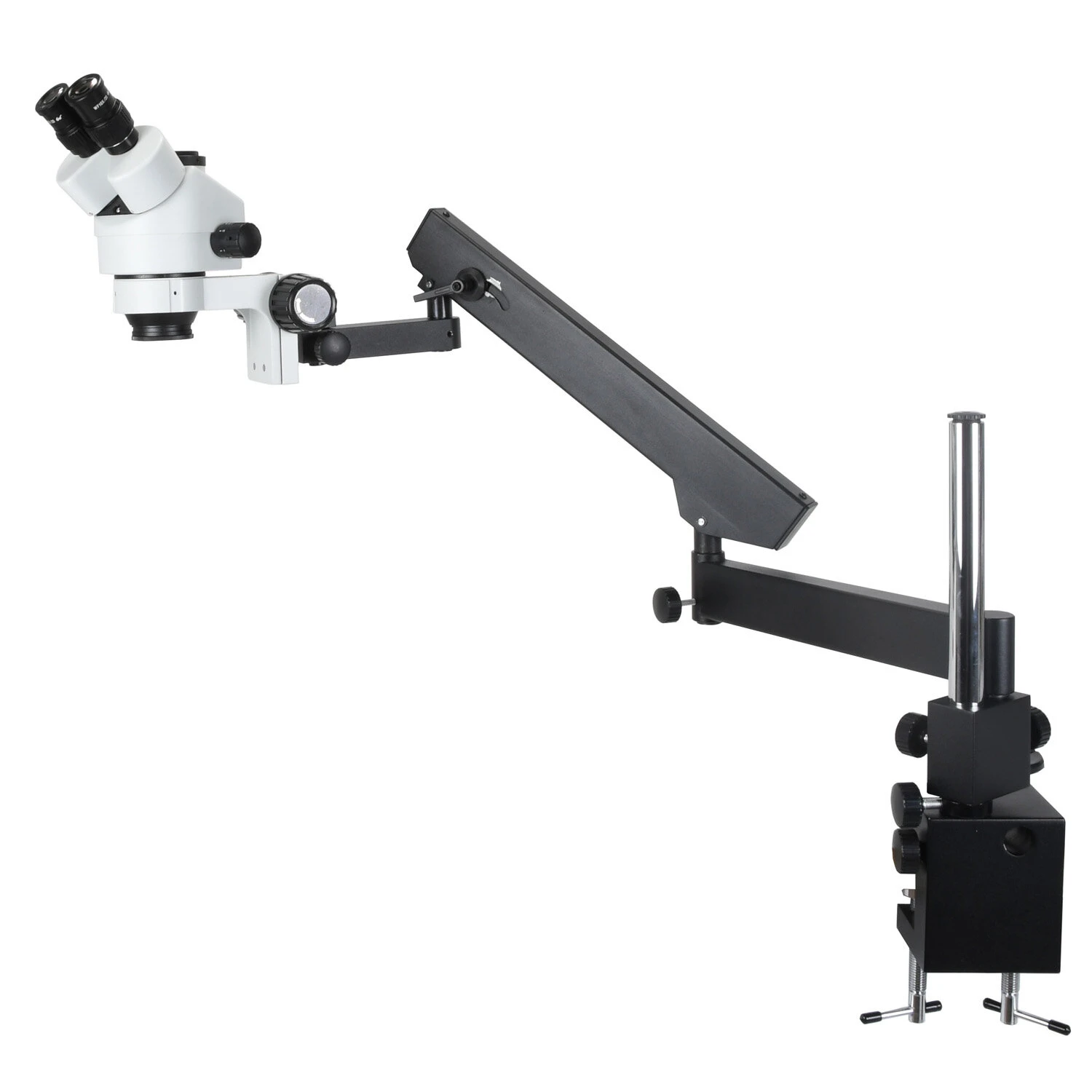

1 x Articulating Arm Clamp Microscope Bracket

1 x 4K HDMI Microscope Camera

1 x HDMI Cable

1 x USB Cable

1 x IR Remote control

1 x Power Supply Adapter (EU)

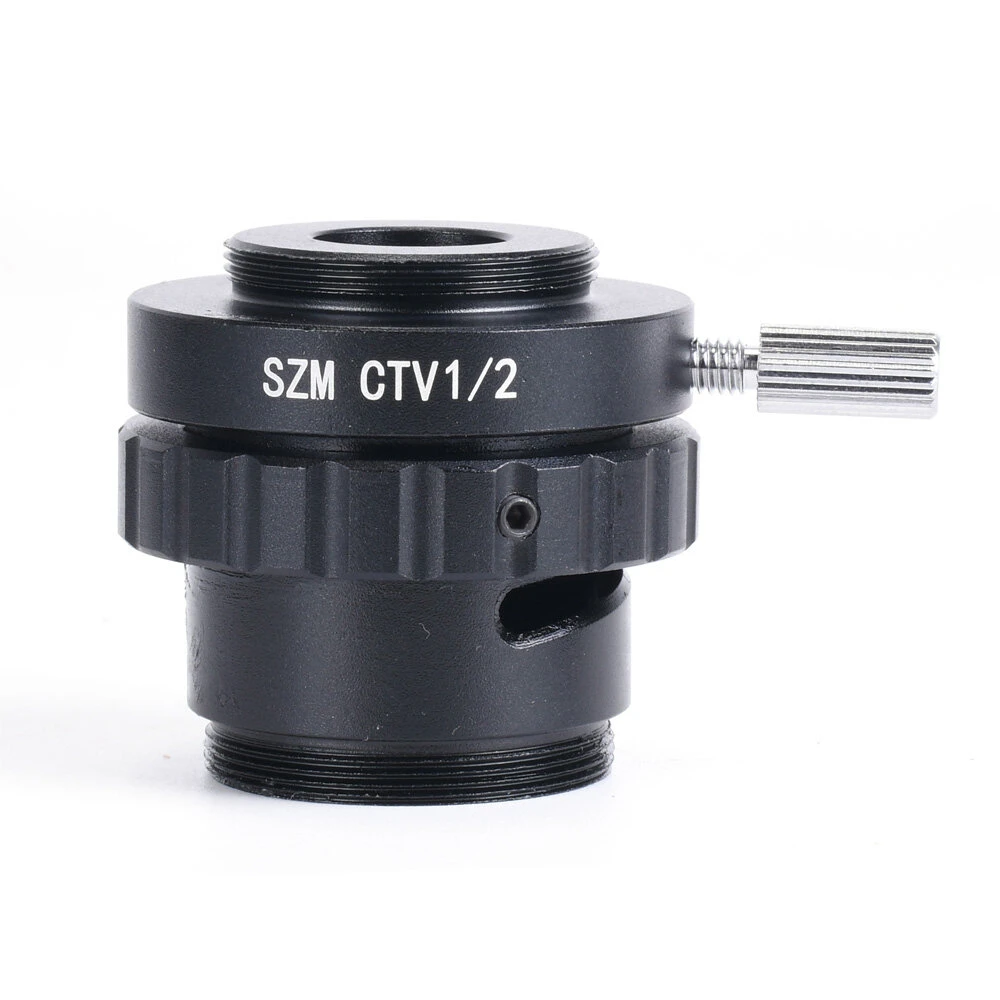

1 x SZMCTV 1/2 Lens

Details picture:
