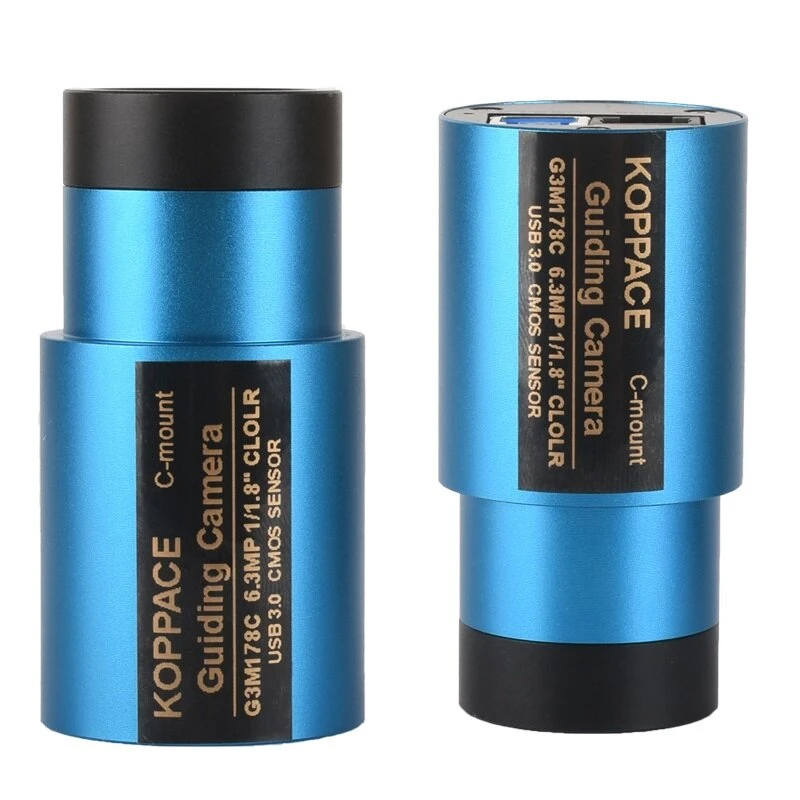

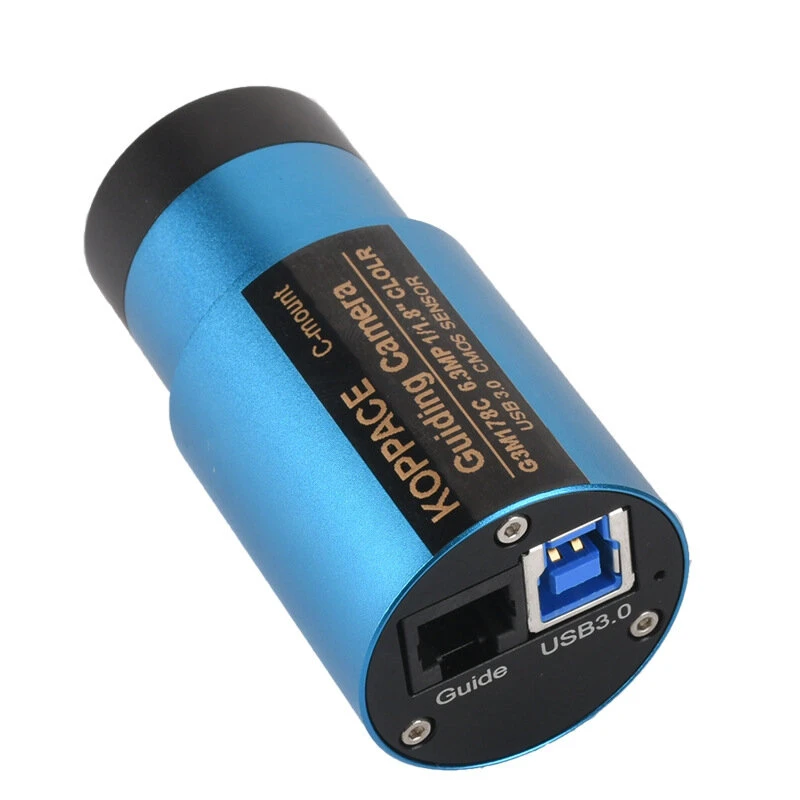

KOPPACE 6.3MP USB3.0 Astronomical Camera | 1.25 Telescope Photo & Video
Product Description
Features:
Camera for auto-guiding and multiple types of astrophotography (Moon, Sun, Planets,Galaxies, Cluster and Nebulae)
Carefully selected Exmor for SONY, Exmor R, Exmor RS CMOS sensor with USB3.0 interface
Compact size and low amp glow
Protect window with double-side AR coating or IR-Cut filter

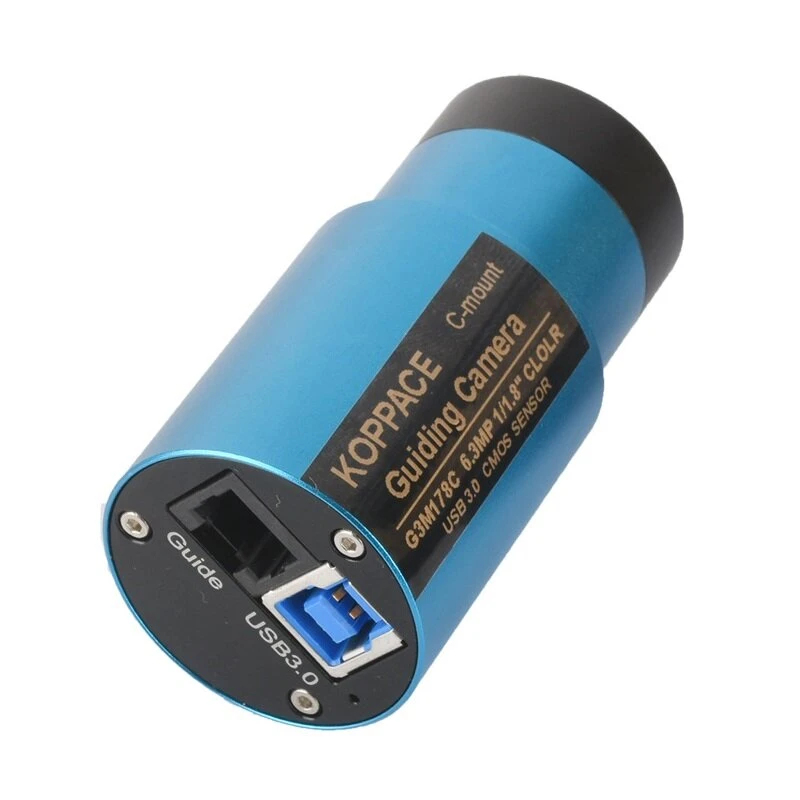

A built-in ST4 auto guider port for the easy connection of the auto guider

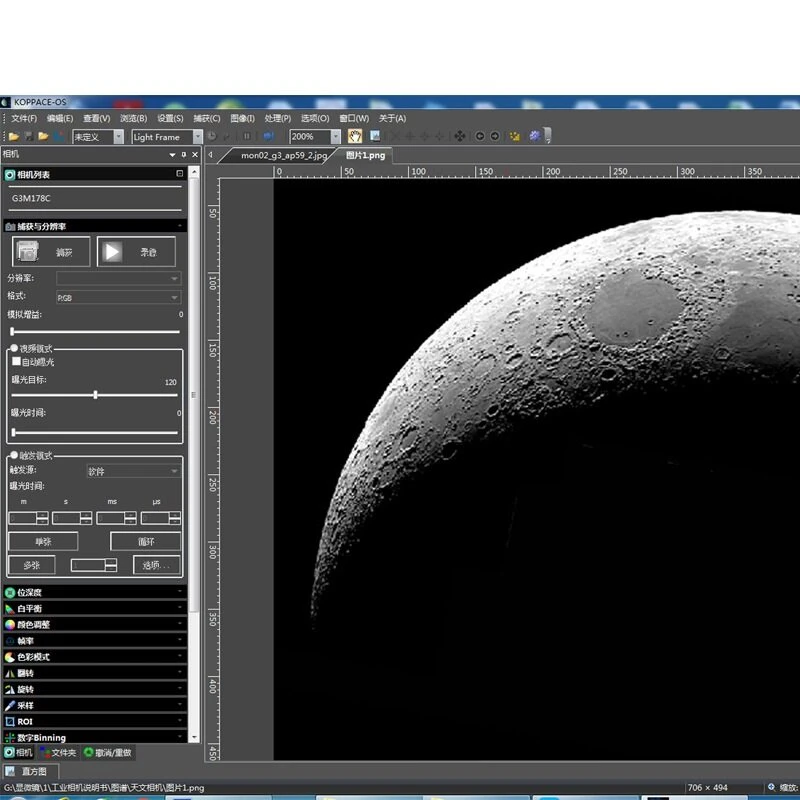

Dedicated astrophotography software to support video preview, video record, video processing, image capture and process, dark field correction and raw data output
Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography software

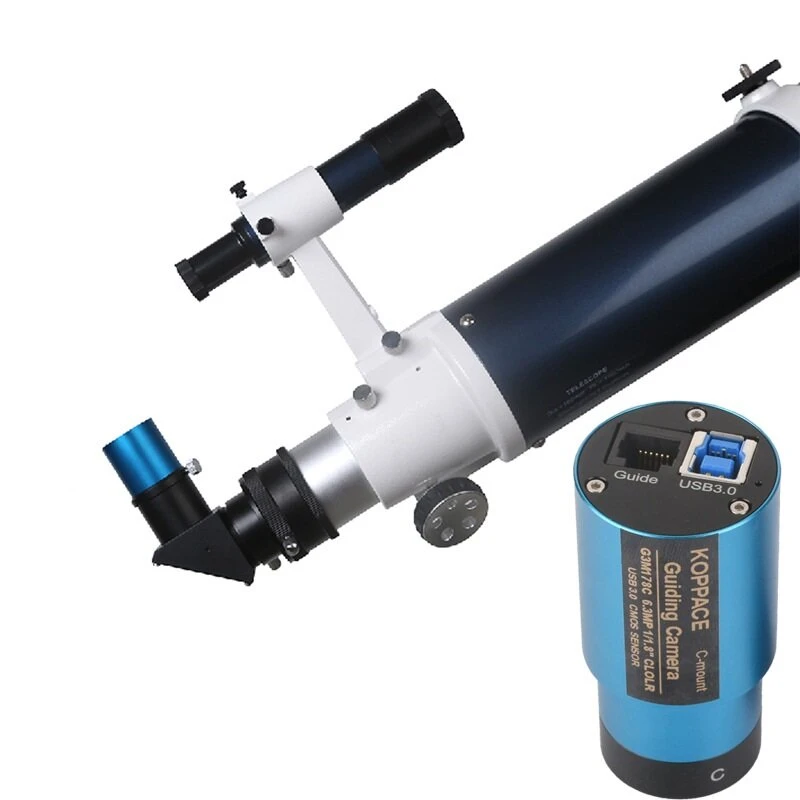

Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece
Standard C-mount(inner) for standard industrial lens
Specification:
Product number | KP-G3M178C |
Pixel | 6.3MP USB3.0 |
Resolution | 59 @ 3040 x2048 58 @ 1520 x 1024 |
Sensor | 6.3M / IMX178(C) |
Pixel (??m) | 7.37umx4.91um |
Optical size | 1/1.8" |
Spectral Range | 380-650nm (with IR-filter), 350-1050nm(with Double Side AR Coating Protect Window) |
White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique | Ultra Fine Color Engine |
Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
Recording System | Still Picture and Movie |
Guilding Port | ASCOM ST4-port |
Cooling System* | Natural with High Performance Cooling Structure |
Working temperature (degrees Celsius) | -10~ 50 |
Storage temperature (degrees Celsius) | -20~ 60 |
Working humidity | 30~80%RH |
Storage humidity | 10~60%RH |
Power supply | DC 5V over PC USB Port |
| Sensitivity | 425mv; 1/ 30s |
| Dynamic Range | 0.15mv; 1/ 30s |
| Exposure time | 0.244ms--1000ms |
Operating system | Microsoft@Windows@XP/ Vista / 7/8/10 (32-bit and 64-bit) Linux / OSX, CPU: equal to Intel Core2 28GHz or higher, memory: 2GB or more, USB port: USB2.0 high-speed port, display: 17" or larger, optical drive |
Package includes:
6.3 million pixels C-Mount astronomical camera*1
USB 2.0 data line*1
2.0m guide cable*1
1.25 inch interface*1
KOPPACE OS Driver Software*1
Details picture:
