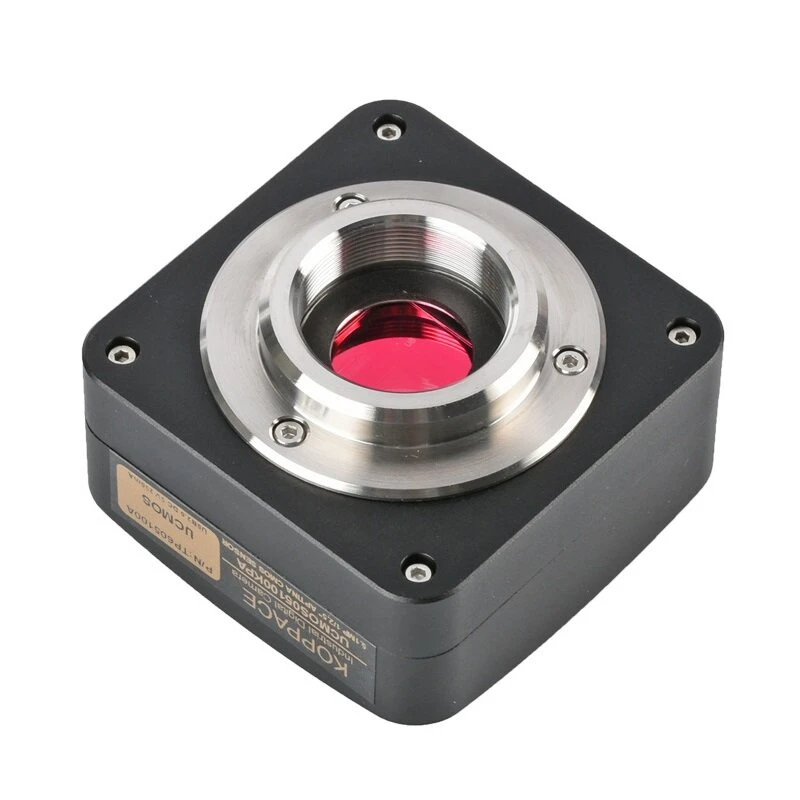

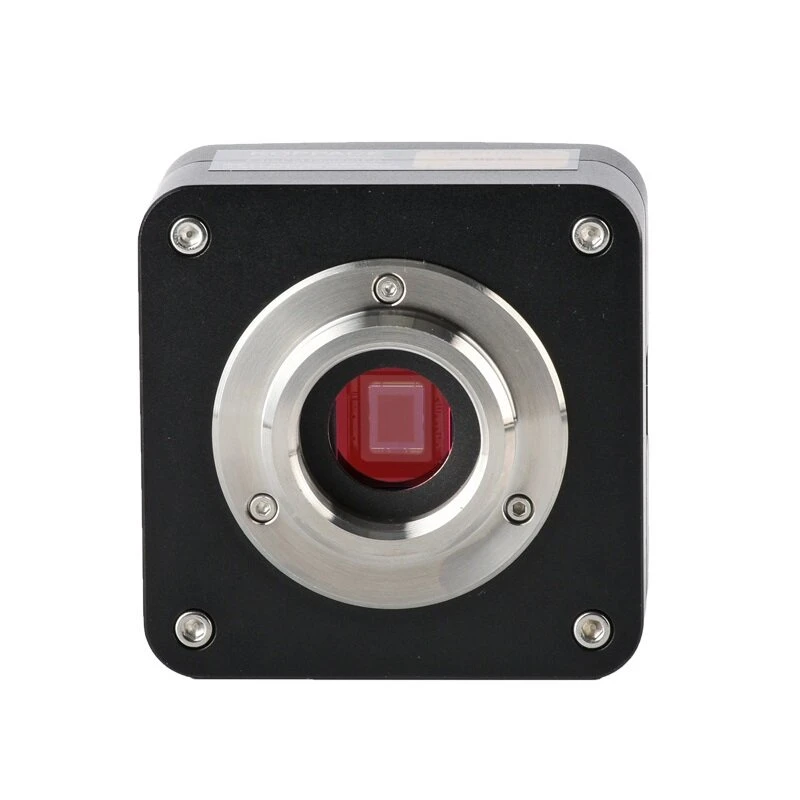

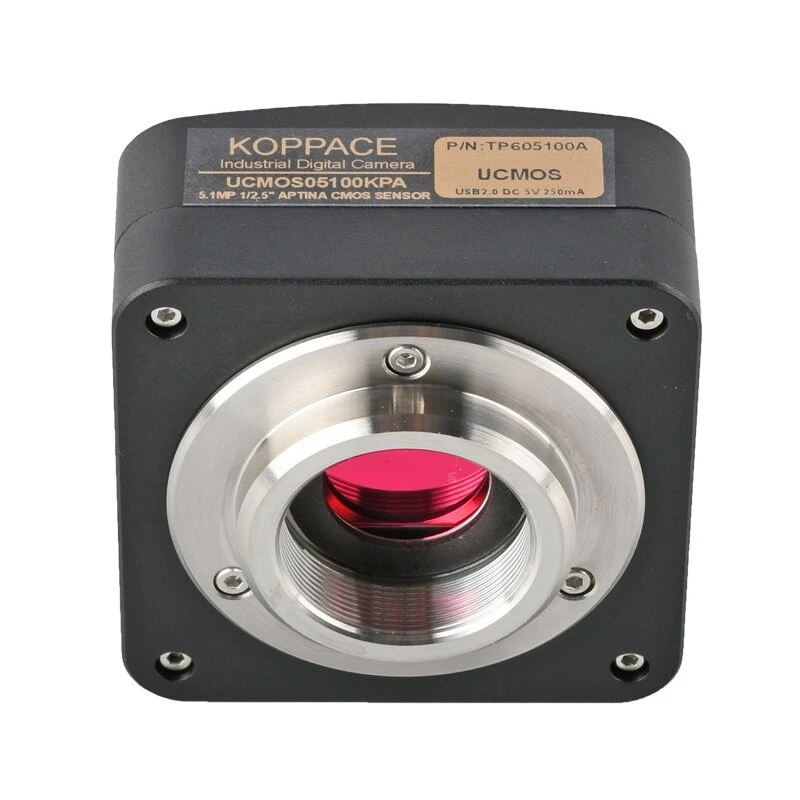

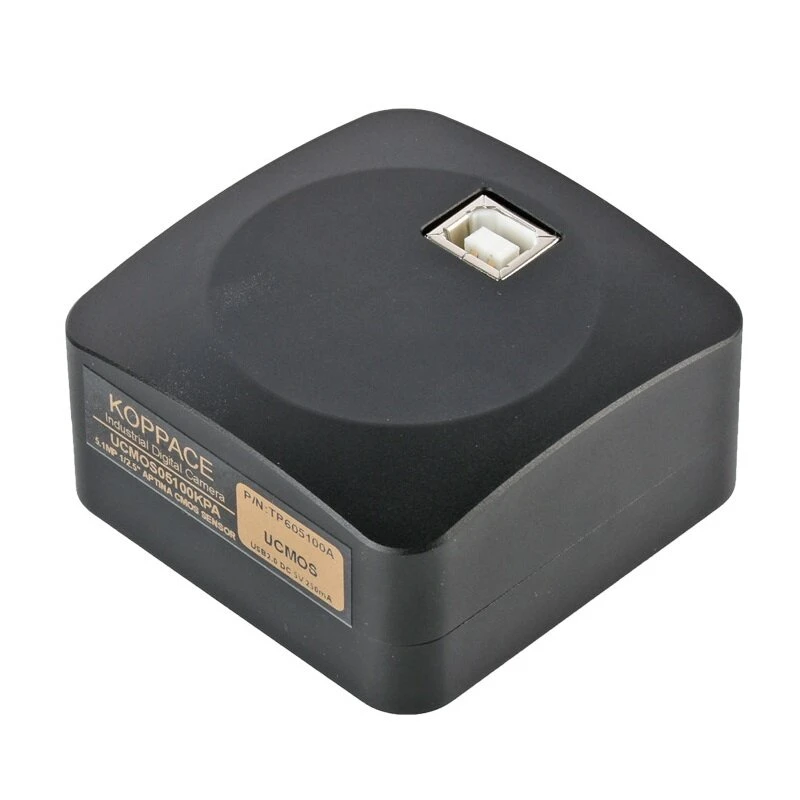

KOPPACE USB2.0 5MP Microscope Camera | Industrial, Video & Image Capture

Model

KP-5100KPA

Pixel

5 million pixels

Output method

USB2.0

Sensor

5.1M/AR0521(C)

Sensor size

1/2.5" (5.70x4.28)

Resolution frame rate

30@2592x1944,30@1280x960,30@640x480

Pixel size

2.2??mx2.2??m

Exposure time

0.1-1000 ms

Spectral response range

380-650nm (with IR cut filter)

White balance

ROI white balance / manual Temp-Tint adjustment

Color reproduction

Ultra-Fine hardware ISP video color processing engine

Capture / Control API

Native C/C ++,C #,Directshow,Twain,Labview

Operating system

Microsofts Windows XP/Vista/7/8/10 (32 & 64 bit) OS X (for Mac OS X),Linux

Shooting mode

Images and videos

Cooling system

Natural

Operating temperature

-10 ?? C ~ 50 ?? C

Storage temperature

-20 ?? C ~ 60 ?? C

Working humidity

30 ~ 80% RH

Storage humidity

10 ~ 60% RH

Advanced software for Windows:
- offers Stitching, EDF,video recording and measurement functions
- conducts measurements for lengths,angles,arcs, areas and etc.
- gives your computer screens the same field of view as your microscope's eyepiece
- saves still images in BMP,TIFF,JPG,PICT,PTL or other formats
- edit and process microscopy images in a manner similar to PhotoShop
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers,watermarks, mosaics,tiles;adjust color balance,
exposure,saturation,contrast,orientation;change resolution,histogram, granulation,
diffusion;transform images via edge detection,digital image warping;conducts measurements for single,
parallel or perpendicular lines and rectangular,elliptical and irregular areas;adds notes, measurements,
text,arrow,labels,and etc.using customizable text with different sizes and colors;
conducts measurements in microns,millimeters,centimeters, inches,
