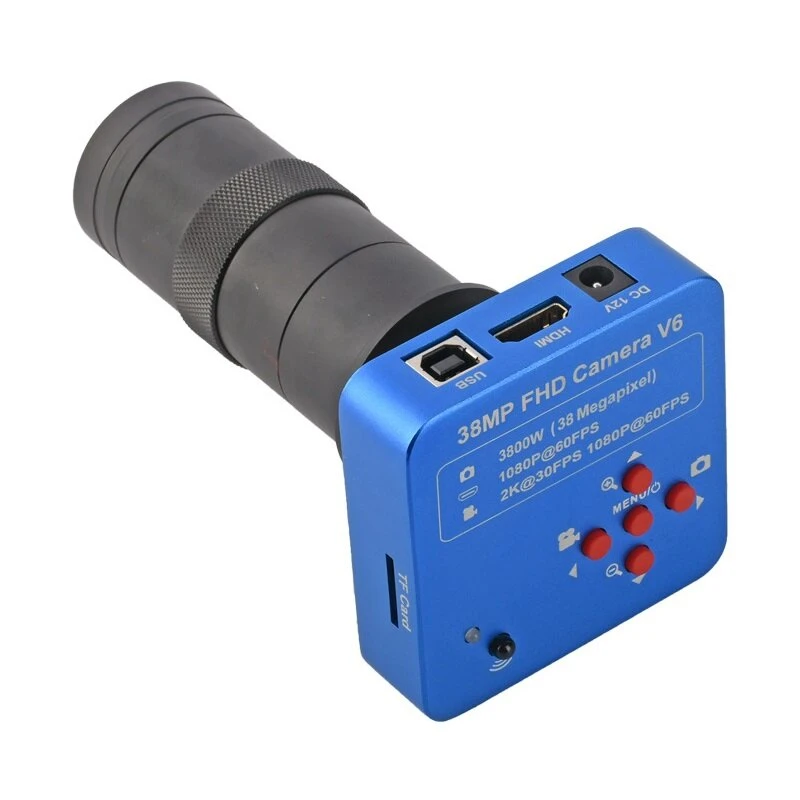

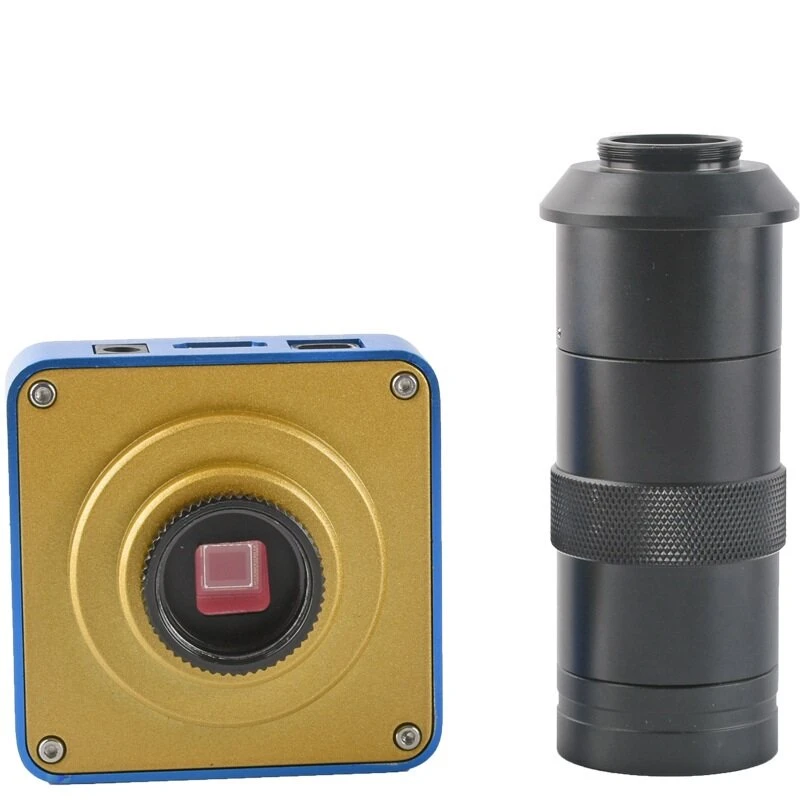

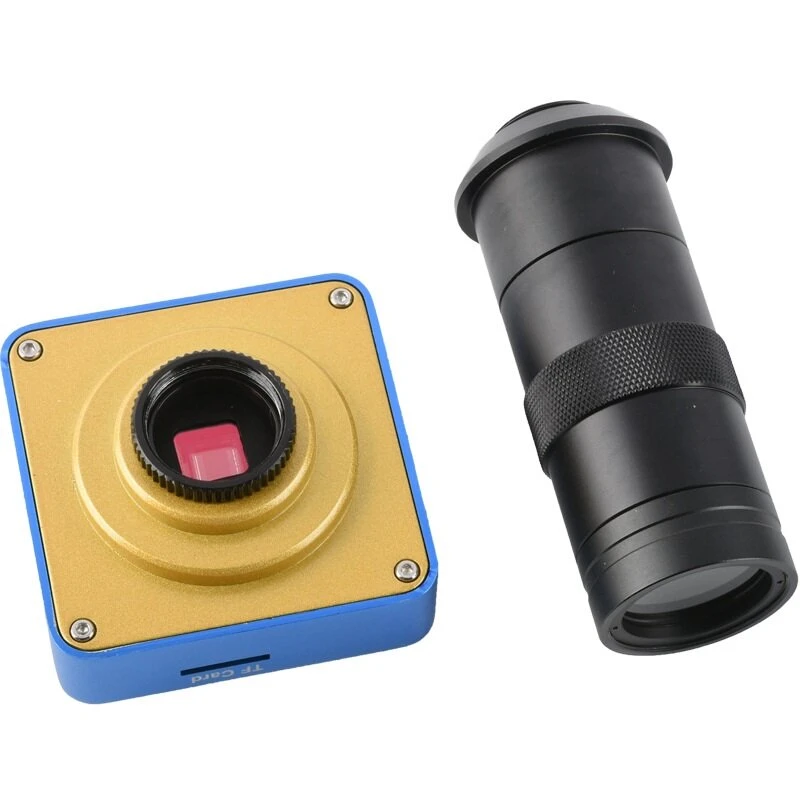

KOPPACE KP-3800-100X 38MP HDMI USB Microscope Camera | 100X Lens for Phone Repair

Model

KP-3800-100X

Magnification

100X

Working distance

65mm-280mm

Lens diameter

39mm

Sensor

38 million pixels CMOS Sensor

Optical format

1 / 2.33 inch

Pixel size

1.335??m??1.335??m

Interface

HDMI(Type A),USB(Type B),TF Card

Image resolution

8432*4744 (for TF Card), 1920x1080(for TF Card)

Video record resolution

2K@30FPS,1080p@60FPS

HDMI Resoltion

1920*1080p 60FPS

HDMI proportion

Support 4:3, 16:9, 16:10 screen

USB2.0(Drive free)

1920*1080@30 1280*720@30 640*480@30

TF card

Cross lines

8 lines.Can set color& width& position

Scale mark lines

2 lines.

Dotted lines

2 lines.Can set color& width& position

Sharpness Contrast Color gain

Support

Mono Negative

Support

Mirror

Horizontal vertical mirror

Language

English/simplified Chinese

Digital zoom

Support 7X

Replay

Voltage in

DC 12V (5-19V),55-21mm size

Lens interface

C/CS

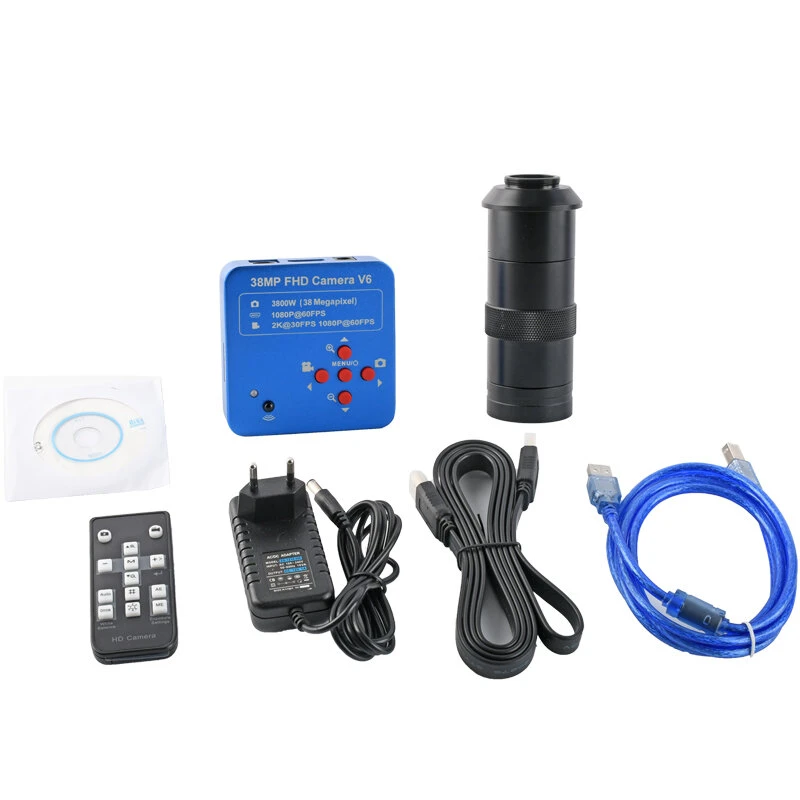

38 million pixels microscope camera *1

HDMI high definition line *1

USB data line *1

The camera power Plug*1 (EU Plug)

CD drive *1

Remote control *1
100X lens *1

We will send the plug adapter according to your country.

Note:

1??This product is mainly HDMI output,USB connected computer can only display images,The monitor can be displayed simultaneously with the connected computer, but the parameters cannot be adjusted when connected to the computer To adjust the parameters, you need to connect the monitor to adjust.
2??Remote control can not be used when connecting computer;using remote control to adjust parameters needs to be in HDMI connected monitor state.
3??Connected to a computer to provide professional imaging software that can be measured (requires a separate calibration scale)
