KOPPACE 2MP Microscope Camera - 11.6 HDMI Display - 1920x1080 HD for Industrial Use
Product Description
Features:
1. Embedded system using FPGA+ARM architecture. Run the LINUX 3.10 operating system.
2. Dual-core Cortex-A9 processor with 1Ghz and up to 1GbDDR3 memory.
3. 1/2 inch backlit CMOS sensor.
4. Up to 2 million high-speed image acquisition with a resolution of 1920??1080@60fps
5. USB interface, can be connected to a wireless mouse or keyboard.
6. HDMI high-definition interface ensures clear and beautiful images.
7. New operation interface, more intuitive and convenient
8. Adopt popular flat button design, beautiful and convenient
9. Advanced high light suppression function to better solve the problem of strong reflection.
10. Chinese Simplified, Chinese Traditional and English can be arbitrarily chosen.
11.11.6-inch high-definition display with a resolution of 1920*1080P.
12. Integrated power supply, complete structure, stable and reliable.
Specification:
Product number | KP-9218 |
Image specification | 1920x1080x24Bit |
Resolution | 60 frames/sec@1920x1080 |
Sensor size | 1/2?? |
Pixel size | 3.75x3.75um |
Color adjustment | R G B Independently adjustable |
White balance adjustment | One button setting / manual setting |
Display size | 11.6 inch |
280x180x16mm | |
Exposure adjustment | Automatic mode/manual mode |
Contrast adjustment | manual setting |
Photo mode | Manual/line motion |
Storage mode | U disk storage |
Crosshairs function | Overlay or cancel |
Lens interface | C interface |
Power supply | 5V-12V |
Dimensions | 280x180x67mm |
Display resolution | 1920*1080P |
Weight | 450g |
Operating temperature | 0-70?? |
Package includes:

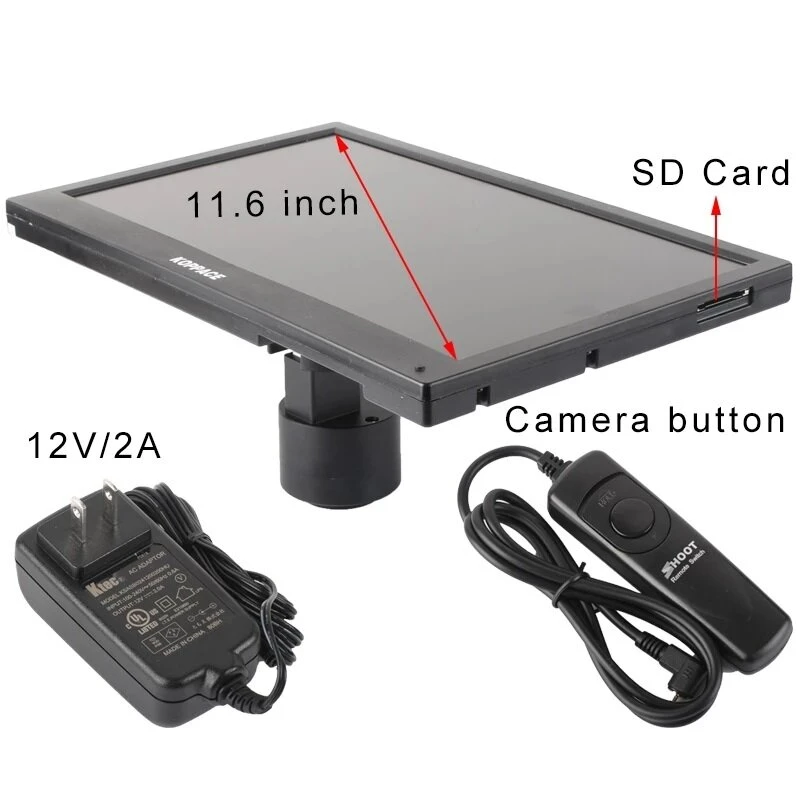

11.6" microscope camera integrated machine *1
Camera controller *1
12V/2A power supply *1

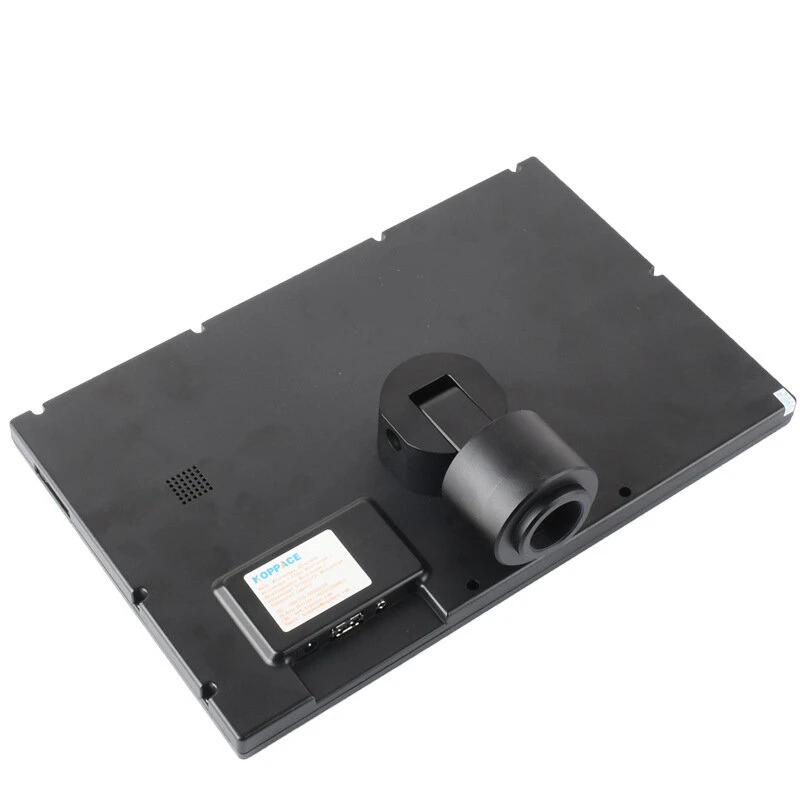

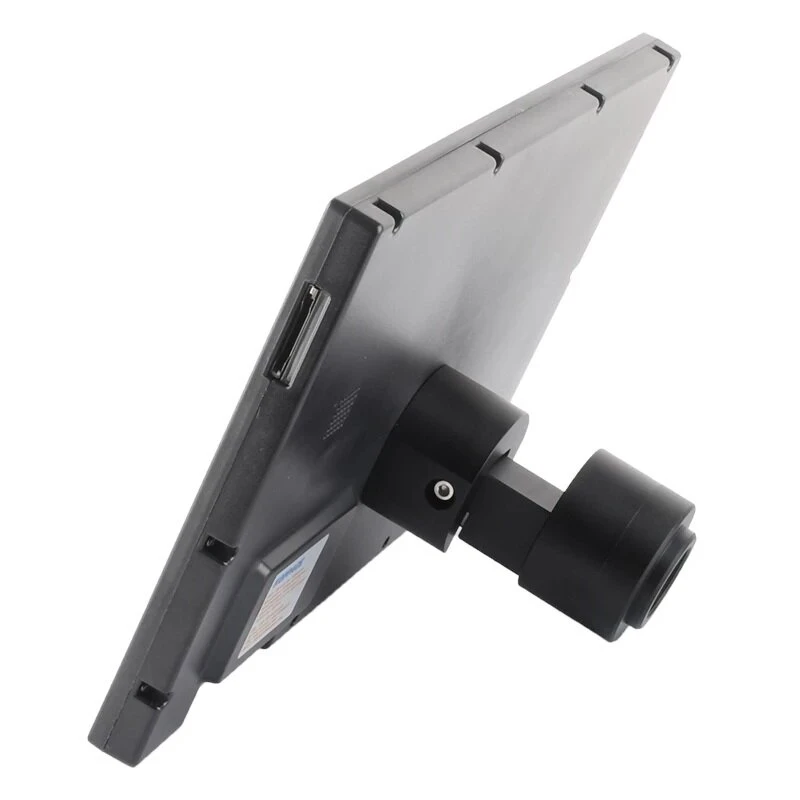

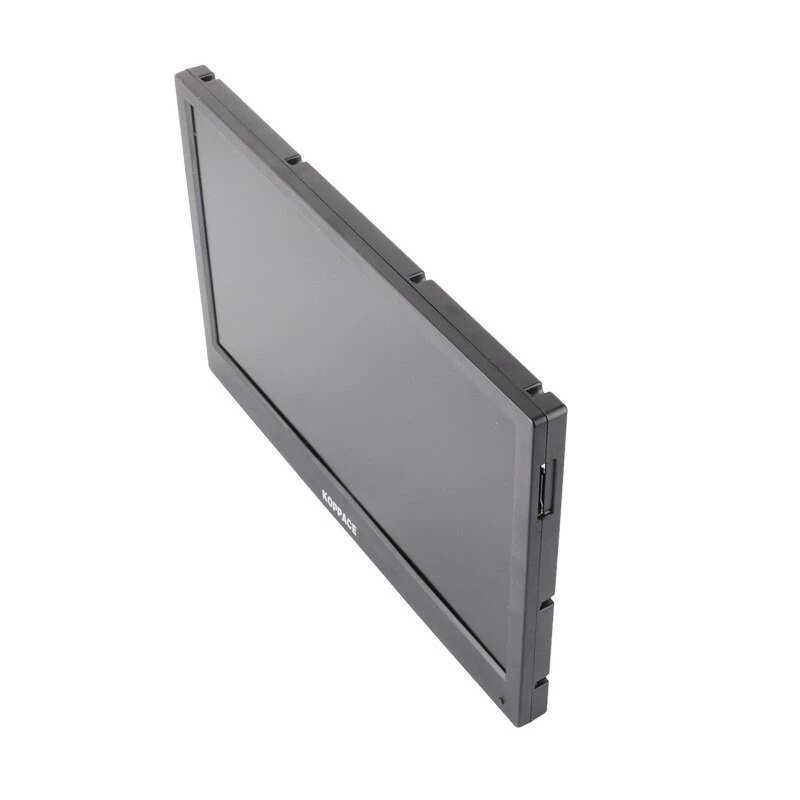

Details picture:
