HAYEAR 7-45X Zoom Stereo Trinocular Microscope | 24MP HD Camera & 144 LED Light
$494.00
$607.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:7X~45X zoom magnification power with crisp sharp imagesSuper widefield high-eyepoint opticswidefield of view4" (100mm) working distanceSturdy all-metal pillar standPowerful 56-LED ring light with dimmerThis stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists , manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light7x-45x super wide zoom magnification powerBright cool light 144-LED illumination systemHigh resolution with great flatness and contrast, giving sharp and clear imagesBinocular head with 45 degree inclined 360 degree swiveling eye tubesSharp stereo erect images with a wide field of viewCrystal clear original true color microscope imagesDual eye tubes with adjustable dioptersLarge working distanceSturdy all-metal table standAccurate alignment reduces eye strain for longer periods of viewingFull optical glass elementsPrecise ground glass lensesFull metal chrome-plated mechanical componentsAdjustable interpupillary distanceRubber eye-guards included
Specifications:
Head: 360 degree rotatable 45 degree inclined binocularEyepieces: 30mm super widefield high-eyepoint WF10X/20MMObjective Zoom Range: 0.35X-9.0X, using the Barlow lensesWorking Distance: 4" (100mm)Diopter Adjustment: +/- 5dpInterpupillary Distance: 2-3/16"-2-15/16"(55-75mm)Round Plate: 3-3/4" (95mm) in diameterStand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)Illumination: 56-LED Ring LightPower Input: 110-240V, 50-60HZ, Automatic SwitchingAccessories: Paired eye-caps
Microscope Camera:
Image sensor: CMOS 1/2.9Pexil size: 2.85??m ?? 2.85??mVideo output: Ful lHD 1080p (for HDMI)Image resolution: 5640x4232( for HDMI)Video recording: 1080p (for HDMI)Image format: jpegLens: C/CSResolution:1920*1080@60fps (for HDMI), 720p 160@fps (for HDMI)TF card interface: max 64GDigital zoom: 4 times digital zoomAWB: color correction/Auto/ManualR.G.B value setting independentExposure: Auto/Manual. AE value can setCross lines: 8lines. Can set color& width& positionScale mark lines: 2lines.Dotted lines: 2lines.Can set color& width& positionSharpness Contrast Color gain:SupportMono Negative:SupportMirror:Horizontal vertical mirrorLanguage: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, RussiaShell size: 42??42??60mmPackage size: 16??10??8cm/0.3kgWorking temperature: -40??C~65??C
144 LED Adjustable Compact Microscope Ring LightProvides intense and focused shadow-free illumination144 bright white LED bulbsLighting direction changeableVariable intensity controlIntense and focused shadow-free illumination100,000 hours of lifePower input: 100-240V, 50-60HZ, auto switchingInside diameter of the ring light: 1.0" (27mm)Overall outside diameter: 1.77" (45mm)Working Distance: 27mm-45mm

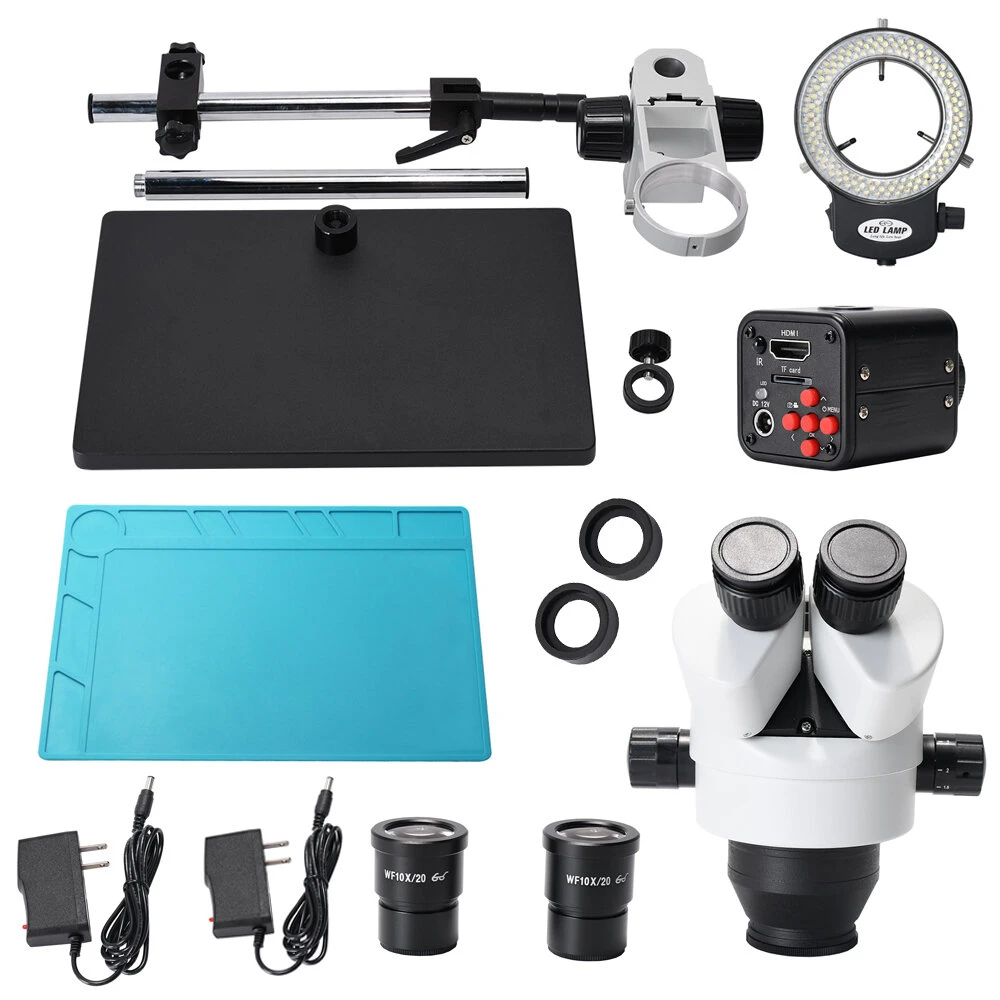

Package included:
1 x Trinocular microscope Zoom Head1 x Pair of Super Widefield 10X Eyepieces1 x 144-LED Ring Light with Adapter1 x Big size Pillar Table Stand1 x Focusing Rack1 x Pair of Eye-Guards1 x Dust Cover1 x microscope camera1 x Insulation Working Mat1 x Universal bracket
Detail Pictures:
