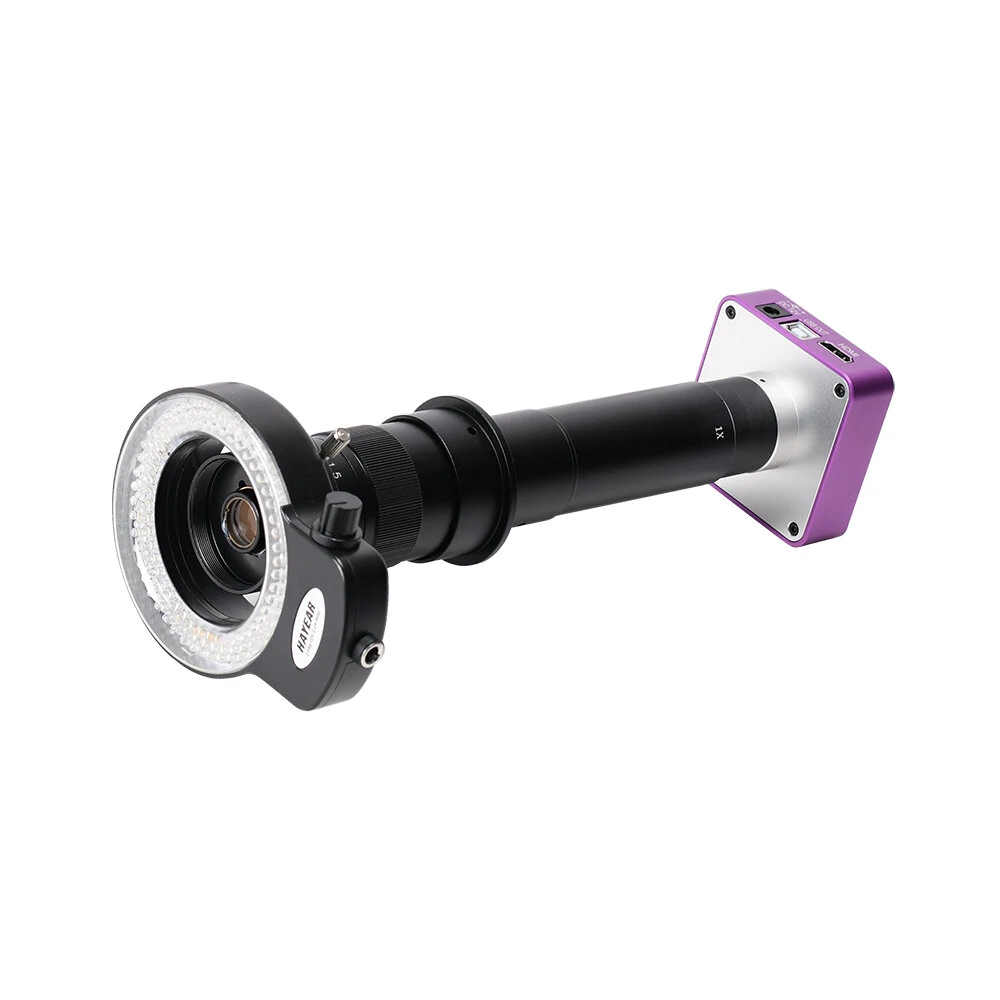

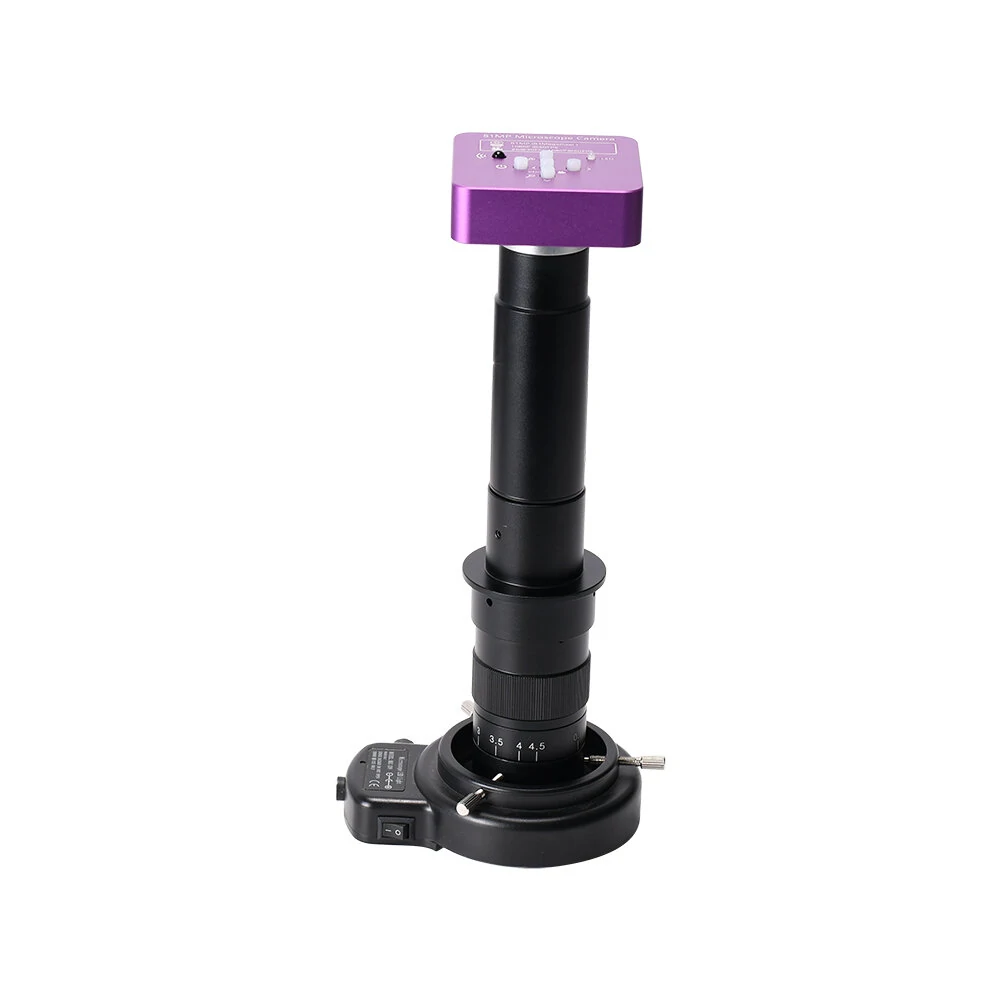

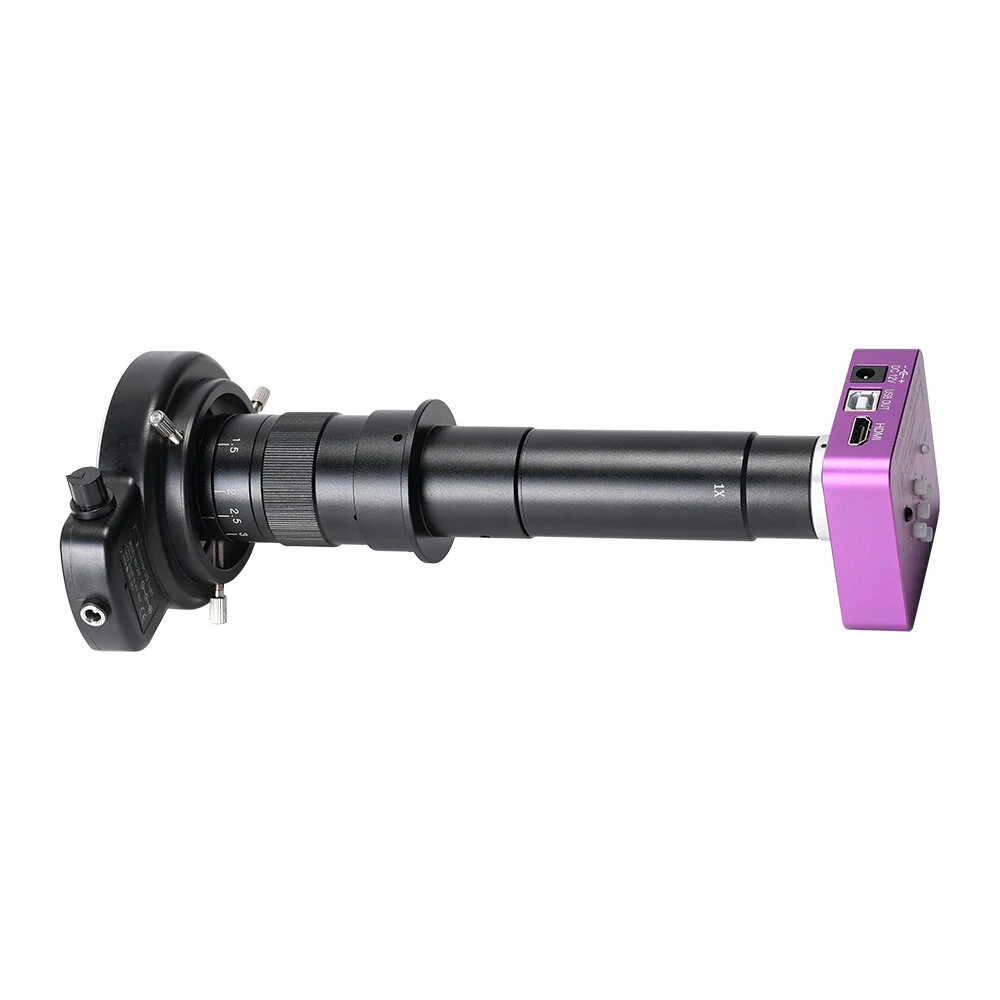

HAYEAR 51MP Microscope Camera - 60FPS 180X Lens with 144 LED Light | HDMI USB for PCB Welding
Product Description
?Features:1. Very suitable for observing the surface microstructure of large objects.2. Made of high-quality materials, sturdy and durable, and long service life.3. Equipped with HDMI USB port, charging is easy and convenient.4. Strict quality control and good quality assurance, high safety factor, can be used with confidence.5. Provides a 1/2.3-inch high-definition camera with a 51-megapixel CMOS sensor to view clear and sharp images.6. A wide range of applications, such as microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields.
Specifications:
Project Type | Microscope Camera |
Module | 5130 |
Sensor | 51MP CMOS |
Optical format | 1/2.3 inch |
Pixel size | 1.335??mx1.335??m |
Interface | HDMI (Type A). USB (Type B). Small memory card |
HDMI image resolution | 51MP |
Video resolution | 2K 30FPS 1080p 60FPS |
HDMI resolution | 1920 x 1080p 60FPS |
HDMI ratio | support 4:3, 16:9, 16:10 screen |
USB2.0 (drive free) | 1920 x 1080 @ 30FPS 1280 x 720 @ 30FPS 640 x 510 @ 30FPS |
Small memory card | up to 128GB (not included) |
AWB | AWB color correction/automatic/manual |
RGB | RGB value setting is irrelevant |
Exposure | automatic/manual. AE value can be set |
Cross line | 8 lines, color, width, position can be set |
Scale lines | 2 lines |
Dotted line | 2 lines, color, width and position can be set |
Sharpness, contrast, color gain | support |
Monochrome negative film | support |
Mirrors | horizontal and vertical mirrors |
Language | English/Simplified Chinese/French/Spanish/Japanese/German and other languages |
Digital zoom | support |
Infrared remote control | support |
Voltage input | DC 12V |
Power supply voltage | Input: AC100-240V Output: DC12V |
Power consumption | maximum 0.15W 12V, 0.12A |
Lens interface | C/CS port |
Remote control battery | 1 x 2302 button battery (battery is not included when shipped) |

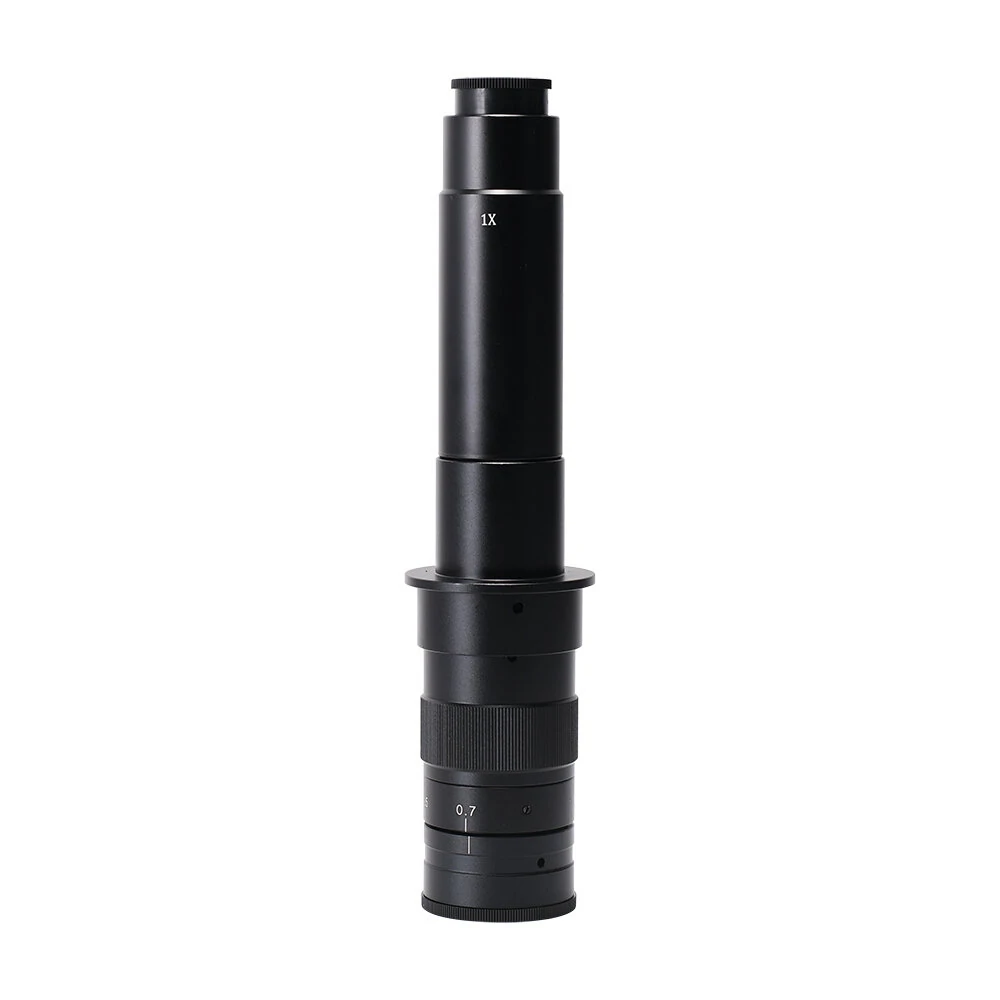

Specifications of 300X C lens:
-Provide strong and concentrated shadowless lighting-Working distance: about 95 mm/3.7 inches-Zoom C mount lens-1X Type C adapter-Scaling ratio: 6.5:1-Objective lens magnification: 0.7-4.5X (approximately 10-300X on the screen)-Size: L X DIA: about 240mm x 50mm / 9.5 x 2in(300 times the maximum working distance is about 10 cm/4 inches)
Specifications of 144 bright LEDs:
-Variable lighting direction-Variable power control-Strong and concentrated shadowless lighting-100,000 hours of service life-Power input: 100-240V, 50-60HZ, automatic switching-The inner diameter of the ring light: about 27 mm/1.1 inches-Total outer diameter: about 45 mm/1.8 inches-Working distance: about 27 ~ 120mm / 1.1 ~ 4.7in
Problems and methods:
- LCD no video or flickering
- LCD has black bars and image distortion
- Dirty spots
Package Included:
1 x 51MP microscope camera1 x Power adapter1 x Infrared remote control1 x USB data cable1 x HDMI cable1 x Ring light1 x 300X lens
