HAYEAR 48MP USB Digital Microscope Camera - FHD 180X for PCB Soldering | C Mount
$247.00
$303.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 48 MegaPixel
Video format: MP4(for TF card)
Video r ecorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor: 48 megapixel panasonc CMOS sensor 1/2.33 inch
Effective pixel: 48 megapixel
Pixel size:1.335??m ?? 1.335??m
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and r ecord:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

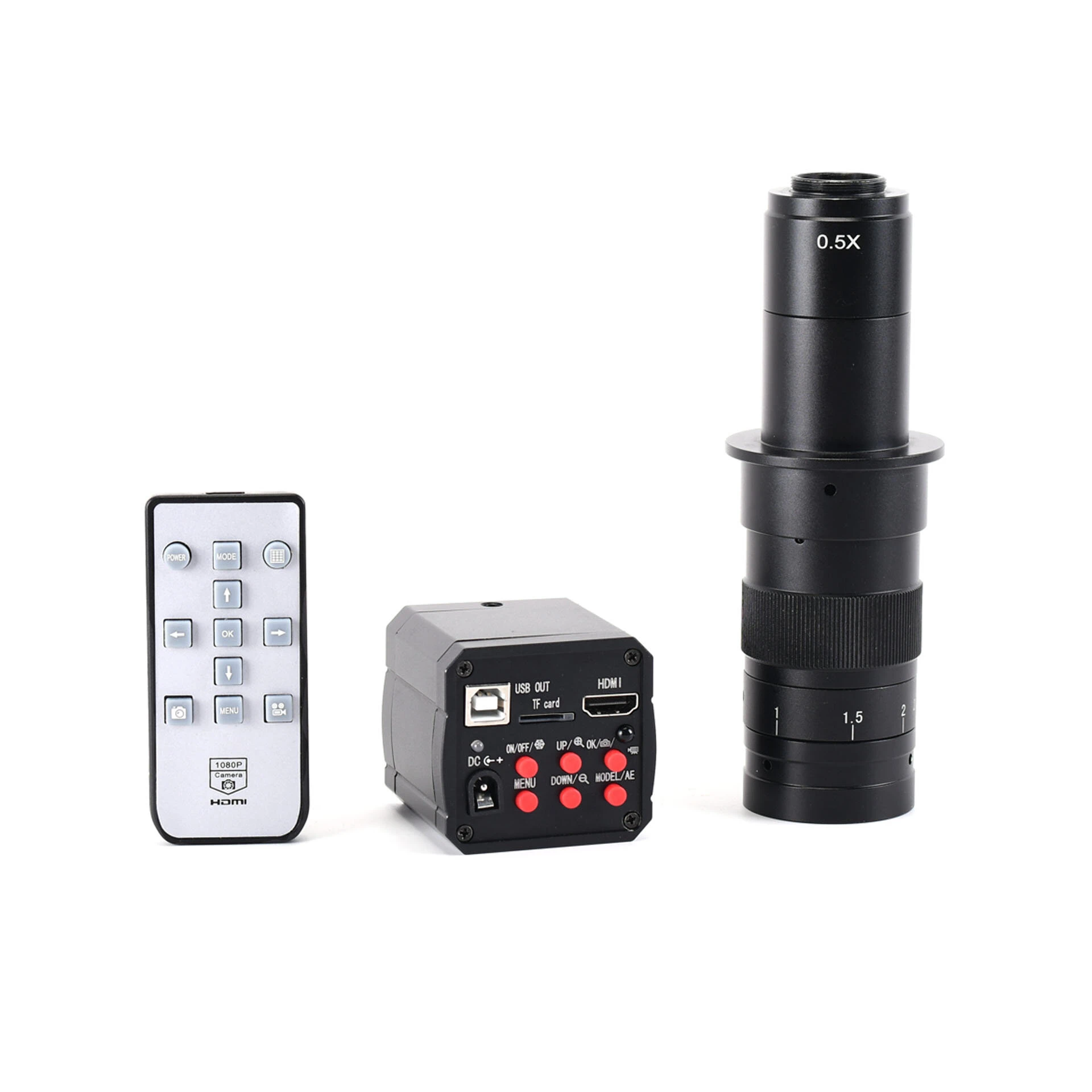

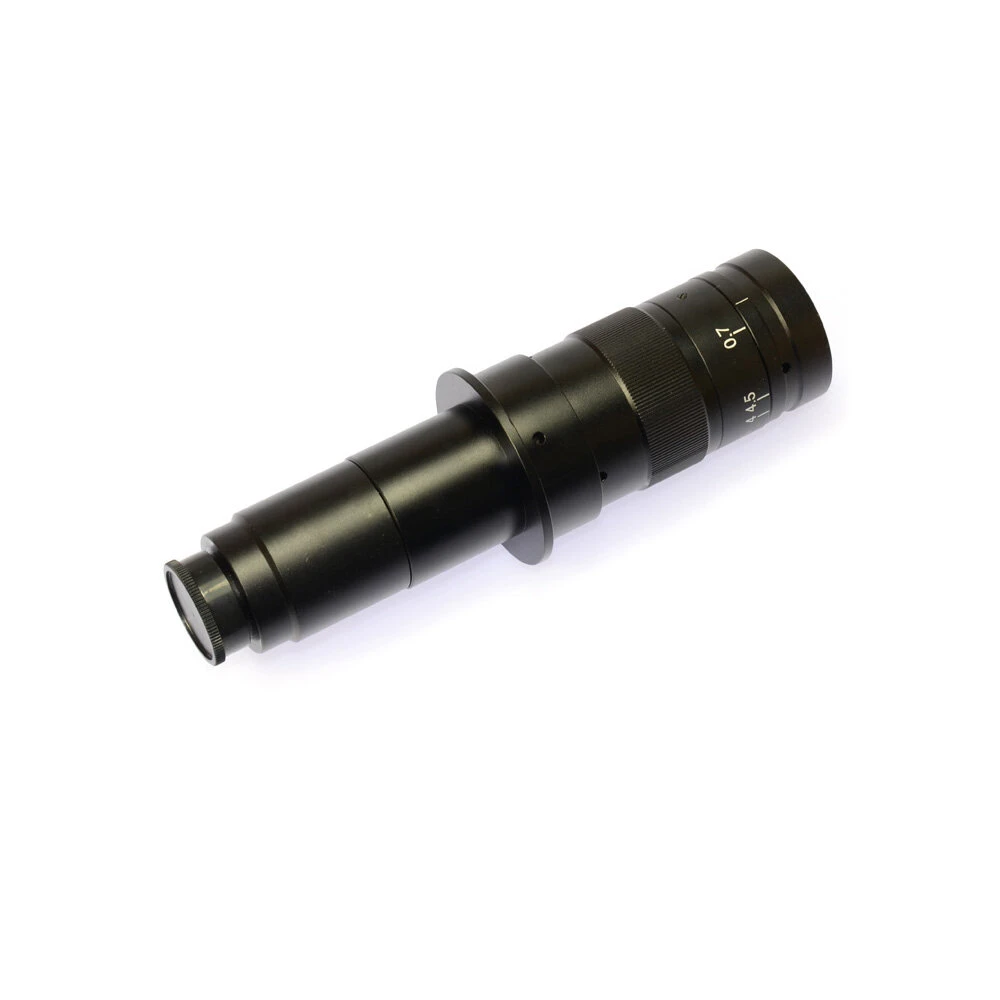

180X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
(180x maximum working distance 11.5CM)

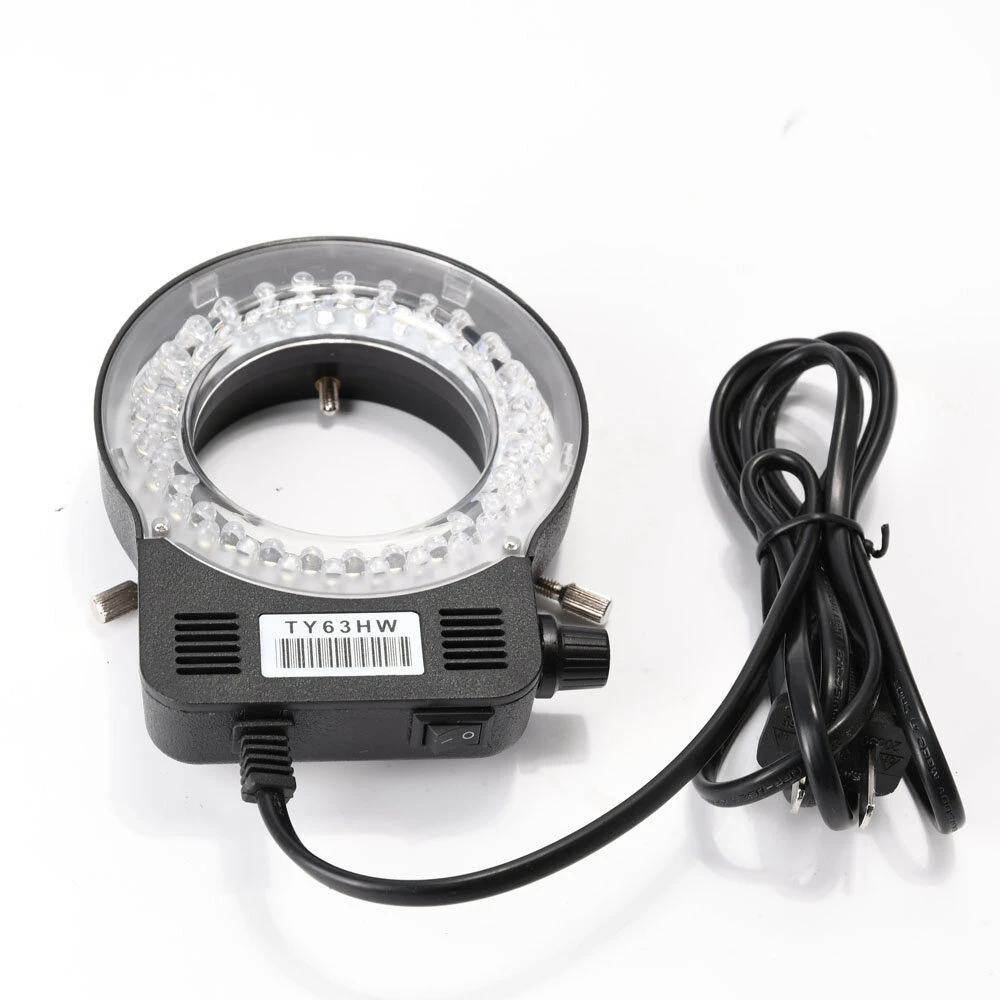

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright LED
Lighting direction changeable
Variable intensit y control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-120mm
Package including:

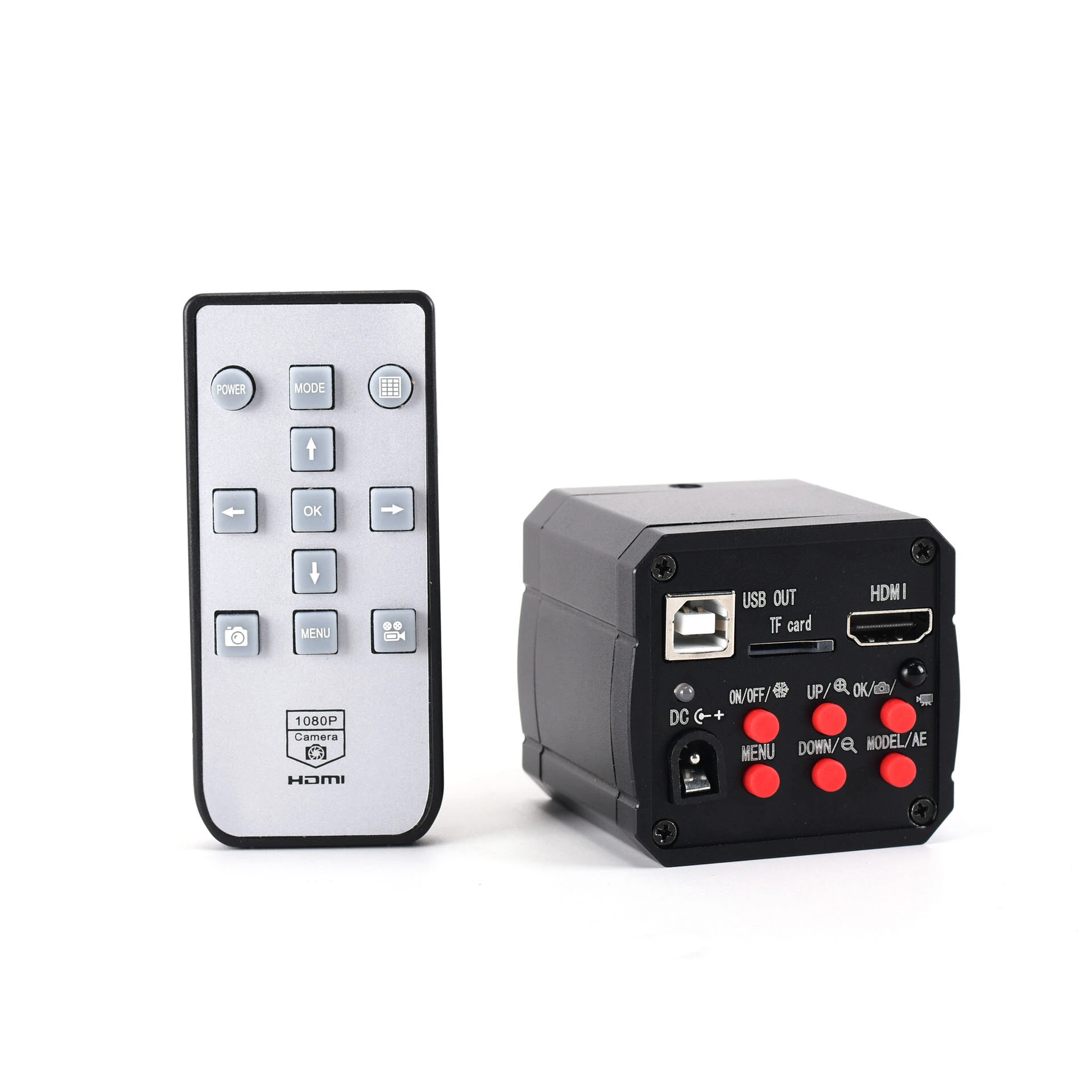

1 x Microscope Camera
1 x Power supply(EU NOTE:We will send you a plug adapter according to your country.)
1 x USB cable
1 x HDMI cable
1 x Software DISC
1 x Remote control
1 x C-MOUNT 180x Lens
1 X 56 LED Adjustable Microscope Ring Light
Details pictures:
