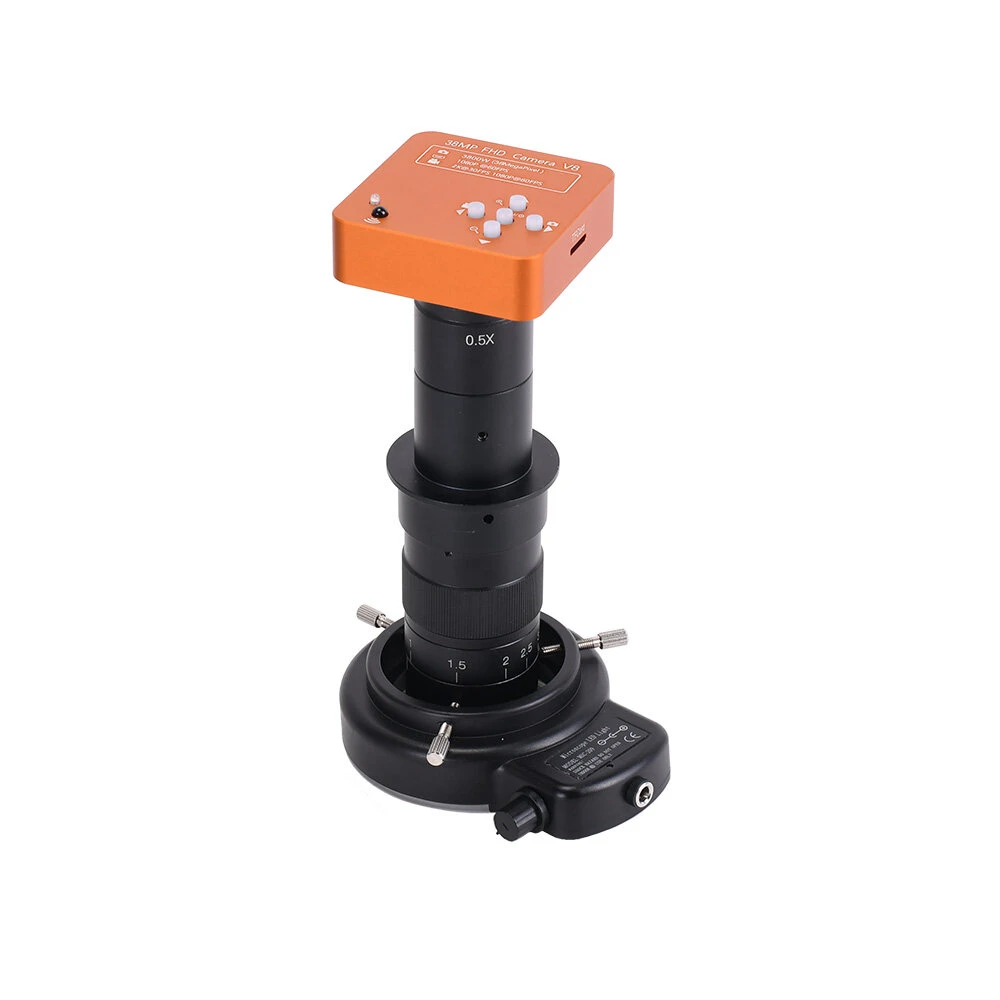

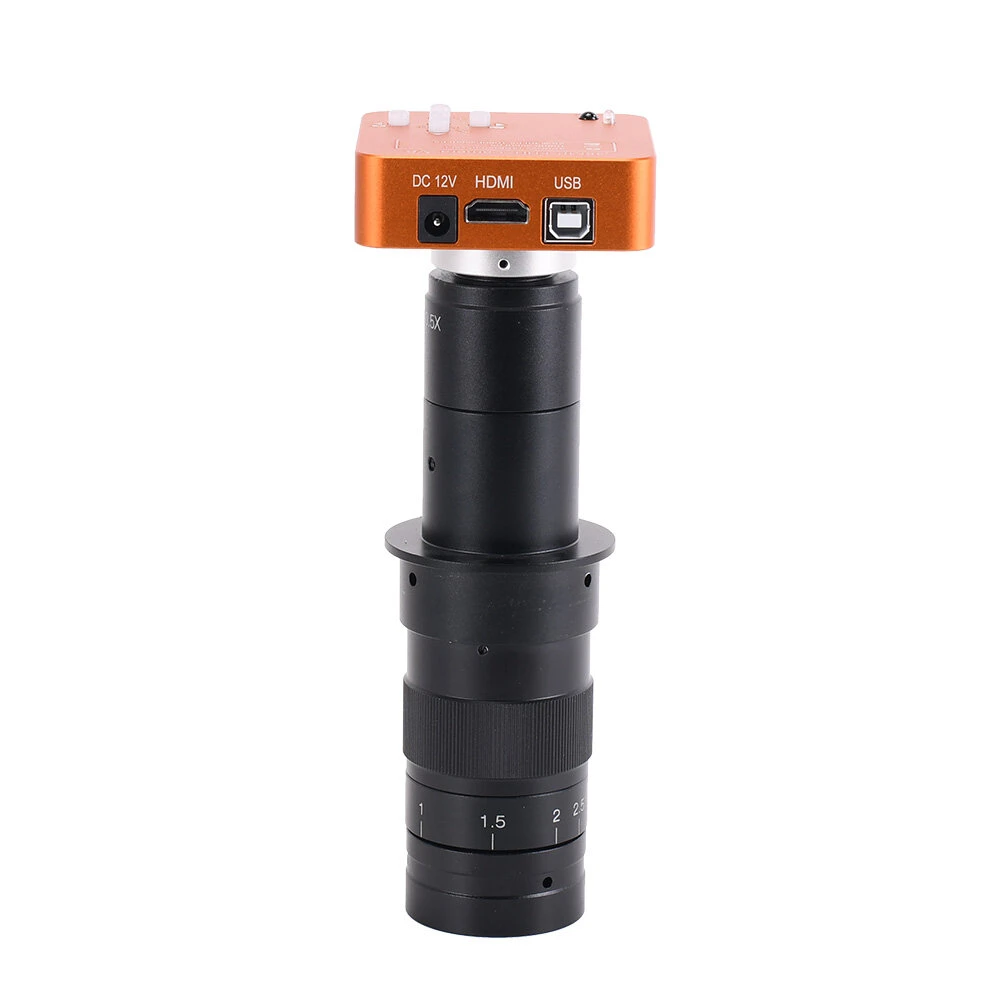

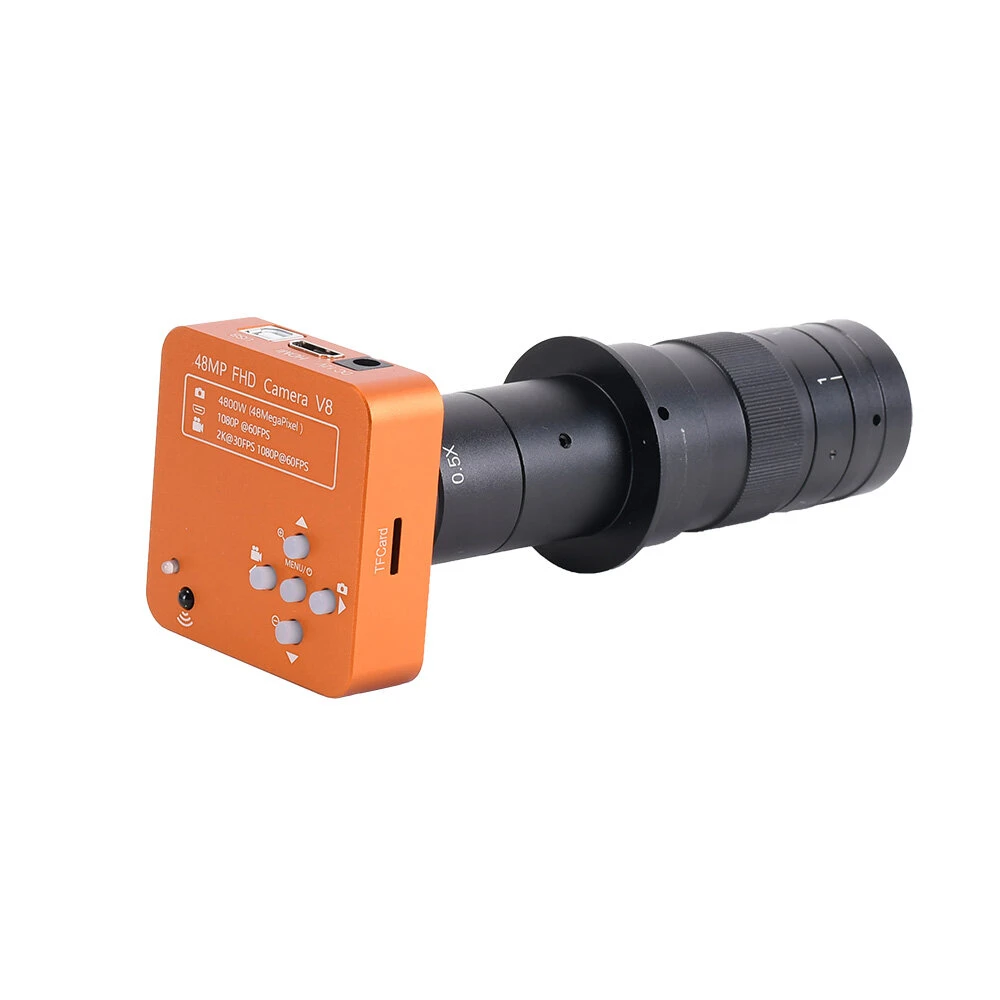

HAYEAR 48MP Microscope Camera - 180X Lens & 56 LED Light | USB HDMI for PCB Welding
$251.00
$308.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Feature:1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.2. Especially suitable for observing the surface microstructure of large objects.3. Using high quality materials, strong and durable, has a long service life.4. HD camera with 48 megapixel CMOS sensor 1/2.3 inch, with HDMI USB port.5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:
Item Type: Microscope Camera Module: 1135Sensor: 48MP CMOSOptical Format: 1/2.3 inchPixel Size: 1.335??mx1.335??mInterface: HDMI (Type A). USB (Type B). Small memory cardHDMI Image Resolution: 48MPVideo Resolution: 2K at 30FPS 1080p at 60FPSHDMI Resolution: 1920 x 1080p 60FPSCan output USB at the same timeHDMI Scale: Support 4: 3,16: 9,16: 10 screenUSB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPSSmall Memory Card: Up to 128GB (not included)AWB: AWB color correction/automatic/manualR.G.B value setting independentExposure: Automatic/manual. AE value can be setCross Line: 8 lines, color, width, position can be setScale Line: 2 lines.Dotted Line: 2 lines, color, width, position can be setSharpness Contrast Color Gain: SupportMono Negative Film: SupportMirror: Horizontal and vertical mirrorLanguage: English/Simplified ChineseDigital Zoom: SupportInfrared Remote Control: SupportVoltage Input: DC 12VPower Supply Voltage: Input: AC100-240VOutput: DC12VPower Consumption: Maximum 0.15W 12V, 0.12ALens Interface: C/CS portRemote Control Battery: 1 x 2302 button battery (delivered without battery)

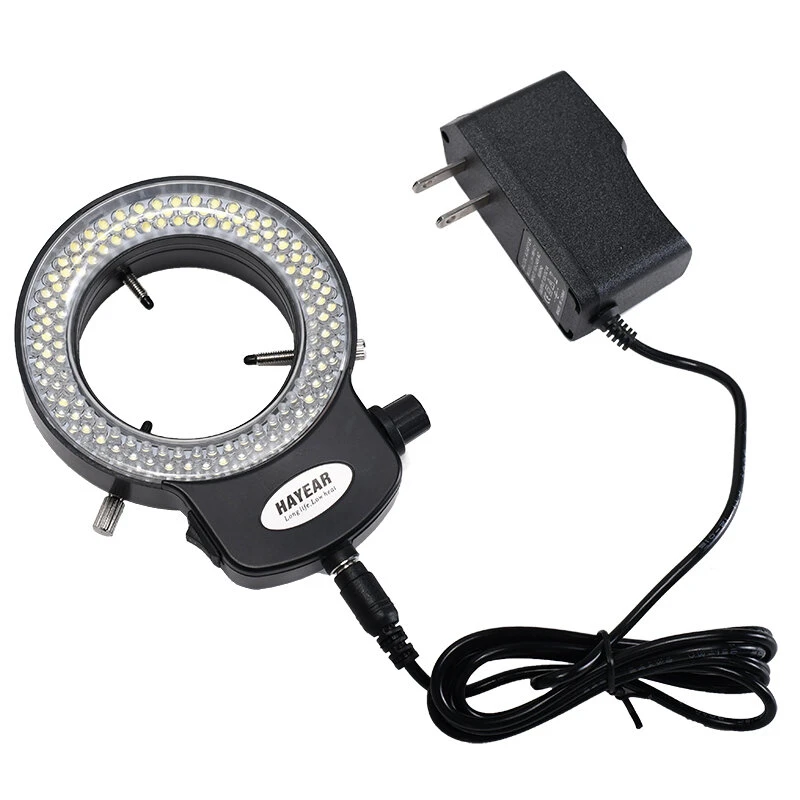

180X C lensWorking Distance: Approx.95mm / 3.7inZoom C mount lens0.5X Type C adapterScaling Ratio: 6.5: 1Objective lens magnification 0.7-4.5X (approximately 10-180X on the screen)Size: L X DIA: Approxc.180 x 50mm / 7.1 x 2in(180x maximum working distance approx.11.5cm / 4.5in)56 LED adjustable compact microscope ring lightProvides strong and concentrated shadow-free lighting
144 bright LEDsVariable lighting directionVariable power controlStrong and concentrated shadowless lighting100,000 hours of lifePower Input: 100-240V, 50-60HZ, automatic switchingThe Inner Diameter of The ring Light: Approx. 27mm / 1.1inOverall Outer Diameter: Approx. 45mm / 1.8inWorking Distance: Approx.27 ~ 120mm / 1.1 ~ 4.7in
Problem Solution:LCD no video or flickering1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up.2. Check the lens cover. Increase lighting.LCD has black bars and image distortion1. Change the resolution of LCD2. Change the camera resolutionDirty spots1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent
Package include:
1 x 48MP Microscope Camera1 x Power Adapter1 x Infrared Remote Control1 x USB Cable1 x HDMI Cable1 x Ring Light1 x 180x lens
Details picture:
