HAYEAR 48MP Digital Microscope Camera | 100X Lens & LED Ring Light | For Soldering Repair
$207.00
$254.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 48 MegaPixel
Video format: MP4(for TF card)
Video recorder: 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor: 48 megapixel Panasonc CMOS sensor 1/2.33 inch
Effective pixel: 48 megapixel
Pixel size:1.335??m ?? 1.335??m
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and re cord:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
Application: For handset service.
120x lens
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 35mm(default),
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

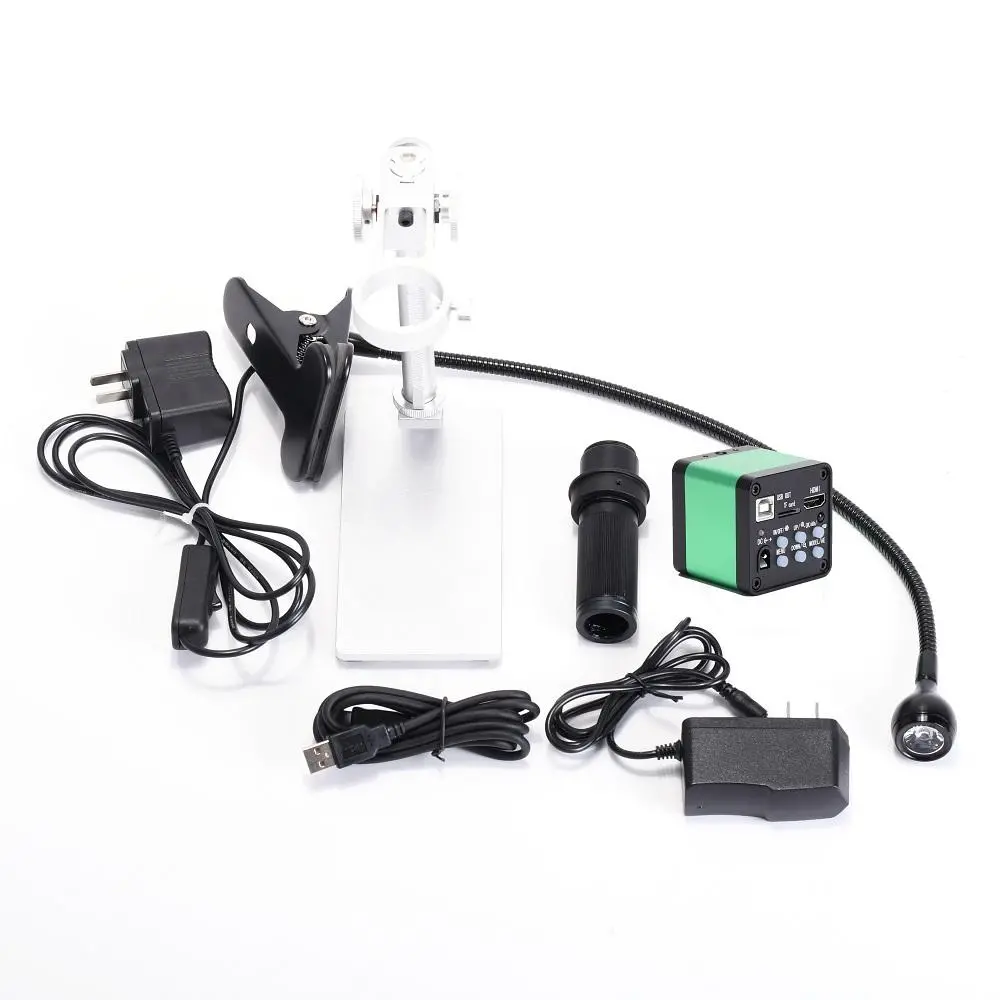

Package includes:

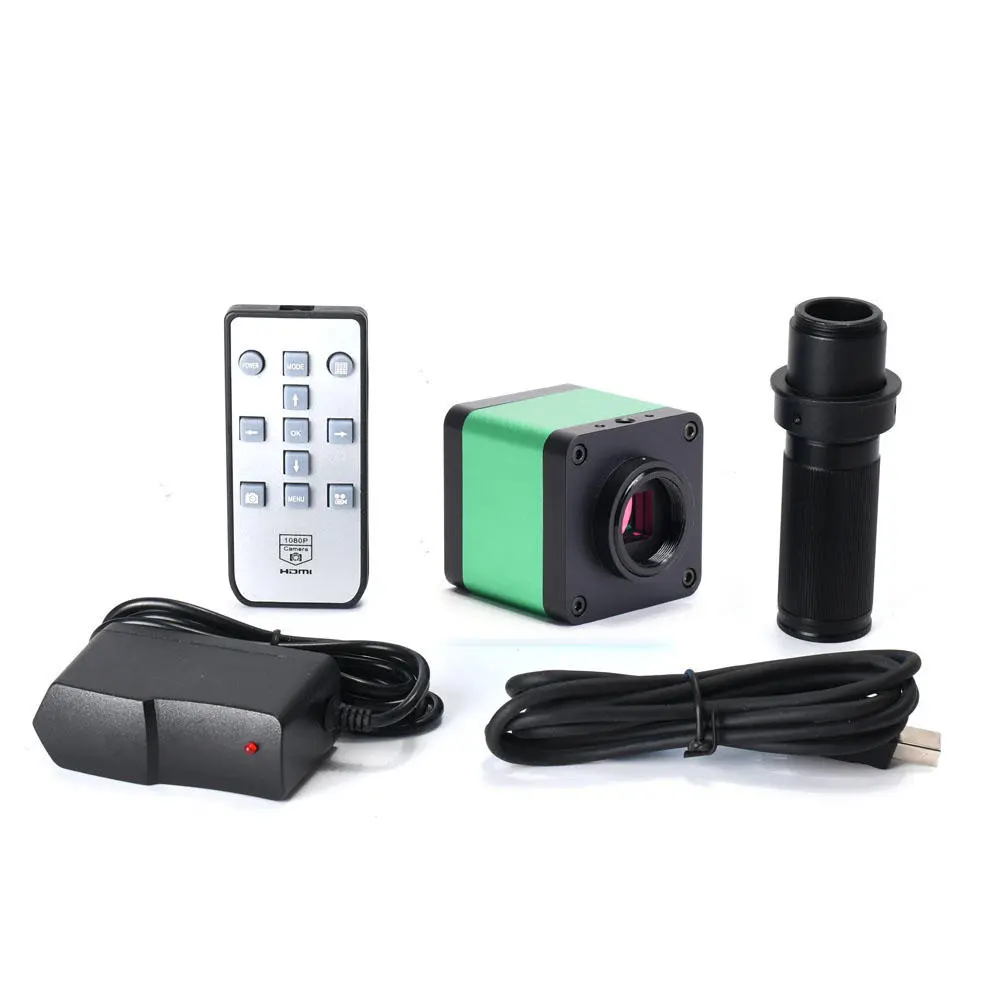

1 x 48MP Microscope Camera
1 x Power supply (NOTE:We will send you a plug adapter according to your country.)
1 x USB cable
1 x HDMI cable
1 x Software DISC
1 x Wireless Control
1 X 120X C-mount Zoom lens

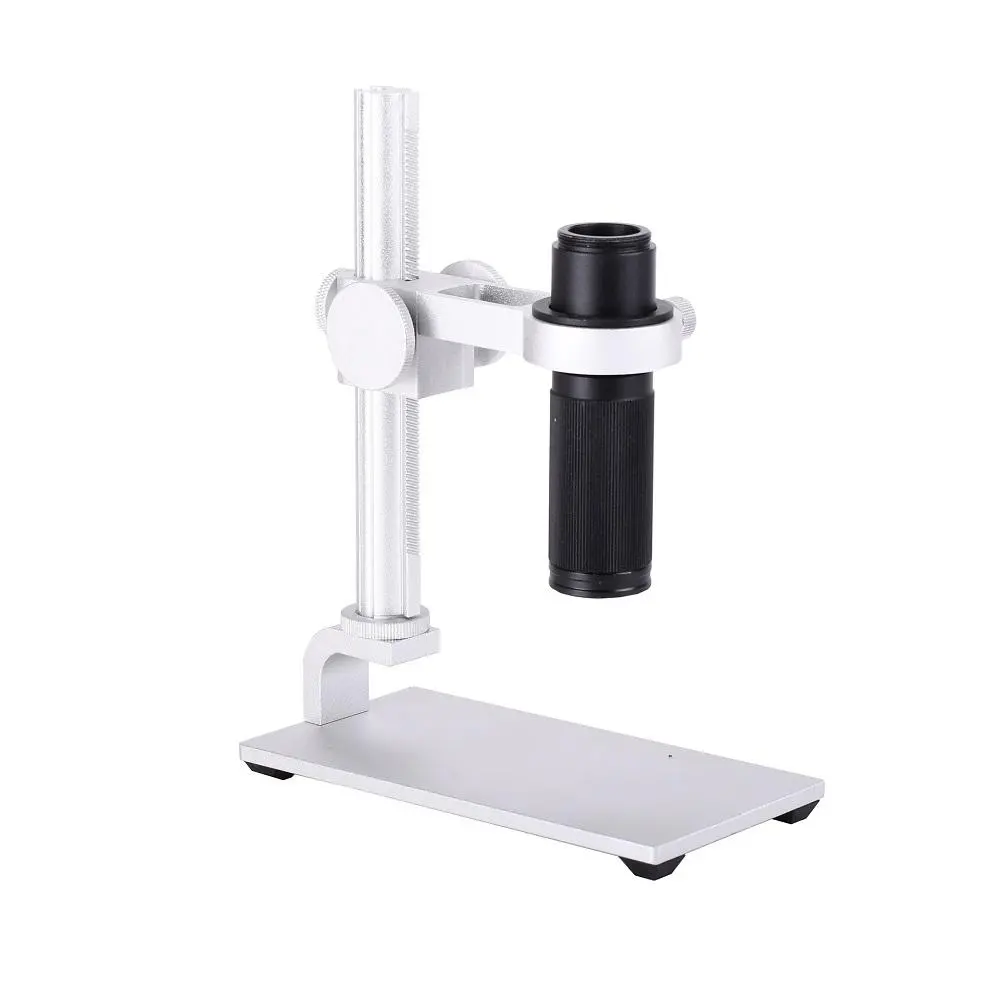

1 x Camera stand

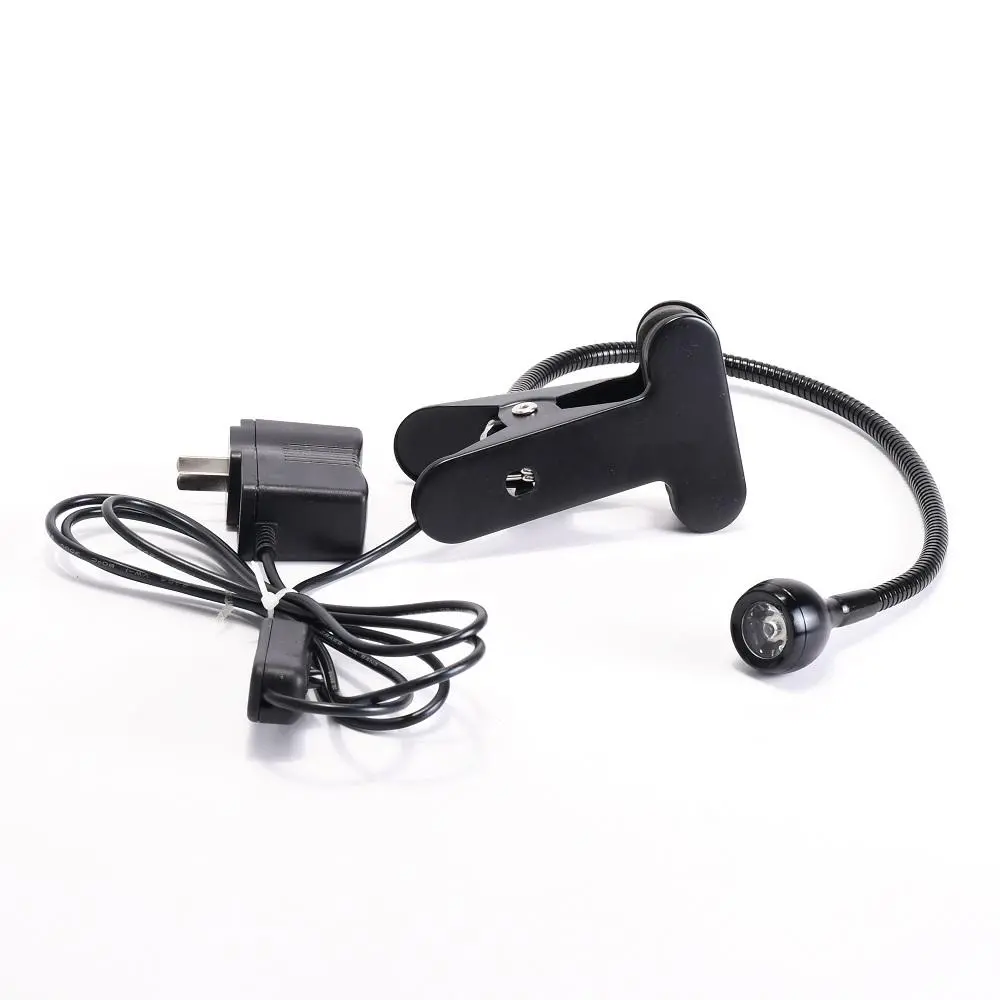

1 x Digital Microscope Universal Desk Clamp Lamp
>>Please Click Here to Download HAYEAR Related Software<<
Details Pictures:
