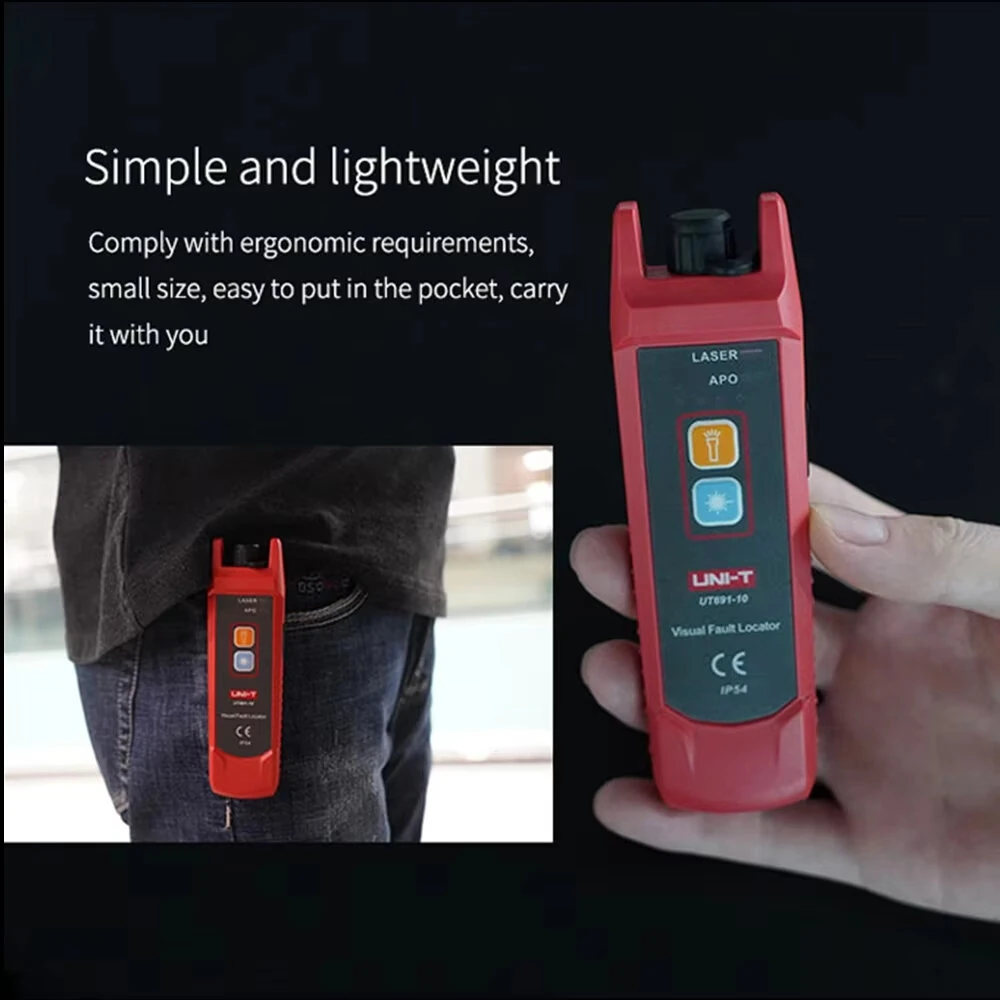

UNI-T UT691-10 Visual Fault Locator | 10mW Laser, 10km Range, USB Rechargeable

Product Description

Features:

High Laser Output Power: With a laser output power of ??10mW, this visual fault locator ensures clear and accurate fault location over long distances.

Extended Fiber Length Range: The device supports optical fiber lengths from 8 to 10 kilometers, ideal for extensive network testing.

Versatile Optical Fiber Adapter: Equipped with a 2.5mm FC general connector, compatible with various standard fiber optics, increasing its utility in different environments.

Battery Life: Powered by a 3.7V 1050mAh polymer lithium battery, providing more than 7 hours of continuous use, ensuring long-lasting performance.

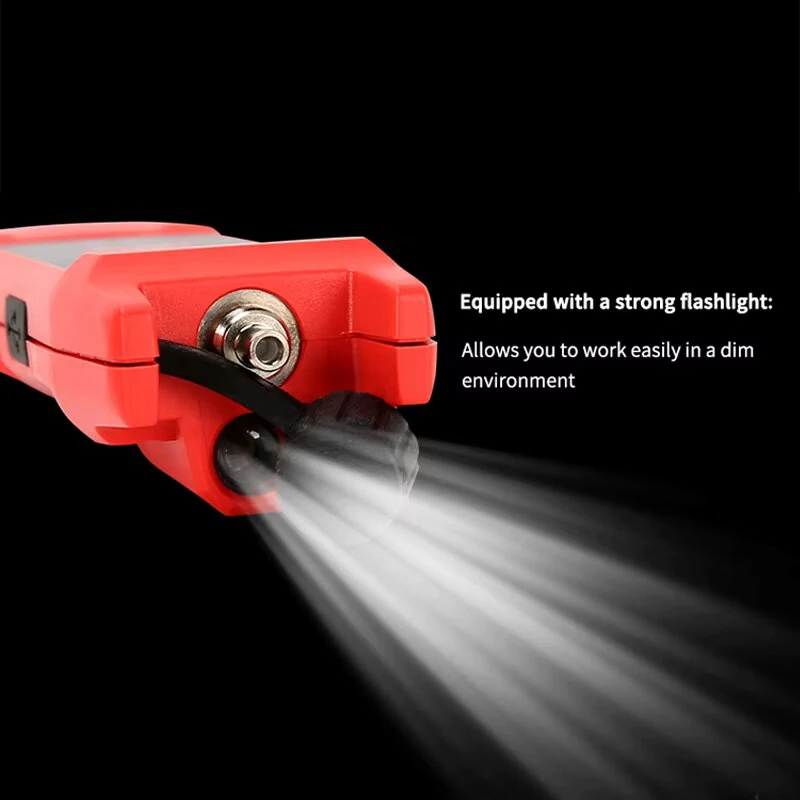

User-friendly Features: Includes a high-brightness LED flashlight, battery status display with four blue LEDs, auto power-off feature, and is USB rechargeable for added convenience.

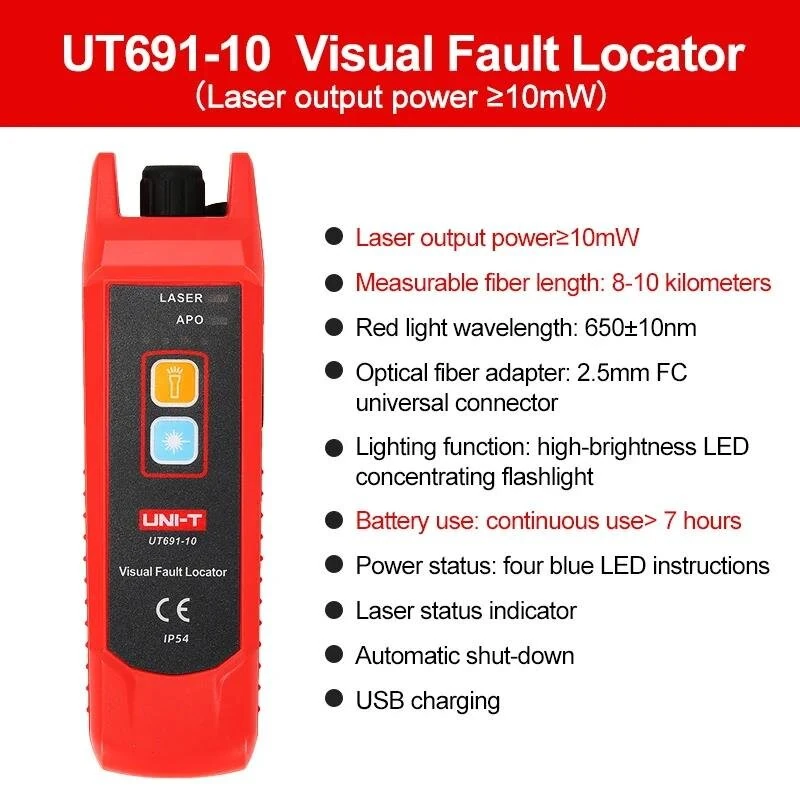

Specifications:

Brand: UNI-T

Model: UT691-10

Laser Output Power: ??10mW

Optical Fiber Length Range: 8~10km

Wavelength of Red Light: 650??10nm

Optical Fiber Adapter: 2.5mm FC general connector

Battery Type: 3.7V 1050mAh polymer lithium battery

Battery Life: >7h

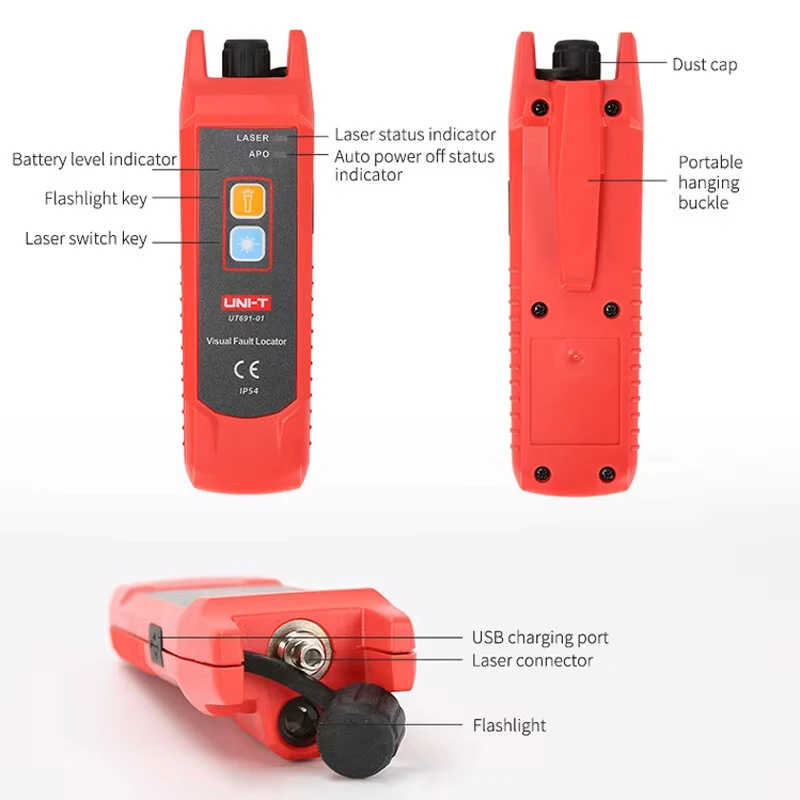

Battery Status Display: Four blue LED indicators

Green Indicator: Indicates auto power-off state

Laser Mode: Continuous mode/Pulse mode

Charge Voltage and Current: DC 5V, < 1A

APO (Auto Power Off): 15min auto power off (manual adjustable)

Warning Symbol: Yes

Key Press Test: >5000 times

Drop Test: 1m

Product Color: Red and grey

Product Net Weight: 62g

Product Size: 130mm x 38mm x 27mm

Package Included:

1 x UT691-10 Visual Fault Locator

1 x USB Charging Cable

1 x User Manual
