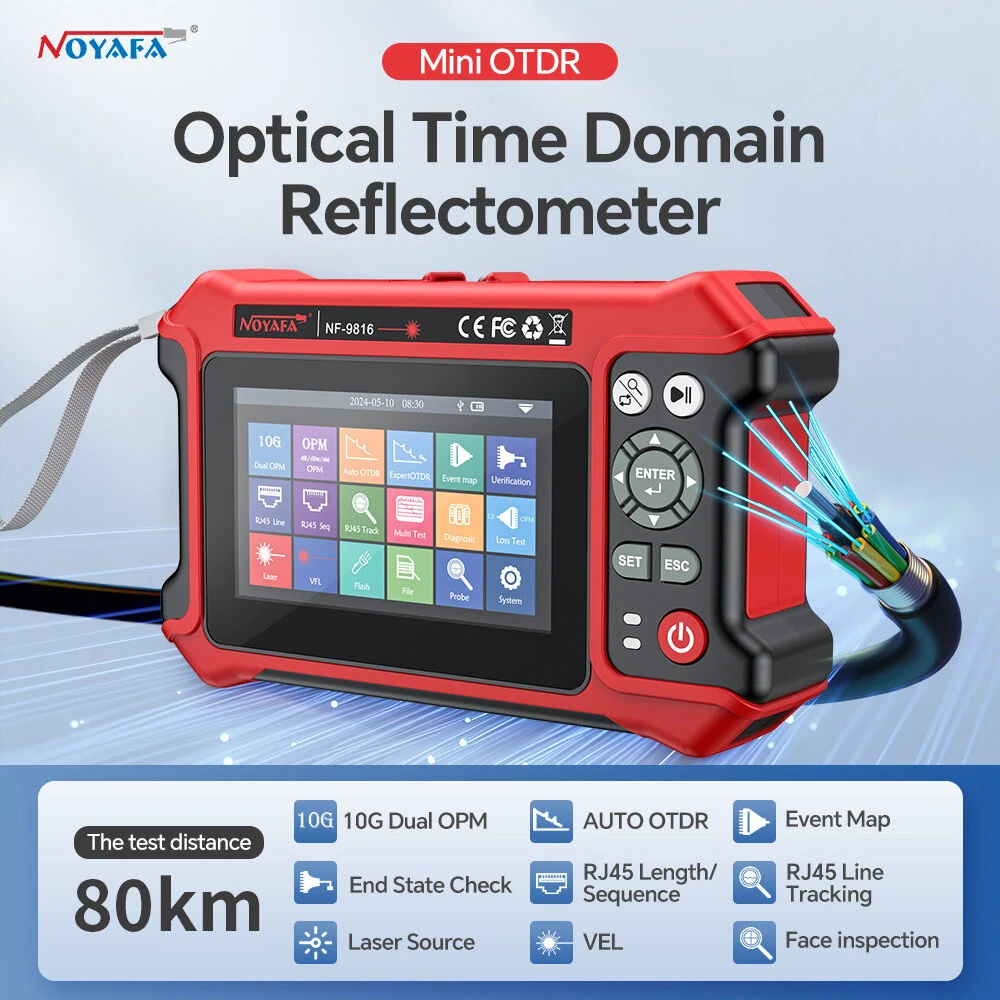

NOYAFA NF-9816 OTDR Fiber Fault Locator | 1310/1550nm Dual Wavelength | with Visual Fault Locator

Product Description

Specifications:

- Visual Fault Locator (VFL)

- RJ45 Cable Tracking

- Network Cable Length Test

- RJ45 Cable Length

- ONU Test

- Optical Power Meter

- Stable Light Source

- Built-in Lithium Battery

Model: NOYAFA NF-9816

OTDR:

- Wavelength: 1310/1550 nm dual wavelength

- Dynamic Range: 28dB/26dB

- Connectors: FC/PC (interchangeable SC, ST) or FC/APC (interchangeable SC, ST)

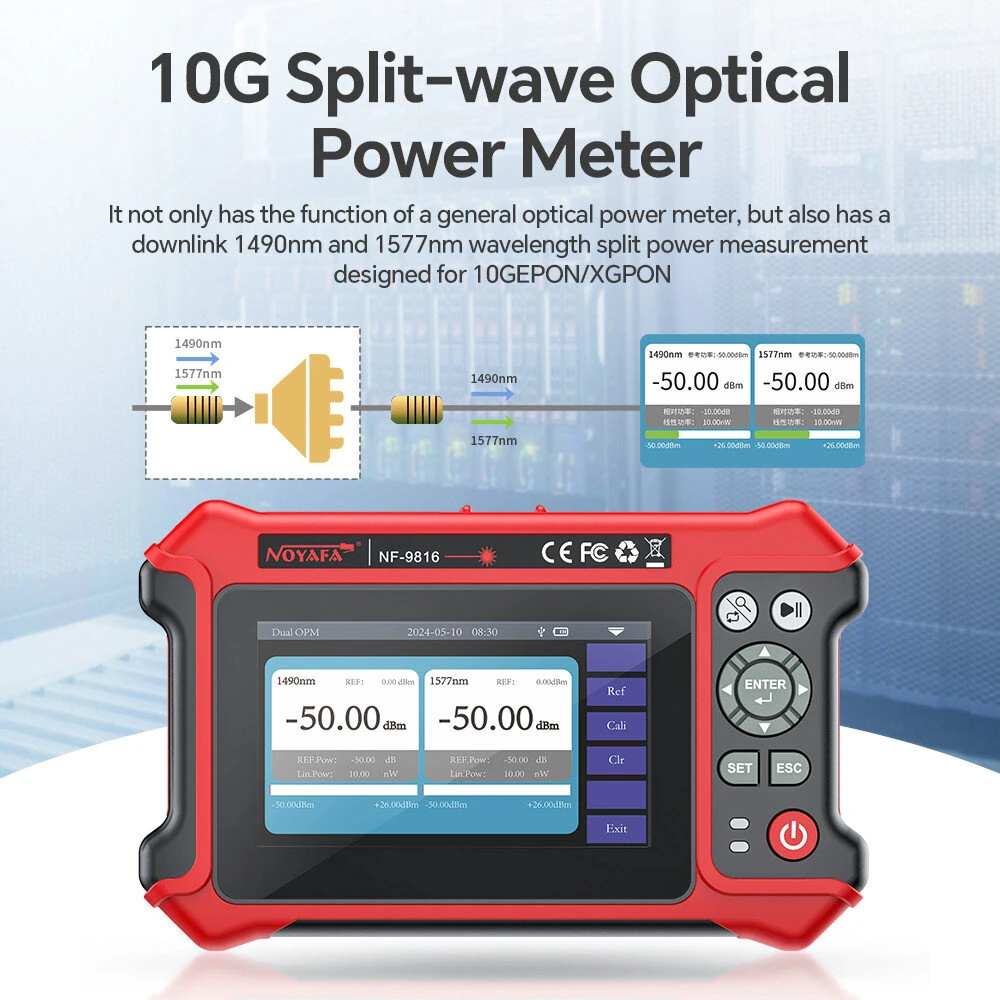

10G Fiber Power Meter:

- Calibration Wavelength: 1490 nm

- Measurement Range: +10 to -40

- Isolation: 1490 > 35

- Uncertainty: ??5%

Features:

1. Versatile Dual-Wavelength Operation: The NF-9816 OTDR offers dual wavelengths (1310/1550 nm) for comprehensive fiber testing, enhancing flexibility and precision in various scenarios.

2. Accurate Long-Distance Testing: With a dynamic range of 28dB/26dB, this device ensures precise measurement and fault location over extended distances, making it ideal for both urban and rural deployment.

3. Comprehensive Connectivity Options: Equipped with FC/PC and interchangeable SC, ST, FC/APC connectors, the NF-9816 caters to different fiber network setups, ensuring seamless integration and use.

4. Enhanced Measurement Capabilities: Features a 10G Fiber Power Meter with a calibration wavelength of 1490 nm, providing a broad measurement range of +10 to -40 and high isolation of >35, ensuring reliable data accuracy.

5. Multi-Functional Tools: Besides OTDR capabilities, this device includes a Visual Fault Locator, RJ45 cable tracking, and length measurement, providing a complete solution for fiber optic and network maintenance.

Package Included:

1 x OTDR Fiber Fault Locator
