NOYAFA NF-820 Cable Tester - RJ45 RJ11 BNC Wire Tracker | High Low Voltage
$108.00
$132.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:?? Detect cable location in underground or other invisible cable, the range is 0-2m. ?? Signal sensitivity for transmitter and receiver is adjustable. (0-2m) ?? Easy to track with complete AC Interference Rejection ?? tone trace live cable (??220V?? with socket avoiding burnout. ?? Capable trace cable, such as single conductors, 2-core or multi-core cable.
Benefits ?? Earphone helps work in noisy environment. ?? Cable lead and socket can be used at the same time. ?? Low battery indicator function. ?? Rechargeable Lithium battery for transmitter.
Specifications:
| The Max cable length | 1km |
| The Max depth distance | 2m |
| Power supply | Transmitter : 3.7V Lithium battary |
| Receiver: 9V battery | |
| Low battery indicate | Transmitter :??3.4V led light flashing |
| Receiver :??6 V led light flashing | |
| Charging current | 800mA |
| Signal transmmission format | Multi-frequency pulse |
| Singal output level | 21Vp-p |
| Dimensions (LxWxH) | Transmitter : 152*55*34mm |
| Receiver: 252* 45* 28mm | |
| Whole set: 320*160*55mm | |
| Weight ( battery included ) | Transmitter: 0.14kg |
| Receiver: 0.20kg | |
| Whole set: 0.45kg |
Package includes:
Transmitter * 1
Receiver * 1 (Battery not included)
USB Charging cable * 1
AC adaptor * 1
Earphone * 1
User manual * 1
Carry bag * 1
Gift box * 1

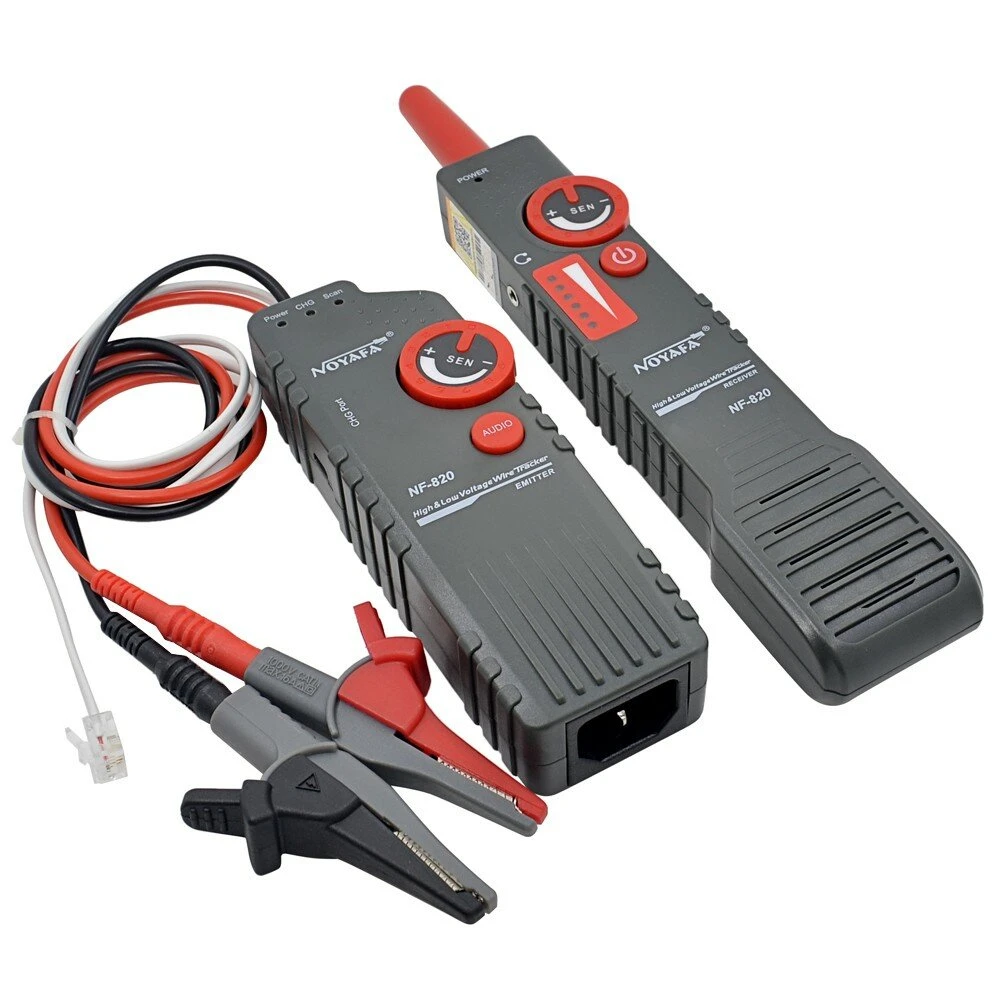

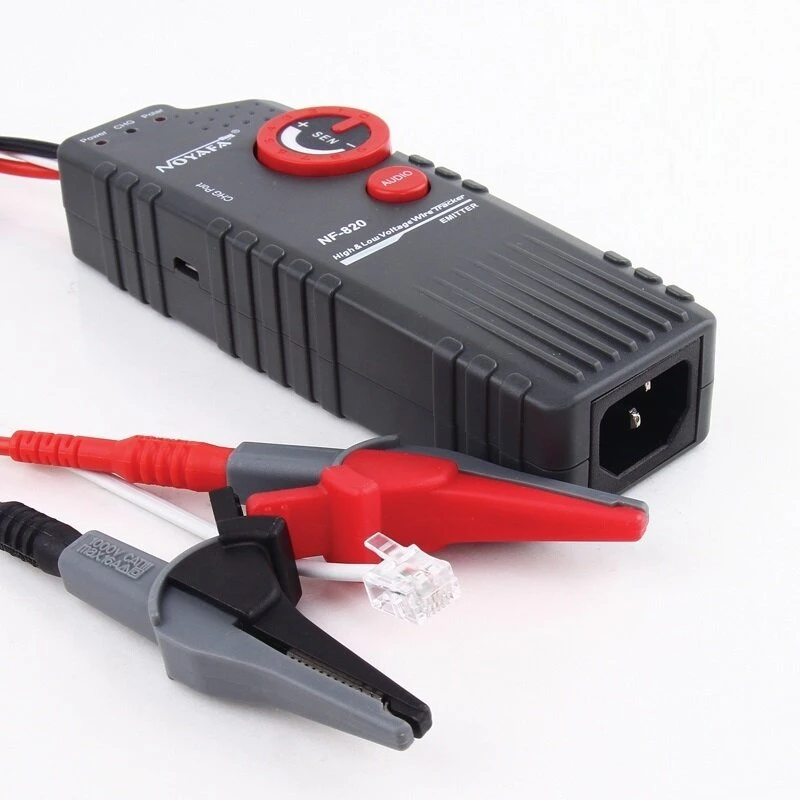

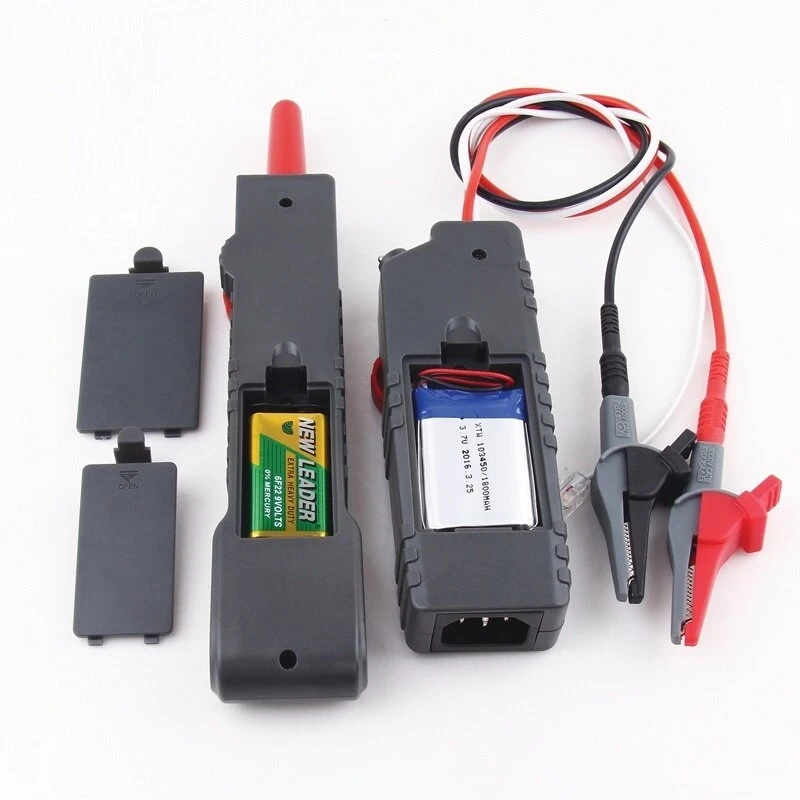

Details picture:
