NOYAFA NF-268 Wire Tracker | Network Cable Tester Toner with Anti-Jamming
Product Description
Features:
1. Quickly trace & find Lan/telephone/coax cable.
2. Two scan modes: ordinary switches or PoE swtiches.
3. Check cable continuity for Lan cable.
4. Track with AC Filter when a bundle of cable gathers together.
5. Tone tracing breakge points of Lan cables and metal lines.
6. RJ45/RJ11/BNC and other ports are included and no need of akaward adaptors.
Specifications:
| NF-268 Transmitter specifications | ||||
| Tone frequency | 200Hz | |||
| Max. distance of transmission | More than 3 kilometers | |||
| Max. working current | Less than 10mA | |||
| Tone mode | 2 Tones, adjustable | |||
| Compatible connectors | RJ11, RJ45,BNC | |||
| Max. signal voltage | 8Vp-p | |||
| Function and faults light display | Light display(Wiremap, tone,tracing) | |||
| Voltage protection | DC 48V | |||
| Battery Type | DC9.0V??NEDA 1604/6F22 DC9V x 1pcs?? | |||
| Dimension(LxWxD) | 13x4x2cm | |||
| NF-268 Receiver specifications | ||||
| Frequency | 200kHz | |||
| The Max. working current | Less than 30mA | |||
| Earjack | 1 | |||
| Battery Type | DC9.0V??NEDA 1604/6F22 DC9V) x1pc | |||
| Dimension(LxWxD) | 10 x 5 x 2.3cm | |||

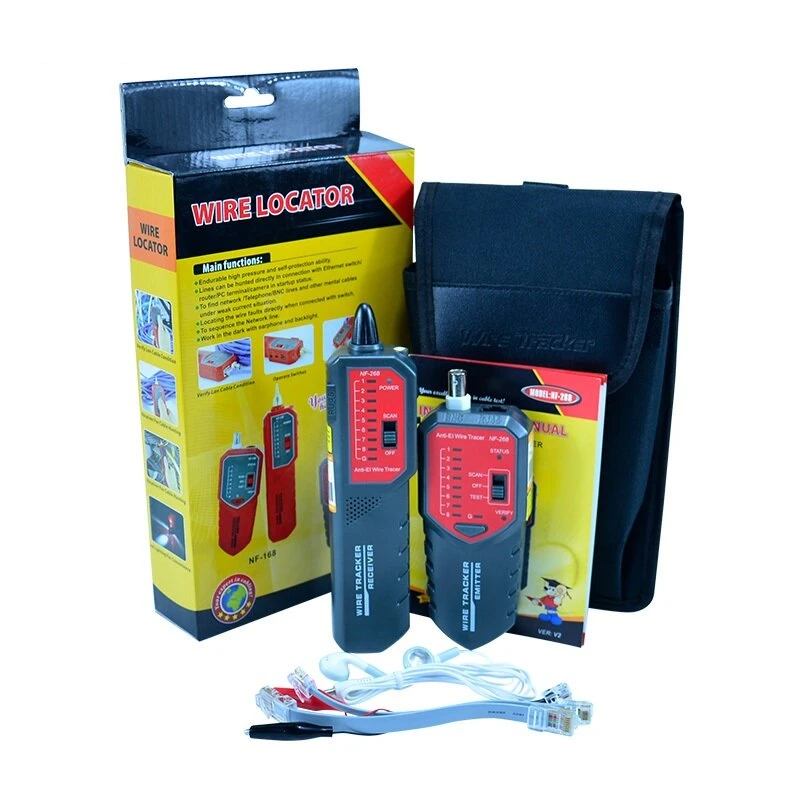

Package includes:
Transmitter * 1 (Battery not included)
Receiver * 1 (Battery not included)
Cable clips * 1
Telephone cable adaptor * 1
Network cable adaptor * 1
Earphone * 1
User manual * 1
Carry case * 1
Gift box * 1
Attention
1. Don't connect high voltage lines to avoid burning out the device.
2. Don't connect live telephone cable into RJ45 port.

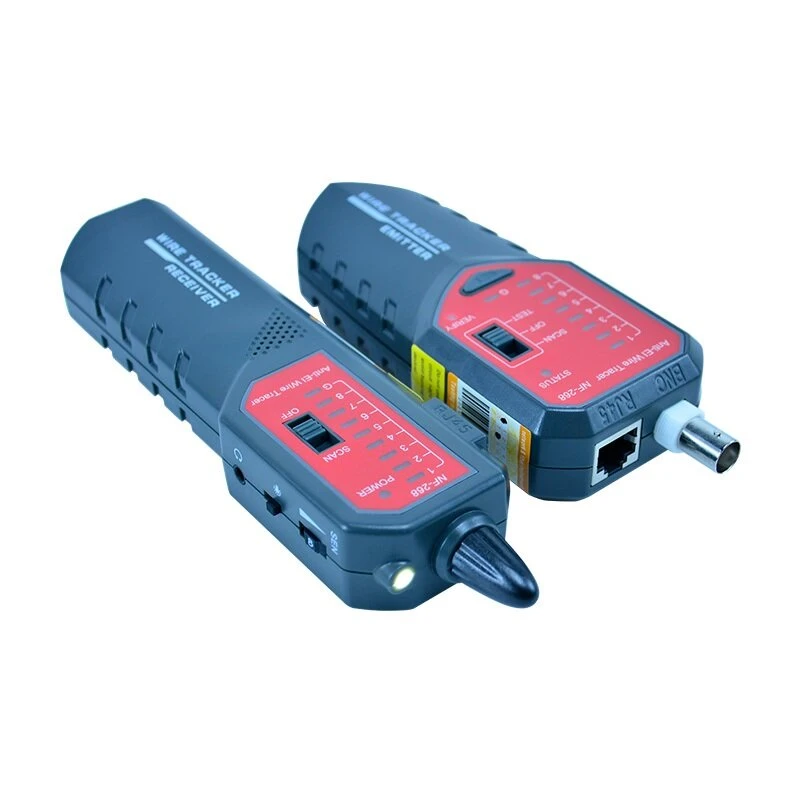

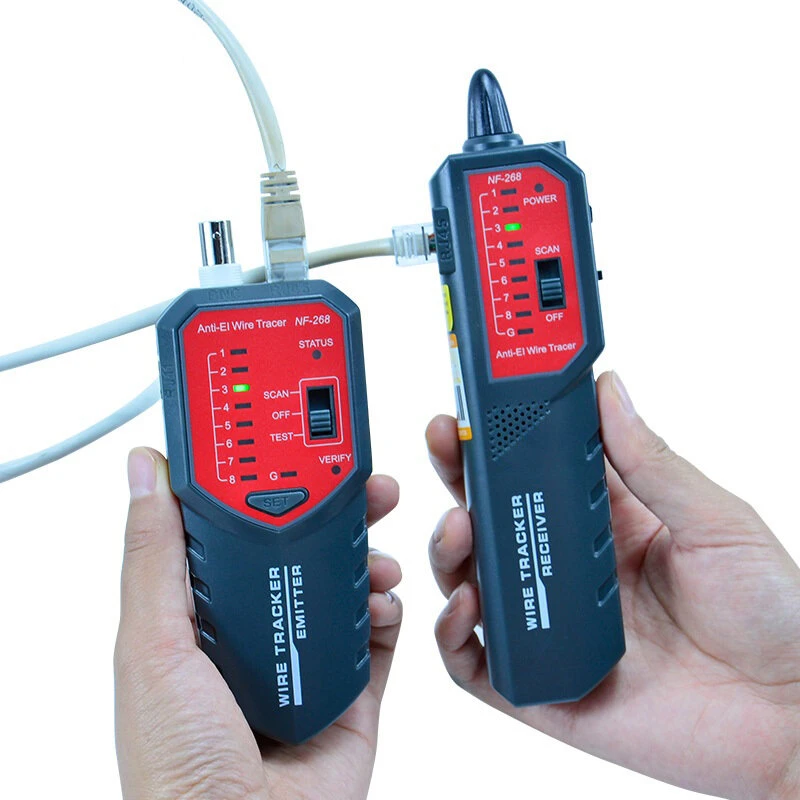

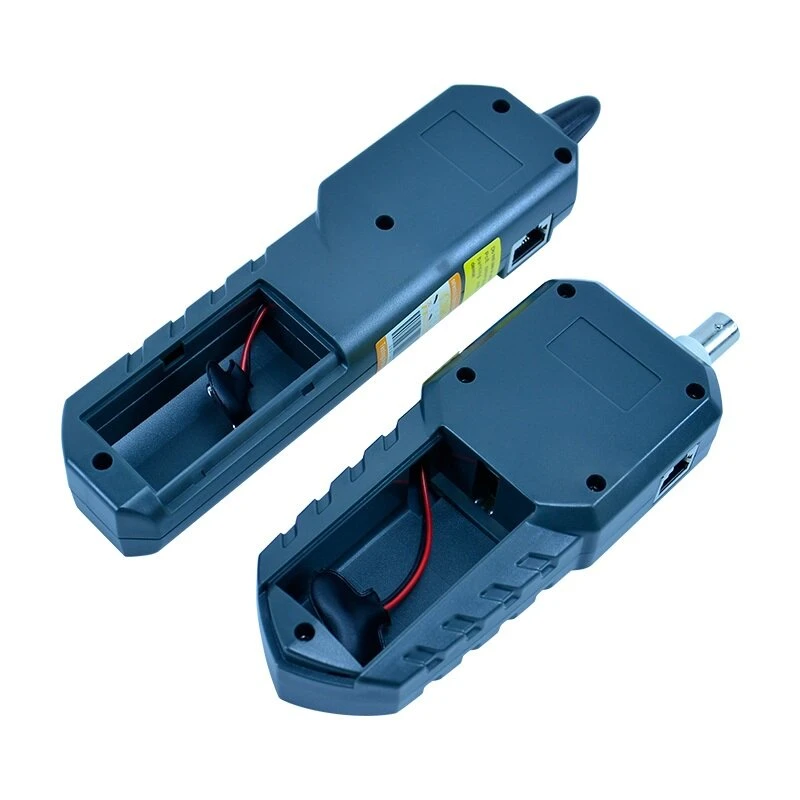

Details picture:
