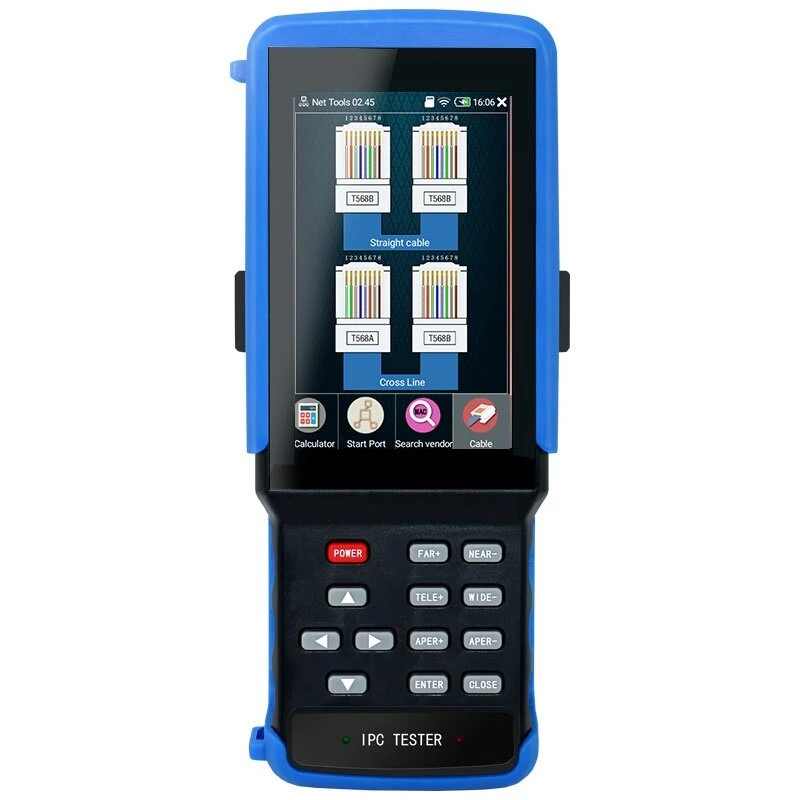

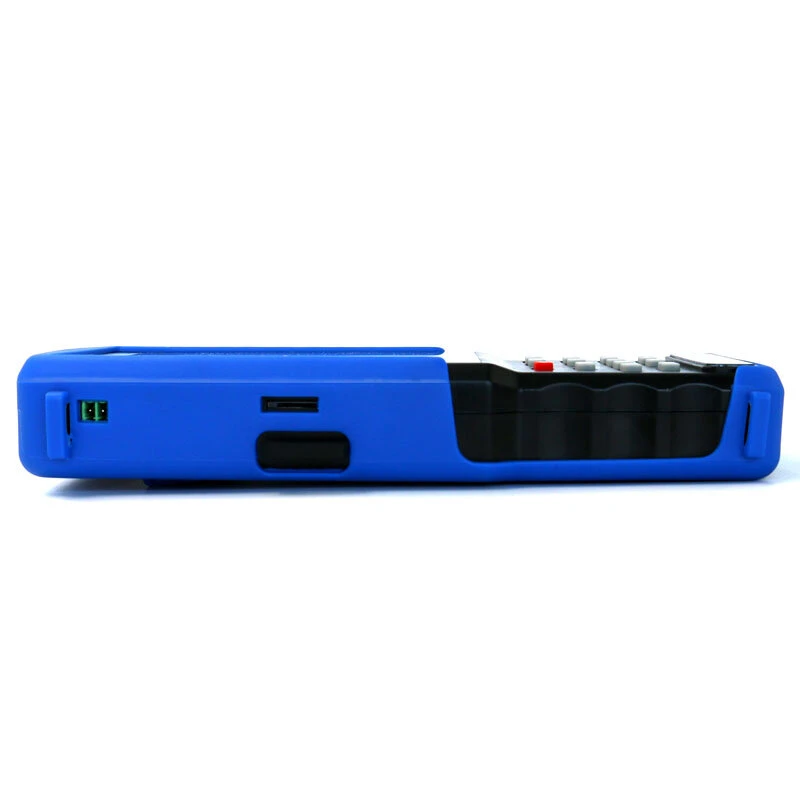

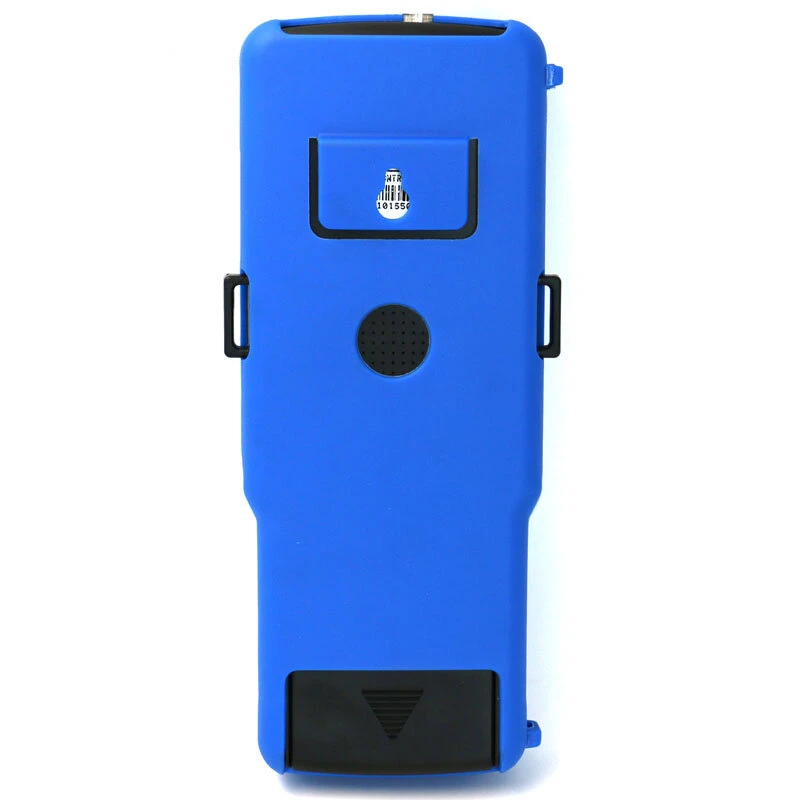

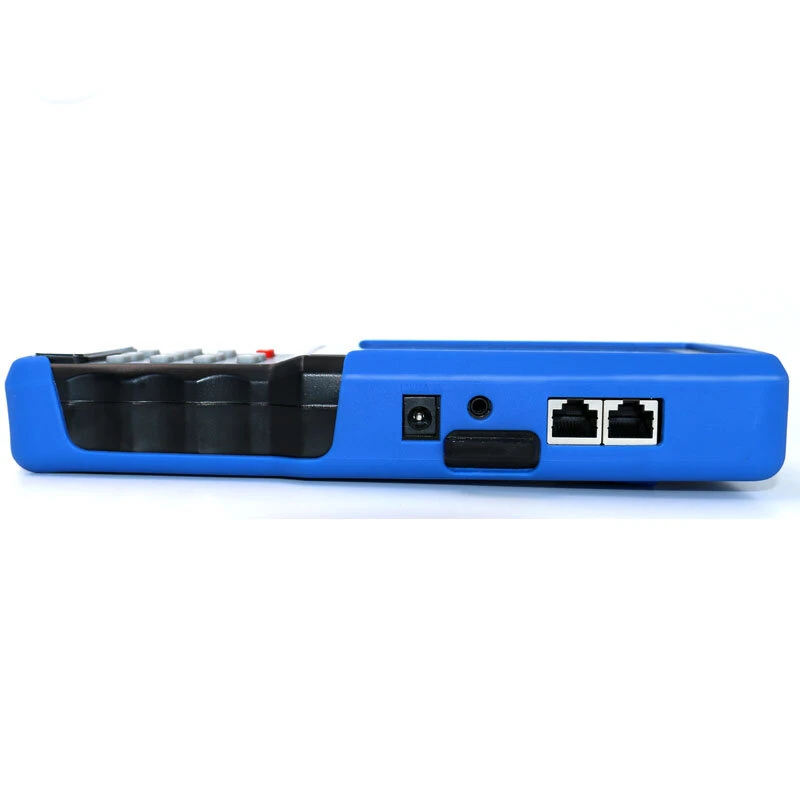

IPC-9310S 4K 8MP CCTV Camera Tester | 4-Inch Display H.265 IP CVI TVI AHD | Video & Cable Test Tool
$261.00
$320.70
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.
Specification:
9310S support : AHD +TVI +CVI +CVBS+ IP +cable tracker (optional)Product Model :IPC9310 HD Video Monitor Tester .Touch Screen :4 inch capacitive touch screen .LCD Screen:4 inch resolution 800 ?? 480 IPS HD full view .Ethernet Port :10/100/1000M adaptive .WIFI :Built-in wireless WIFI, speed 150M .Internal SD Storage : 8G .Working Temperature: -10??--+50?? .Working Humidity : 30%--90% .
H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4K .
Dahua test tool : Dahua camera batch activation, batch IP modification, cross network segment IP modification, modify username and password .
Coax HD Camera test: Support HD TVI 8MP resolution 3840 X 2156 15P .Support HD CVI 8MP resolution 3840 X 2156 15P .Support HD AHD 5MP resolution 2560 X 1920 15P .PoE Power Output : 48V standard PoE output, max 25.5W .Photo, Video and Playback : Support all camera videos photo taking, video recording and stored as H264 format .
PSE Voltage test: Display PoE power supply device voltage and circuit conditions .
Cable TDR Quality test : Test network cable pair connection status, length, attenuation, quality, impedance, delay deviation parameters, etc .
UTP Cable test : Test any 2 cable core connection and on-off status .PTZ Control: Support Pelco-D/P,etc. more than 30 protocols .
DC12V Power Output : DC12V power output, max current 3A, provide temporary power for cameras .
IP Camera test : ONVIF (support PTZ operation), major camera brand IPC tool customization, display video by private protocols, almost support all brand cameras in the market .
CVBS Analog Camera test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation .Lens Simulation: Simulate ??2.8/3.6/4/6/8/12/16/25mm?? lens image display area .
Focus Information test : Camera focus information and image quality test .IP Discovery : Full network segment IP scan to discover camera IP addresses .HIKVISION SADP tool: HIKVISION camera batch activation, batch IP modification, be able to modify username and password.
RS485 Serial Port tool : Send or receive any data and heix data .Power Charger: DC 12V/2A input, 3-4 hours to fully charge the battery .
Battery: Built-in 7.4V polymer lithium battery, capacity 3200mAh, can work continually for 8-10 hours .
Package included:
1 x Tester1 x Wire tracker
