HD-3200C 8MP AHD CCTV Tester - Mini Monitor for POE & Surveillance Camera
$273.00
$335.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

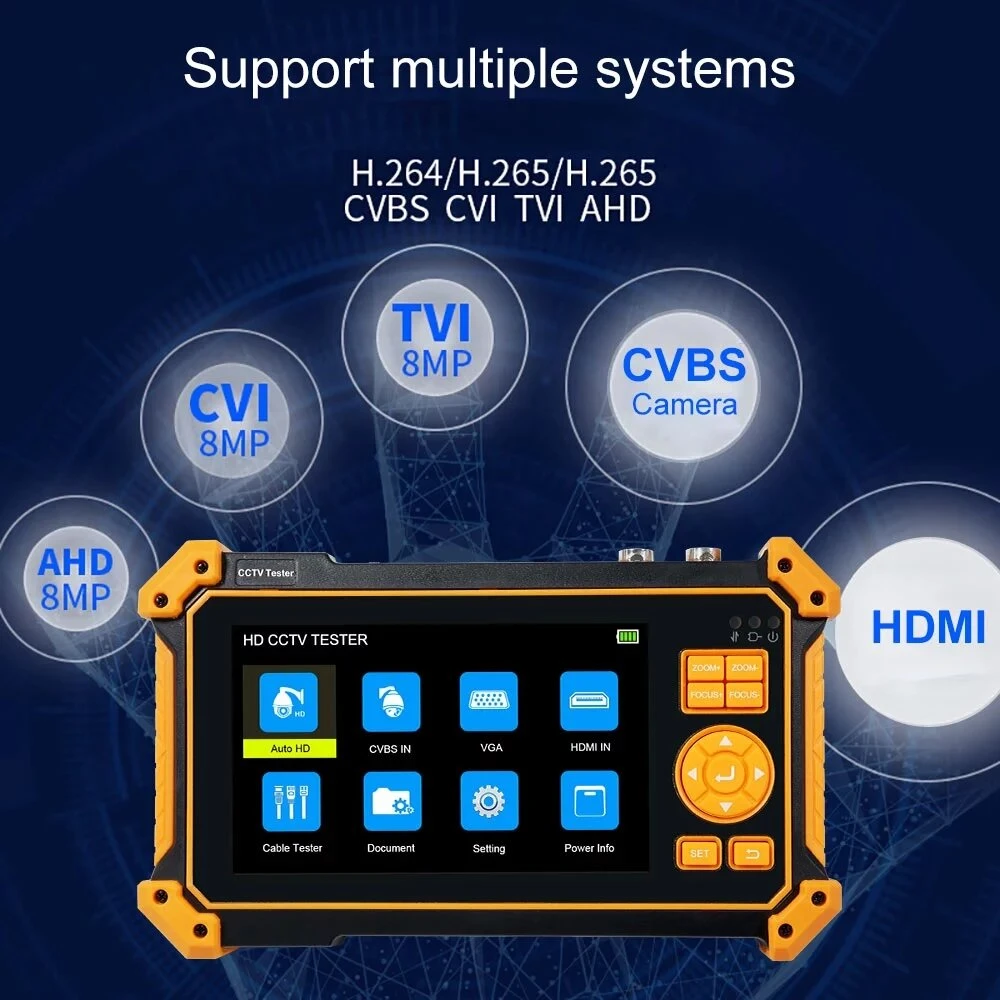

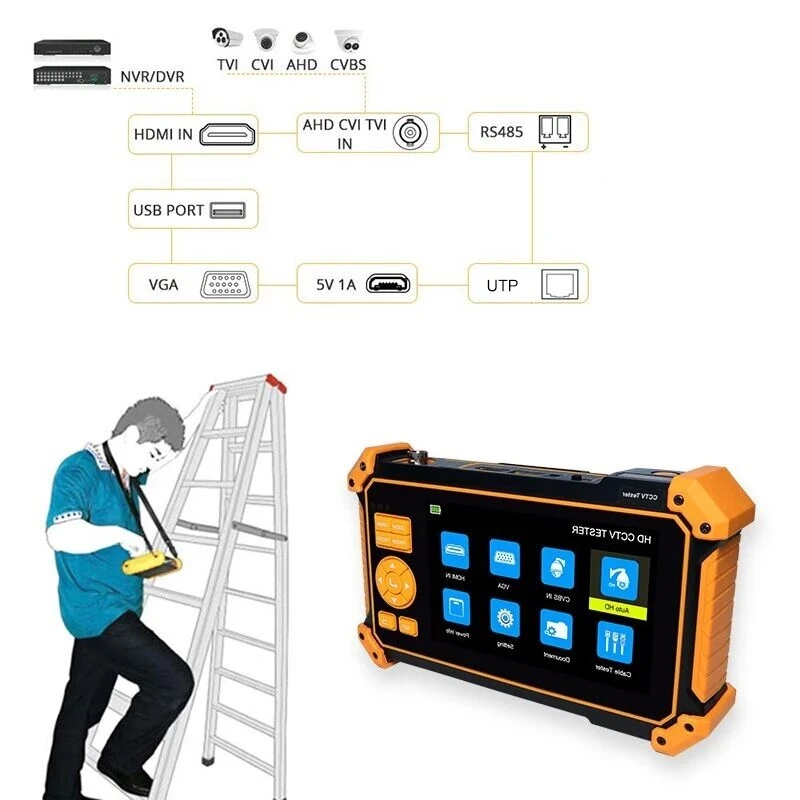

Description:Basic Information5 inch CVBS CVI TVI AHD 4 IN 1 CCTV Tester
?? 8MP CVI/ TVI/ AHD camera test?? 8MP EX-SDI, HD-SDI, 3G-SDI test*?? VGA input, support 1920 x 1200P 60FPS?? HDMI input, support 4K 30FPS?? Analog camera test, PAL/NTSC auto adapt?? Auto HD, auto recognize HD coax camera type and resolution?? DC12V 1A power output?? DC 5V 1A power output, support reading USB disk?? UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Features-Camera test

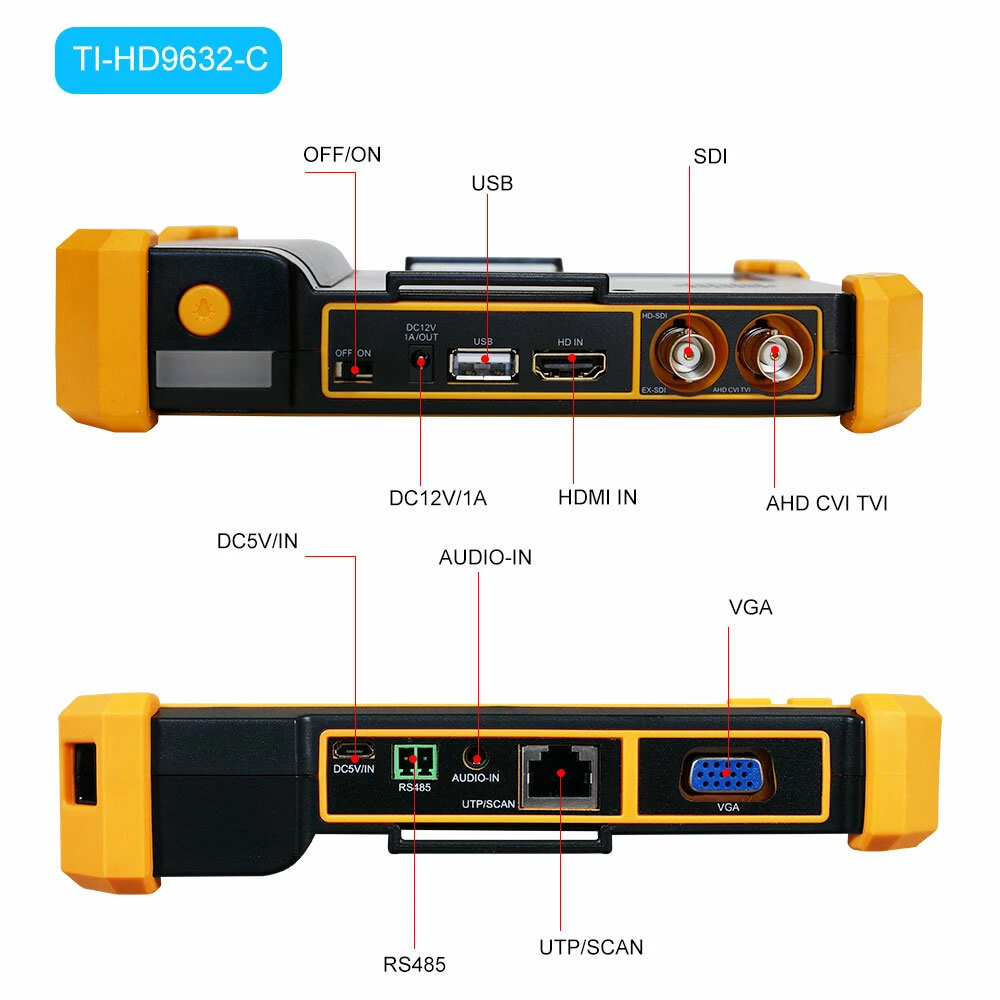

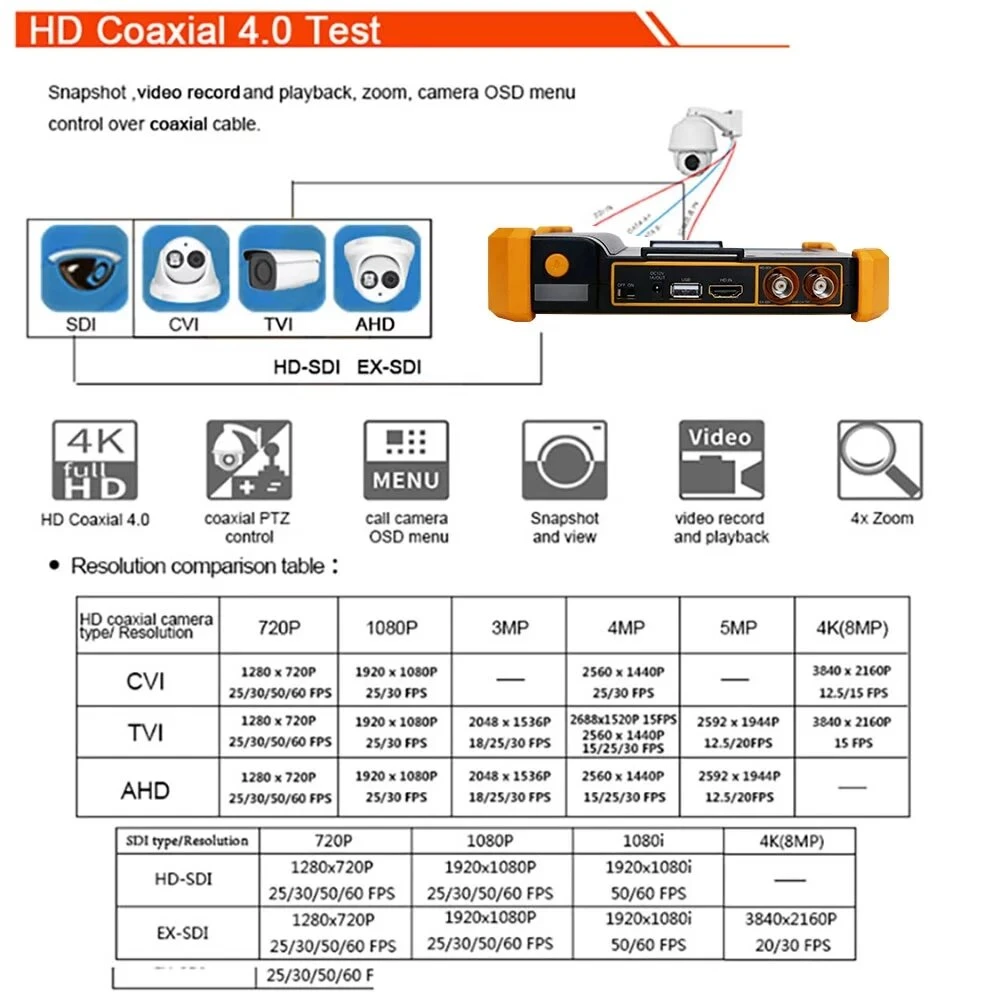

?? 5 inch TFT-LCD screen, 800*480 resolution?? 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu ?? 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu ?? 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu ?? 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD menu* ?? HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD menu* ?? 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD menu* ?? Auto HD app, auto recognizes HD coax camera type and resolution, support coaxial PTZ & call OSD menu?? VGA input, up to 1920 x 1200P 60FPS, test and debug DVR/XVR?? HDMI Input, up to 4K 30FPS, test and debug DVR/XVR?? Analog camera test, PTZ controller?? DC12V/1A power output, camera can be powered from DC 12 Voltage ?? DC 5V 1A power output, support reading USB disk
Features-Cable test
?? Improvement cable tester, UTP cable, telephone cable etc order and connectivity test. If special number, need customized. Can detect the near-end, mid-end and far-end fault point of RJ45 cable plug?? Digital Cable tracer, search BNC cable, network cable and telephone cable from the messy cables. Cable search and UTP cable can test at the same time
Package included:
1 x CCTV Tester
Details picture:
