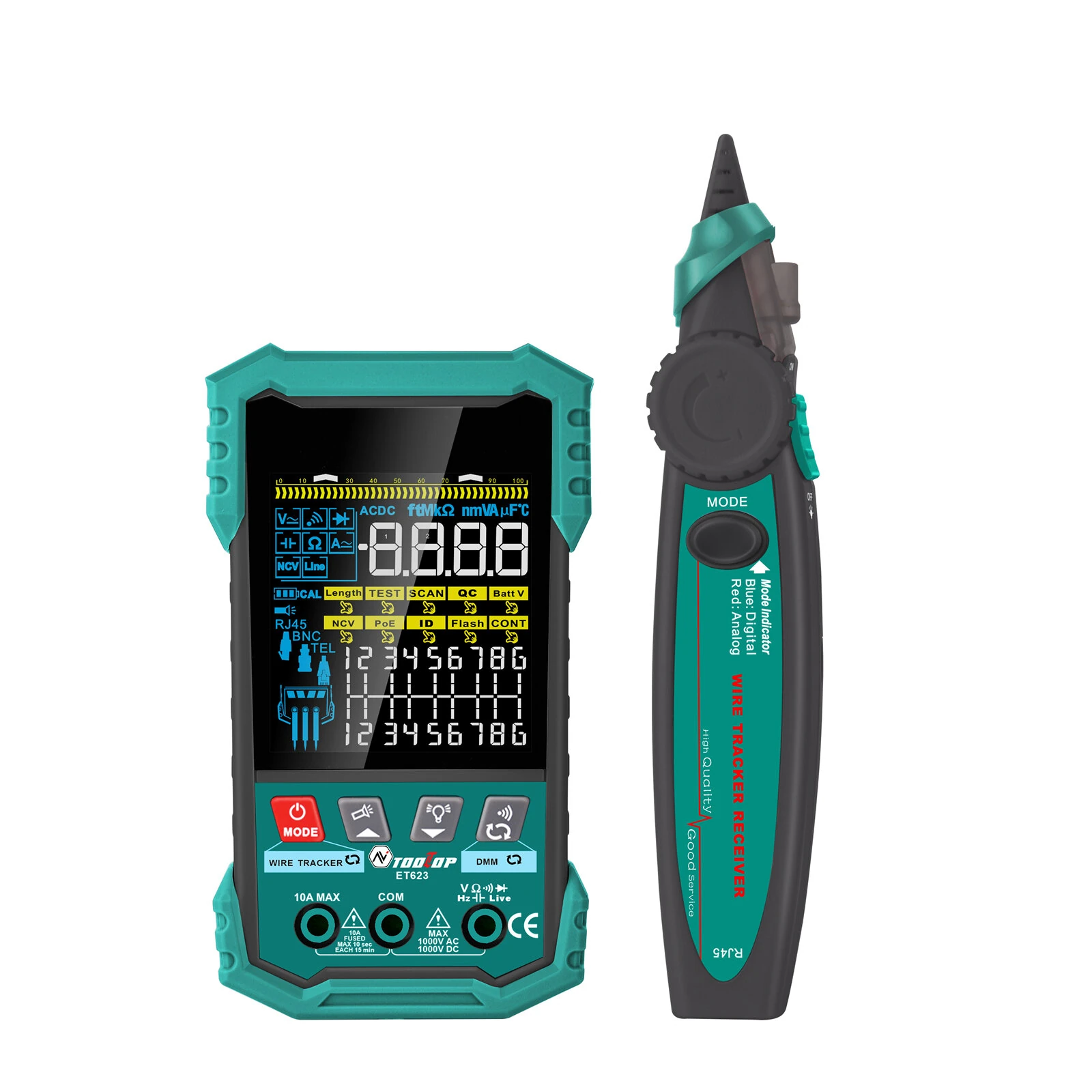

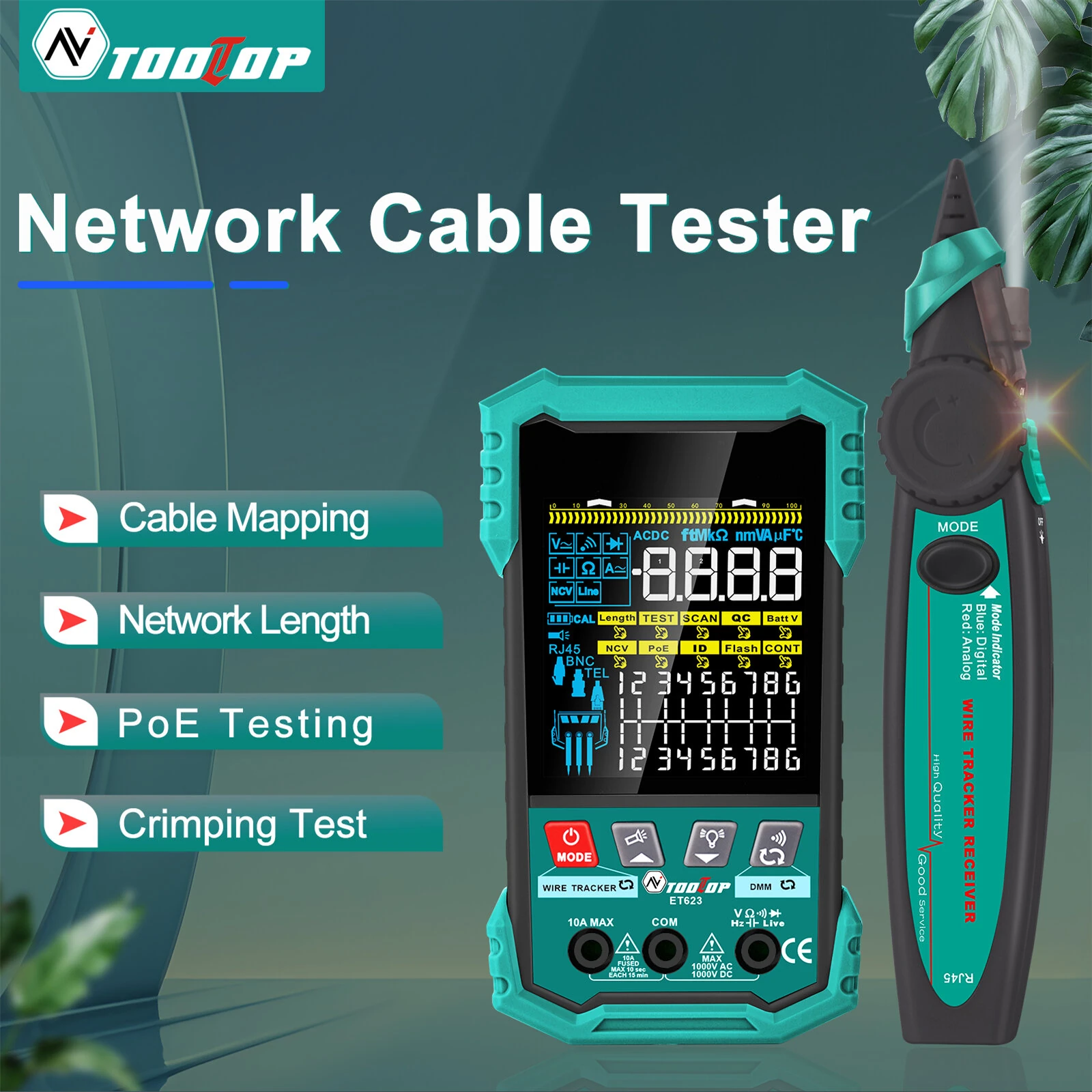

EU Direct ET622 ET623 Network Cable Tester - Multimeter & Wire Tracker | 6000 Count Screen, NCV, POE & Voltage Testing

Product Description

Specifications:
ET622
LCD Size: 55??57mm Color Screen
Cable Mapping: Supported
Network Cable Length: 2.5?C400m
Length Accuracy: ??2% ??1m
Voltage Testing: Supported
Power Source: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery
Functions:

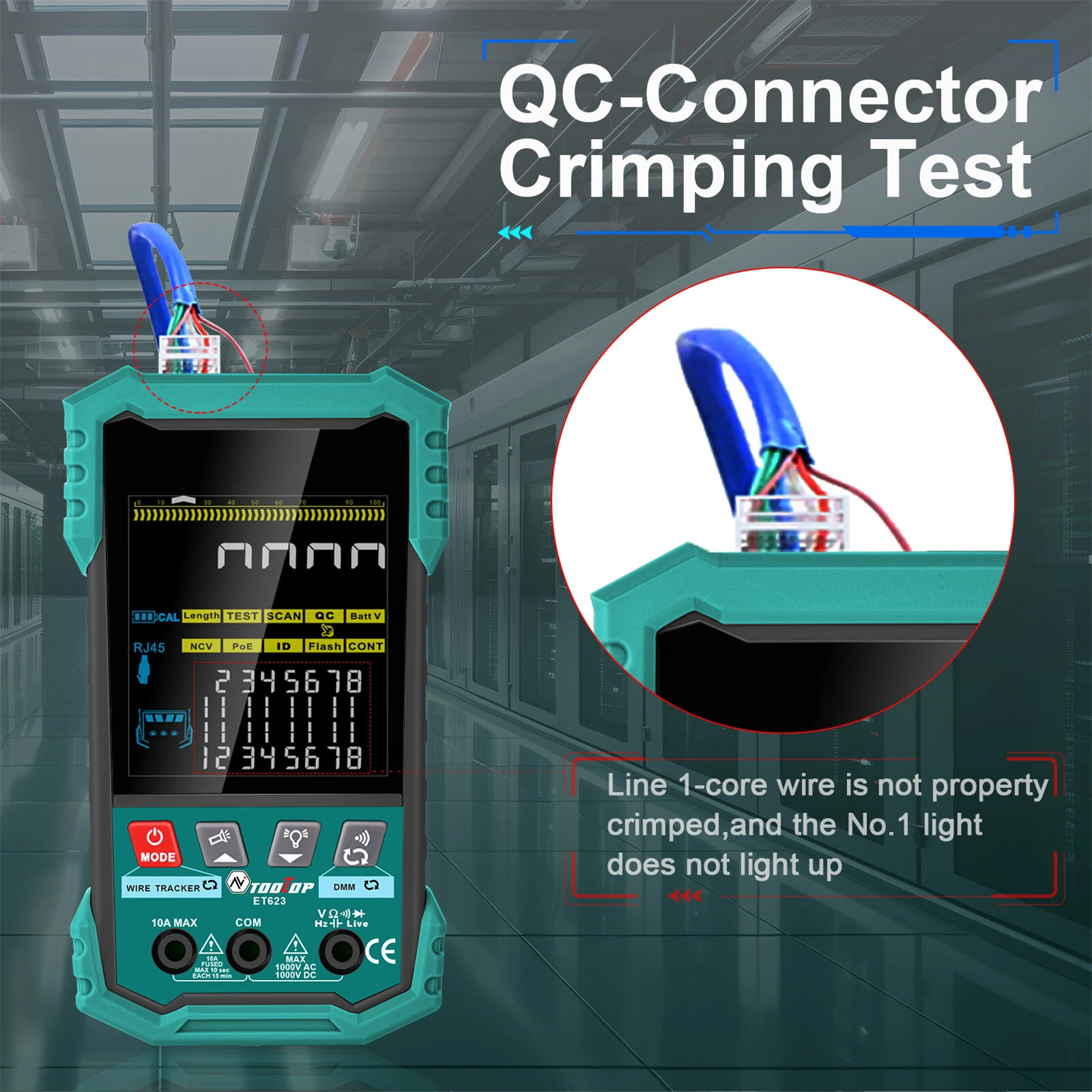

Crystal Head Crimp Test (QC)
Enter Connection Prompt
Switch Training (W/POE)
Network Cable Short/Open Circuit Test
Network Cable Breakpoint Measurement

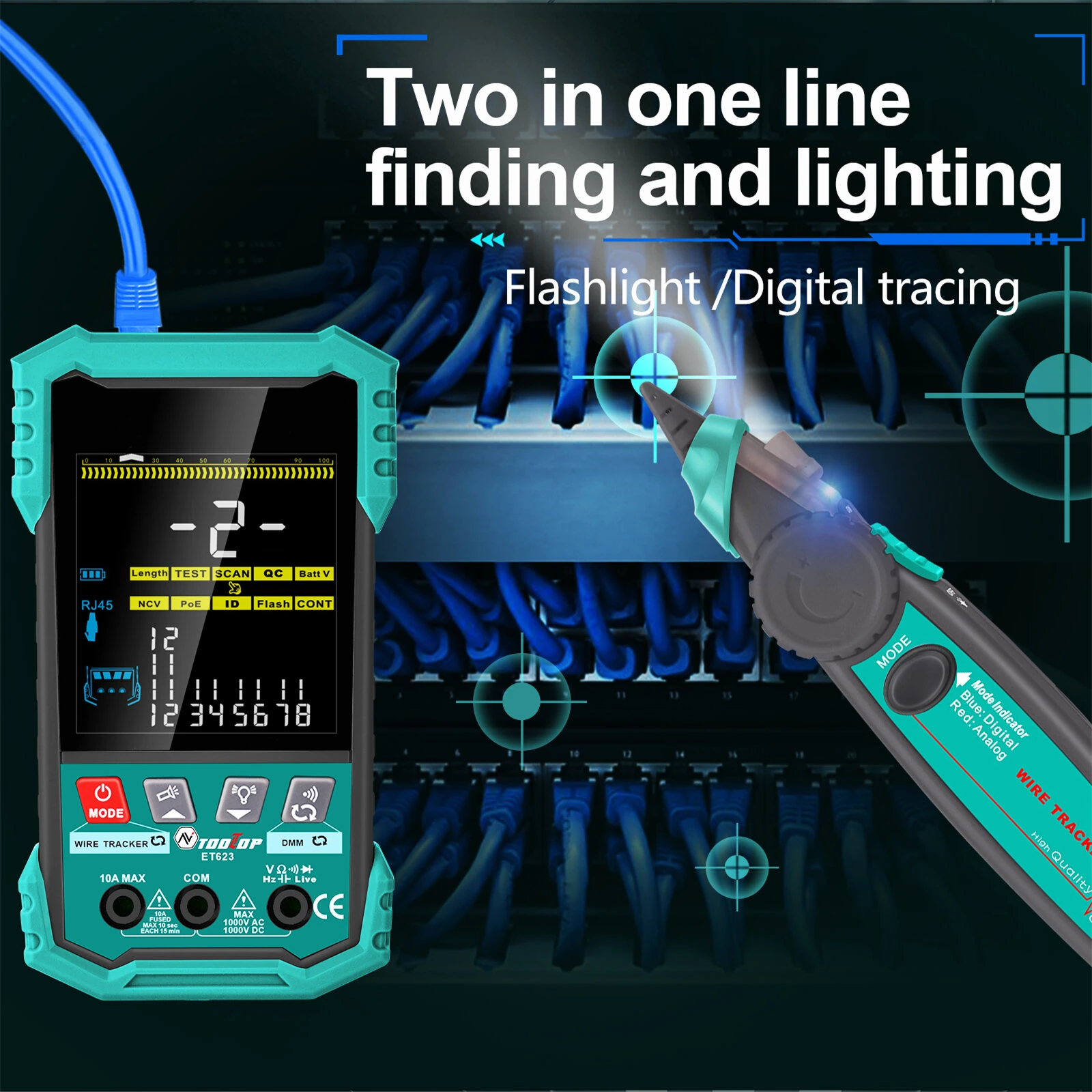

NCV Testing/Digital Tracing Sensitivity Adjustable
POE Voltage Value/Polarity Testing
Flashlight
Auto Power Off
ET623
Multimeter (6000 Count):
DC Voltage: 600.0mV?C1000V ?? (0.5%+3)
AC Voltage: 6V?C600V ?? (1%+3)
DC Current: 600.0mA?C10A ?? (1.2%+3)
AC Current: 600.0mA?C10A ?? (1.5%+3)
Resistance: 600.0???C60.00M?? ?? (1.5%+5)
Capacitance: 6.000nF?C60.00mF ?? (5%+6)
Continuity & Diode Testing: Supported
LCD Size: 55??57mm Color Screen
Cable Mapping: Supported
Network Cable Length: 2.5?C400m
Length Accuracy: ??2% ??1m
Battery: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery
Functions:
All ET622 Functions + Digital/Mechanical Multimeter
Features:
1. Advanced LCD Display
The 55??57mm color screen provides sharp and clear visual output, enabling seamless access to data and readings in real-time for a more efficient workflow.
2. Precise Network Cable Measurement
Supports cable length measurement up to 400 meters with an accuracy of ??2%, ensuring reliable performance for professional applications.
3. Versatile Connectivity Testing
Comprehensive test functionality for crystal head crimping, circuit connection, and cable mapping, simplifying troubleshooting and diagnosis tasks.
4. Integrated Multimeter Functions (ET623)
ET623 includes a 6000-count multimeter for voltage, current, resistance, and capacitance measurements, making it an all-in-one tool suitable for electrical and networking professionals.
5. User-Friendly Features
Equipped with features like auto power off, low battery indication, flashlight, and sensitivity-adjustable tracing to enhance convenience during extended usage.
Package Included:
ET622
1 x Wire Tracker Main Unit
1 x Receiver Probe
1 x RJ45 Cable
1 x Crocodile Clip
1 x Type-C Charging Cable
1 x Carrying Case
1 x User Manual
ET623
1 x Wire Tracker Main Unit
1 x Receiver Probe
1 x RJ45 Cable
1 x Crocodile Clip
1 x Type-C Charging Cable
2 x Multimeter Probe
1 x Carrying Case
1 x User Manual
