DeepVNA-101 Antenna Analyzer 10kHz-1.5GHz | SWR Meter | 4.3 LCD & 5000mAh Battery

Product Description

Specifications:

Model: DeepVNA-101

Screen Size: 4.3 inches

Nominal Frequency Range: 10kHz - 1.5GHz

Scan Points: Up to 301

Battery Capacity: 5000mAh / 3.7V

Memory Capacity: 16MB

Firmware Version: 1.0.4

Features:

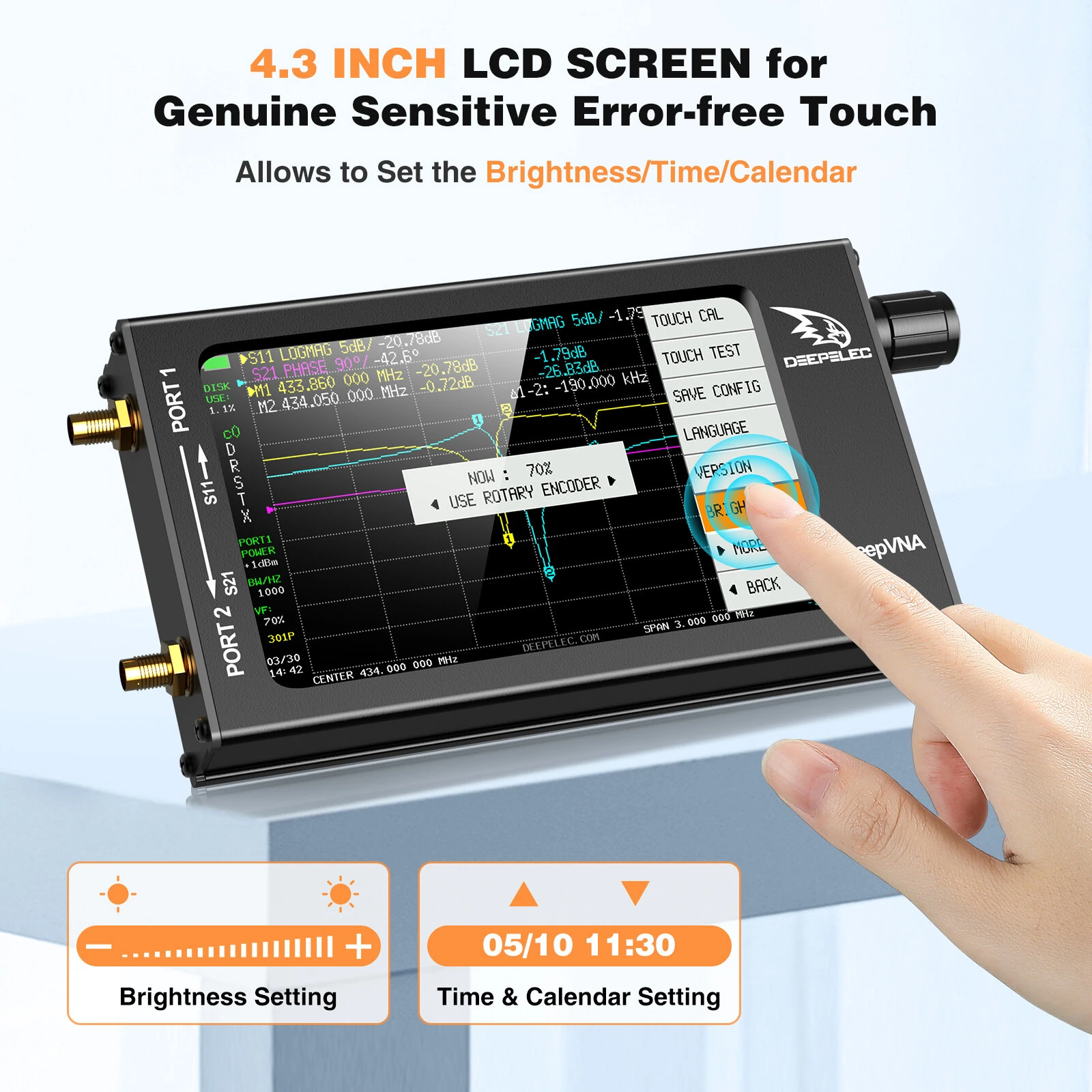

Enhanced Control: Features a rotary encoder for more convenient and smooth control compared to traditional user buttons.

Advanced RTC Functions: Equipped with a real-time clock (RTC) and perpetual calendar, adding accuracy to date and time stamps.

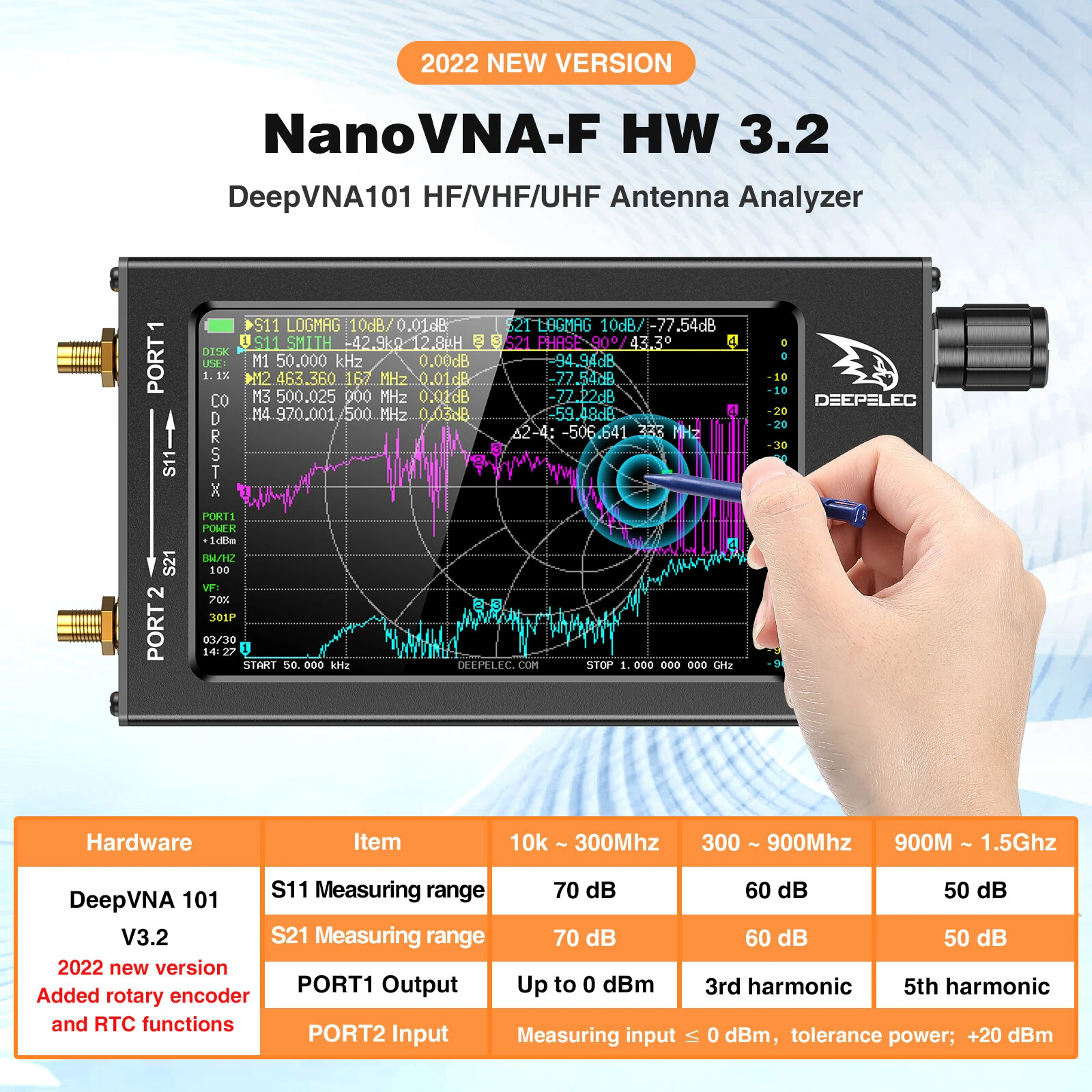

Superior Measurement Performance: Optimized for S21 insertion loss and filter measurements, providing a larger dynamic range for better accuracy.

Flexible Frequency Settings: Allows frequency settings to be adjusted by start and end points or center span mode, accommodating different measurement needs.

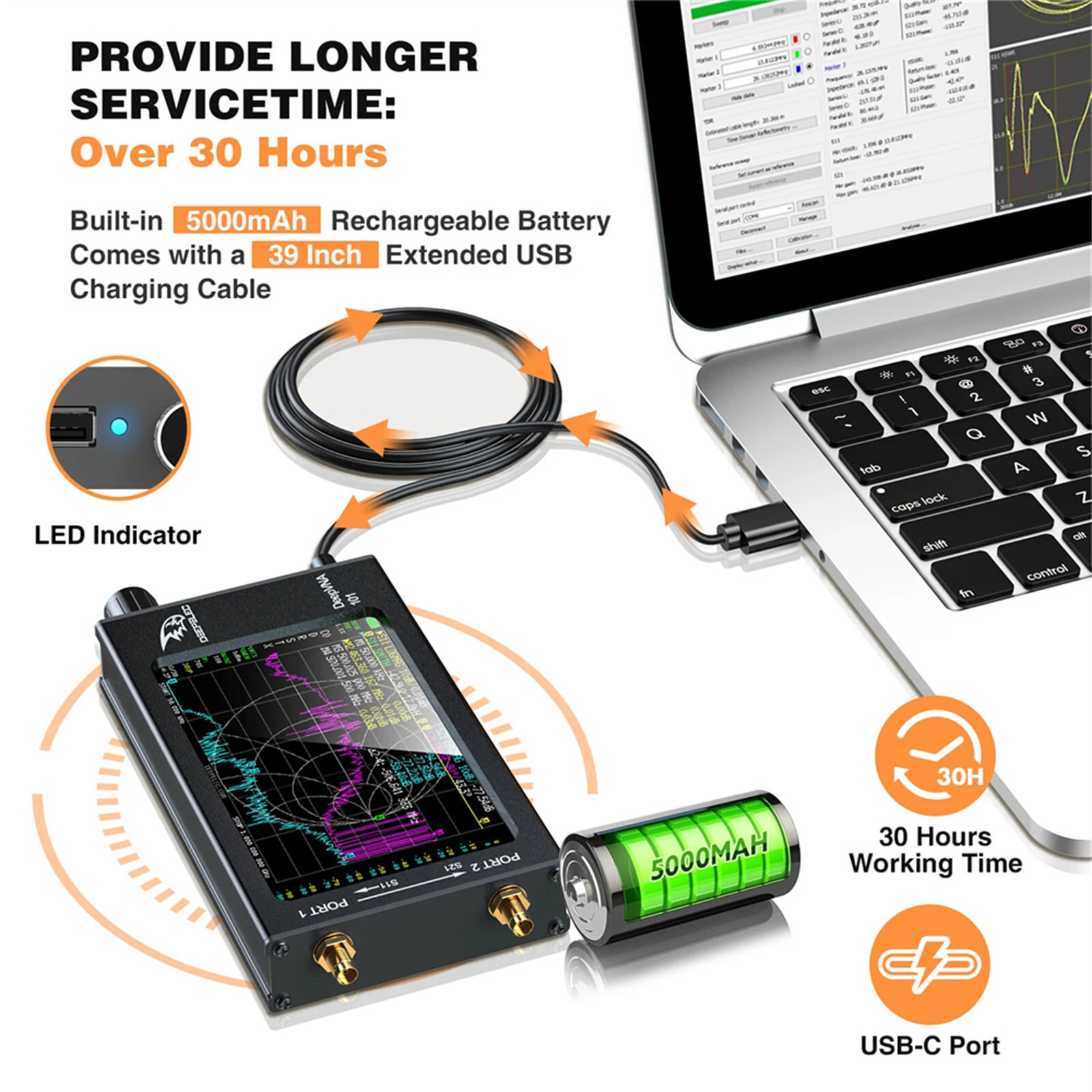

Large Battery and Storage: Boasts a 5000mAh battery for extended use and 16MB memory that can save up to 1000 sets of snp file data.

Package Included:

1 x DeepVNA 101 4.3-inch screen unit (free screen protector)

1 x USB-A to USB Type-C cable

2 x 20CM SMA male to male RG316 RF cable

1 x SMA male calibration piece-OPEN

1 x SMA male calibration piece-SHORT

1 x SMA male calibration piece-LOAD (Within 4GHz,Swr 1.025)

1 x SMA-JJ male to male connector

1 x SMA-KK female to female connector

1 x SMA-JKW male to female right angle connector

1 x Foldable machine stand

1 x Resistive screen touch pen

1 x Quick Start Guide

1 x Free EVA protective bag
