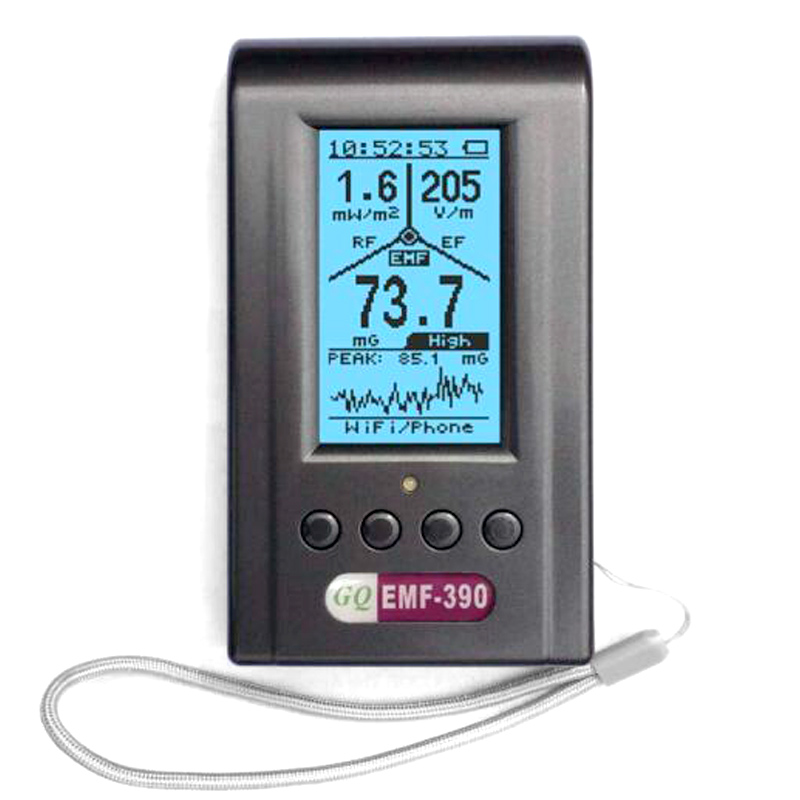

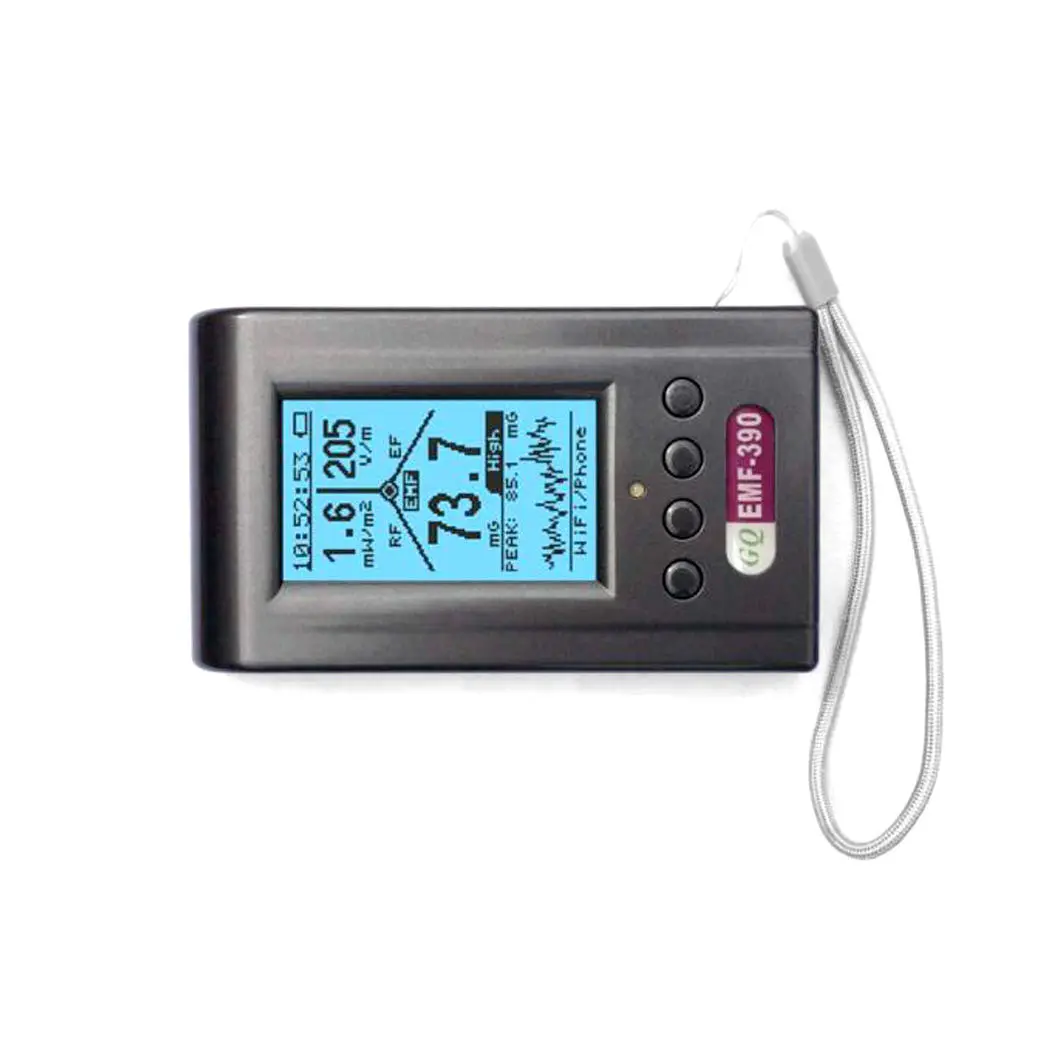

EMF-390 3-in-1 EMF Meter | Advanced Multi-field Radiation Tester with Data Logger
$373.00
$459.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
GQ EMF-390 is ready, the multifunctional digital EMF meter is designed to be a portable and handy device. It can be used as industrial, commercial maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, universities, laboratories, and electronic repair stores. The device's integrated testing functions include three-axis electromagnetic fields, electric field, radio frequency and radio spectrum power analyzer. The meter is able to identify the common source of EMF measured, such as Power Line, Smart meter, WiFi, Microwave, Mobile Tower Etc. It also comes with the built-in audible and visible alarm. It can be used for EMF, ELF, EF, RF detection and monitoring both indoor and outdoor, as well as in other similar environments. It can continuously monitor the radiation. When connect the device to a PC, PC software can download the radiation data to the computer and the user is able to analyze that data later. The device also installed a high contrast black / white LCD module and a front LED indicator.

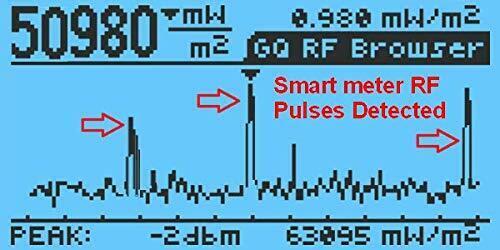

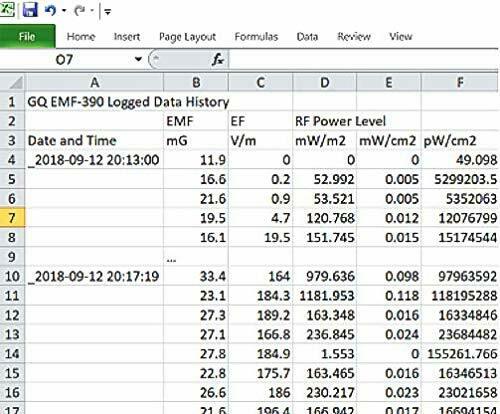

GQ RF Browser is specifically designed for Cellphone, Cell Tower, Smart Meter, WiFi RF radiation monitoring. Safety suggestion indicator provides a simple and easy way to understand overall radiation risk. EMF-390 has built-in flash memory and it is able to log the real-time data EMF, EF and RF power every second. Users are able download the data later from a free software EMF-PRO. The device is equipped with an USB port, utilized for communication and external power supply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery. The GQ EMF-380 internal rechargeable battery can be charged with a standard USB port, USB charger or with a computer USB port. Using external power, continuous data monitoring is possible. Using either power adapter you will not have to worry about the batteries charge condition or any data loss. The EMF-380 also has a real time clock on board for time-related data measurement. The meter installed multiple sensors to ensure maximum scale/range measurement and highest accuracy. High sensitivity meter allows you to check EMF/RF radiation easily. Examples: computer mouse, car remote key, cell phone, cell tower, cordless phone, static electricity, electric field, WiFi, computer laptop, microwave, electric heater, hair dryer, vehicle engine, light, outdoor power line. With RF spectrum power analyzer, you can monitor the WiFi signal power, Smart meter signal power, Spiy wireless video camera signal, even track radio/TV signal in air.
Model Selection Guide
| EMF-360 V2 | EMF-360 Plus V2 | EMF-380 V2 | EMF-390 | |
| Three Axis EMF | Yes | Yes | Yes | Yes |
| RF Radiation | Up to 8GHz | Up to 8GHz | Up to 8GHz | Up to 10GHz |
| RF Spectrum Power Analyzer | No | 2.4GHz-2.5GHz | 2.40 to 2.5GHz 240 to 1040Mhz 2.30 to 23.00MHz 64 to 108MHz 520 to 1710KHz 153 to 534KHz | 2.40 to 2.5GHz 240 to 1040Mhz 2.30 to 23.00MHz 64 to 108MHz 520 to 1710KHz 150 to 531KHz |
| Realtime Clock | No | No | Yes | Yes |
| Data Logging/Saving | No | No | No | Yes |
Specification:
EMF (Electromagnetic Field)
- Triple axis (X, Y, Z) up to 400Khz
- Range: 0.0~500mG
-
EF (Electric Field) - Range: 0V/m to 1000V/m
- Resolution: 0.1 V/m
-
RF Field (Radio Frequency Field) - Frequency: up to 10GHz
RF Spectrum Power Analyzer - Frequency band 1: 150KHz to 531KHz
Frequency step: 1KHz to 3KHz
Frequency span: 1KHz to 3KHz - Frequency band 2: 520Khz to 1710KHz
- Frequency step: 1KHz to 6KHz
Frequency span: 1KHz to 6KHz - Frequency band 3: 64MHz to 108MHz
- Frequency step: 10KHz to 100KHz
Frequency span: 40KHz to 100KHz - Frequency band 4: 2.3MHz to 23.00MHz
- Frequency step: 1KHz to 180KHz
Frequency span: 1KHz to 6KHz - Frequency band 5: 240MHz to 1040MHz
- Frequency step: 1KHz to 10KHz
Frequency span: 50KHz to 4000KHz - Frequency band 6: 2.4Ghz to 2.5GHz
- Frequency step: 25KHz to 405KHz
Frequency span: 58KHz to 812KHz
Main features :
- Audible alarm: beep/siren
- Visual alarm: green, red LED
- Operating temperature & humidity: 5 to 40 degree C, below 80% RH
- Working Voltage: 3.6-3.7V

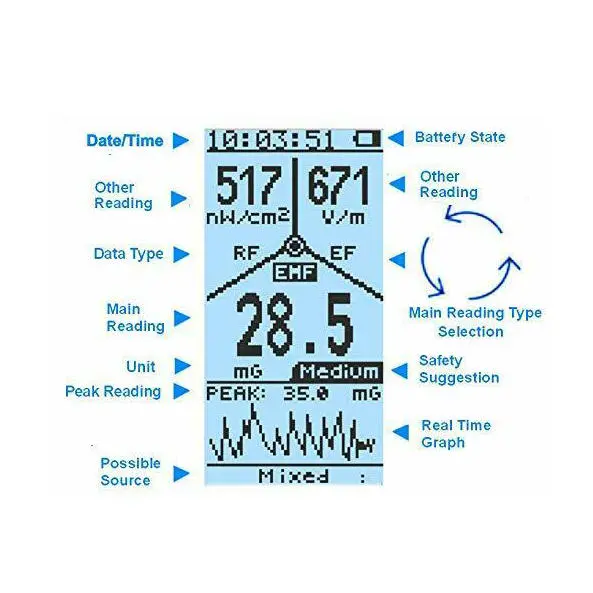

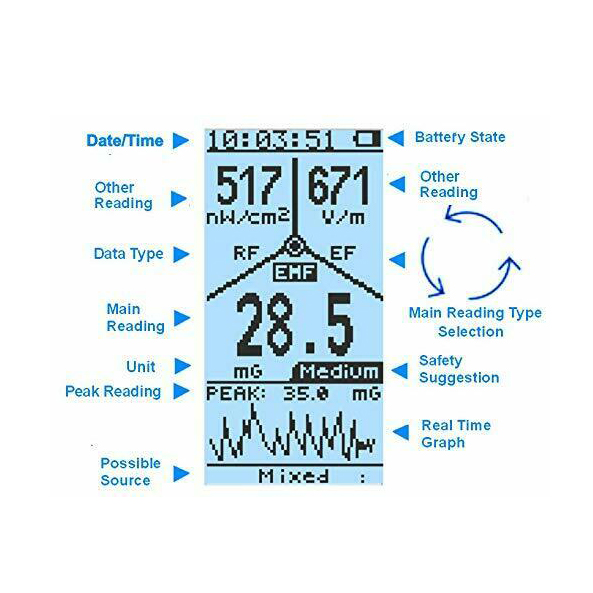

- Display: LCD dot matrix, back lighted
- Power Consumption: 25mW to 125mW (backlight dependant)
- Power: Supply 3.7V Li-Ion battery / USB power
- Dimensions 135 x 78 x 25 mm (5.25"x 3" x 1")
Package includes:
1 X Radiation Tester
Details pictures:
