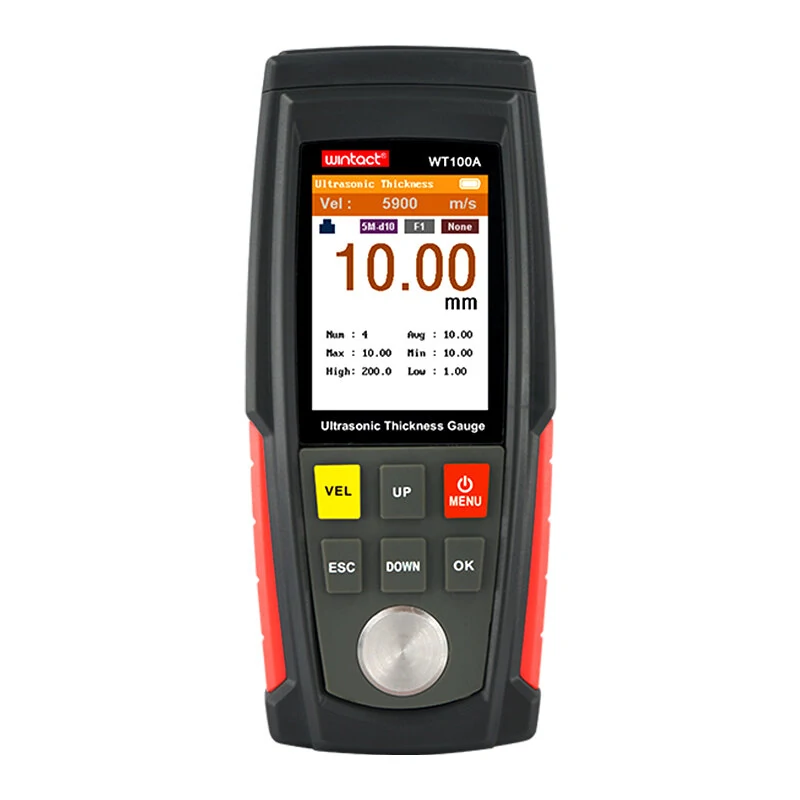

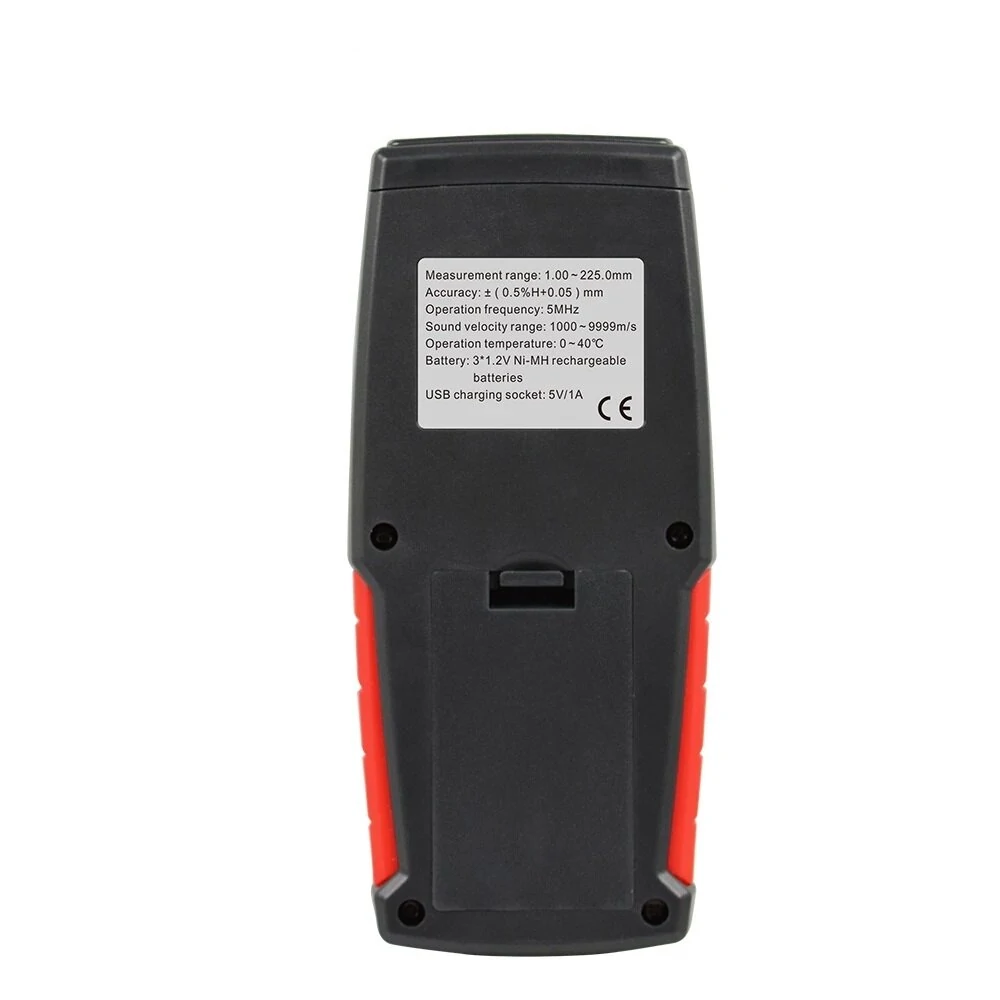

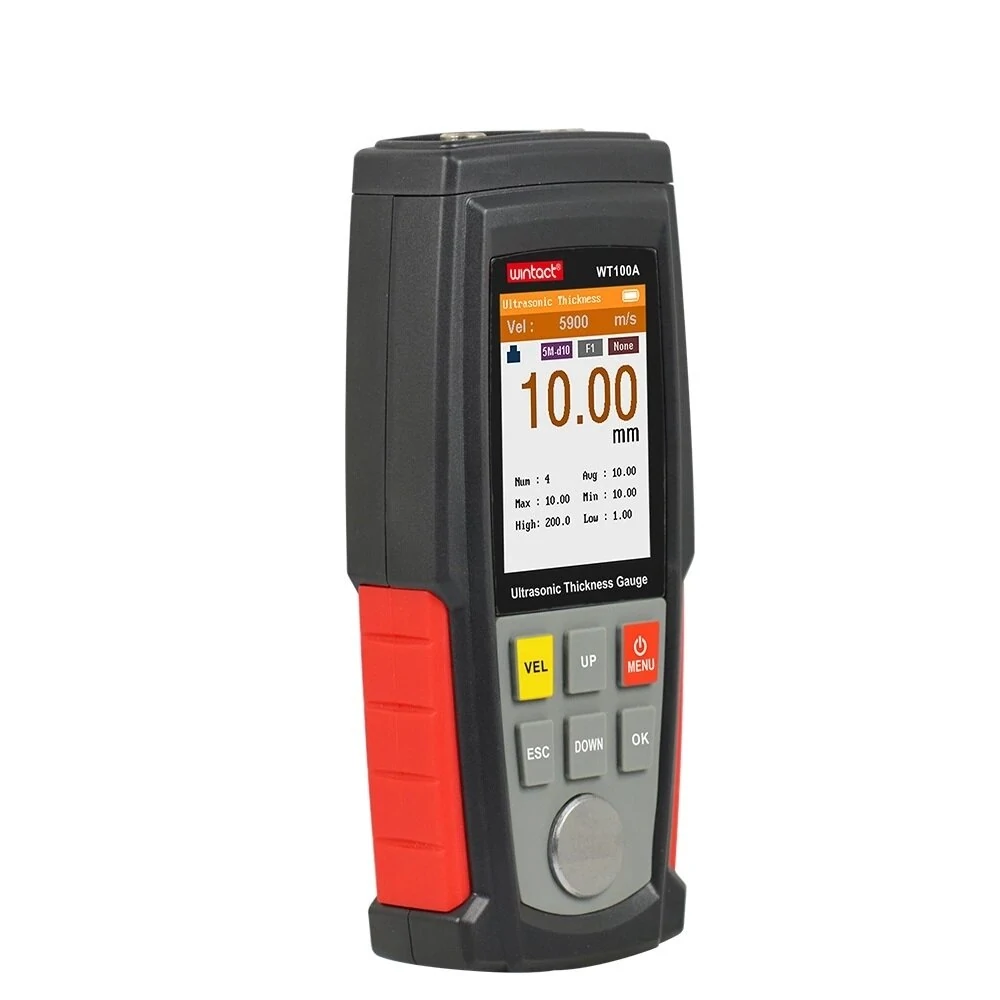

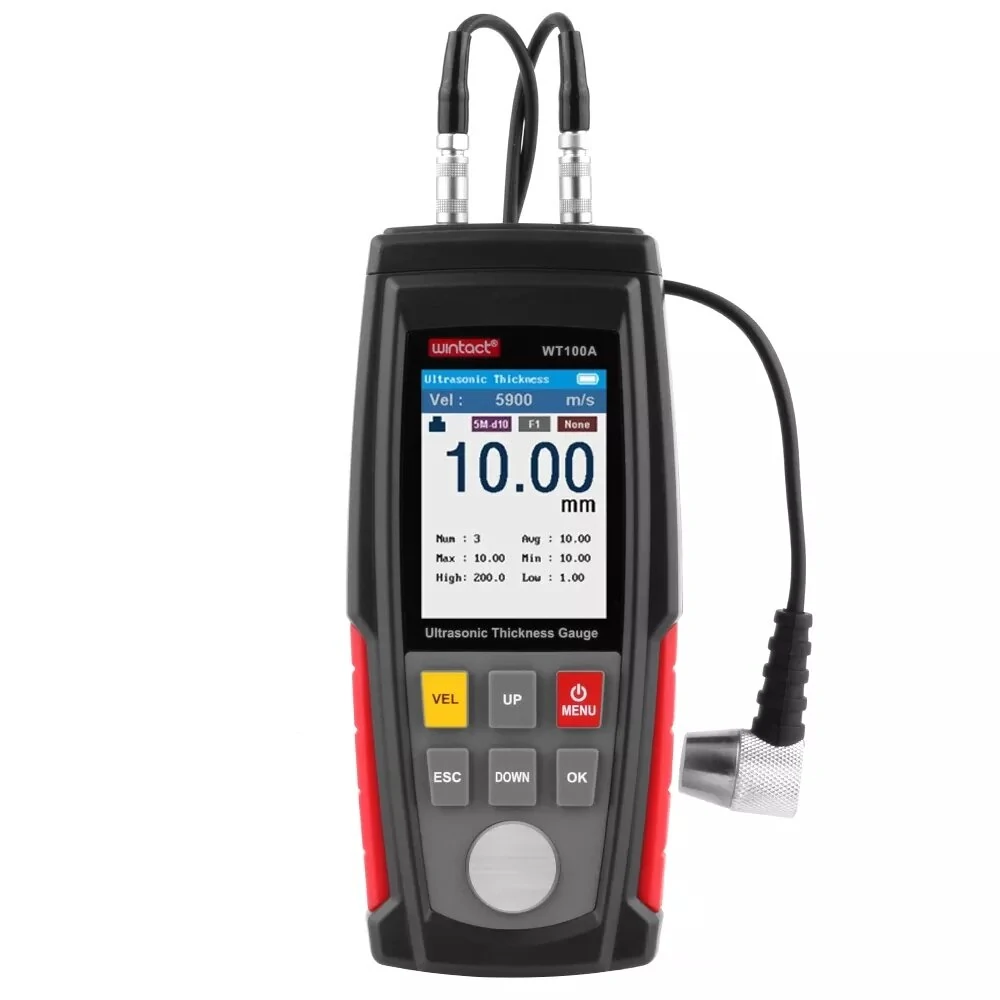

WINTACT WT100A Digital Ultrasonic Thickness Gauge | 1.00-225.0mm Range | 500 Data Storage
$113.00
$139.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:
It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.
Wide application:
The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic , such as metal, plastic, ceramic, glass, etc.The Intelligent Handheld Ultrasonic Thickness Gauge is microprocessor controlled and can measure thickness quickly and accurately and with sound of various materials without ultrasonic measurement damage.This tool is capable of accurately measuring parts in different materials or industrial production, as well as monitoring pressure vessels for pipes and production equipment, as well as the extent to which various parts are corroded.
Specification:
Model | WT100A |
Measuring range | 1.00 -225.0mm |
Data storage | 500 |
Operate | 5MHz |
Frequency | 5MHz |
Measurement error | ??(0.5%H+0.05)mm |
Lower limit of pipe measurement | 20x3mm (steel) |
Adjustment range of sound speed | 1000-9999m/s |
Temperature range of operate | 0 -40??C |
Battery | 3 Ni-MH rechargeable batteries of 1.2V |
USB Charging | 5V 1A |
Measurement resolution | 0.01mm(1.00~99.99mm) |
Probe | Measurement parameters |
5Md10 | 1.0-225.0mm |
Dimensions | 65x146x30mm |
Weight | 130g |
Package included:
1 x Digital Ultrasonic Thickness Gauge2 x Probe1 x Retail Case1 x Charger1 x User Manual
