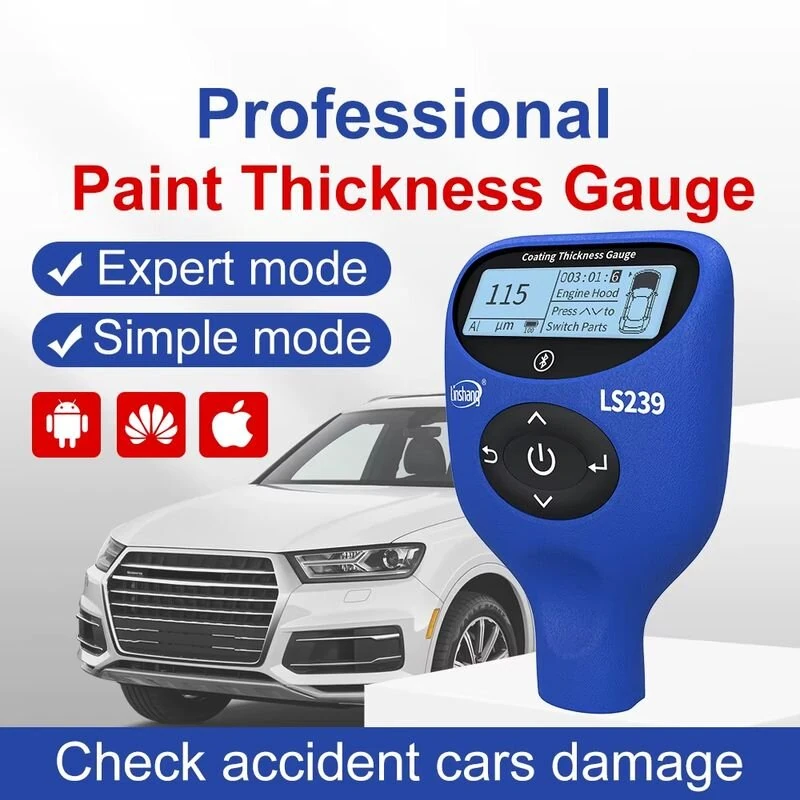

Professional LS239 Coating Thickness Gauge | 5000µm Range | Bluetooth Data Transfer | High Precision Paint Tester

Product Description

Specifications:
Probe Tip: Rub
Measurement Principle: Fe: Hall effect / Al: Edd current
Probe Type: Integrated
Measuring Range: 0.0-5000??m
Resolution: 0.1??m / 1??m / 10??m
Accuracy: 0-3000??m: ?ܡ?(3%H+2??m); 3000-5000??m: ?ܡ?(5%H+2??m), H is the standard value
Unit: ??m / mil
Measuring Interval: 0.5 s
Minimum Measuring Area: ? = 25mm
Minimum Radiu of Curvature: Convex: 5mm / Concave: 25mm
Minimum Substrate Thickness: Fe: 0.2mm / Al: 0.05mm
Display: 192??64 dot matrix LCD
Power Supply: Rechargeable lithium battery 3.7V @ 1200mAh
Working Temperature Range: -20?? to 50??
Storage Temperature Range: -20?? to 60??
Host Size: 1087031 mm
Weight (Including Battery): 88.8g

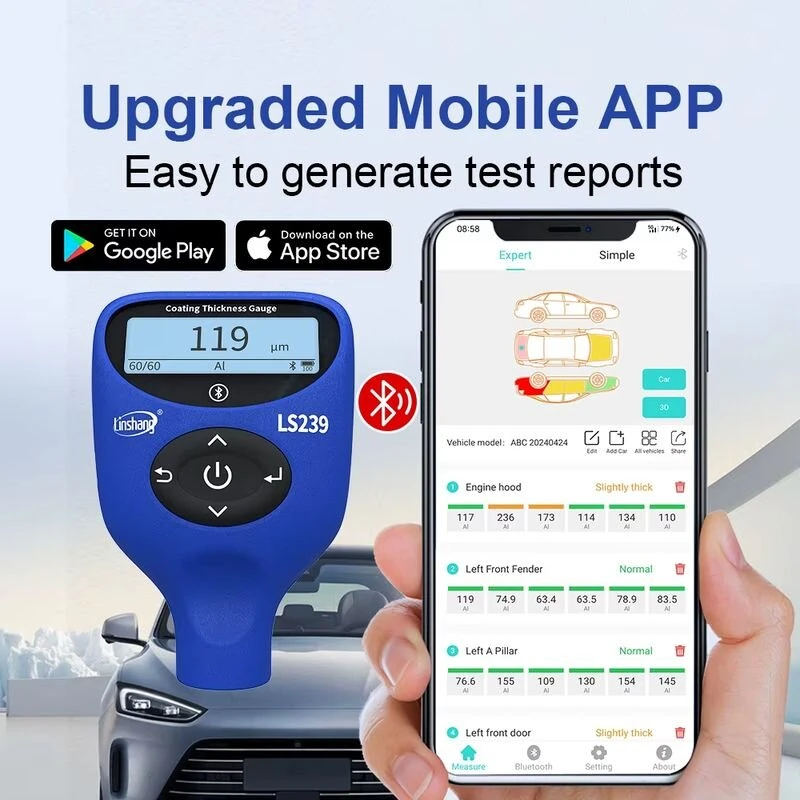

Data Transfer: Bluetooth
Features:
1.Dual Measurement Modes for Flexible Use: Offers simple mode for beginners and expert mode for advanced users, catering to diverse skill levels.
2.Component-Based Precision Analysis: Divides vehicles into 19 parts with 6 measurement points per part, supporting detailed and organized evaluations.
3.Multi-Material Compatibility: Instantly recognizes steel, aluminum, galvanized steel, and non-metal substrates, making it usable on all vehicle types.
4.Intelligent Putty Detection: Identifies ferrous putty with high accuracy, assisting professionals in recognizing repaired surfaces effectively.

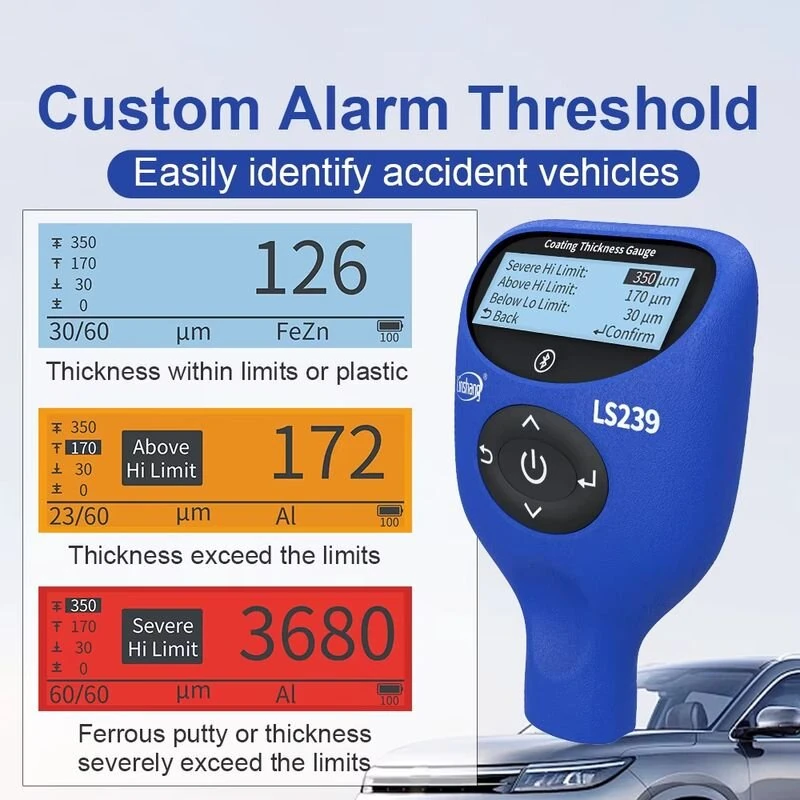

5.Customizable Alert Mechanism: Allows users to set specific thresholds for paint thickness, providing instant alerts when measurements exceed defined limits.
Package Included:
1 x LS239 Coating Thickness Gauge
