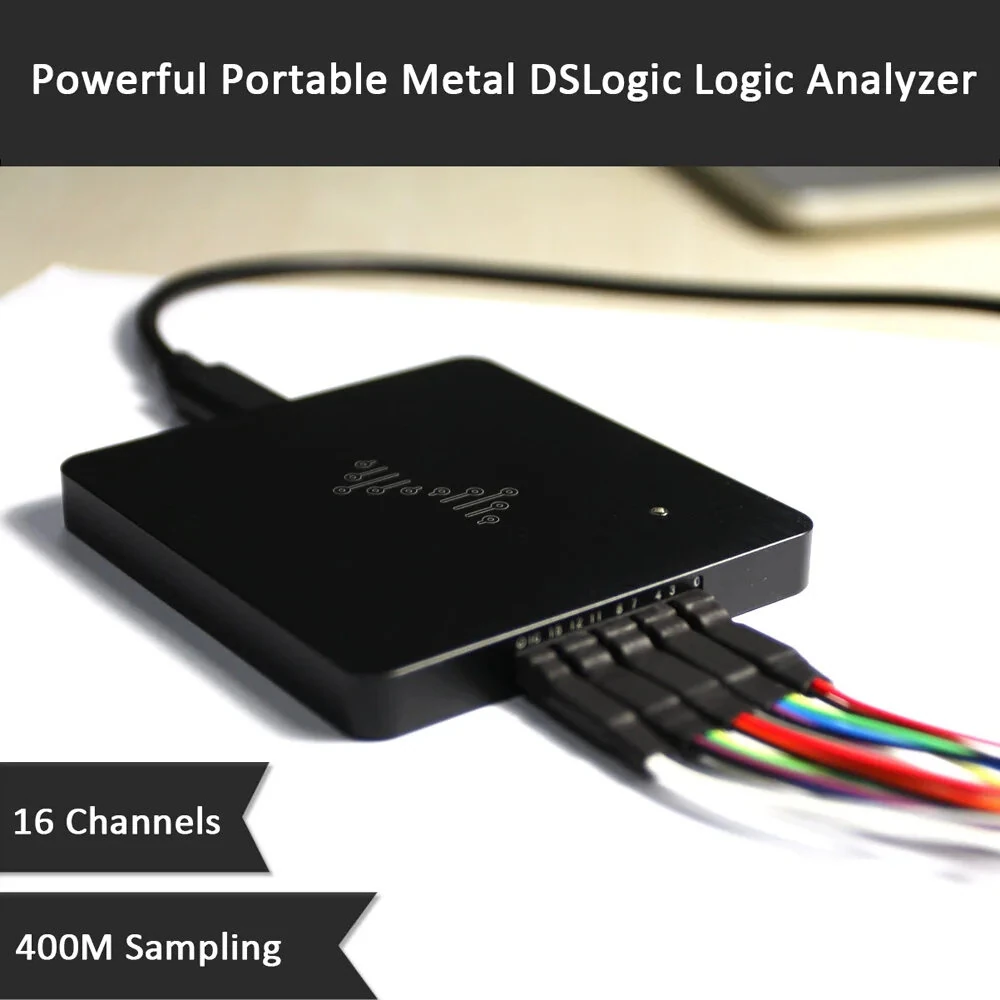

SIENWINY DSLogi Logic Analyzer - 16 Channel 400MHz USB Debugging Tool

Product Description

Specifications:
Material: plastics
Type: Basic version??U2Bassic????Upgrade version??Plus??
Model Number: DSLogi Logi Analyzer
Model: stream+buffer

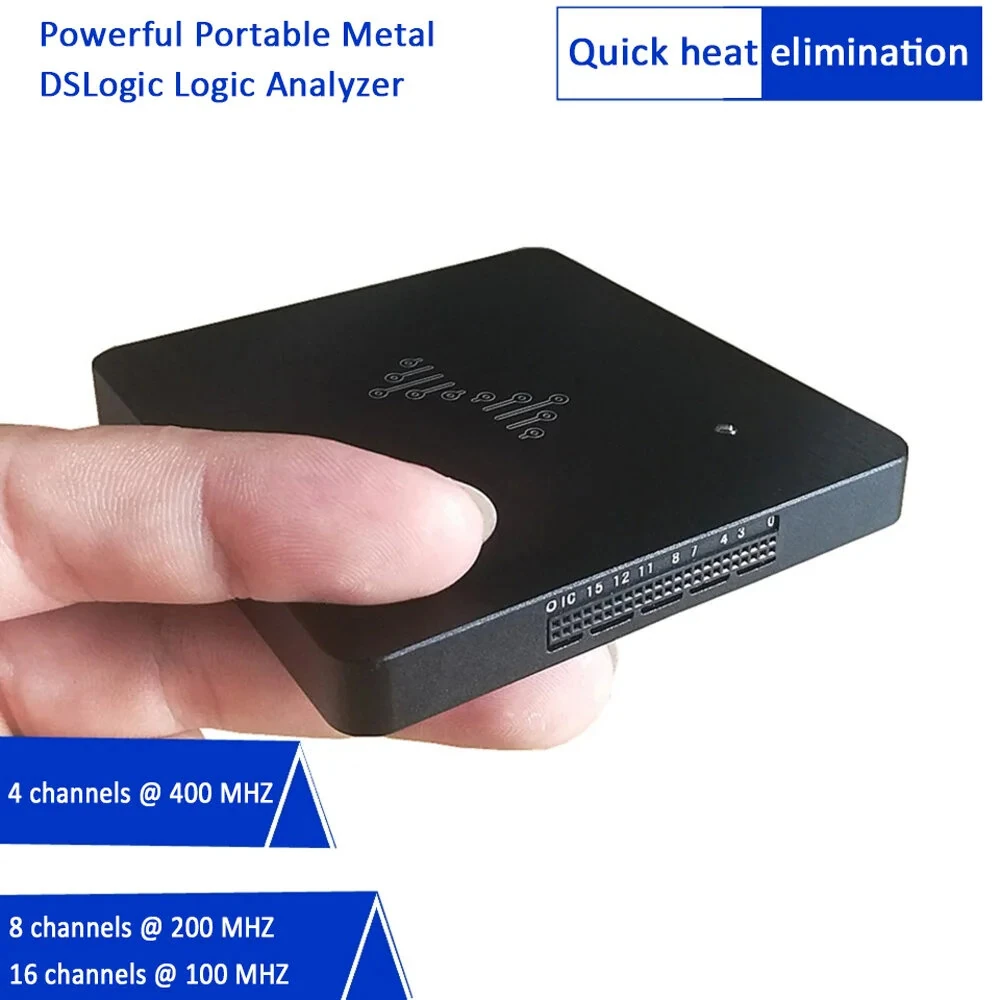

Maximum sampling rate:
4 channels @ 400 MHZ
8 channels @ 200 MHZ
16 channels @ 100 MHZ
Continuous Adjustable Threshold Voltage Range: 0.5 V to + 5 V
The Input Voltage Range: - 30 V to + 30 V
Input Impedance: 250 kohm
Basic Version??U2Bassic??:100MHZ
The onboard storage depth: Total 256 K
Hardware Memory: 256Kbits
The Largest State Sampling Clock: 30 M
Upgrade Version??Plus??:100-400MHZ
The onboard storage depth: Total 256 M
Hardware Memory: 256Mbits
The Largest State Sampling Clock: 50 M

Features:
1.DSLogi is a USB based logc analyzer.
2.The realization of high-voltage electrostatic TVS and ESD protect, also supports continuous voltage input protect and USB interface flowprotect.
3.Two modes, stream mode through USB real-time transmission, using PC memory to store data, buffer mode with hardware memory achieve high sampling rate.
4.Support adjustable threshold, compatible with various voltage standard, turn off interference area automatically.
5.Metal surface, 360 degree noise shielding can meet the complex surrounding test needs. Quick heat elimination, stable electric heating working.
6.It have a 1.6 Gbps sampling bandwidth.
7.Covering almost all common serial board-level and field level bus protoco, with clear and intuitive data and convenient to see.
8.Small size, easy to carry, use USB power , easy on-site commissioning.
Package Include:
Basic Version:
1 x Basic Main Machine
1 x Type-C Data Cable

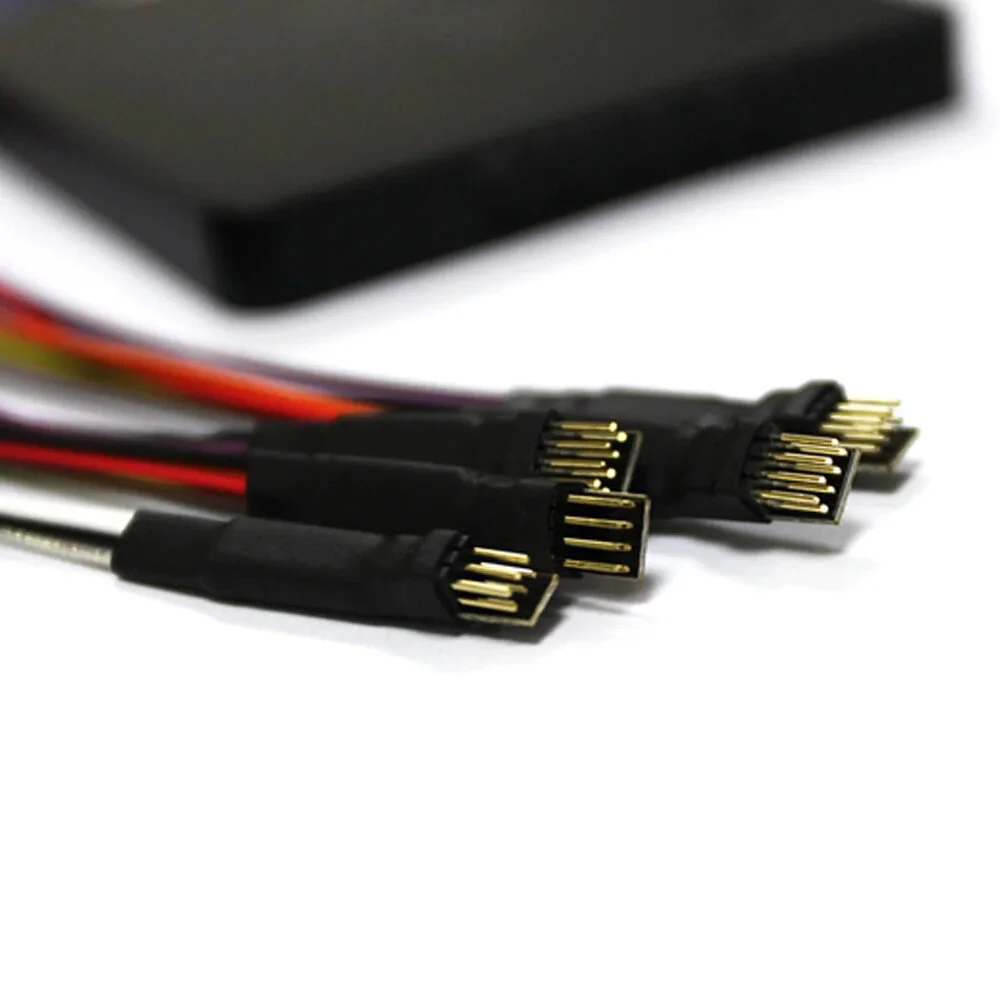

5 x Silvering Line
16 x Clip
Upgrade Version:
1 x Plus Main Machine
1 x Type-C Data Cable
5 x Shield Line
16 x Clip
