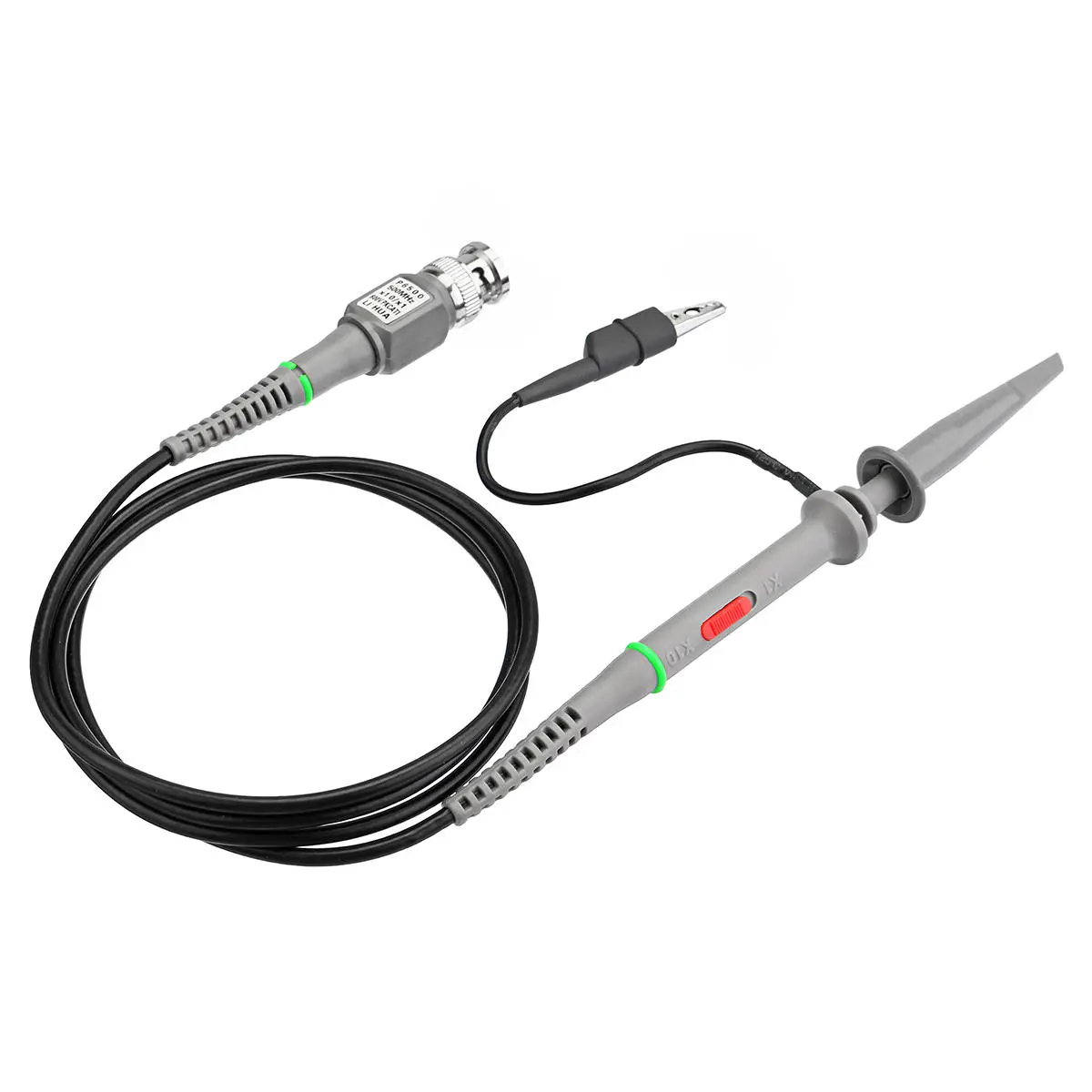

P6500 500MHz 10X Oscilloscope Probe - High Precision with Alligator Clips
$55.00
$67.18
-18% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:Brand New and high quality. ?? Colorful rings help to identify different channels. ?? Widely used in professional test equipment, probe has a 1.2m cable with standard BNC end ?? Adjusting tool used for adjusting compensation capacitance to assure the rapier match with oscillograph. Specification:
Color: Colorful Material: Plastic + Metal Instruction:
?? These passive high impedance probes are designed and calibrated for use on any oscilloscope that has an input impedance of 1 MQ and whose input capacity is within the compensation range (refer to the below form). ?? When connecting the probe, please connect it to the oscilloscope before testing singals ?? When disconnection the probe, first disconnect the probe tip from the test signal ?? In the process of test, make sure that alligator clip can be grounded reliably
| Model | P6500 | |
| Attenuation Ratio | 1X & 10X | |
| Input Resistance(M??) | 1x | 1 |
| 10x | 10 | |
| Input Capacitance(pF) | 1x | 90 |
| 10x | 18 | |
| Caompensaion Range(pF) | 1x | X |
| 10x | 10-35 | |
| Bandwidth(MHZ) | 1x | 6 |
| 10x | 500 | |
| Rise time(ns) | 1x | 58 |
| 10x | 1.75 | |
| Working Voltage(Vp-p) | 1x | 300 |
| 10x | 600 | |
| Cable Length | 120cm | |
| Operatiing Temp.(??) | from -10 to 50 | |
| Non-Operating Temp.(??) | From -20 to 75 | |
| Humidity | ??85% Relative Humidity | |
Package Includes:

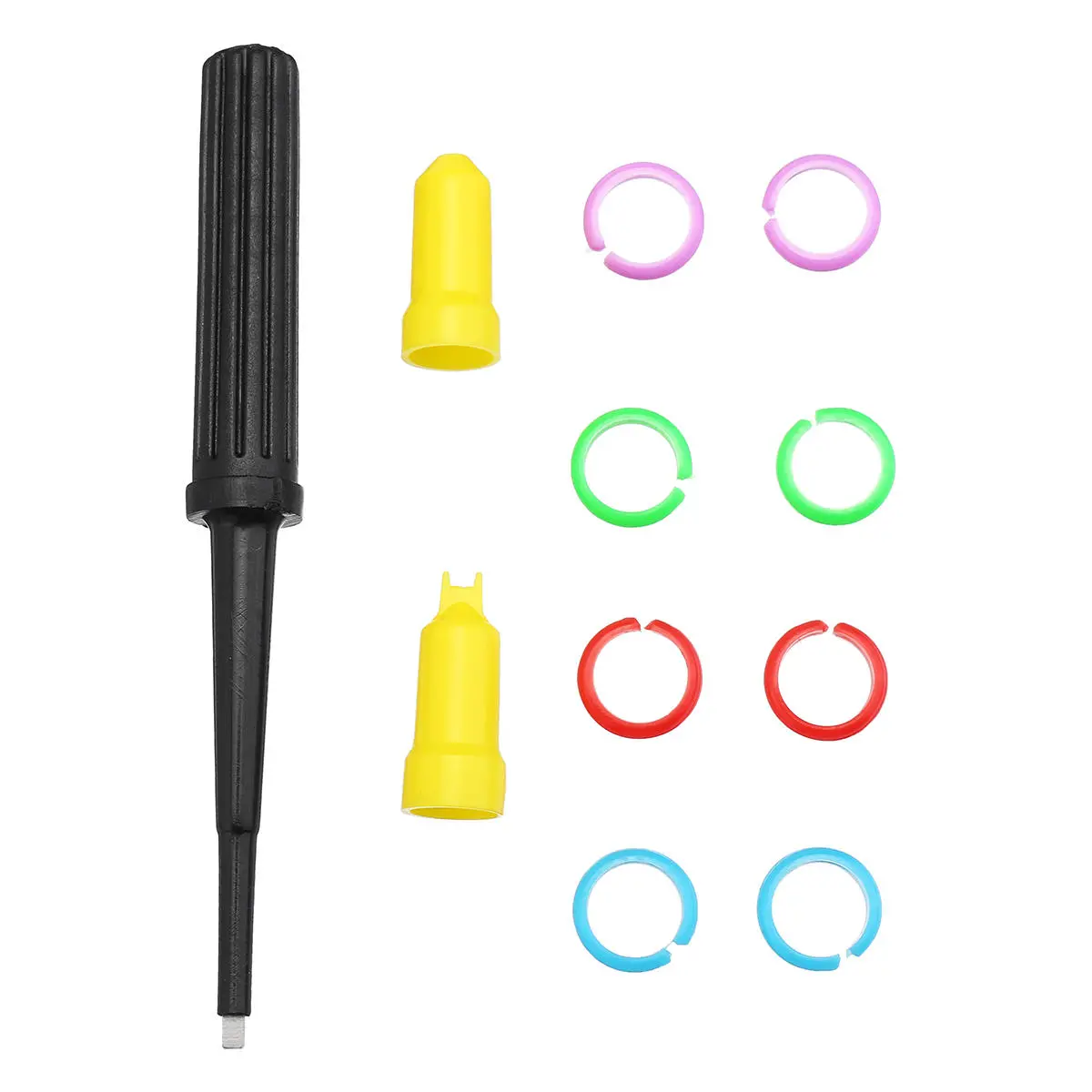

1 Pcs Oscilloscope Probe 2 Pcs Tip locating sleeve 1 Pcs Adjust Tool 4 Pair Color circle 1 Pcs English Manual
