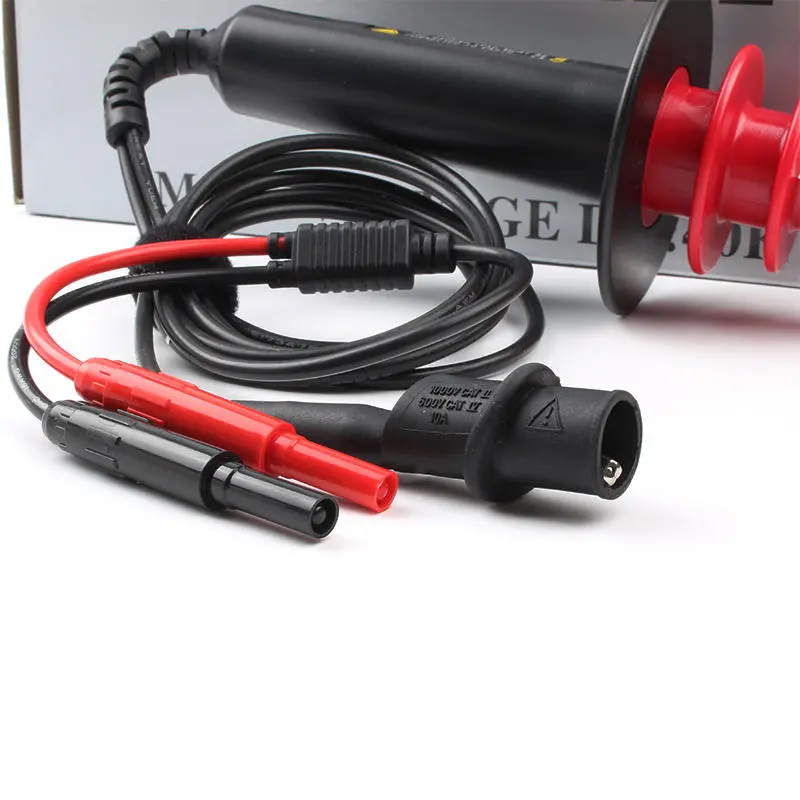

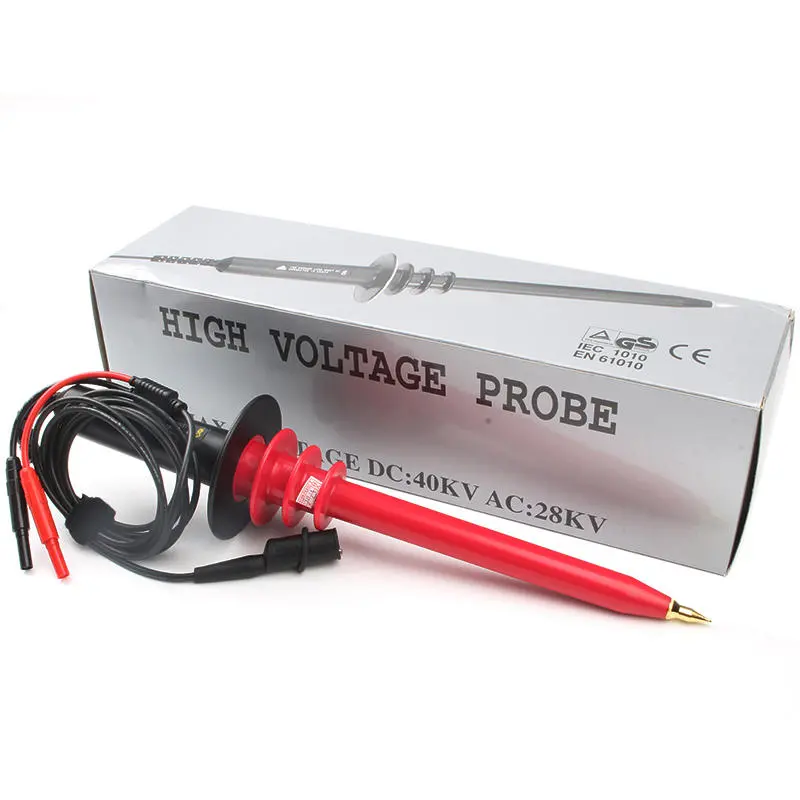

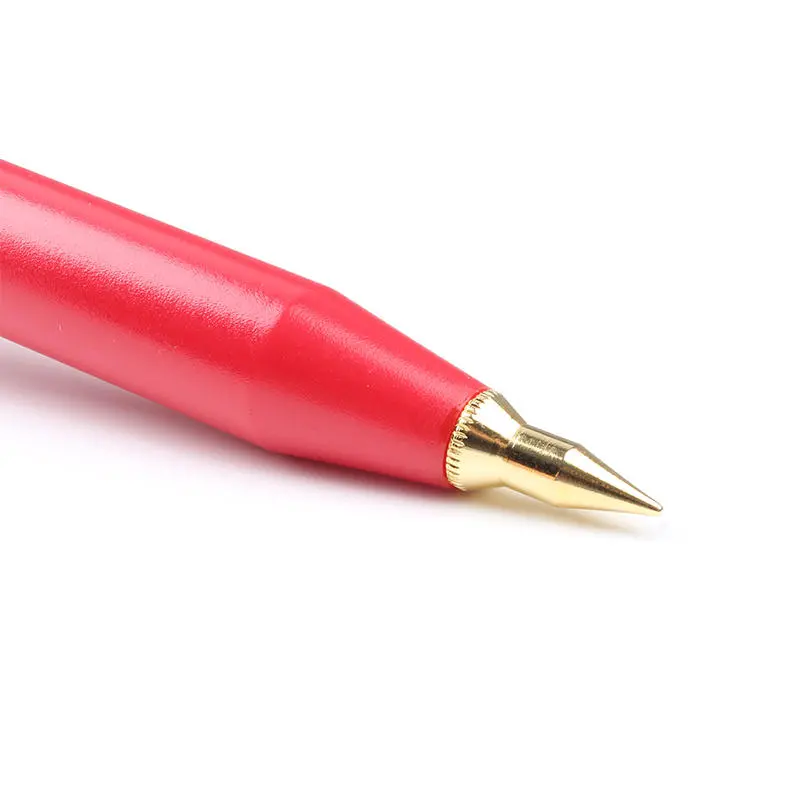

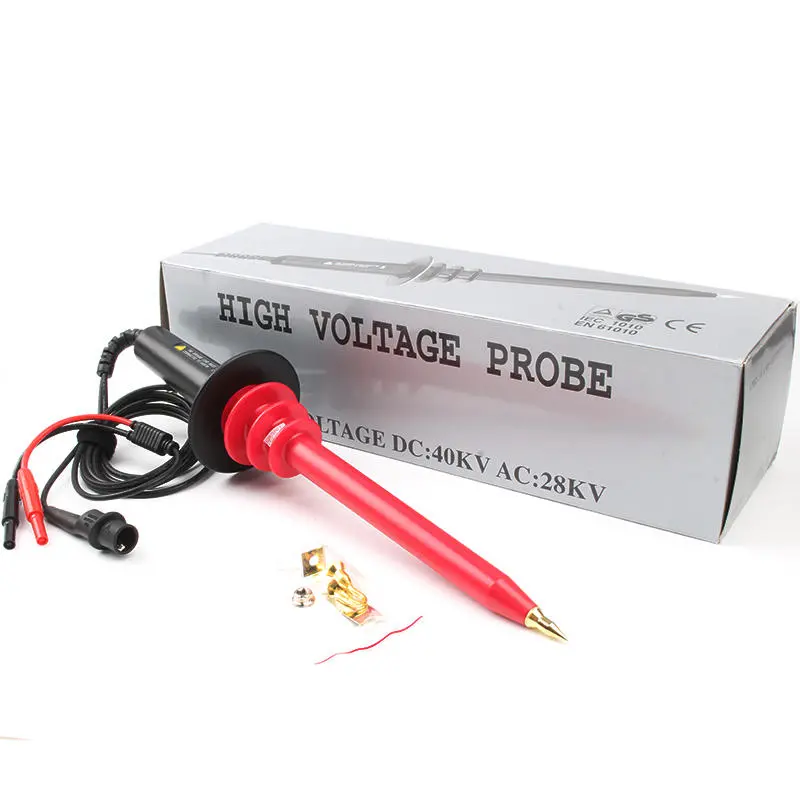

High Voltage Probe 40KV AC 28KV | 1000:1 Ratio Multimeter Test Leads

High Voltage Probe 40KV AC 28KV | 1000:1 Ratio Multimeter Test Leads - Image 2

High Voltage Probe 40KV AC 28KV | 1000:1 Ratio Multimeter Test Leads - Image 3

High Voltage Probe 40KV AC 28KV | 1000:1 Ratio Multimeter Test Leads

Name: High Voltage Probe 40KV AC 28KV | 1000:1 Ratio Multimeter Test Leads
Brand: VQTool
SKU: TP-E9FE98
Price: 133.00 USD
Availability: InStock

SKU: TP-E9FE98

In Stock (999 available)

$133.00 $163.18 -18% OFF

Quantity:

Add to Cart Wishlist

Global Shipping

Easy Returns

Secure Payment

Product Description

Specification:
Input impedance: 1000Mohm Division Ratio: 1000: 1 MAX. Test Voltage DC : 0 ~ 40KV AC : 1 ~ 28KV ( 50 / 60 Hz ) Safety APPL. EN61010 UL3111-1 TUV / GS IEC 1010 CAT II Pollution 2 Polarity: Positive / Negative Accuracy DC :+/- 1% to 20KV +/- 2 % to 40KV AC : - 5 % to - 10 % ( 1 ~ 28KV ; 50 / 60Hz ) Temperature Coefficient:<= 200ppm /C Maximum loading Current:<= 40??A ( at 40KV DC ) Maximum loading power:<= 1.6 watt Operating temperature:0 ~ + 50 C Storage temperature:- 20 ~ + 70C Ground Lead length:90cm ( 3ft ) Output cable length:100cm ( 3.3ft ) For:DMM Output Division:1V / 1KV Package included:
1 x Multimeter Test Leads Details pictures:
