AZ7530 CO2 Monitor Controller with NDIR Sensor - Relay Function for Home Office Factory
$289.00
$355.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

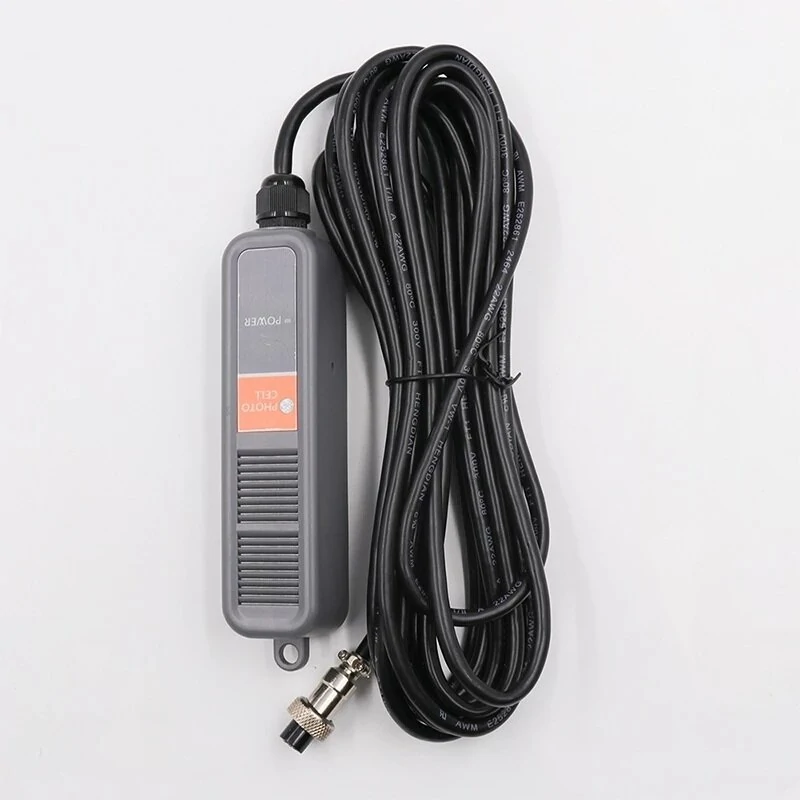

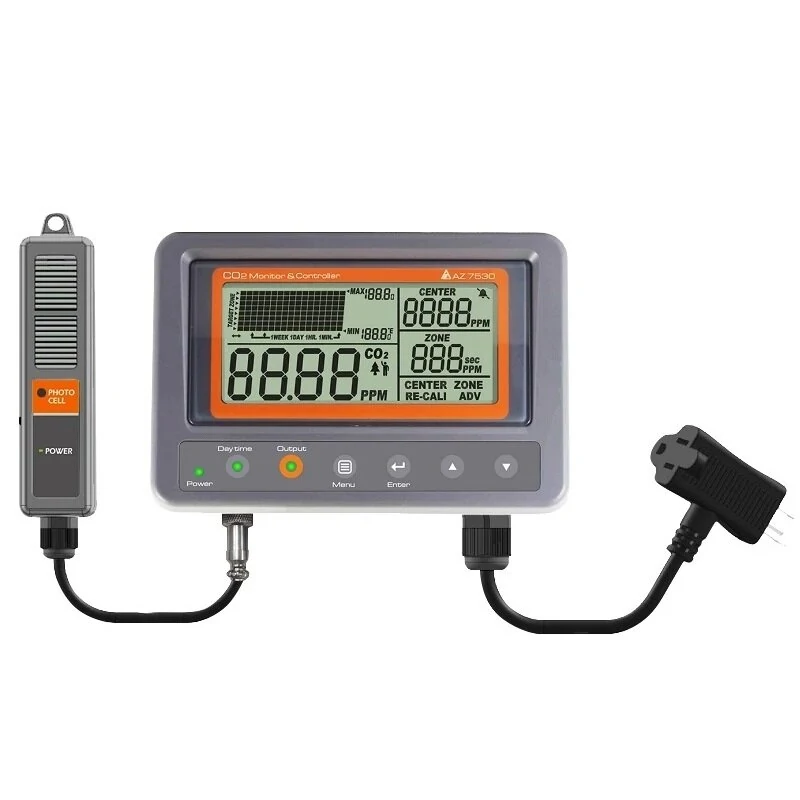

?Description:The 7530 AZ CO2 meter also can control the related instruments easily by two models, including the plant and human models, which could be override the controlling in low or high CO2 concentration.An external CO2 sensing probe of 7530 AZ CO2 Controller is included to help user measure CO2 level in a closed space, the cable is 4.5 meter long to extend your measure spot 4.5 meter away from display.The 7530 AZ CO2 controller could control the other connected devices, such as CO2 generator or ventilation fan. It could be used for the horticulture, greenhouse, hydroponics, organic indoor gardening, mushroom farm and lightening industry.The 7530 AZ CO2 Controller was being designed and manufactured by AZ Instrument, a well experienced manufacturer of CO2 Controller.
Features:
Accurate 2-Channel low drift NDIR CO2 measuringProgrammable CO2 zone value & CO2 center value to control output power on/offExternal CO2 sensor to be used in closed spaceDisplay real time CO2 valueDisplay CO2 chart with variable time zoom levelsMax. /Min. recall functionAudible alarm warns CO2 concentrationTarget zone indicatorBuilt-in Day/Night auto detection to override CO2 controlMonitoring & Controlling CO2 value in Green house, residential and commercial buildingPowered by AC100~240 VAC directlySensing probe cable is 4.5 meter long to extend your measure spotInstalled with 3kA@300VAC fuse in meter to avoid the damage by power overloadCO2 concentration alarmWith Backlight
Application:

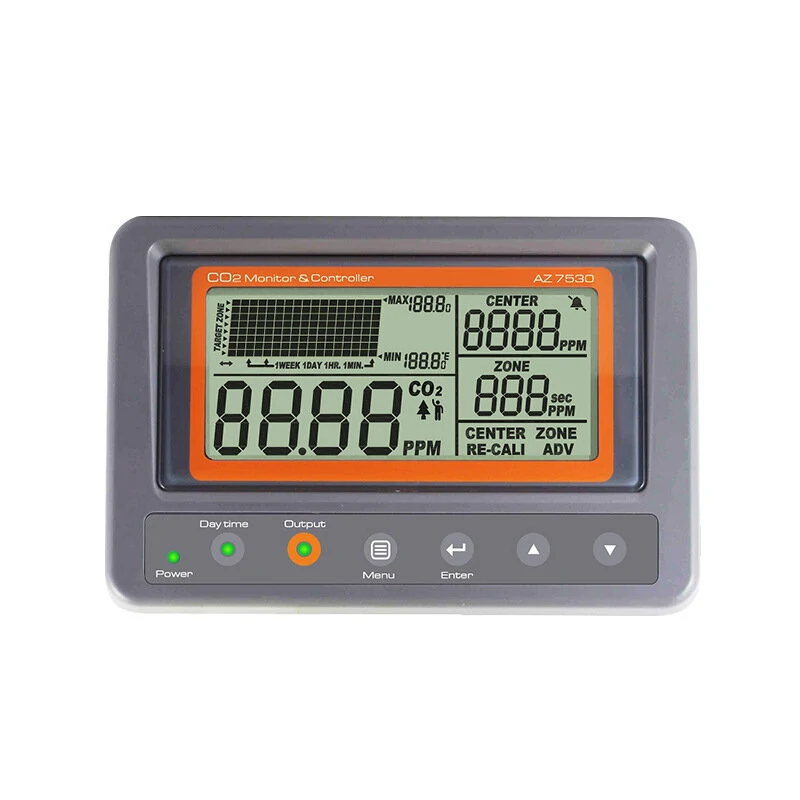

The 7530 AZ CO2 Controller has the big LCD, which could show the CO2 concentration value with chart, so the 7530 AZ could be used for the CO2 monitor for the indoor air quality and green house CO2 measurement.It could be also operated and met with all work space, office, hospital, school, station, residential, commercial building or home usage.
Specification:
Model | 7530 |
CO2 Range | 0~5000 ppm |
CO2 Resolution | 1 ppm (0~1000 ppm); |
CO2 Accuracy (below 3000 ppm) | ??50 ppm or ??5% of reading, whichever is greater |
CO2 Accuracy (above 3000 ppm) | ??7% of reading |
Warm-up Time | 30 Seconds |
CO2 Response Time | ??2 min for 63% of step change or |
LCD Size | 104(L) x 47(W) mm |
Meter Size | 158(L) x 106(W) x 50(H) mm |
Sensor Size | 124(L) x 33(W) x 26(H) mm |
Operating Temperature | 0~50?? |
Operating RH% | 5~95% RH (avoid condensation) |
Storage Temperature | -20~60?? |
Storage RH% | 5~95% RH (avoid condensation) |
Power Supply | AC 100~240 VAC |
Socket load | 5A@250VAC; 10A@120VAC |
Weight | 700g |
Package included:
1 x CO2 Meter (Controller + Sensor)1 x Screws and tapes1 x English user manual
