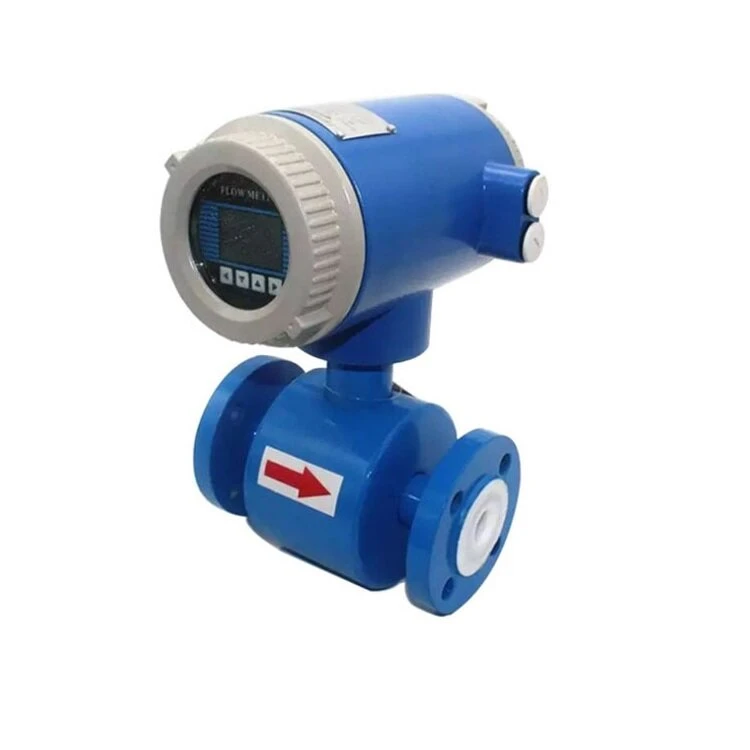

DN32 Electromagnetic Flow Meter | 0.9-28m3/h | 4-20mA Output | Flange Type

Product Description

Features:

?? It is suitable for all liquid flow test of conductivity of greater than 5. Conductivity change does not affect the performance of the change.

?? The flow meter has the long-term high accuracy of measurement. It actually is not affected by fluid physical properties. Measurement accuracy can be up to 0.5 .

??The flow meter is with no mechanical and moving parts, usually without maintenance.

?? Convenient operation, the flow meter is set automatically according to the scope of 0 ~ 10 m/s, without change of measuring range.

?? Because of all the parts in contact with the medium under test, have good corrosion resistance and wear resistance, so the applicability is wide.

?? In measuring medium containing oil or to the electrode surface sedimentary cover a layer of conductive material medium, can choose a convertible (scrub) electrode.

?? Use advanced excitation algorithm.

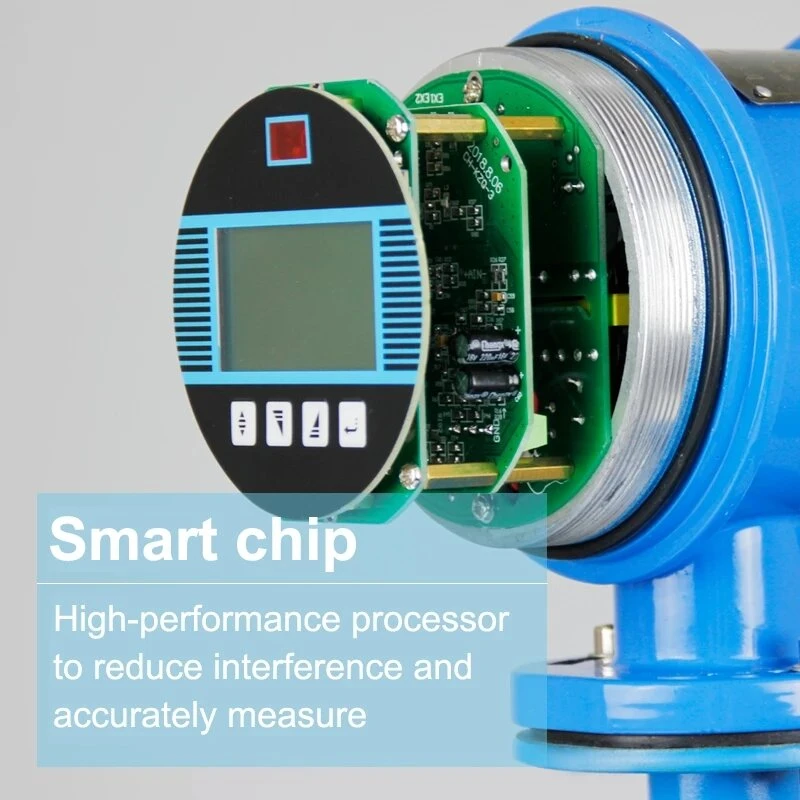

?? Using the world's most excellent integrated circuit to eliminate the influence of excitation switch and using compensation method of excitation current, finally up to the optimal stability of the product.

?? Use high efficiency, high stability and designed the wide input range of multiple sets of the isolating switch power supply:

?? Lithium battery power supply (not included)

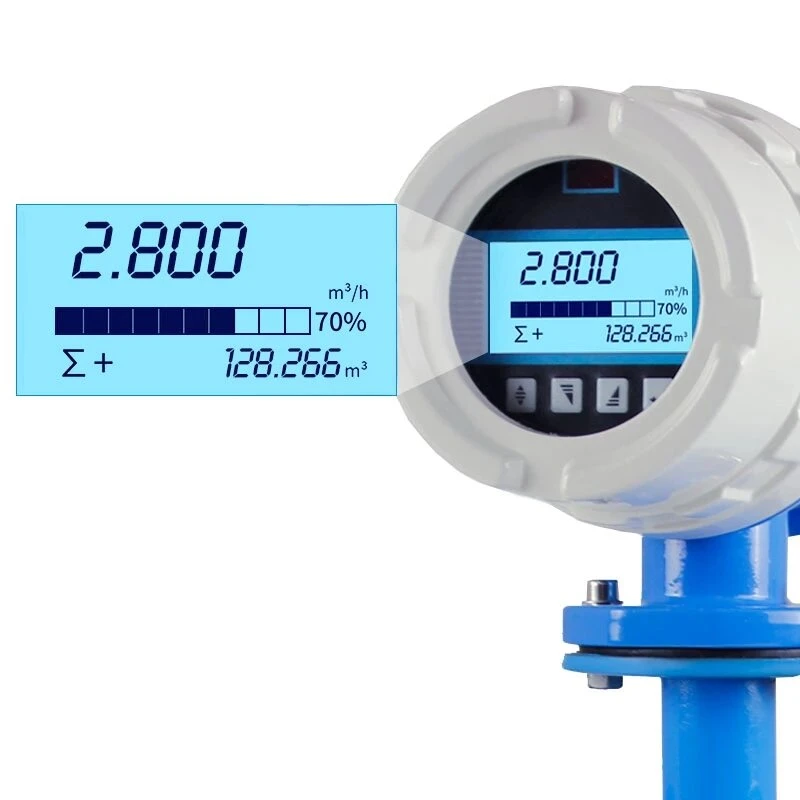

?? High-definition main LCD backlight display in Chinese of four lines on a large screen.

?? When power off, EEPROM can protect set parameters and total value.

?? Provide nonlinear correction function of five sections of sensor

?? With functions of automatic operation for average flow rate, easy to calibration of instrument.

Specification:

Model: DN32

Caliber size: 32mm

Measuring range: 0.9-28m3/h

The fluid conductivity: >5us/m

Medium speed: 0-10m/s setting automatically

Electrode material: 316L

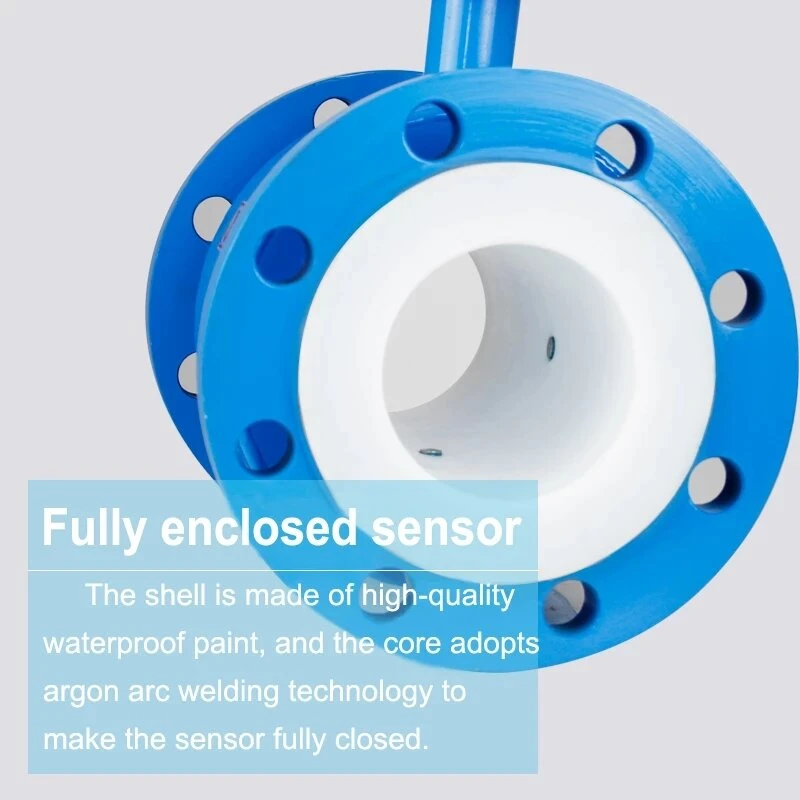

Lining materials: PTFE

Maximum operating temperature: 120??

Work pressure: 1.6MPa, 4MPa, 16MPa

3.6V Power supply: Lithium battery (not included)

Output signal: 4-20mA, 4885 protocol, HART protocol

Applies to:

1. Industrial water, domestic water, urban sewage and other corrosive media

2. Corrosive acid, alkali, salt solution

Package Includes:

1 x Electromagnetic Flow Meter (Battery not included)

Notes:

1. Due to the differences between different monitors, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture.

2. Due to different manual measurement methods, please allow slight size differences.

Details Picture:
