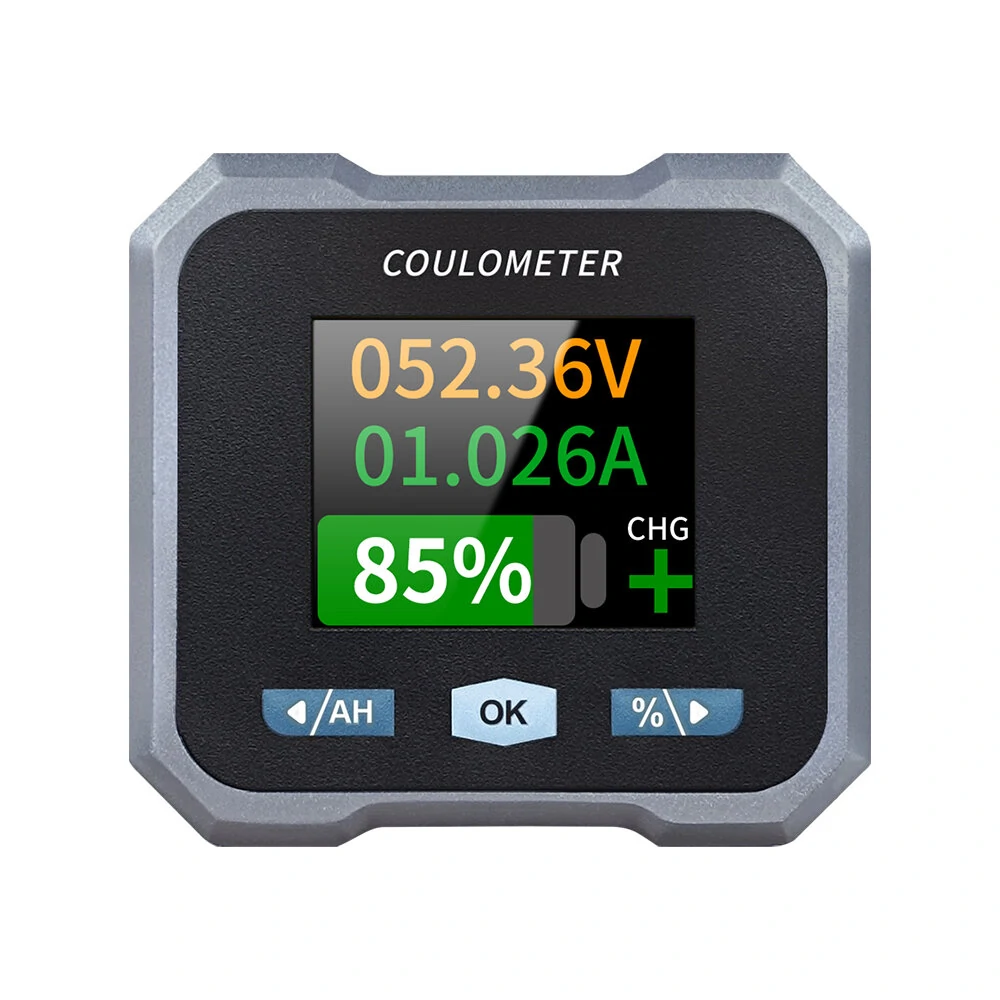

BL-F Waterproof Coulomb Meter | Battery Capacity Voltmeter | Bluetooth Monitor for EV Motorcycle RV
Product Description
Features:
1. Waterproof Upgraded: The added silicone ring at the opening can significantly shrink the gap between the cable and the shell, preventing the intrusion of water. Accompanied with high-quality sealing glue, it promises top-tier protection against water damage.
2. Ready-to-use: The product comes pre-equipped with a waterproof ring. There's no need for the user to install it manually, saving both time and effort.
3. Compact Size: Provided with a compact sampler, the device is easy to install in narrow battery compartments.
4. Comprehensive Measurement: The device is capable of measuring a wide range of values including voltage, current, capacity, and power within specific ranges, allowing for a more accurate and detailed understanding of your battery's health and performance.
5. Bluetooth Communication: Wireless communication at a maximum unblocked distance of 10 meters, making it easier to monitor the readings without continuously being present near the device.
Specifications:
Optional Model: BL105F/ BL110F/ BL140F
Optional Bracket Type: Metal Mounting Plate/Fixed Bracket/Rear View Mirror Bracket
Model | BL105F | BL110F | BL140F |
Sampling method | Shunt | Shunt | Shunt |
Voltage measurement range | 10-100V | 10-100V | 10-100V |
Voltage resolution | 0.01V | 0.01V | 0.01V |
Current measurement range | 0~50A | 0~100A | 0~400A |
Current resolution | 0.001A | 0.01A | 0.01A |
Capacity display range | 0 %~100% | ||
Power measurement range | 0~5KW | 0~10KW | 0~40KW |
Power resolution | 0.01W | ||
Ampere-hour measurement range | 0~9999.9AH | ||
capacity resolution | 0.1AH | ||
Bluetooth communication distance | barrier-free maximum of 10 meters | ||
Voltage accuracy | ??1% + 2 Character | ||
Current accuracy | ??2%o + 0.002A | ?? 1% + 0.1A | ?? 1%+ 0.1A |
The display power consumption is about 0.75W | |||
When charging, the screen will turn off after 20 seconds. When discharging, the screen will turn on l>15ma; l<15ma and time>20s screen off | |||

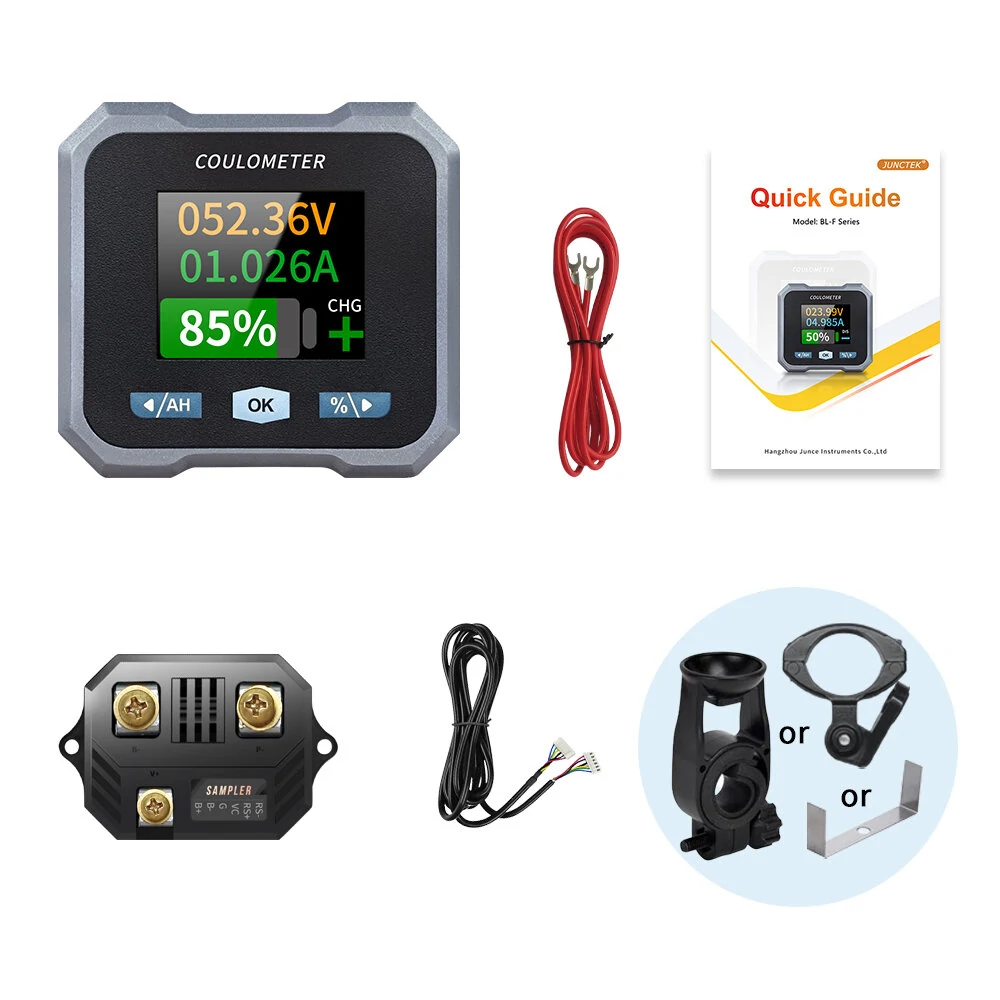

Package Included:
Type A:
1 x BL110F Electric Meter
1 * Metal Mounting Plate
Type B:
1 x BL110F Electric Meter
1 x Fixed Bracket
Type C:
1 x BL105F Electric Meter
1 * Metal Mounting Plate
Type D:
1 x BL105F Electric Meter
1 x Rear View Mirror Bracket
Type E:
1 x BL105F Electric Meter
1 x Fixed Bracket
Type F:
1 x BL140F Electric Meter
1 x Rear View Mirror Bracket
Type G:
1 x BL140F Electric Meter
1 * Metal Mounting Plate
Type H:
1 x BL105F Electric Meter
1 x Rear View Mirror Bracket
Type I:
1 x BL140F Electric Meter
1 x Fixed Bracket
