LCR-T10H Transistor Tester Multimeter | TFT Display | Auto Measurement

Product Description

Click to download the instruction manual

?Features:

High-Quality Construction and Practical Design: The LCR-T10H Transistor Tester Multimeter is manufactured from superior materials, ensuring high quality and practical usage. Its compact size facilitates easy application and installation. This efficient and stable device promises a long lifespan, making it a reliable tool for various testing needs.

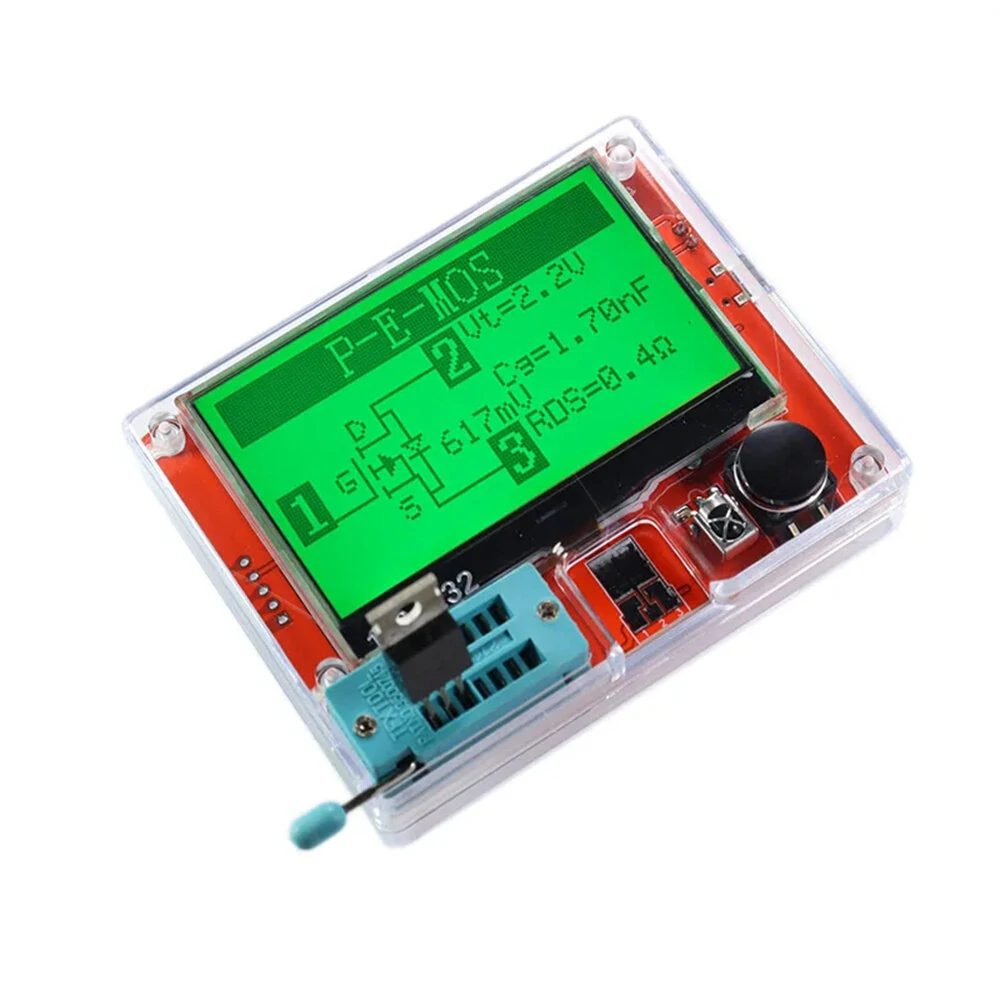

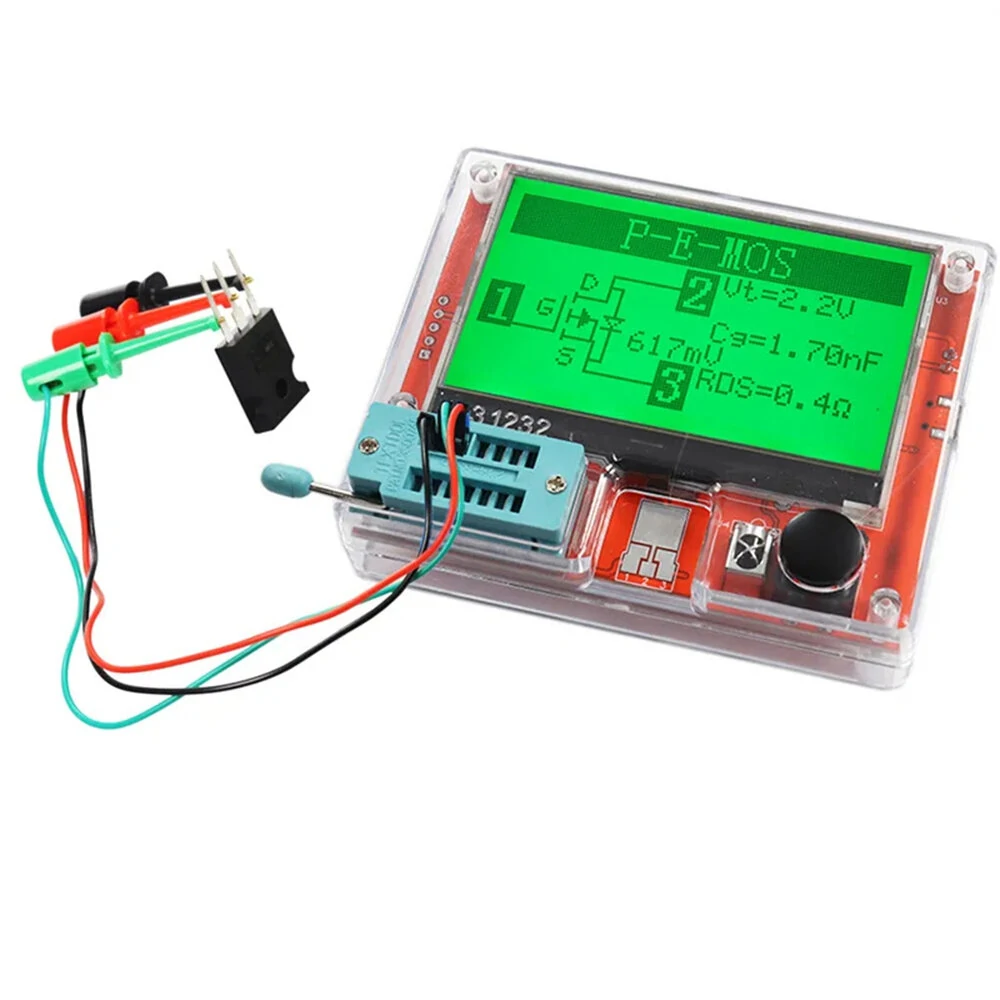

Automated Pin Identification with Large Display: Equipped with advanced technology, this tester can automatically identify the pin positions of components and display the results graphically on a large TFT screen. This feature enhances readability and simplifies observation, making the testing process straightforward and user-friendly.

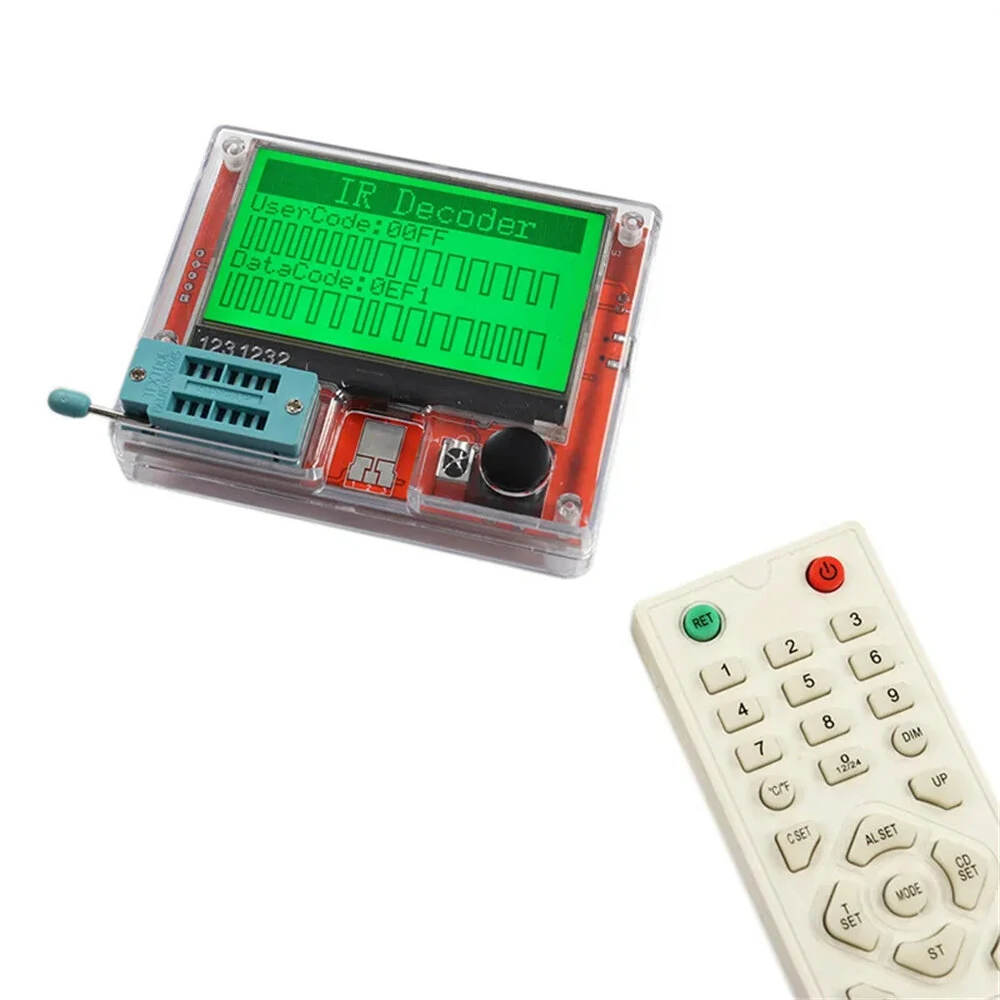

Wide Application Range: The LCR-T10H boasts a broad range of applications, capable of testing diodes, transistors (MOS, PNP, NPN), capacitors, resistors, and inductors. Additionally, it includes an infrared waveform display and infrared reception instructions, offering versatility for diverse testing scenarios.

Easy Operation with Automatic Measurement: Using the LCR-T10H is simple and intuitive. Users need only insert the component into the test area and press the start button to initiate automatic measurement. This ease of use ensures accurate and efficient results, even for those who may not have extensive technical expertise.

Integrated Rechargeable Battery: The tester comes with a built-in 3.7V 300mAh lithium battery, eliminating the need for external power sources. It is equipped with a USB charging cable for convenient recharging, ensuring that the device is always ready for use. This feature enhances portability and ease of maintenance.

Specifications:

Product Name: LCR-T10H Transistor Tester Multimeter TFT Display for Diode Triode MOS PNP NPN Capacitor Resistor Transistor

Power Supply: 3.7V Lithium Battery

Operating Current: 50mA

Capacitance Range: 25pF-100mF

Resistance Range: 0.01??-50M??

Inductance Range: 0.01mH-20H

Battery Voltage Measurement Range: 0.1V-4.5V

Size: 80x60x20mm

Battery Capacity: 3.7V 300mAh Rechargeable Lithium Battery

Packaged Dimensions: 75x75x30mm

Optional Power Supply:

Type A: Lithium Battery

Type B: AAA Battery

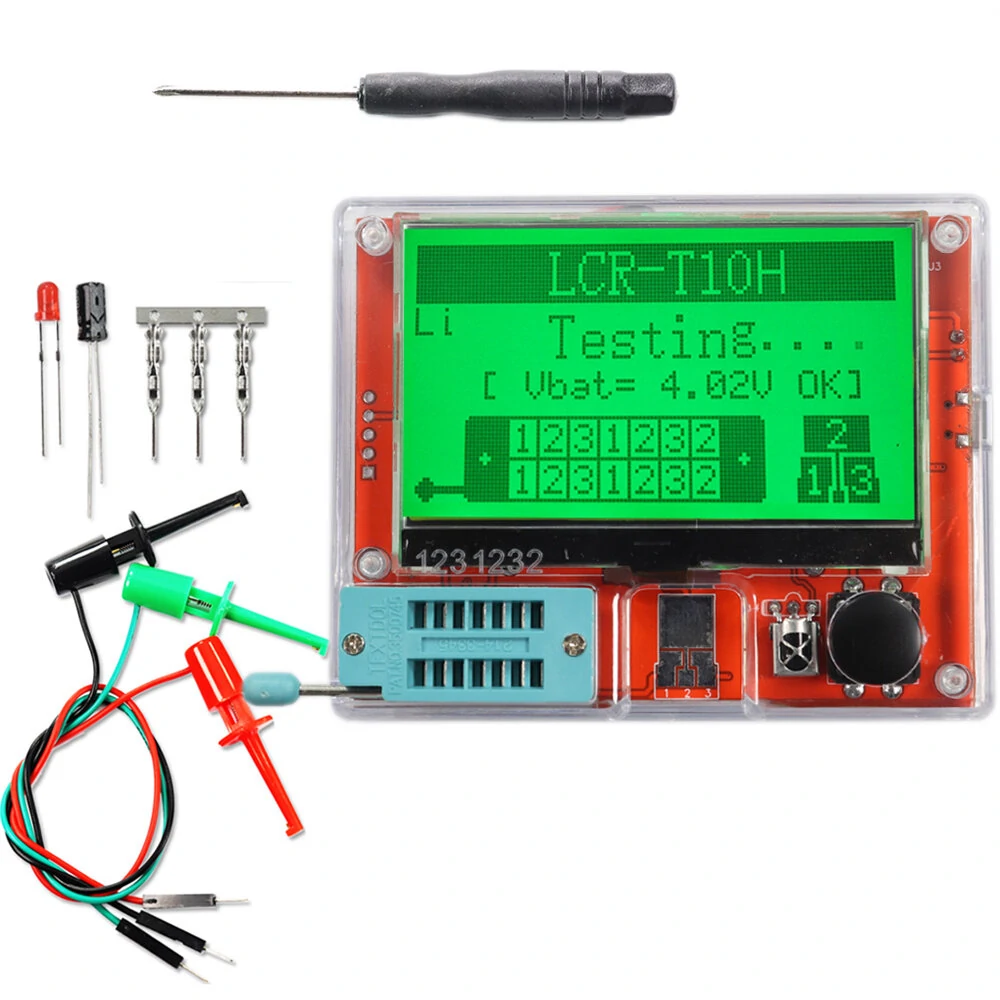

Package Included:

Lithium battery type??

1 x LCR-T10H Transistor Tester Multimeter

1 x Built in Lithium Battery

1 x USB Charging Cable

AAA battery type??

1 x LCR-T10H Transistor Tester Multimeter (NOT INCLUDED THE BATTERY)
