FNIRSI Transistor Tester | Diode Thyristor Capacitance ESR Meter | LCR Meter

Product Description

>>Please click here to download the English manual<<

Package includes

? 1 x Transistor tester (battery not included)

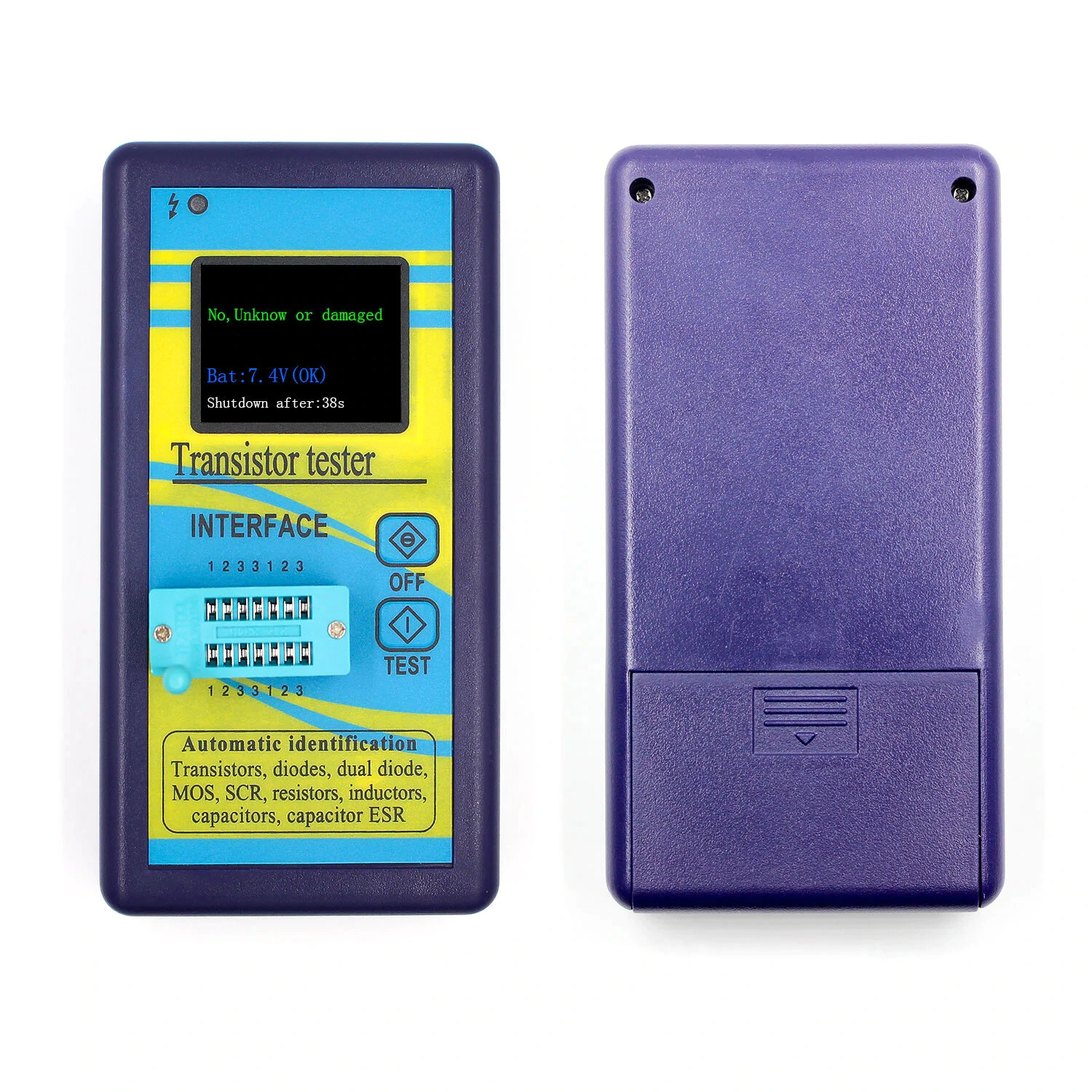

model 1 = Case color: Colorful

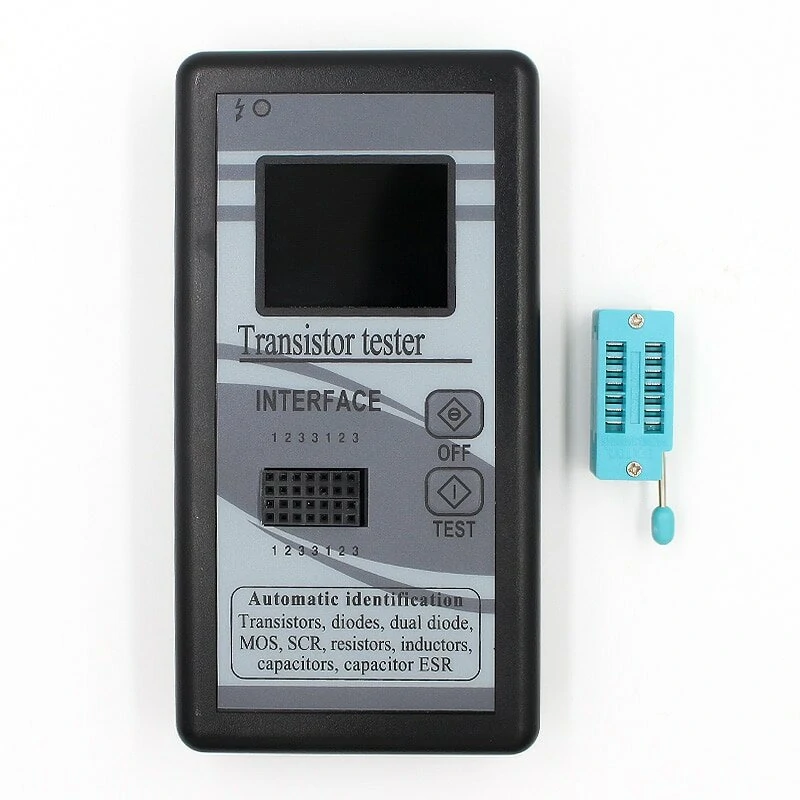

model 2 = Case color: Gray

Features and specifications:

Key features:

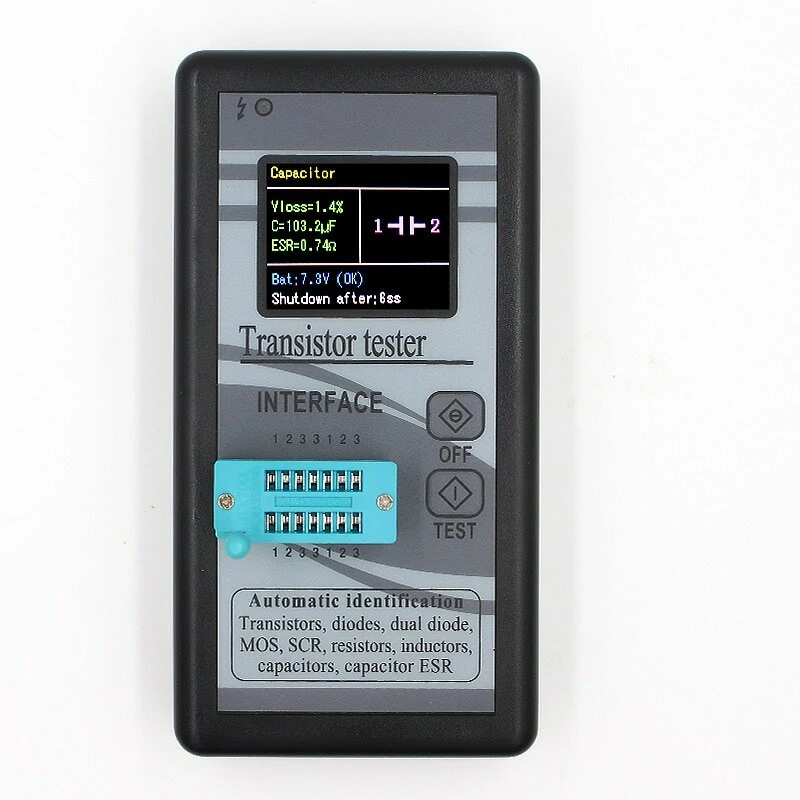

? 128 x 160 TFT color display for easy readings, can display measured data and graphics

? Powered by 9V battery(not included)

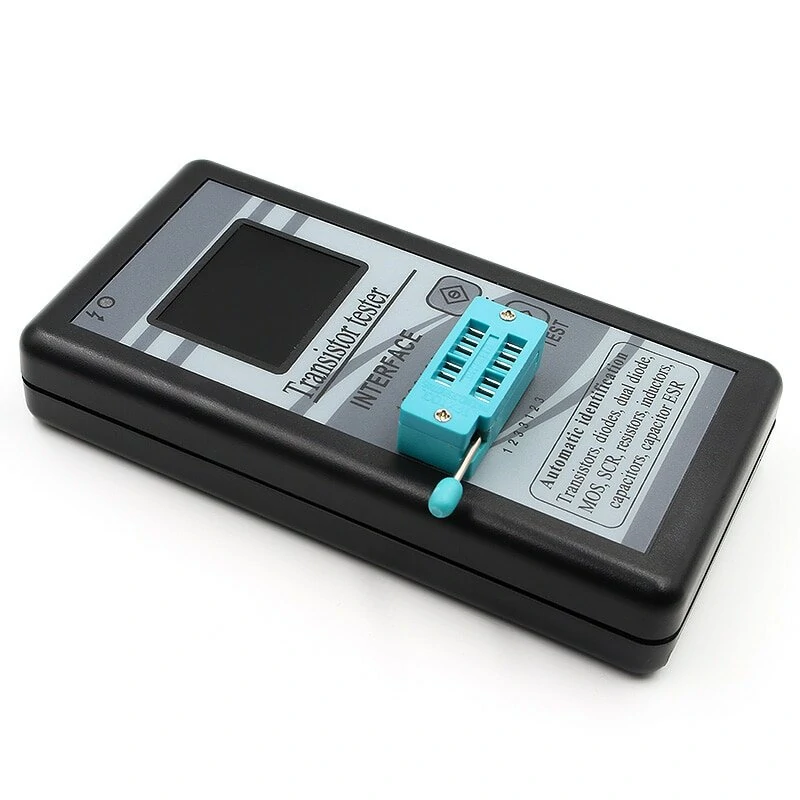

? All components are protected by a plastic case, convenient to carry

? Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices

? Automatically test the pins of a component and display on the LCD

? Measure the gate threshold voltage and gate capacitance of the MOSFET

? Measure bipolar transistor current amplification factor and base-emitter threshold voltage

? Two-button operation, automatic shutdown to avoid unnecessary waste

? Short detection time: Only 2 seconds (it is normal to cost 1 minute for bulk capacitor detection)

Notice: Please make sure that capacitors are discharged before testing.

Specifications:

? Case color: Gray/Colorful

? Display: 1.8" TFT color display

? Material: PCB + Plastic

? Shutdown current: 20nA

? Resistor test range: 0.5?? ?C 50M??

? Inductor test range: 0.01mH ?C 20H

? Capacitor test range: 25pF ?C 100000uF

? Item size: 13.5 x 7 x 2.2 cm (5.3 x 2.76 x 0.86 in)

? Item weight: 99 grams (3.5 oz)

? Package size: Approx. 16 x 8 x 2.5 cm (6.3 x 3.15 x 0.98 in)

? Package weight: 102 grams (3.61 oz)
