BM4070 Digital LCR Meter - Capacitance Inductance Resistance Tester

Name: BM4070 Digital LCR Meter - Capacitance Inductance Resistance Tester
Brand: VQTool
SKU: TLT-C9E38E
Price: 48.00 USD
Availability: InStock

SKU: TLT-C9E38E

In Stock (999 available)

$48.00 $59.18 -19% OFF

Quantity:

Add to Cart Wishlist

Global Shipping

Easy Returns

Secure Payment

Product Description

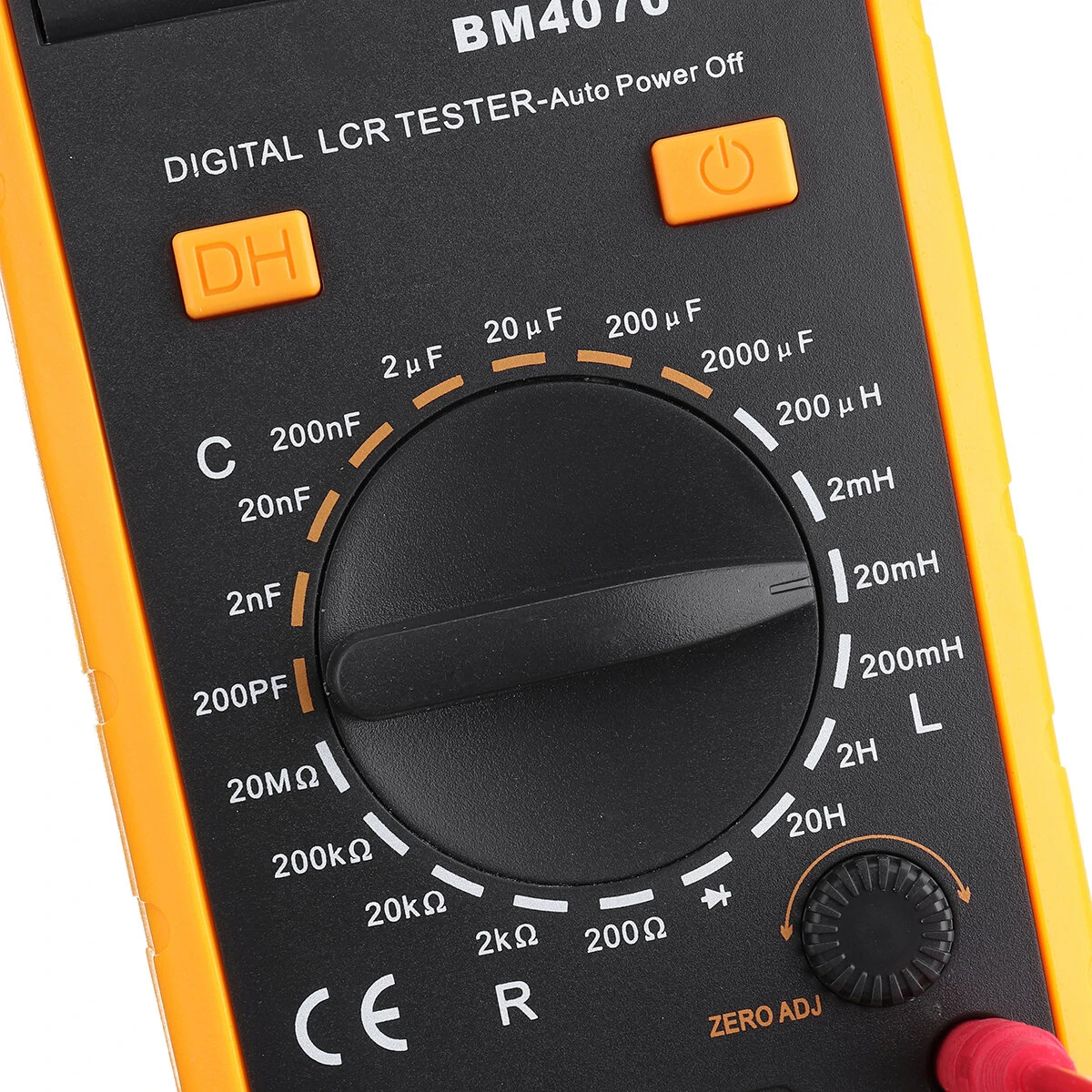

Features: BM4070 is inductance, capacitance and resistance measuring meter,it is a Special digital instrument which is easy to be operated, the reading accuracy degree is higher with liquid crystal display 31/2.It adopted double integral A/D converter core and a large-scale integrated circuits,these make the meter an excellent performance instrument for the users. Specification: 1.Display: LCD 2.Biggest display value: 1999 (3 1/2). 3.Measuring method: Double integral A/D conversion. 4. Sampling rate: 3 times per second 5. Overrange display: "1"at the higgest digital place 6.Instruction for low voltage of battery: showing ?? ?? 7.Auto power off and Data Hold function 8.Working temperature: 0?? to 40??, 9.Storage temperature: -10?? to 50?? 10.Power: a 9V laminated battery(6F22)(not Included). 3.2. Technical specifications Accuracy:??(%reading+digits) Quality guarantee: one year Environment temperature: 23???5??,Relative humidity: <75% Capacitance: 200p/2n/20n/200n/2u/20u/200uF??2.5%??5,2000uF: ??5%??5 Inductance:200uH??3.0%??5,2m/20m/200m/2H??2.5%??5, 20H??5%??5 Resistance:200/2k/20k/200k????0.8%??5,20M????2%??5 Size:190??91??40mm Package includes:

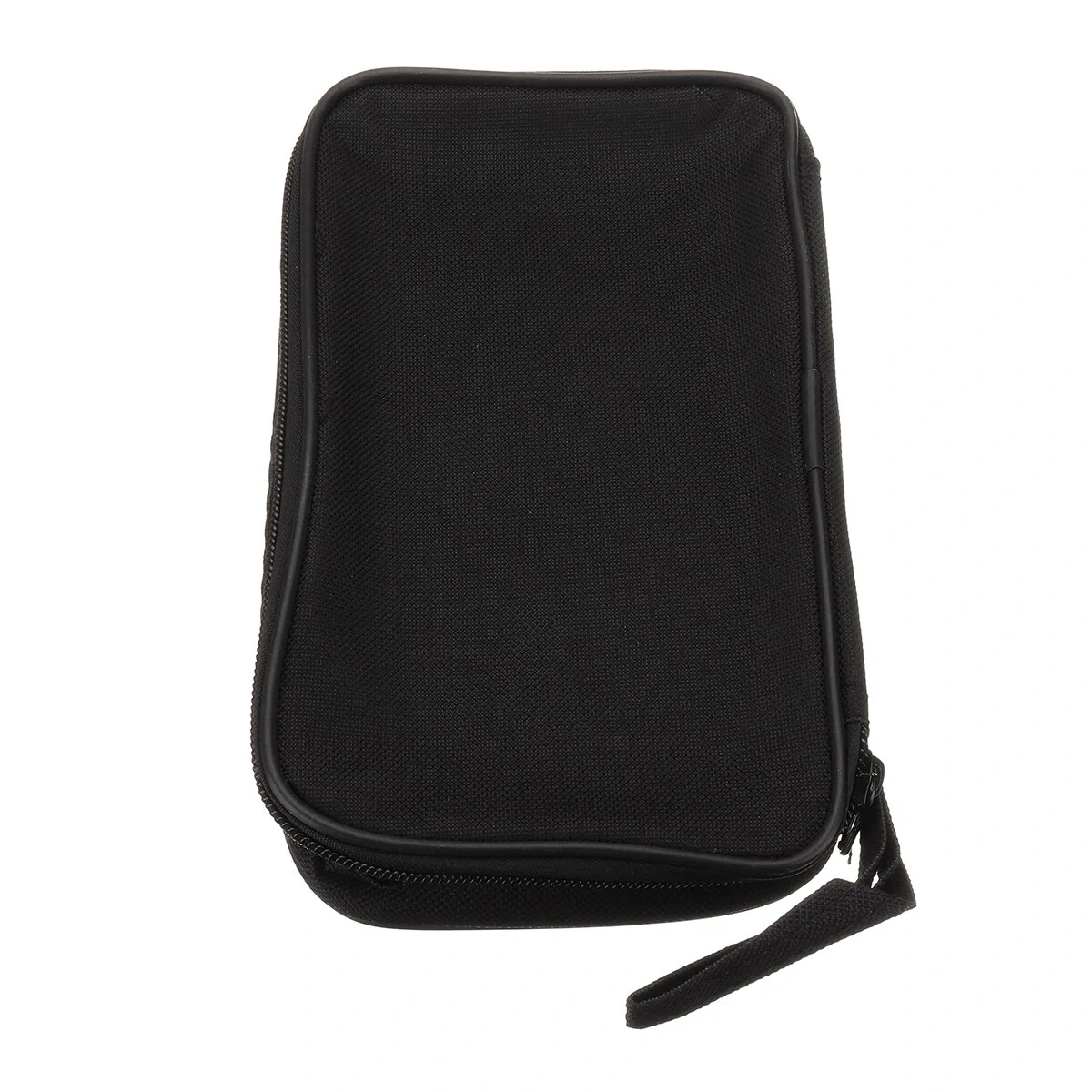

1 x LCR meter(9V battery not Included)(NOTE:Red/Yellow shipped randomly) 1 x Pair of crocodile clip 1 x Portable bag Details pictures:
