TAG-101 Low Frequency Audio Signal Generator | 10Hz-1MHz | AC 100-240V
$162.00
$199.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features : 1. Reliable circuit system guarantees high stability and accuracy. 2.Vertical panel integration guarantees ease of use of the device 3. The frequency range is selectable from 10Hz-1MHz, and it can be calibrated on a dial in five ranges. Under no load When exceeding 5Vrms, 600 ohm load, exceeding 2.8Vrms. With a 6-range deactivator and level adjustment, the output level can be adjusted in 10dB. Specifications:| Oscillation frequency | ?? 1 range: 10Hz-100Hz ?? 10 range: 100HZ-1KHz ?? 100 range: 1KHZ-10KHz ?? 1K range: 10KHZ-100KHz ?? 10K range: 100KHZ-1MHz | |
| Frequency accuracy | ?? 3% + 1Hz | |
| Output impedance | 600?? | |
| Output attenuator | 0dB, 10 dB, 20 dB, 30 dB, 40 dB, 50 dB | |
| Sinusoidal | The output voltage | 5V ~ 6V effective |
| Frequency response | 10Hz ~ 1MHz: ?? 0.5dB | |
| distortion | 400Hz ~ 20KHz: ??0.1% 100Hz ~ 100KHz: ??0.3% 50Hz ~ 200KHz: ??0.5% 20Hz ~ 500KHz: ??1% 10Hz ~ 1KHz: ??1.5% | |
| Square wave characteristics | The output voltage | ??10Vp-p |
| Up / down time | 0.5??s | |
| Duty cycle | 45: 55 | |
| Sync range | ??1% Vrms | |
| Input pressure limit | 15V | |
| power supply | AC220V / 110V ?? 10% 50Hz / 60Hz | |
| size | 239 ?? 140 ?? 200mm | |
| weight | About 2.5Kg | |
Package Includes:
1 x Signal Generator
1 x Power Cable

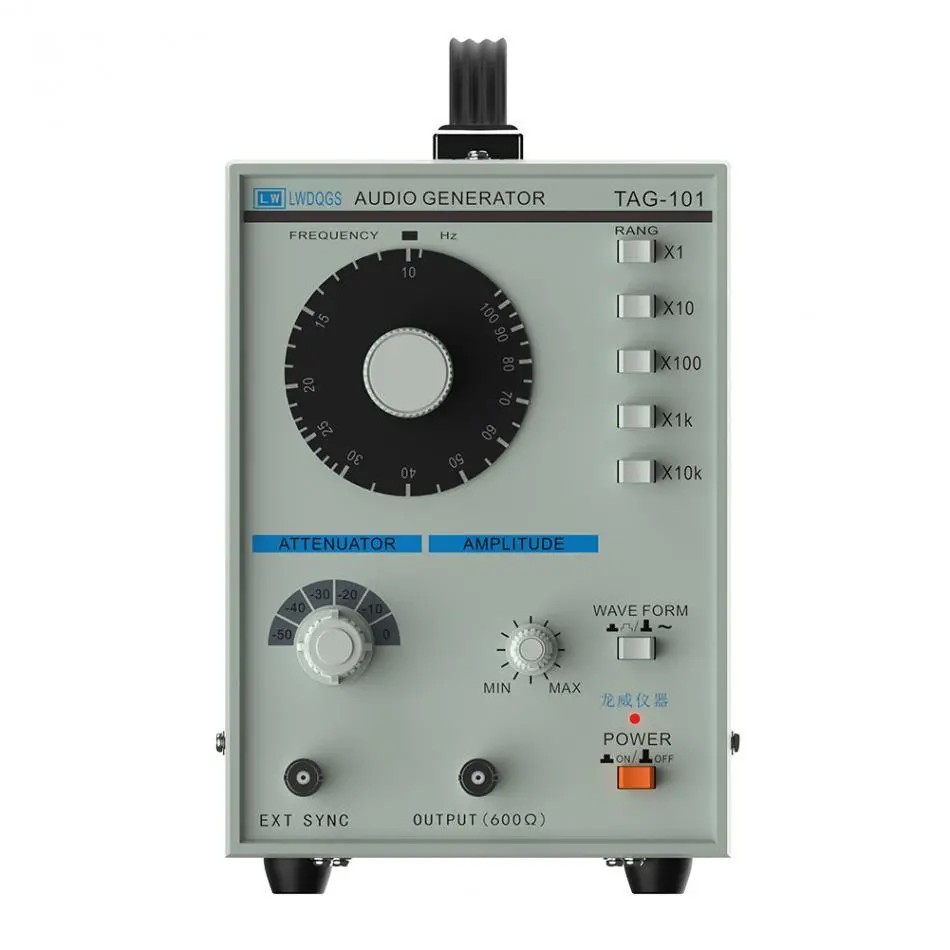

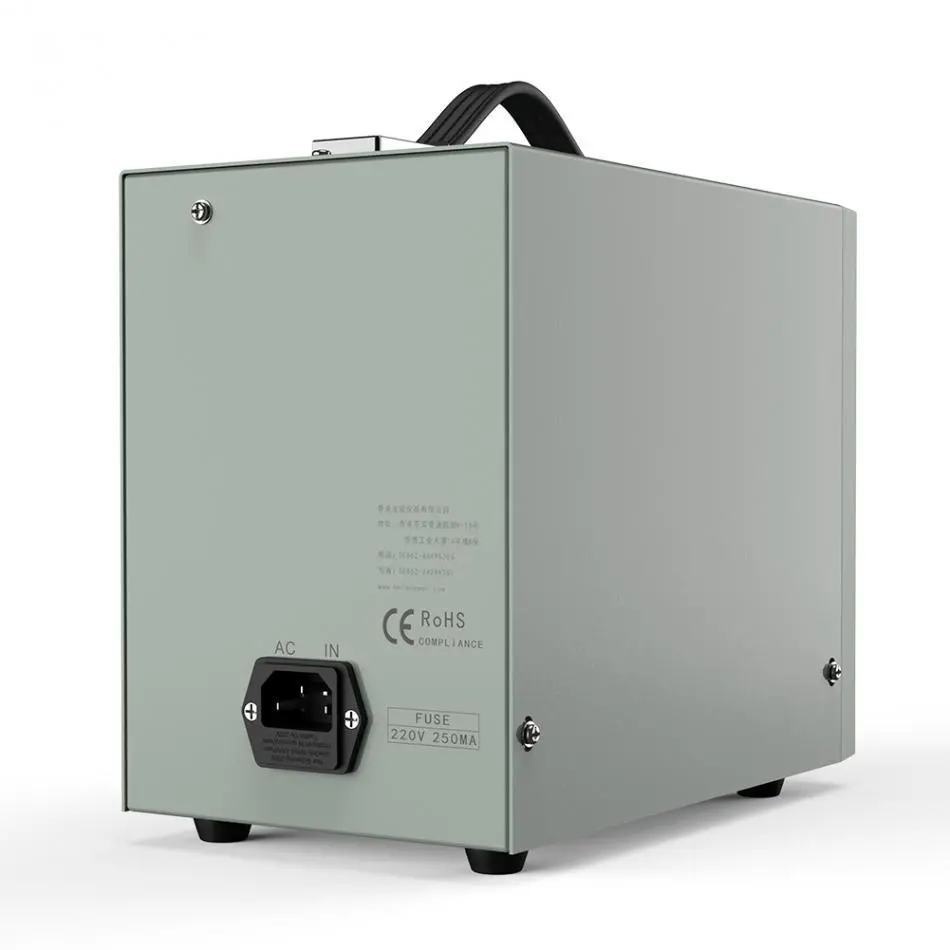

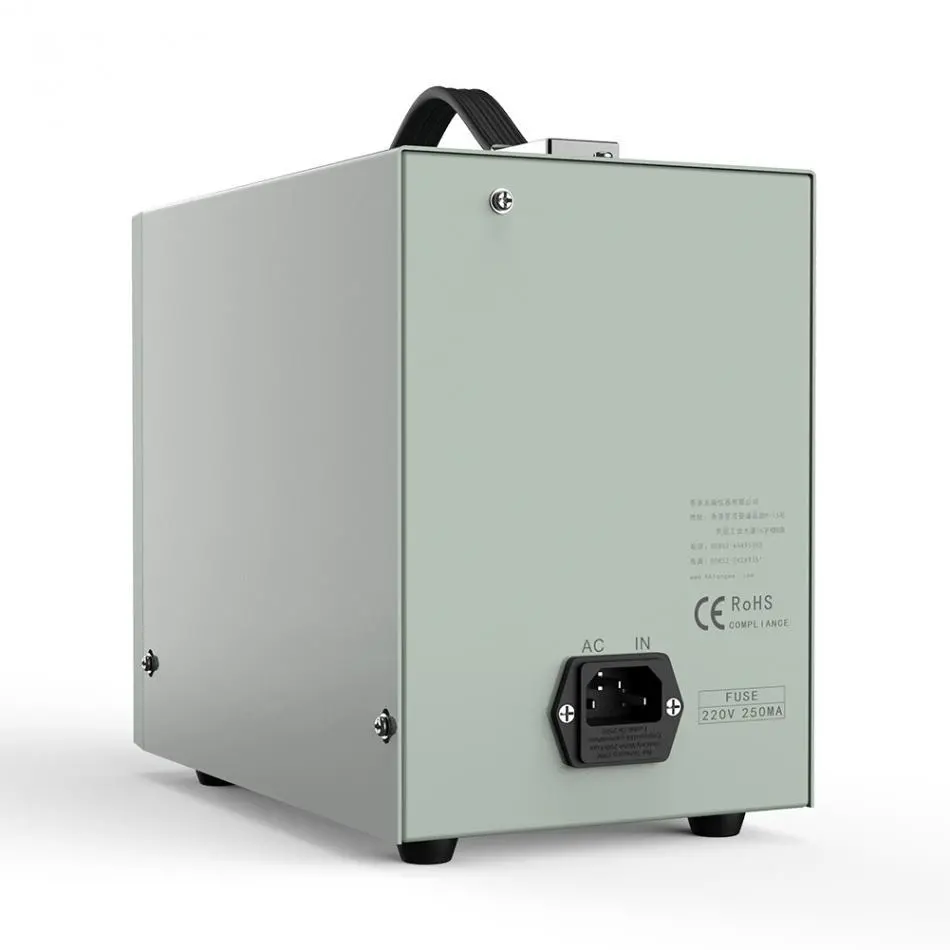

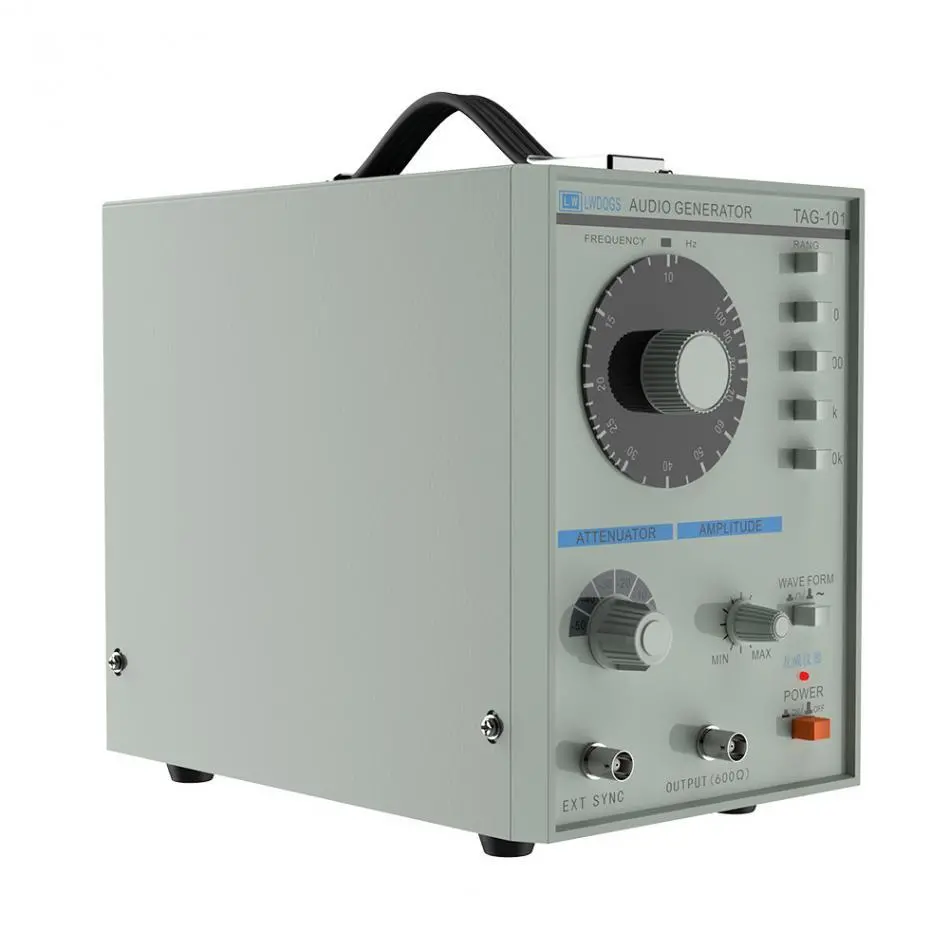

Details Pictures:
