MFJ-945E 10-Band HF Portable Antenna | 3.5-50MHz 100W | Shortwave Radio GP

Product Description

Features:

1. [Differences from JPC-12]

It supports 60m and 80m bands more than JPC-12, and supports the following 10 bands in total: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, 6m, with a wider range of applications

2. [Multi-band high-frequency antenna]

This product can work in the 80m to 6m band. Its frequency range is 3.5-50MHz, the impedance is 50 ??, and the maximum power is SSB-100W. The standing wave ratio is ??1.5 within the working frequency range.

3. [Easy to adjust, low noise]

Adopting a sliding adjuster, adjusting the standing wave becomes simple and effortless by simply sliding the adjustment block

4. [Excellent reception]

Using this portable mobile amateur radio antenna, you can enhance the signal you need to receive and enjoy excellent reception. Designed for transmitting and receiving HF radio signals, it is the first choice for pursuing optimal performance. It is fully compatible with most amateur radio transceivers and does not require a tuner.

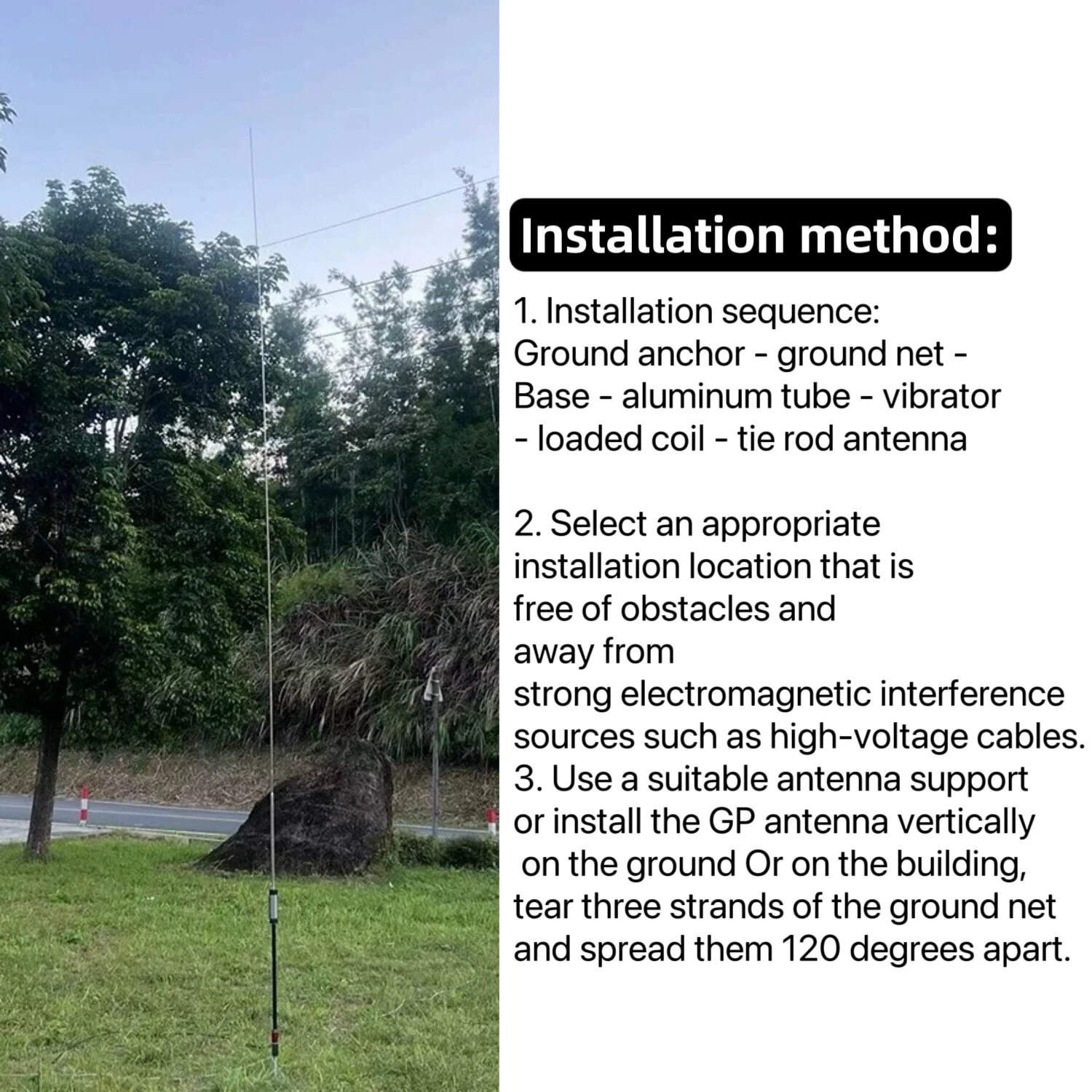

5. [Easy to deploy]

Lightweight and portable, this high-frequency broadband antenna weighs only 1.5KG. Humanized design, split structure, easy to move. One person can also easily carry or set up.

Specification:

Frequency range: 80m to 6m band (3.5-50MHz)

Band: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, 6m

Impedance: 50 ohms

Gain: Varies according to different frequencies and installation heights

Standing wave ratio: ??1.5 within the operating frequency range

Power handling: SSB 100W

Weight: about 1.5kg

Dimension: about 60*18*9cm

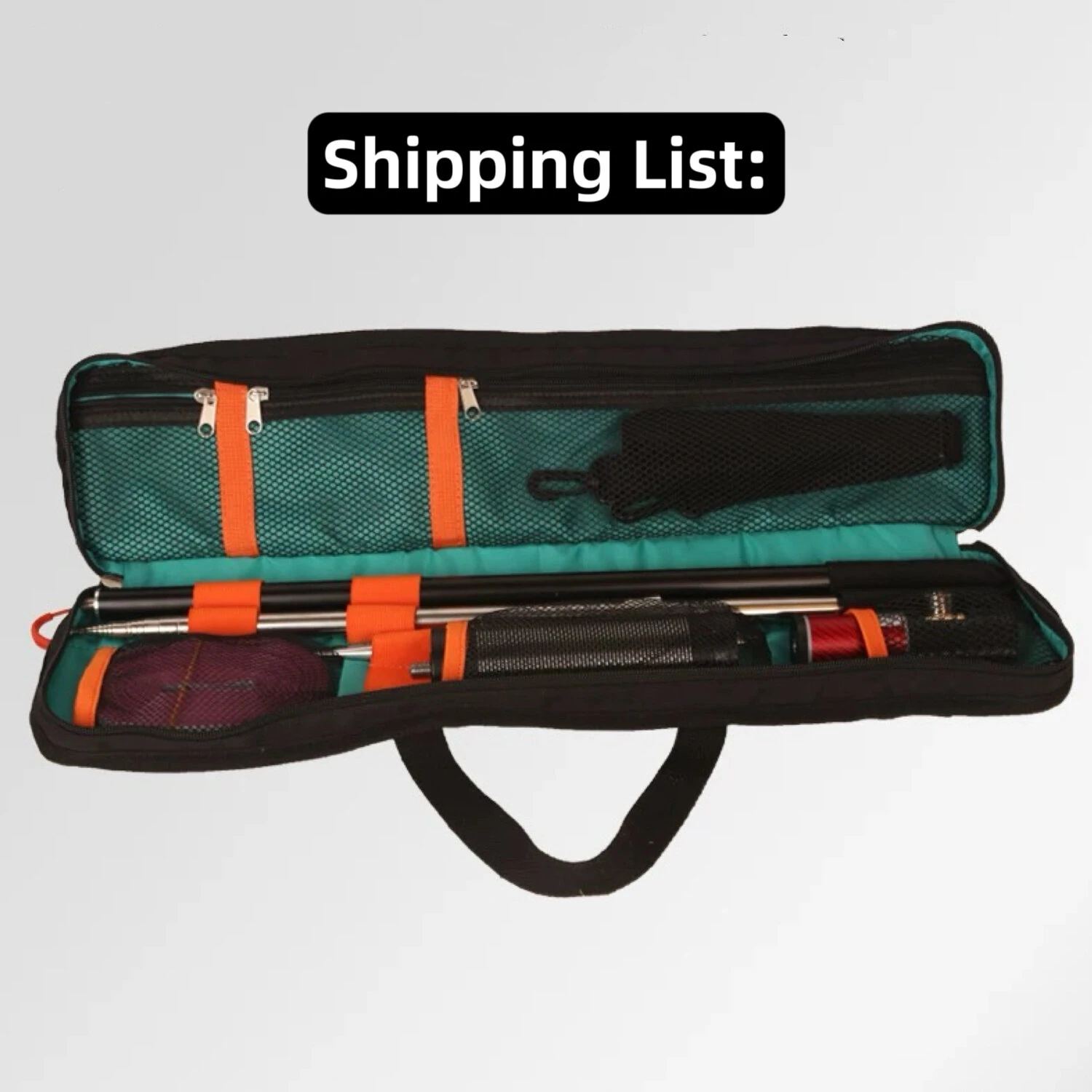

Package Included:

1 x Aluminum Alloy Base

1 x Stainless Steel Pull Rod Antenna

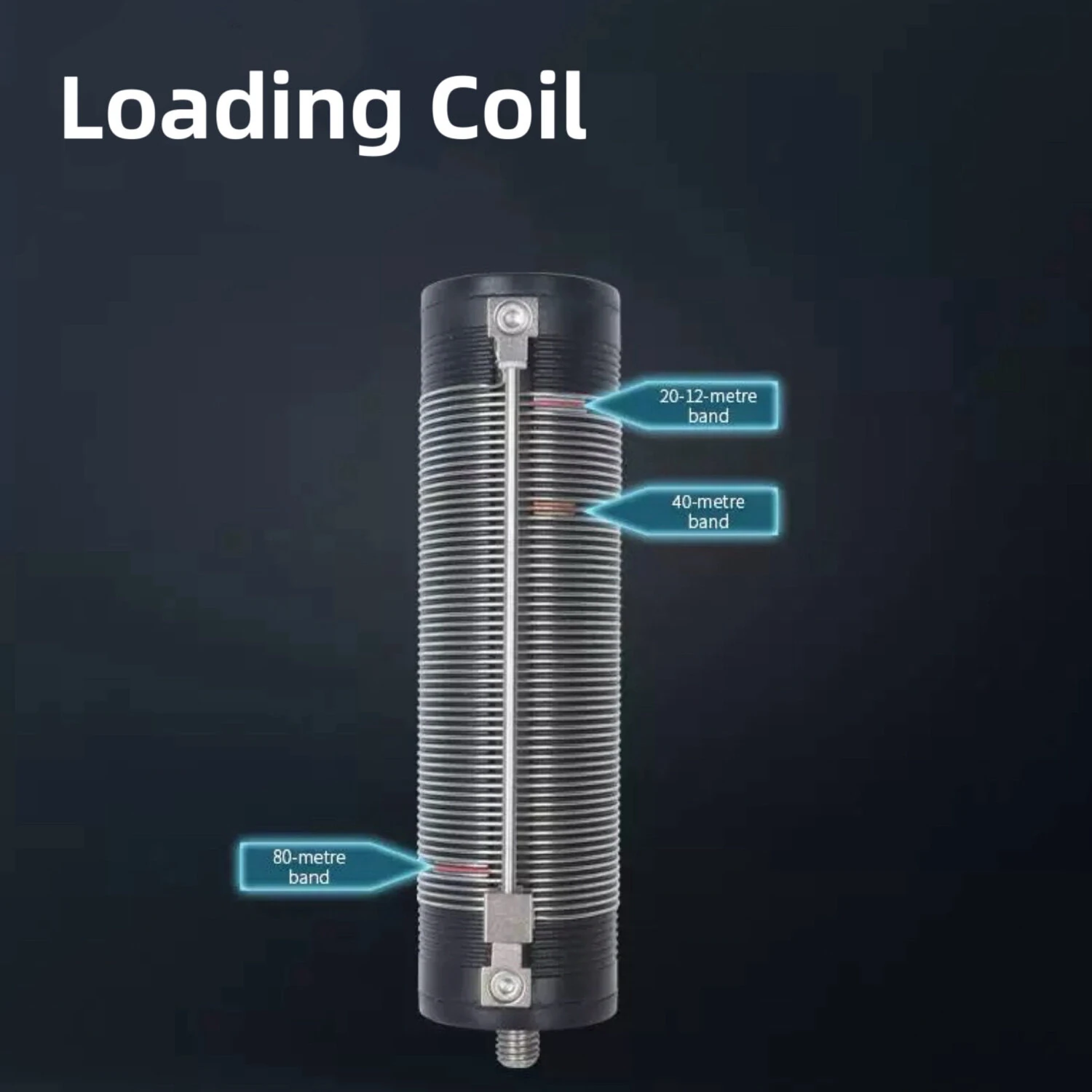

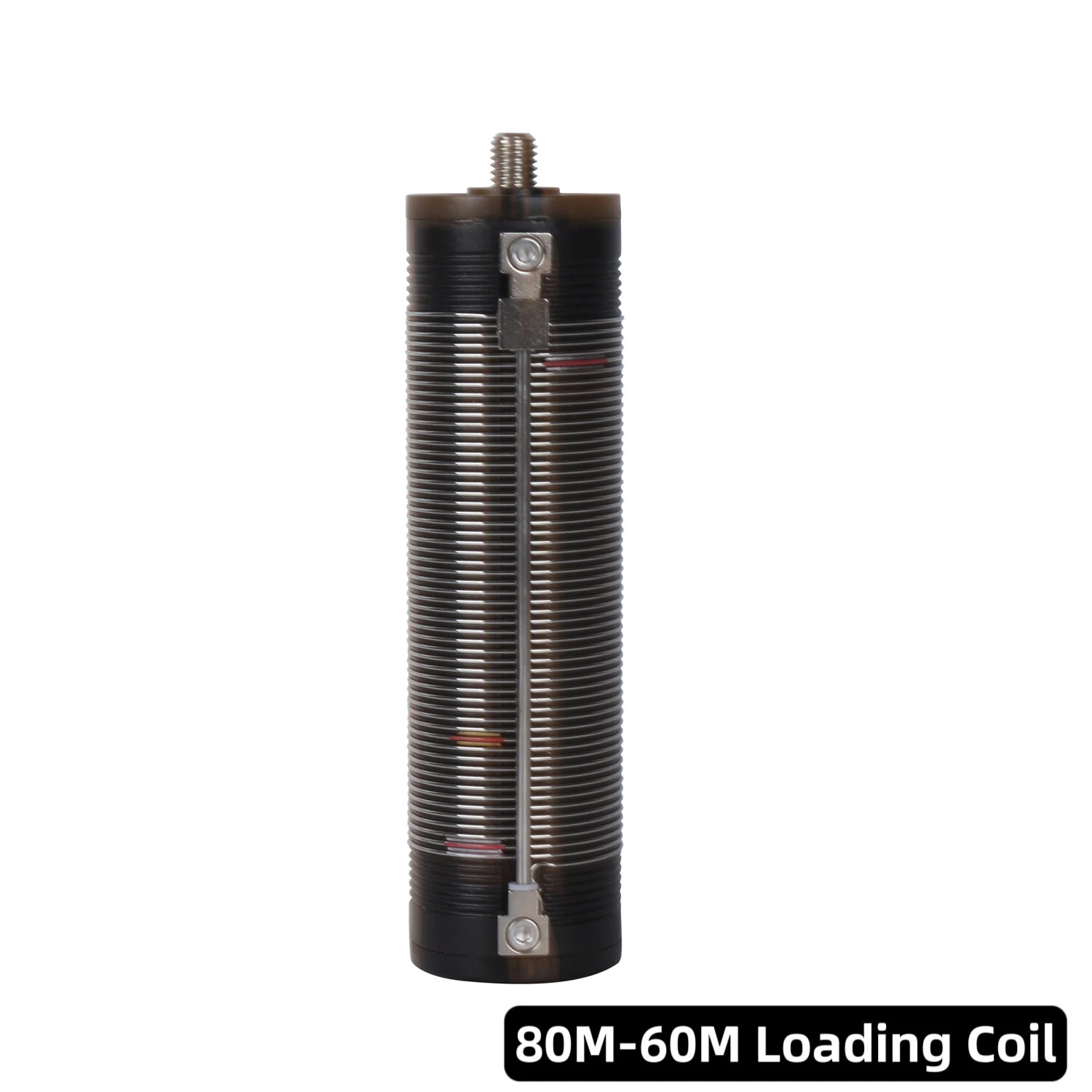

1 x 80M-60M Loading Coil

1 x Grounding Cable (10 strands)

1 x Anodized Aluminum Tube

1 x Ground Anchor

1 x Bag
