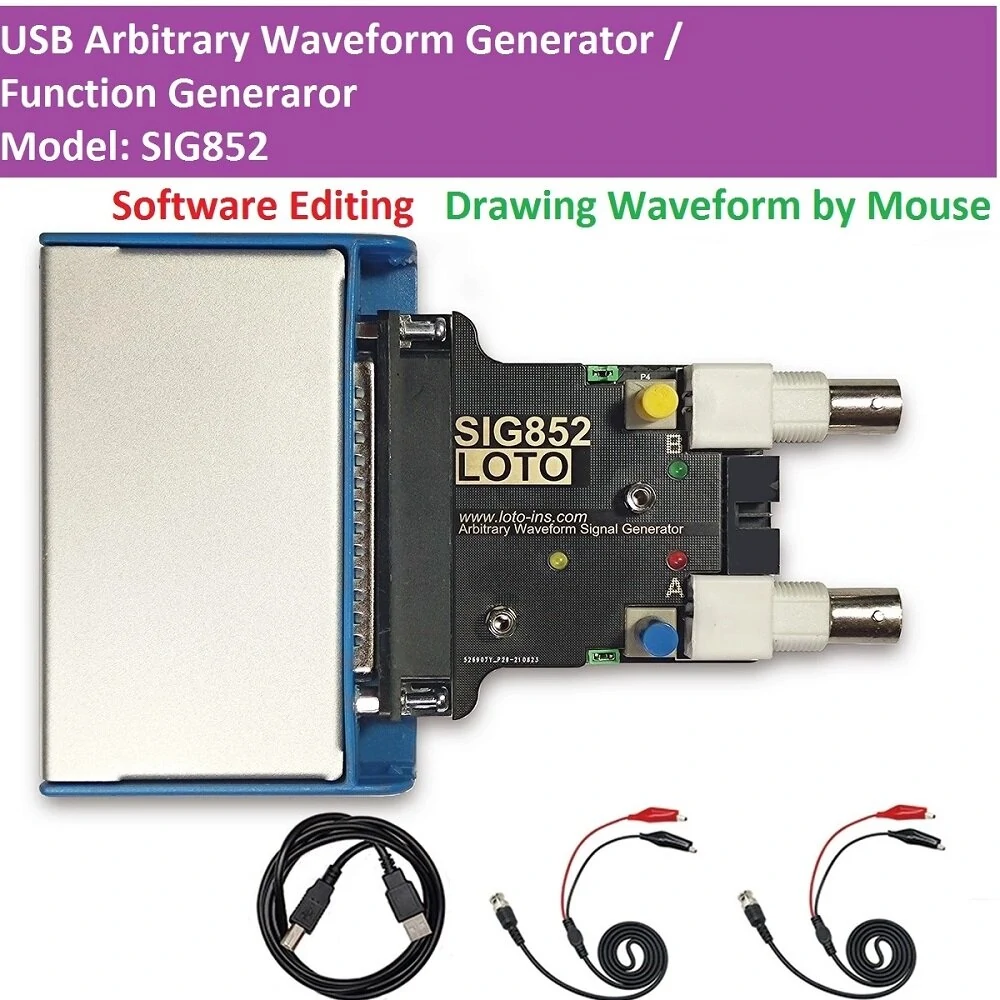

LOTO SIG852 2-Channel USB Signal Generator | Arbitrary Waveform & Function Gen

Connector type

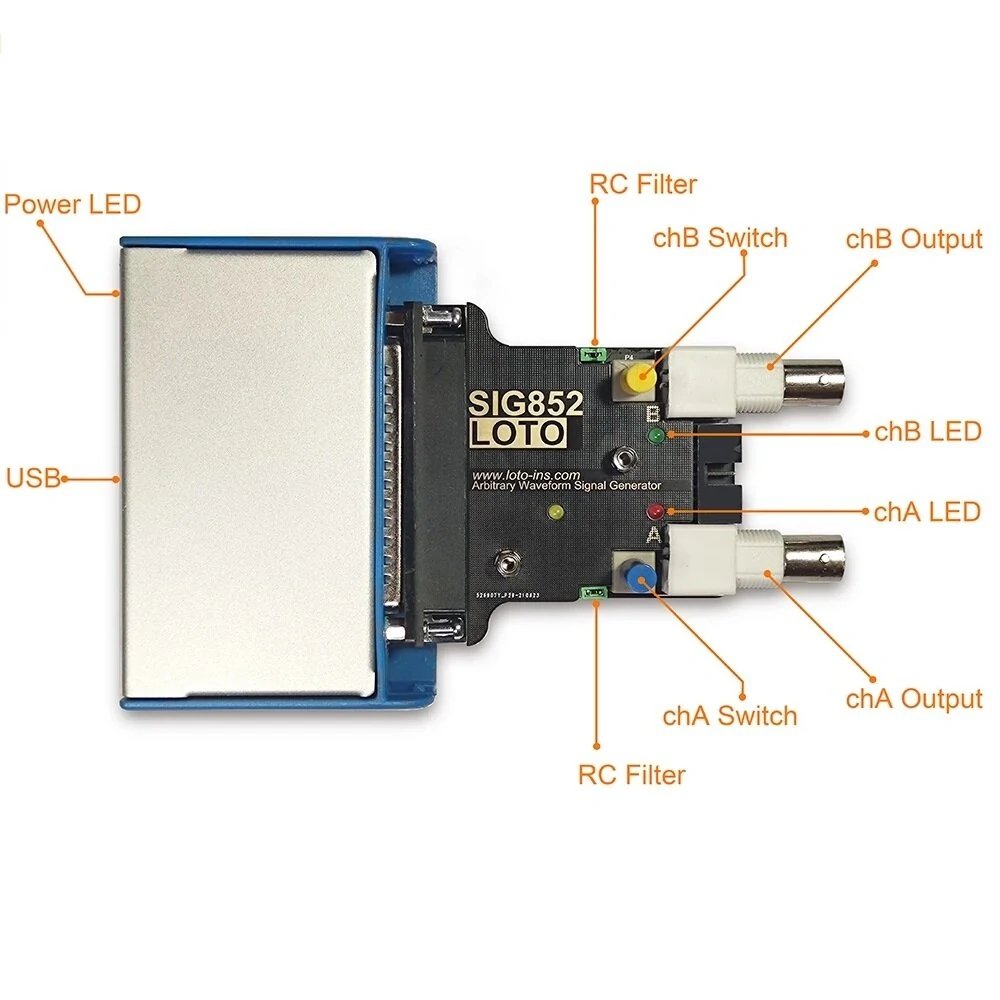

2 channels with BNC sockets, 20 mm spacing.

Vertical resolution

8 Bit

Maximum sampling rate (S/s)

70K

Suggested output frequency

0-3K Hz

Output RC filter

R=1K,C=0.01u, Cutoff frequency is 15K Hz.

Bandwidth ( -3 dB)

30K Hz

Output coupling

DC

Output characteristics

50??(Unfiltered),1K??(RC filtered)

Channel relationship

Two channels can output the same waveform, or two channels can output different waveform independently.

Waveform storage depth

4000 Points(Same waveform)/2000 Points(different waveform)

OS

Windows XP, Win 7, Win 8.1, Win10 (32 bit or 64 bit)

Output mode

Cycle output / single output

Built-in waveform type

Sine wave, triangle wave, sawtooth wave, square waves, Gaussian white noise, DC, Gaussian pulse, Sinx/x, exponential rise, exponential fall.

Waveform settings

Support setting minimum, maximum, frequency, phase.

Hand drawing

Support mouse hand-drawn arbitrary waveform.

Wave segment

Can edit and set partial waveform in sections.

Waveform calculation

Supports waveform scaling, magnification and reduction, waveform addition, subtraction, and multiplication operations.

Signal output voltage range

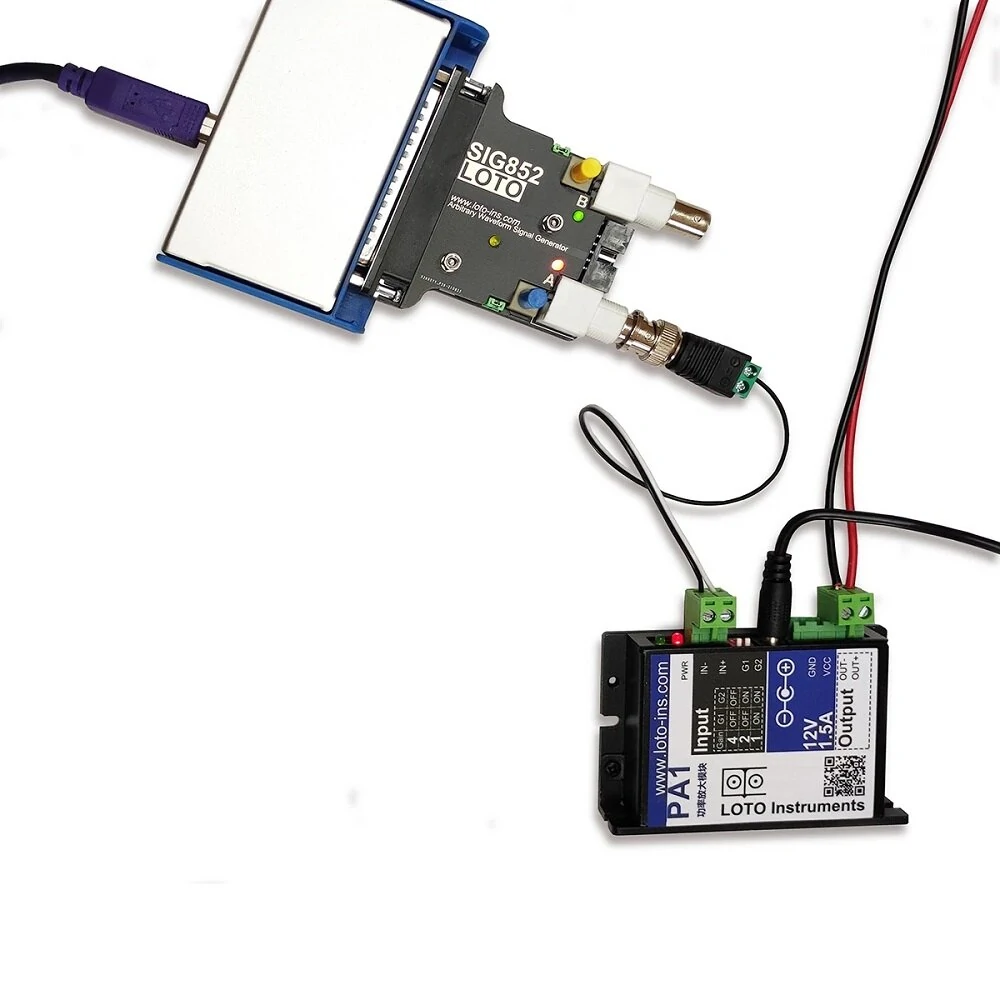

0~3V, if a larger voltage output range is required, it is recommended to add a power amplifier module.

File saved

txt, csv, excel, sig852

Temperature range

Operating: 0 ?? to 40 ?? (20 ?? to 30 ?? for stated accuracy).

Storage: -20 ?? to +60 ??.

Size

140(L) x 93(W) x 23(H) mm.

Languages (full support)

English, Chinese (simplified).
