FG-100 DDS Function Signal Generator | 1Hz-500KHz | Sine Triangle Square Wave
$40.00
$49.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:Small size, complete functions, simple operation, easy to carry. It can be powered by an adapter or a lithium battery. Together with the oscilloscope, it can be used to test and debug electronic circuits, test and measure the frequency characteristics and impulse response of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope scanning time factor calibration. The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.
Specification:
1. Frequency range: sine wave 1Hz-500kHz (where the output amplitude is flat to 200 kHz, and the output amplitude will decrease as the frequency increases), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency is not limited, if The requirements for distortion and shaking are not high, and the frequency of use can be further increased).2. Resolution: 1Hz.3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave.4. Sine wave distortion: <1% below 1kHz, <0.5% at 1kHz and above.5. Output amplitude: maximum ??10V (P-P).6. Output impedance: 50 ohms.7. DC offset: maximum ??10V, with shutdown function.8. There are filters that can be turned on and off, which can adapt to the output of sine and pulse waveforms.8. Power supply: DC3.5-10V. It is recommended to choose DC5V when using the adapter, and 3.7V lithium battery when the battery is used for power supply.9. Dimensions: 125x80x32.10. Weight (including accessories): about 0.2kg
Package includes:
1 x Host1 x USB power cord

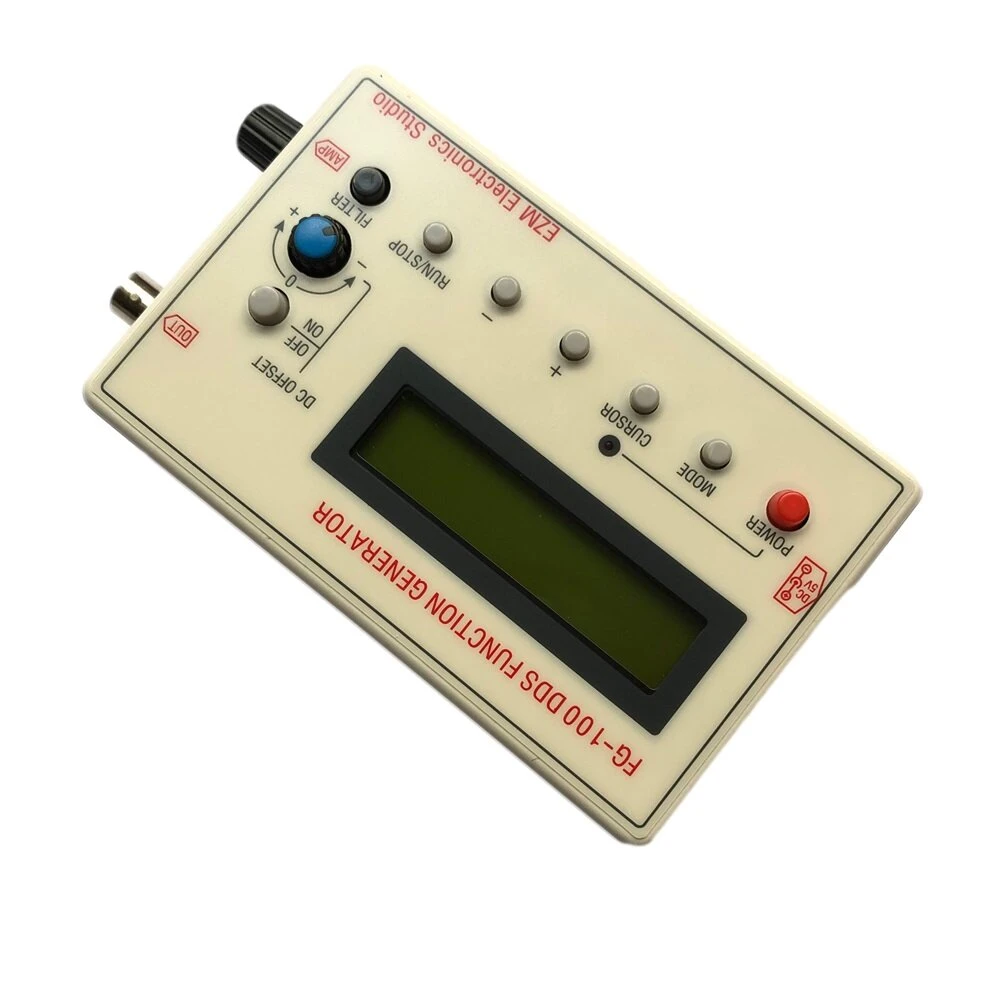

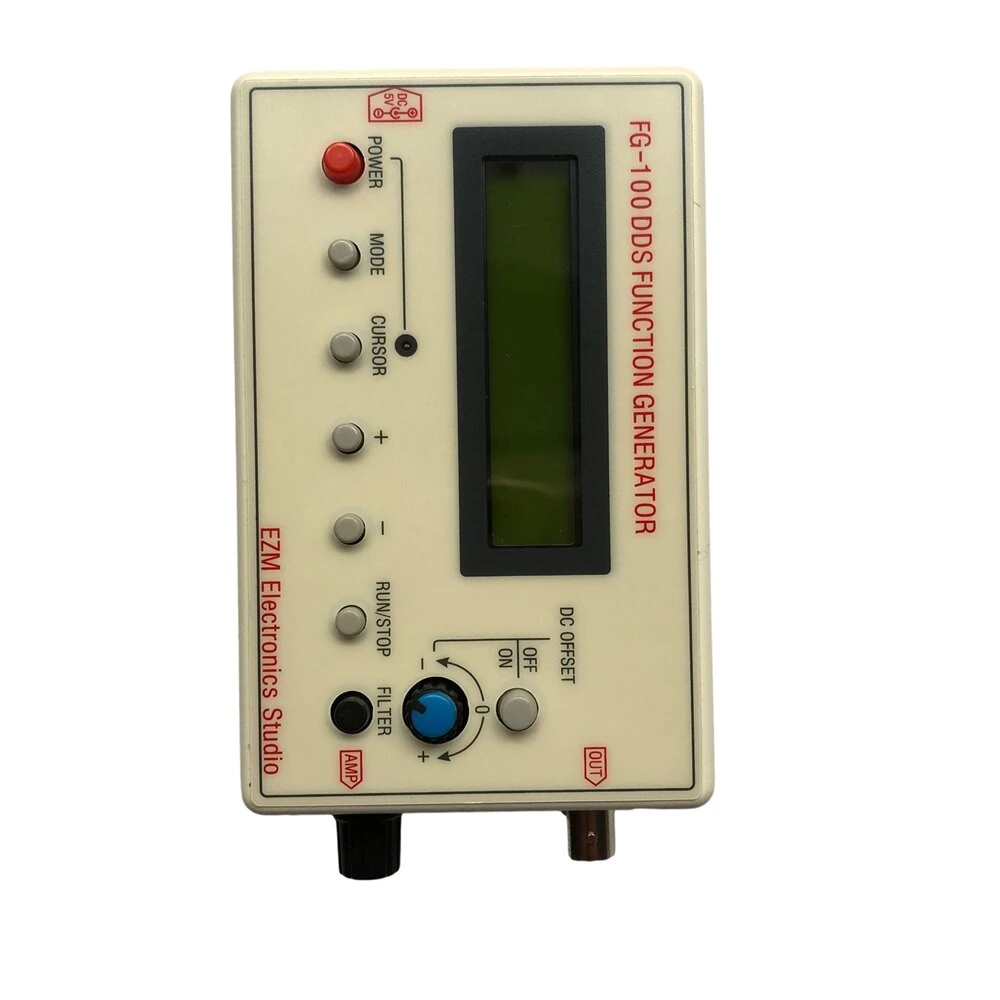

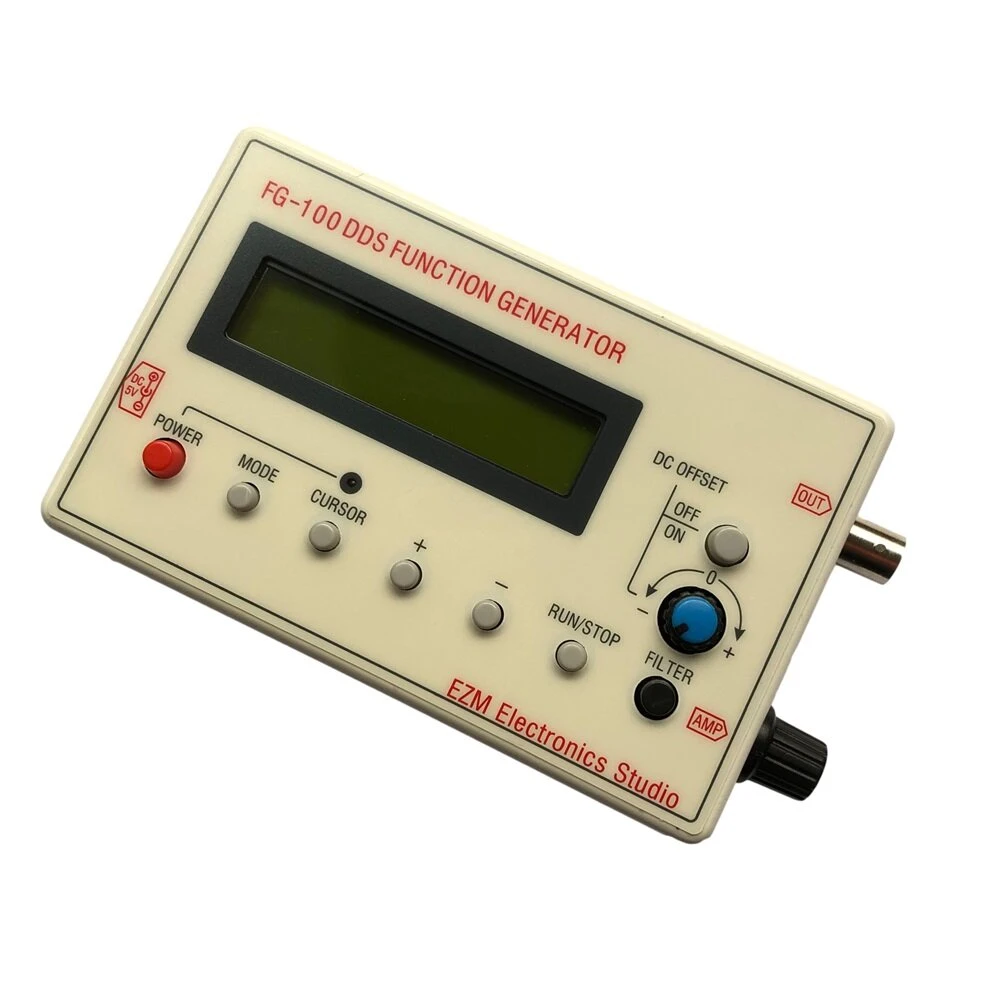

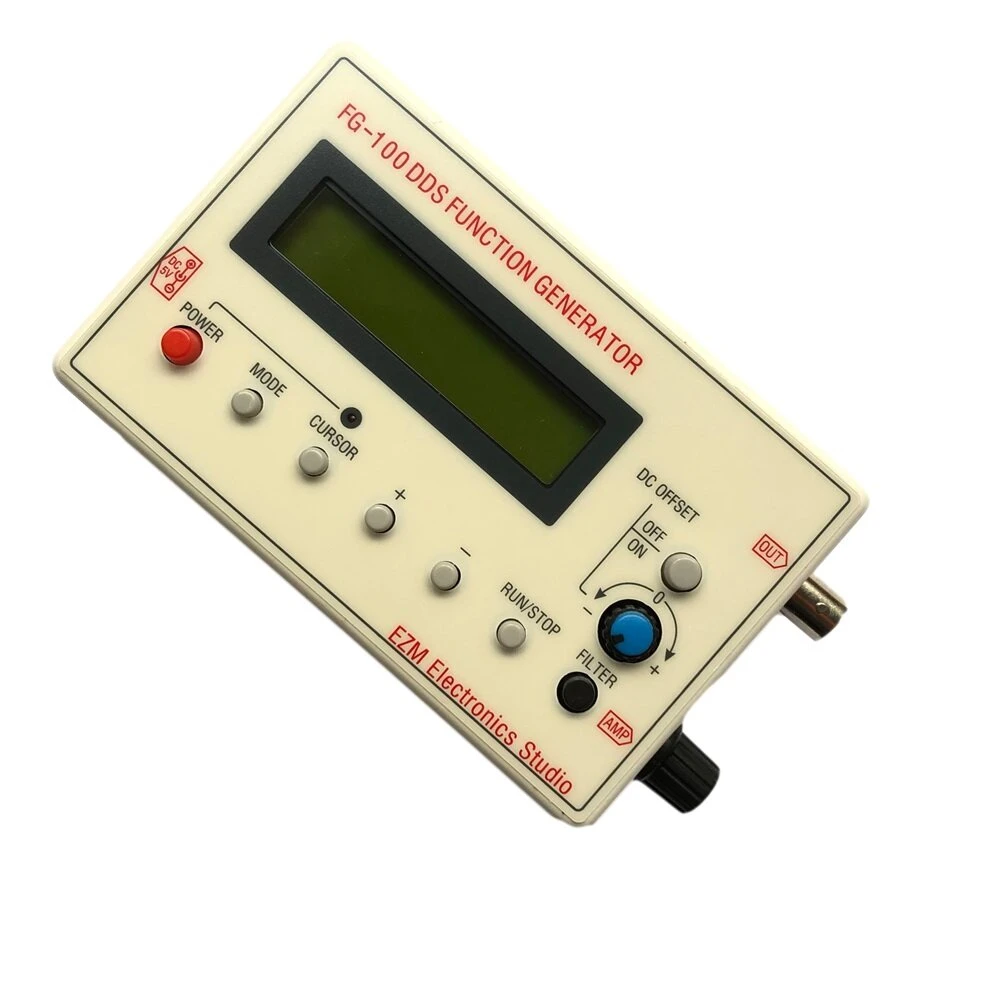

Details picture:
