East Tester Dual Channel Arbitrary Waveform Generator - 20MHz 40MHz 60MHz | ET3320C ET3340C ET3360C
$194.00
$238.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
?Description

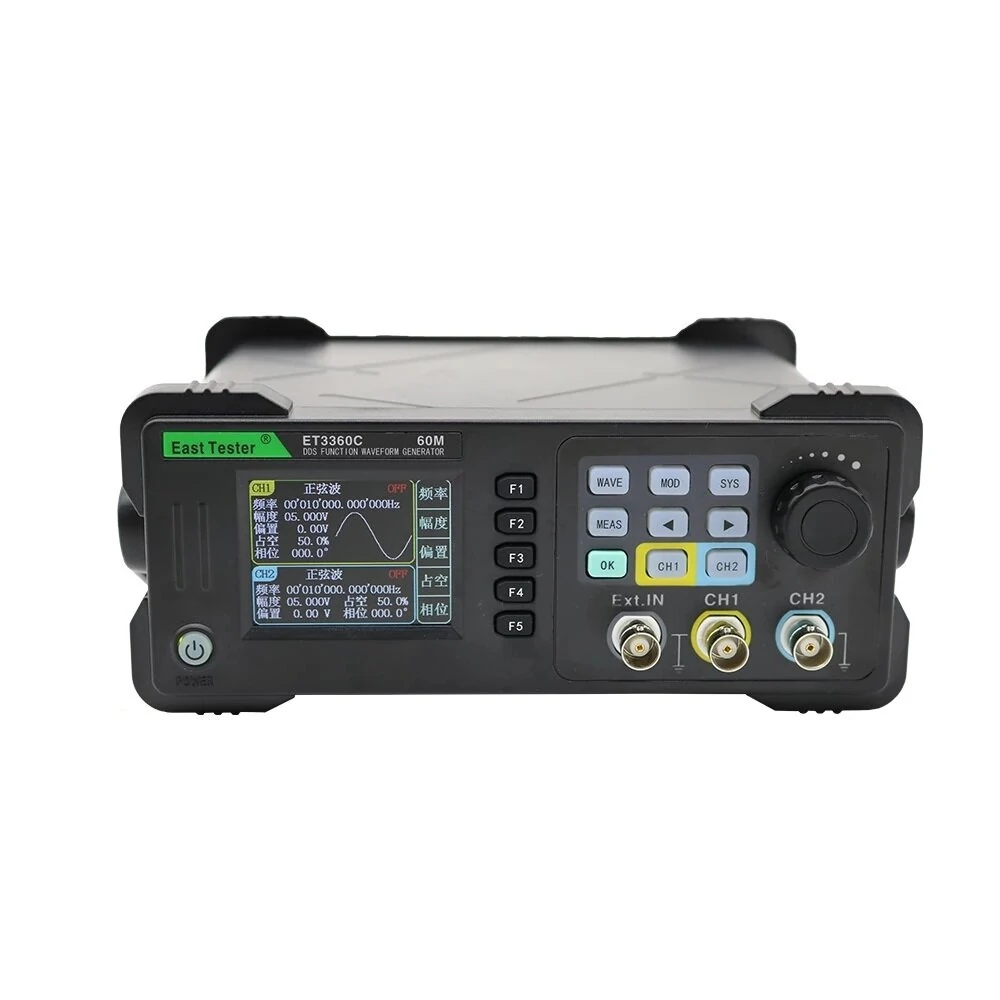

ET33C series two-channelfunction/arbitrary wave generator (hereinafter referred to as ET33C series) adopts direct digital frequency synthesis technology, which can output signals with high accuracy, stability and low distortion.ET33C series has five models: ET3320C, ET3330C, ET3340C, ET3350C, ET3360C, the highest output frequency is 20MHz, 30MHz, 40MHz, 50MHz and 60MHz respectively.
Features:

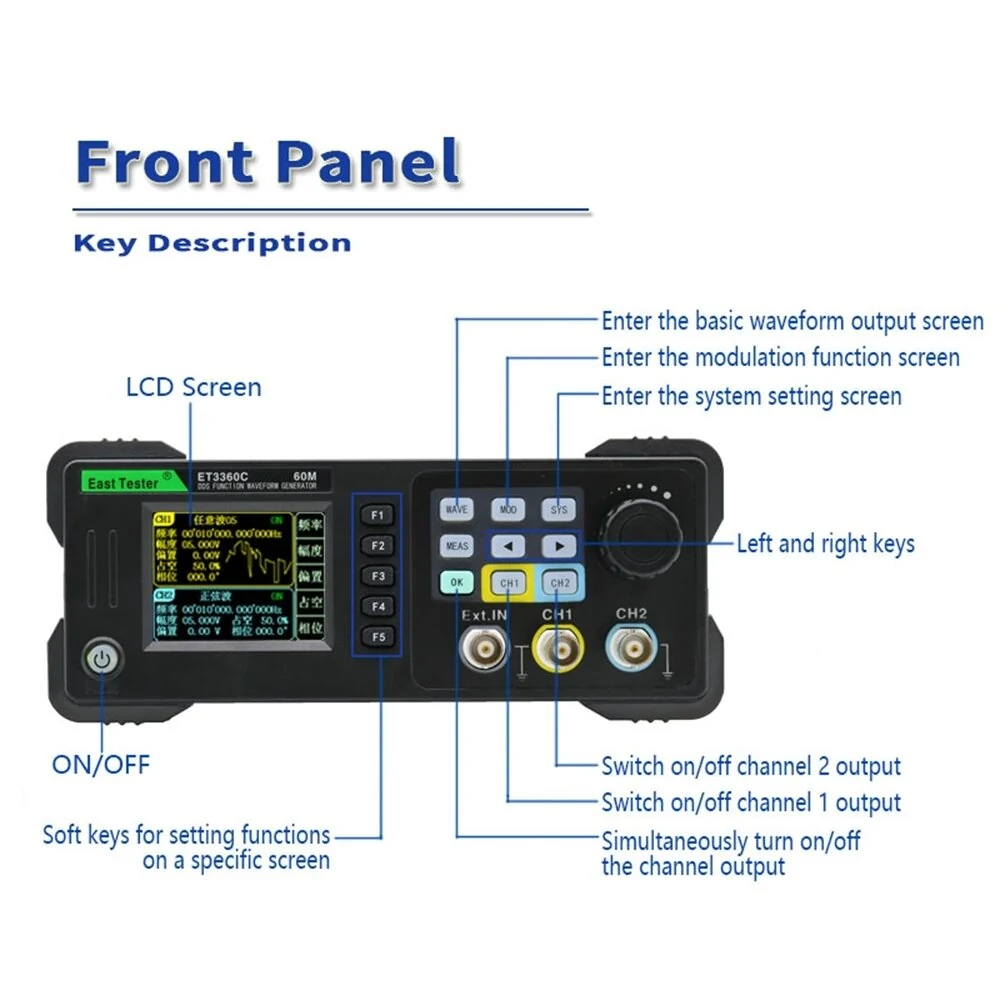

- 2.4-inch 320X240 TFT LCD with clear graphic interface- Chinese / English menu available- Both channels are independent of each other and have phase synchronization function.- Sampling rate: 200MSa/S, vertical resolution: 13bit and storage depth: 8k- 5 basic waveforms and 32 arbitrary waveforms in-built - Waveform storage: Support internal storage of 50 groups of user-defined edited waveforms;- Pulsewave output set in edge time- InternalAM, FM, PMmodulation function??External AM, FM, PM modulation is optional??- Internal/external ASK, FSK, PSK modulation function;- Dual channel output, maximum output frequency 60M;- Output of linear/logarithmic sweep and burst (pulse train) waveforms;- With 100MHz high precision frequency meter and 32 bit counter;- Standard USB Device interface; Optional external analog modulation interface;- Equipped with multifunctional arbitrary waveform editing software.
Specification:
Power | |
Power voltage | AC 110~240V??50~60Hz |
Power consumer | <15W |
Display | |
Type | 2.4-inch TFT LED |
Resolution | 320??240 |
Color | 16M color |
Condition | |
Temperature range | Operation??10??~+40?棻Non-operation??-10??~+60?? |
Cooling method | Natural cooling |
Humidity range | +35?? below????90??relative humidity??+35?? ~ +40?棺??60??relative humidity |

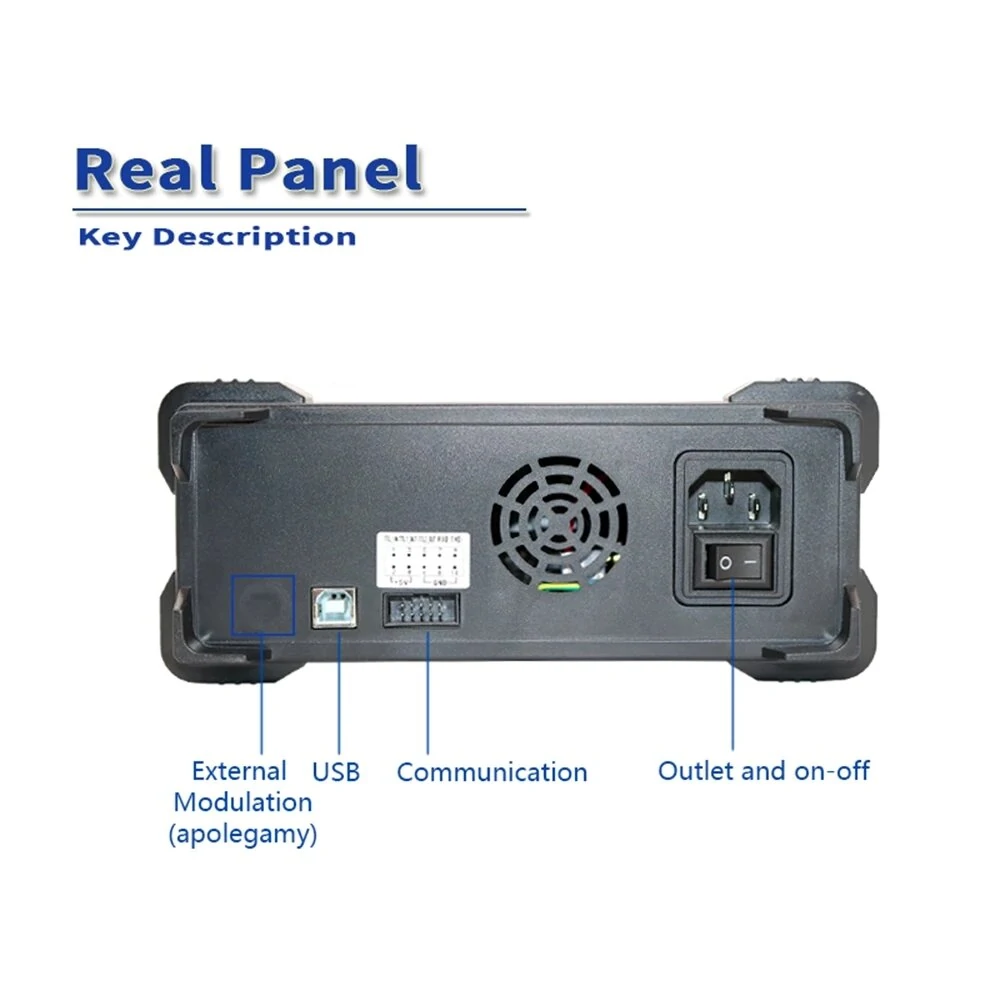

Interface | USB Device |
Packing includes:
1 x Waveform Generator
1 x Three-core power cable2 x BNC coaxial cables1 x USB data cable1 x Straight signal cable1 x Instruction Manual
