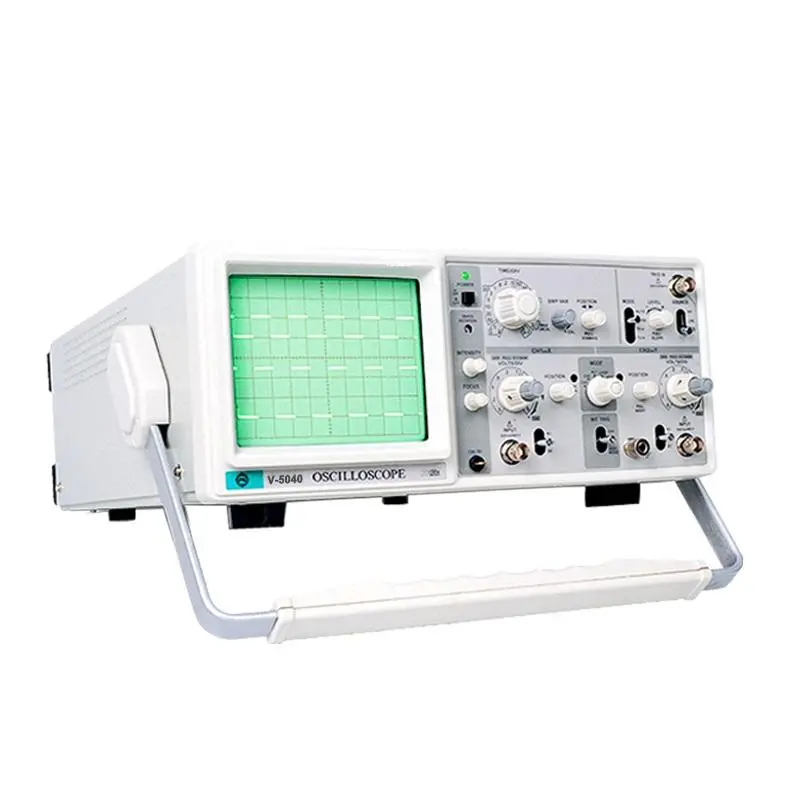

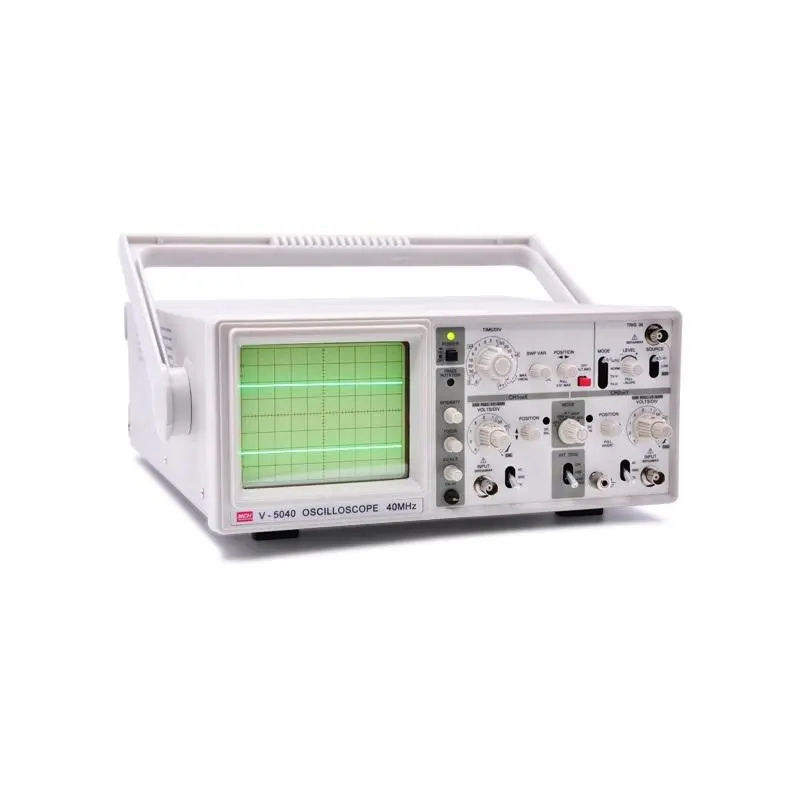

V-5040 40MHz Handheld Oscilloscope | 2 Channel Analog with 6 CRT Display
$586.00
$721.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
MHC V-5040 Dual Trace Analog Oscilloscope 40MHz Oscilloscope 6 Inches of Big screen Features: ?? DC-40MHz ?? Dual channels/dual traces, X-Y mode ?? 6" display, high brightness T'oshiba oscilloscope tube ?? High sensitivity of triggering, up to 1mV/division ?? CH1 channel incremental magnification function for clearer observation than ordinary oscilloscope ?? TV synchronous separation circuit for displaying stable TV signal ?? Triggering mode:AUTO/NORM/TV-V/TV-H ?? Vertical:CH1/CH2/ALT/CHOP/ADD ?? X-x10/Y-x5 ?? Polarity inversion ?? CH1 Sync output ?? Power supply:AC 220V (110V optional)Specification:
| Model | V-5040 | V-5060 |
| CRT | 6 inch rectangular screen with internal graticule, 8X10div (1div = 1cm) | |
| Verticaldeflection | ||
| Display mode | CH1, CH2, ADD, ALT, CHOP | |
| Deflection factor | 5mV/div to 5V/div ??3%, 1mV/div to 1V/div ??5%(X5),10 steps | |
| Rise time | ??8.8ns | ??5.9ns |
| Max. Input voltage | 250V (DC+AC peak) ??1KHz | |
| Input coupling | AC, DC, GND | |
| Polarity selection | + or - (CH2 only) (??CH2) | |
| Horizontal deflection | ||
| Display mode | 1, 10, X-Y | |
| Time Base | 0.2ms/div to 0.2s/div,9 ranges | |
| Sweep magnification | x10 | |
| CH1 ALT Magnification | x10 | |
| Accuracy | ??3% | |
| Trigger System | ||
| Trigger mode | NORM , AUTO, TV-V, TV-H | |
| Trigger source | CH1, CH2, VERT, LINE, EXT | |
| Sensitivity and Frequency | 20Hz~40MHz(VERT) | 20Hz~60MHz(VERT) |
| AUTO, NORM | 1.5div(INT), 0.8Vp-p(EXT) | |
| TV-V, TV-H | At least 1div or 1Vp-p (????һ???1.0Vp-p) | |
| Input impedance | 1M?? | |
| X-Y Operation | ||
| X-Y Phase difference | ??3??, DC-50kHz | |
| Others | ||
| Calibration waveform | Frequency: 1kHz ??20%, Voltage: 0.5V ??10% | |
| Power supply | 220V/110V ??10%; 50/60Hz | |

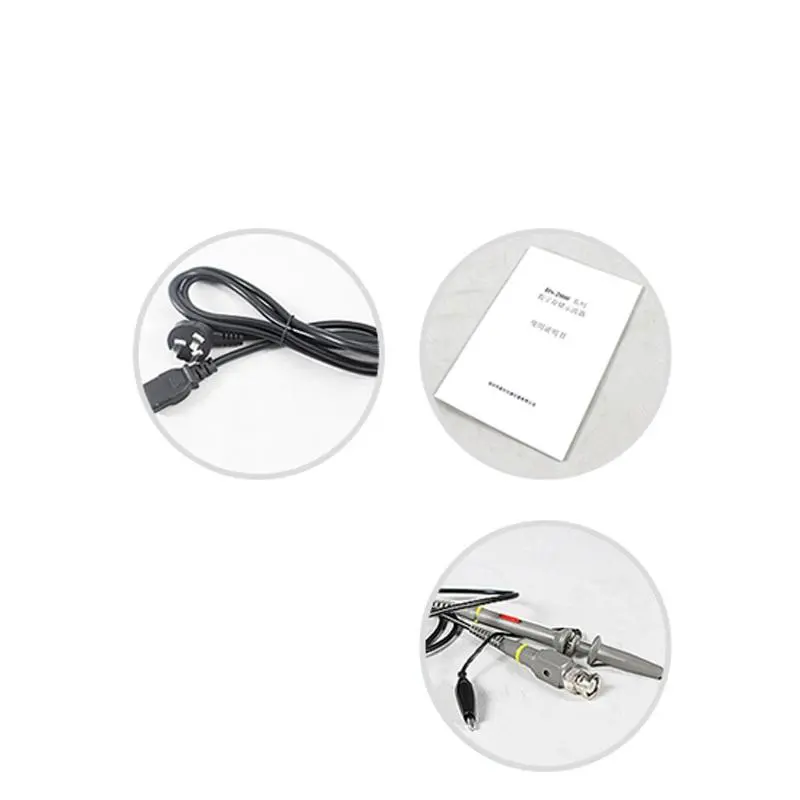

Package Includes:
1 x Analog Oscilloscope
1 x Power Supply
1 x Pair of Test Probes
Note:
We will send you a plug adapter according to your country.

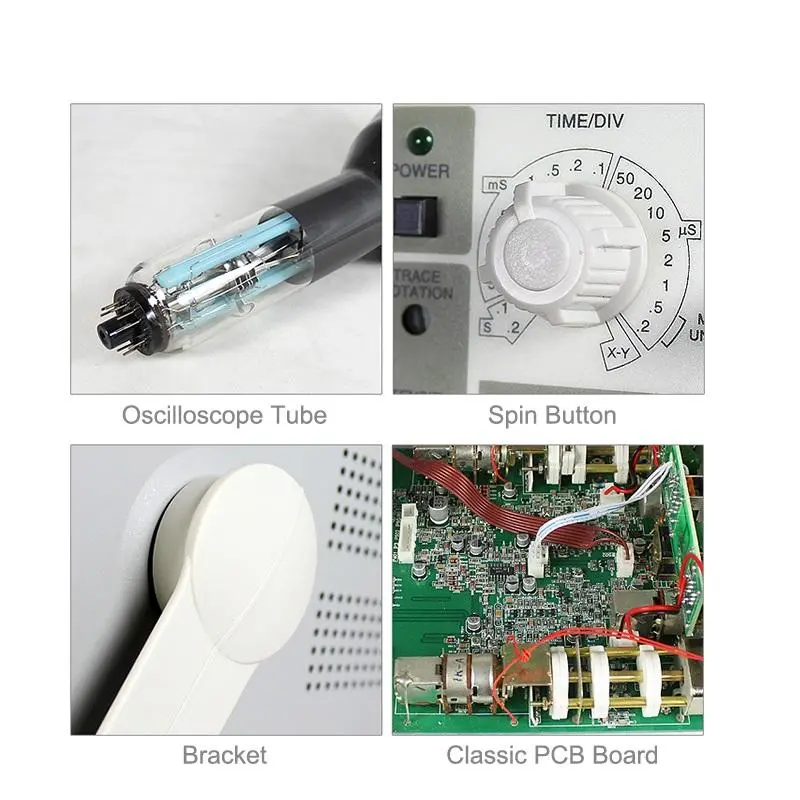

Details Pictures:
