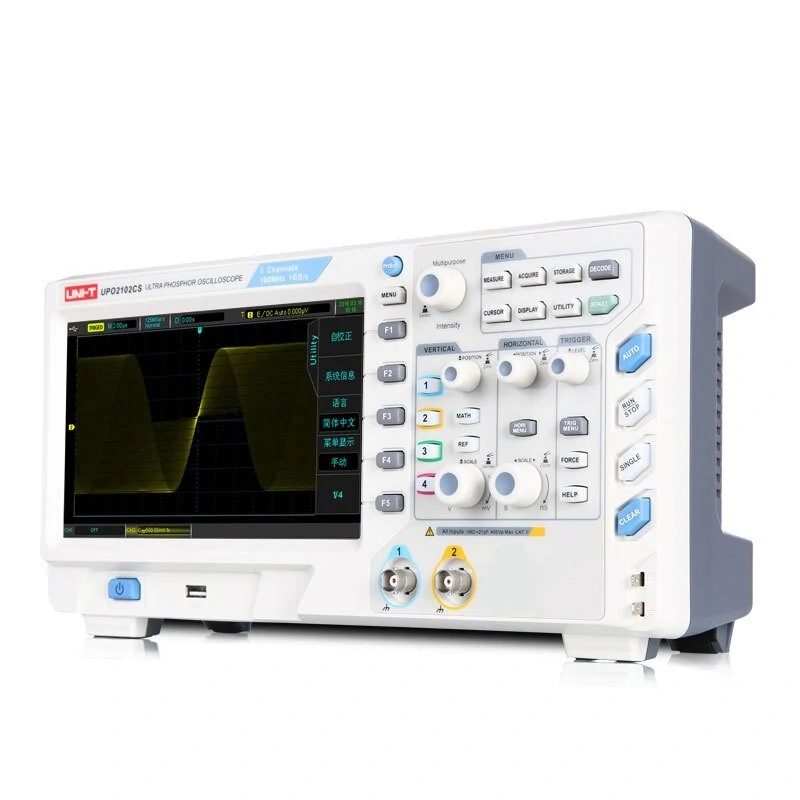

UNI-T UPO2102CS Oscilloscope - 100MHz Bandwidth, 2 Channel, 1GS/s Sampling
Product Description
?Notice:
UNI-T official website manual software download address: https://www.uni-trend.com/index.php
Features:
1. Standard configuration is 28Mpts storage depth per channel.
2. Multi-level waveform gray scale.
3. Up to 65,000 frames of hardware real-time waveform recording function.
4. Independent time base of each channel is adjustable.
5. Has a powerful waveform analysis function.
6. Abundant trigger and bus decoding functions.
7. Provide abundant peripheral interfaces.
Specifications:
Models | UPO2102CS |
Bandwidth | 100 MHz |
Channels | 2 |
Sample Rate | IGS/s |
Max. Memory Depth | 32Mpts |
Waveform Capture Rate | 30,000wfms/s |
Time Base Scale | 2 ns/div - 50 s/div |
Input Coupling | (IM????1%)||(13pF??3pF) |
Vertical Scale | ImV/div - 20V/div (IM??) |
OC Gain Accuracy | ??3% |
Waveform Record | 65,000 Frames |
Trigger | Edge, Alternate, Runt, Super picture. Nth Edge, Delay, Duration, SetupHold, Pulse Width, Slope, Video, Pattern, RS232/UART,I2C,SPI, USB |
Bus Decode | Standard?? Parallel; Optional?? RS232/UAR1??I2C,SPI, USB |
Waveform Operation | A+B. A-B, AXB??A/B, FFT, Editable Advanced |
Auto Measurement | Peak-Peak Value, Amplitude, Maximum, Minimum, Top Value, Bottom Value, Mean, Average, Root Mean Square Value, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay l->2, and Delay 2->l |
Number of Measurements | Display 5 measurements at the same time |
Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
Frequency Counter | Hardware 6 bits counter (Channels are selectable) |

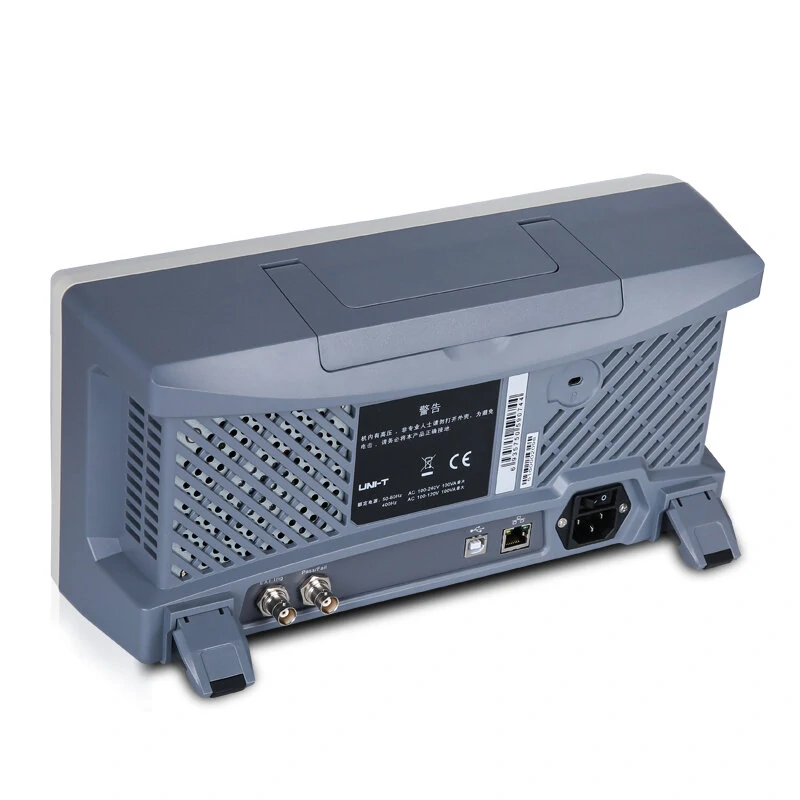

Standard Interface | USB-Host, USB-Device, LAN.lOMHz Input/Output, AUX Output (TrigOut, Pass/Fail) |
General Characteristic | |
Power | 200V?240VACrms, 45Hz?440Hz |
Display | 8 inches, TFT LCD, WVGA(800X480) |
Product Color | White and Gray |
Product Net Weight | 3.5 kg + 0.2 kg |
Product Size (WXHXD) | 336mm X 163.8mm X 105mm |
Package Included:
1 x Oscilloscope
1 x ProbeX2/4 (lX,10X swltchable)
1 x Power Cord
1 x USB Data Cable
1 x PC software CD
1 x Packaging Gift Box
1 x English User Manual
