TOOLTOP ET601/ET602 5-Channel Wireless Oscilloscope | Wi-Fi USB Car Repair Tool

Product Description

Features

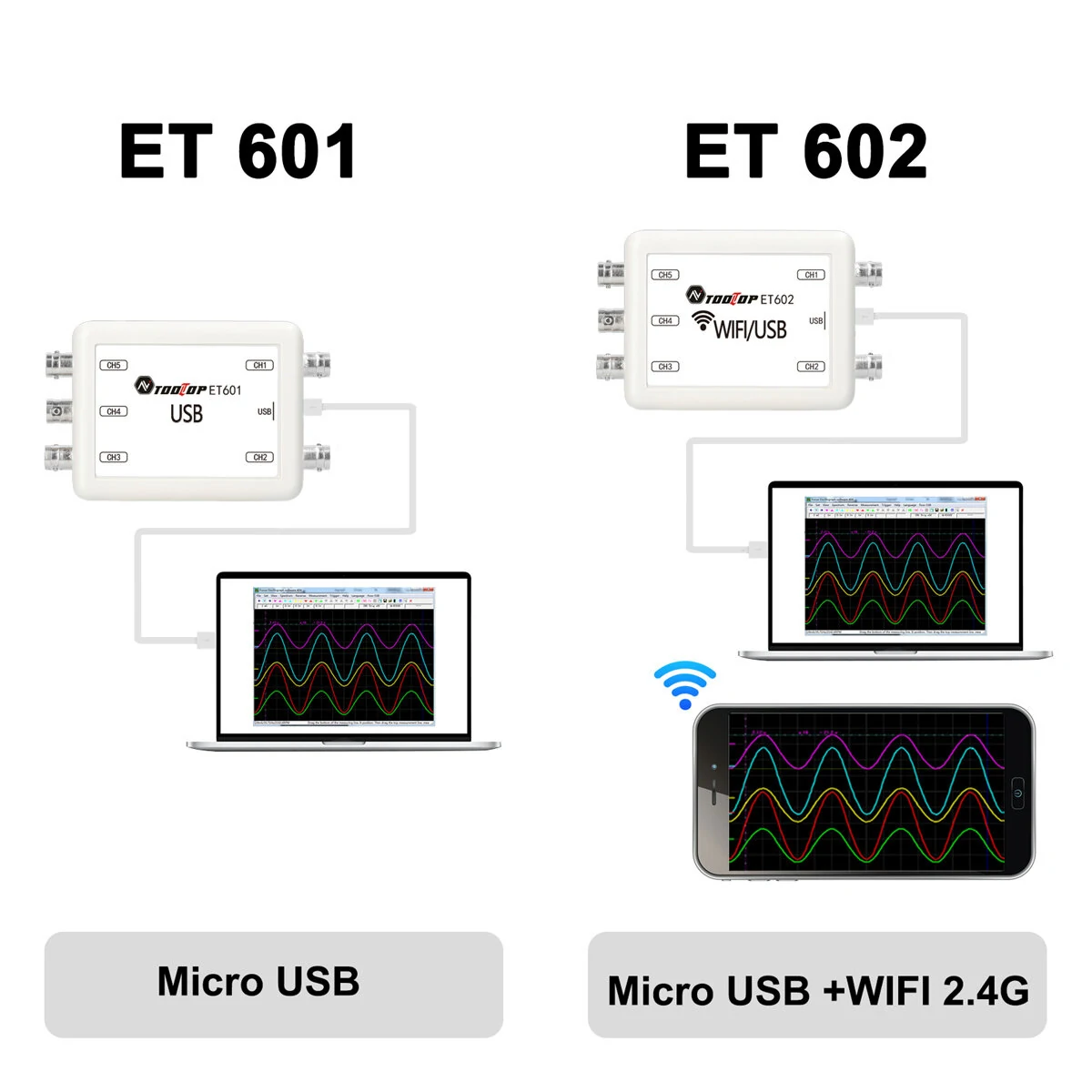

- Wi-Fi Connectivity: This device comes with a built-in Wi-Fi 2.4G for wireless communication. This allows for seamless data transfer and remote control of the device.

- High Sampling Rate: With a maximum sampling rate of 150kHz, this oscilloscope provides accurate and precise measurements for your needs.

- Wide Frequency Ranges: This device can measure frequency ranges from 0Hz to 50kHz, making it versatile for a wide range of applications.

- Versatile Amplitude Adjustment: The amplitude adjustment ranges from 10 mV/DIV to 1 V/DIV, providing flexibility for various signal levels.

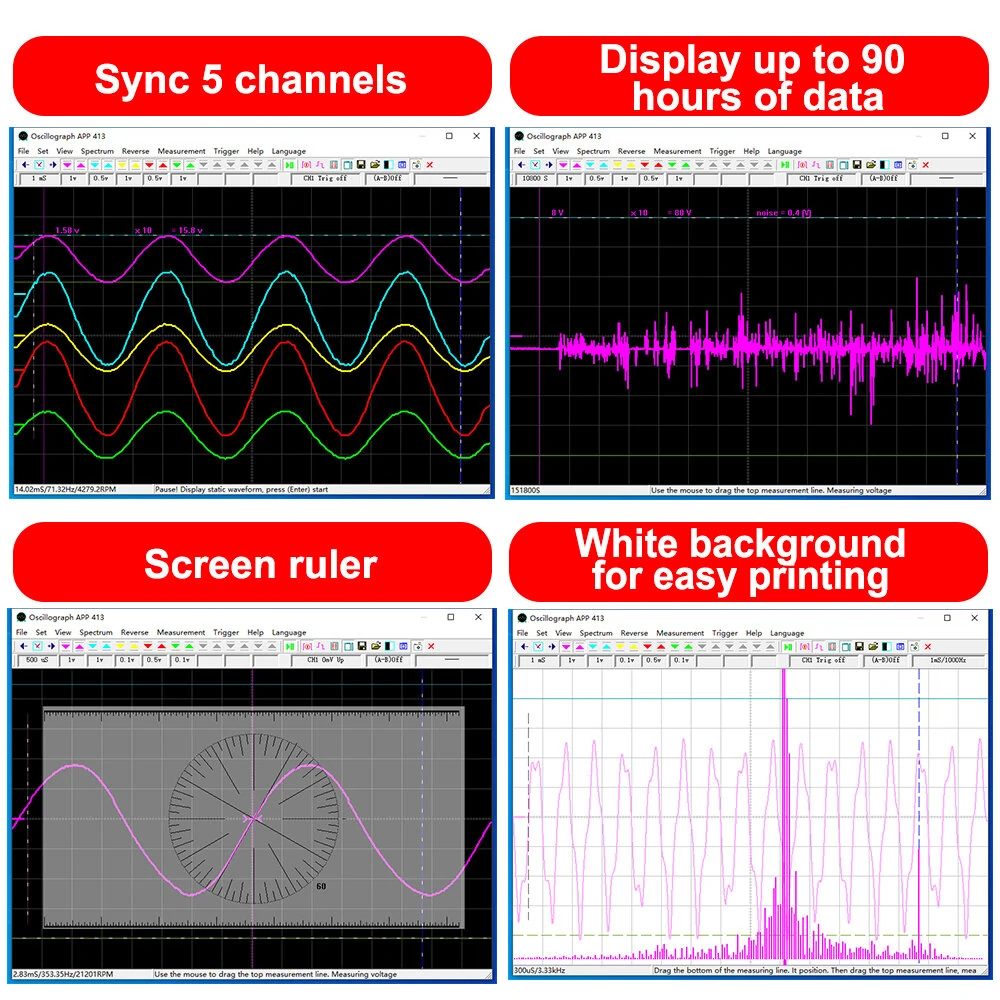

- Long Data Recording and Saving Depth: With a data recording and saving depth of 8388608*5, this device can record and save data for up to 93 hours.

- High Input Impedance: The device comes with an input impedance of 1 M?? (<0.5V/DIV); 330k?? (??0.5V/DIV), allowing it to measure a wide range of signals without affecting the circuit.

Specification

Model: ET602 / ET601

Wireless Communication: Wi-Fi 2.4G

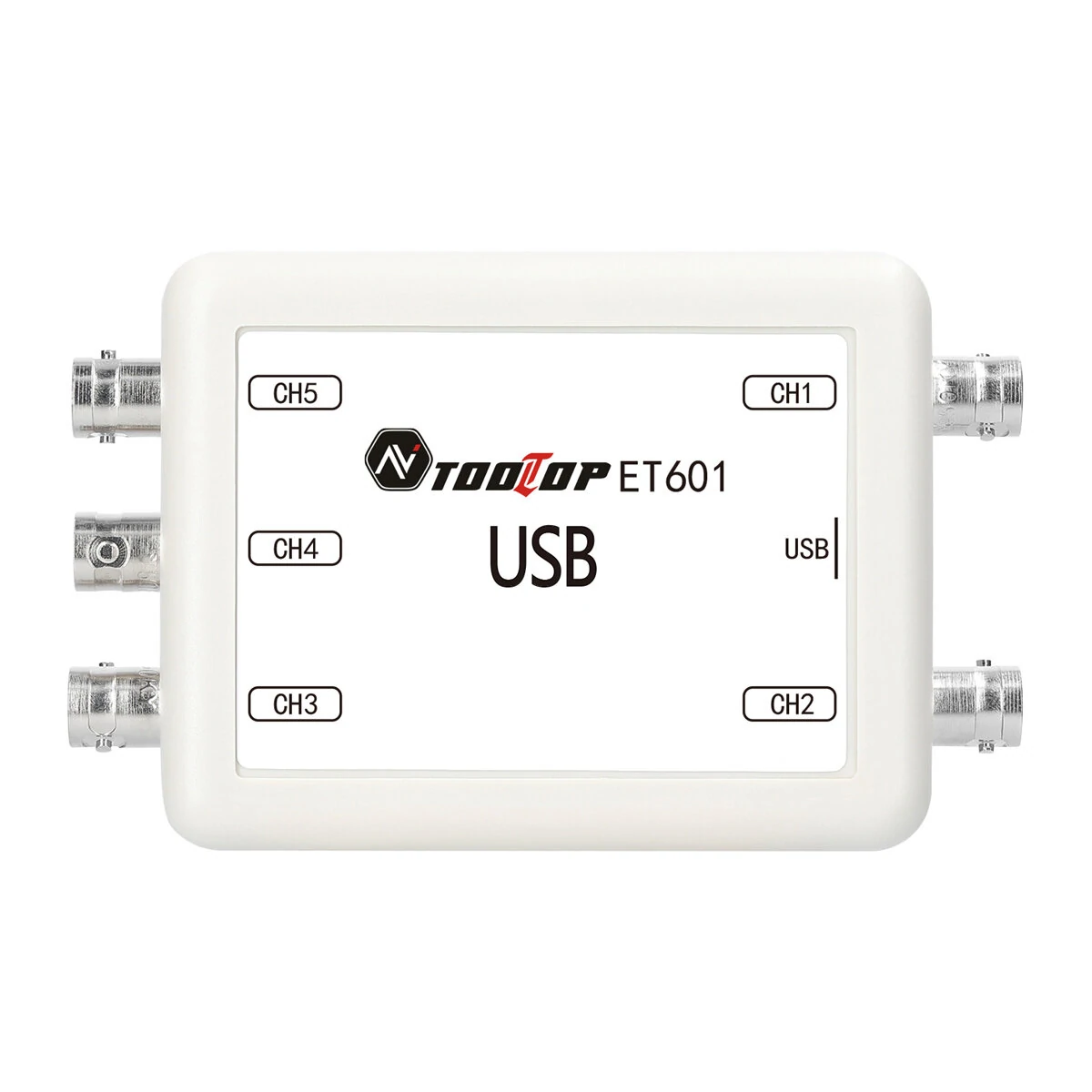

Signal Input Interface Type: BNC Interface

Maximum Sampling Rate: 150kHz

Operating Voltage: 5V Micro USB interface power supply

Current Consumption: <170 mA

Measurable Frequency Ranges: 0Hz-50kHz

Amplitude Adjustment Ranges: 10 mV/DIV to 1 V/DIV

Input Impedance: 1 M?? (<0.5V/DIV); 330k?? (??0.5V/DIV)

Maximum Measurement Voltage: ??8 V, ??80 V at probe X10

Amplitude Error: ??2.5%

Time Domain Ranges: 100 uS/DIV-10800 S/DIV

Data Recording and Saving Depth: 8388608*5

Maximum Record and Save Data Time: 93 hours

Package Included

1 x Oscilloscope (Model as your choice)

1 x BNC Interface Cable

1 x Micro USB Power Cable

1 x User Manual
